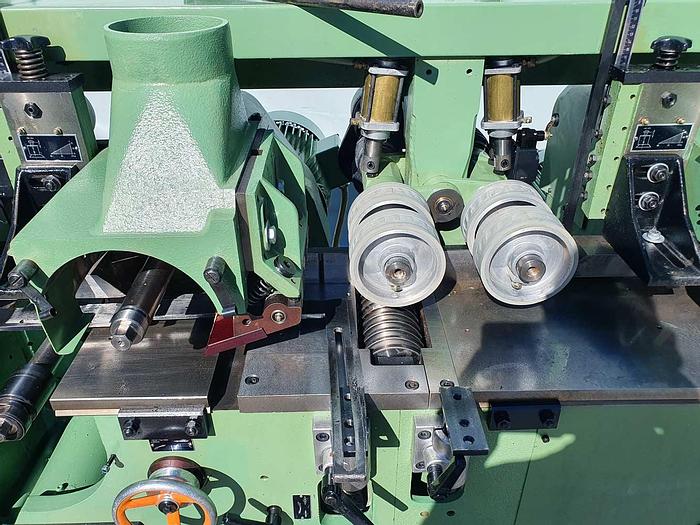

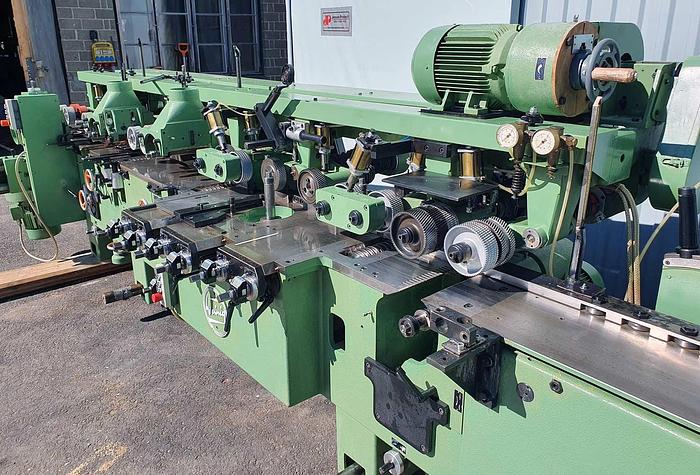

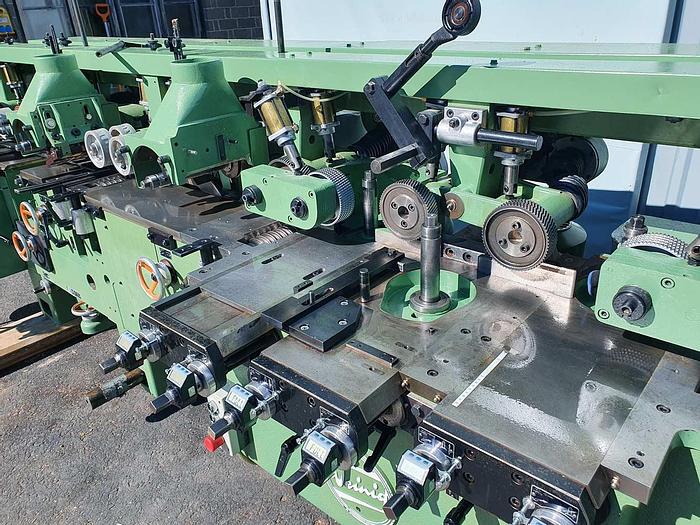

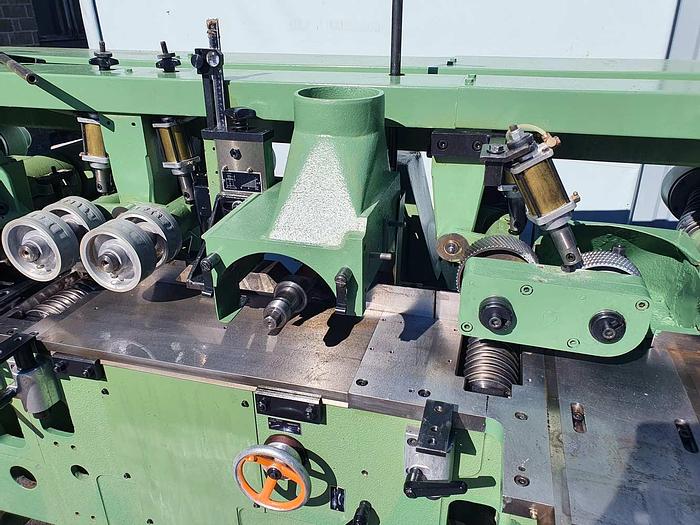

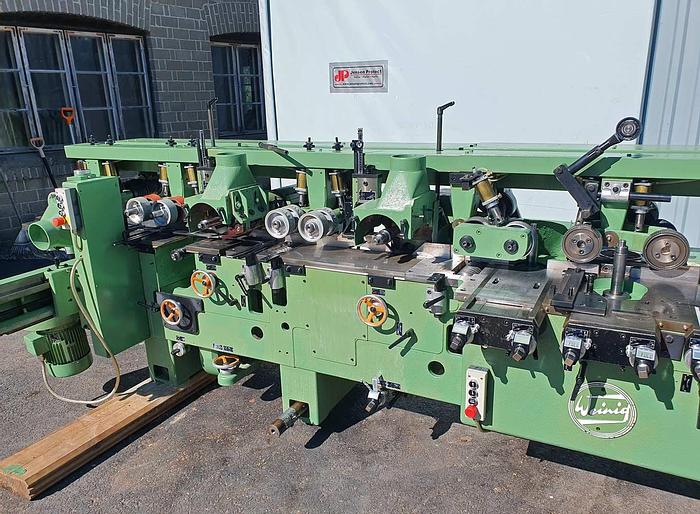

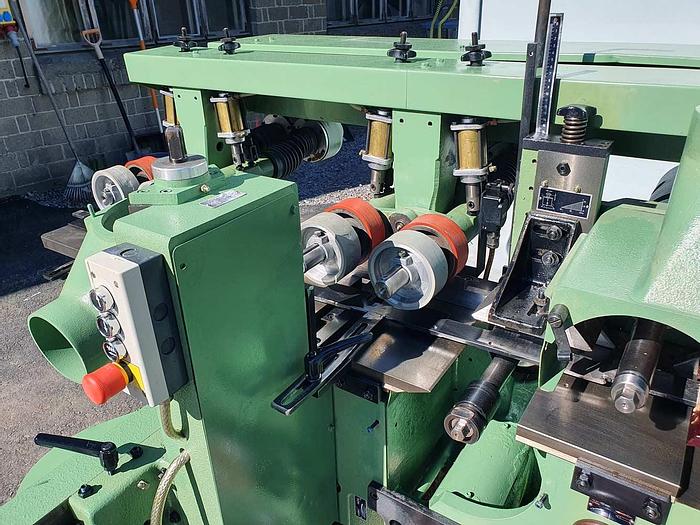

Weinig Germany Four side planer / moulder Unimat 22N, 8 spindles

Four side planer / moulder Unimat 22N, 8 spindles

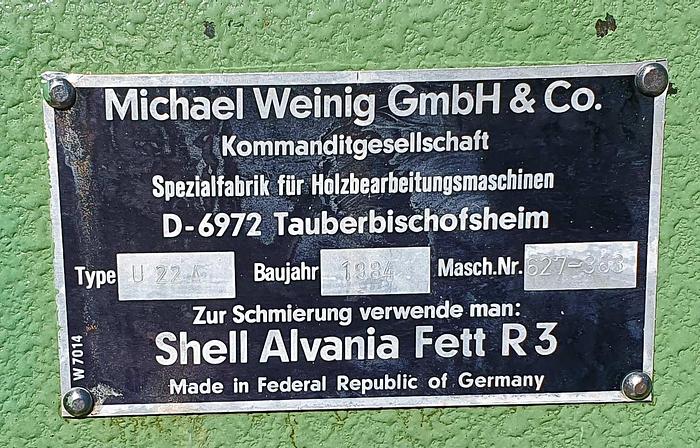

year of manufacture 1984

S/N 627-363

Manufacturer Weinig Germany

planing width 220mm

planing height 120 mm

8 planing shafts:

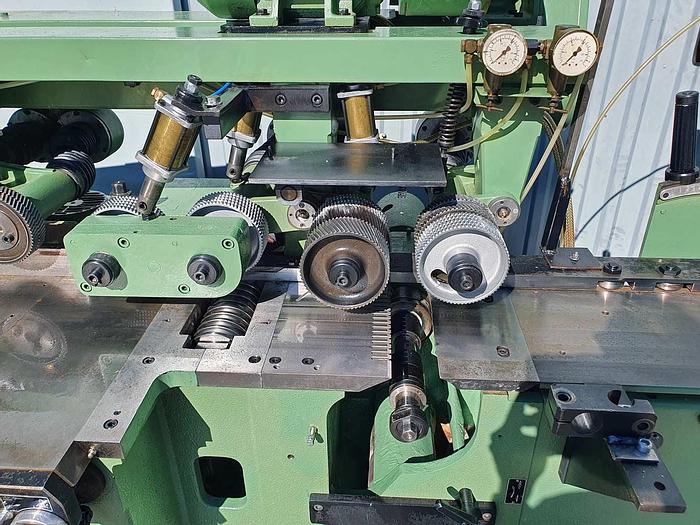

3 driven rollers in table

Dressing table length 2000mm

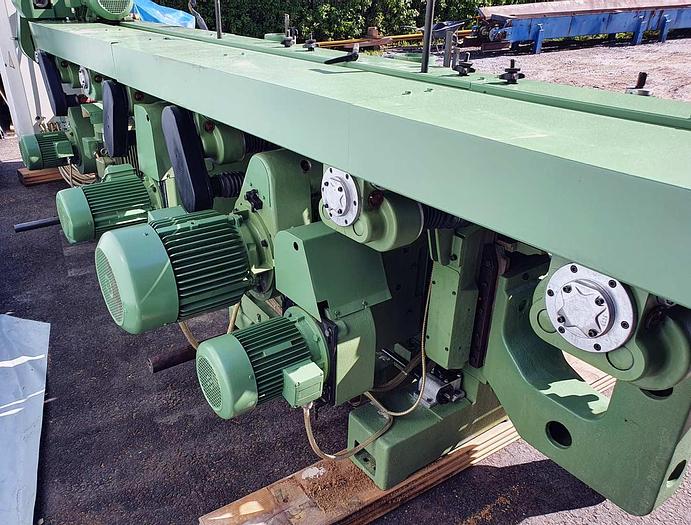

Spindle arrangement ( speed of the working spindles 6000 rpm )

1. bottom 4,0 kW

2. right 4,0 kW

3. left 7,5 kW

4. right 4,0 kW

5. top 7,5 kW

6. top 15.0 kW

7. bottom 4.0 kW

8. universal 4,0 kW

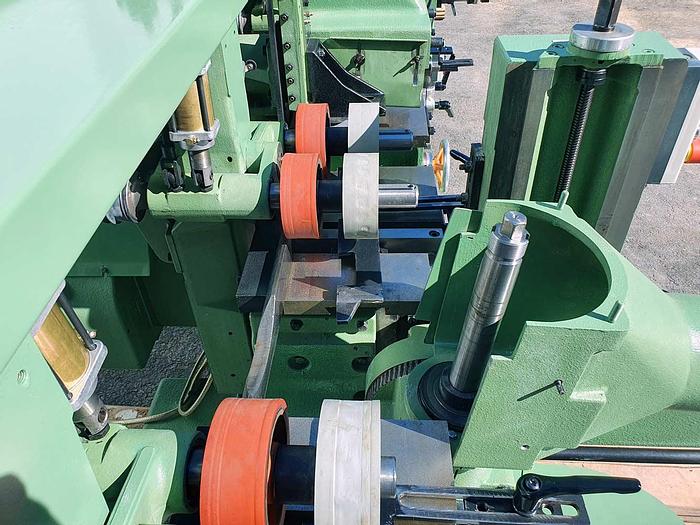

driven smooth pull-out roller in table

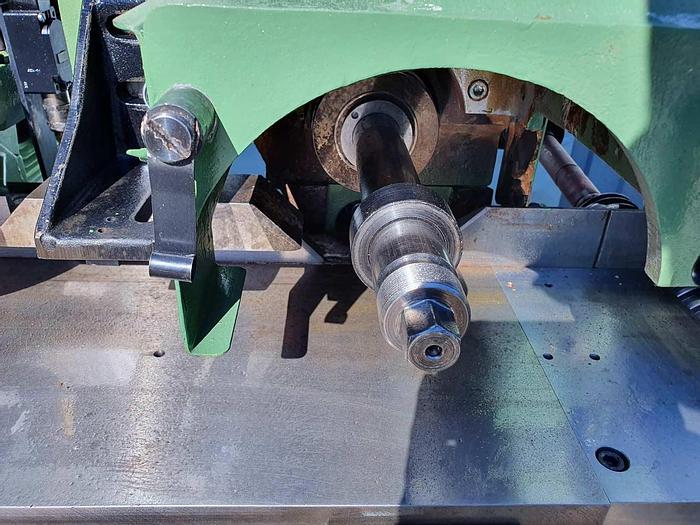

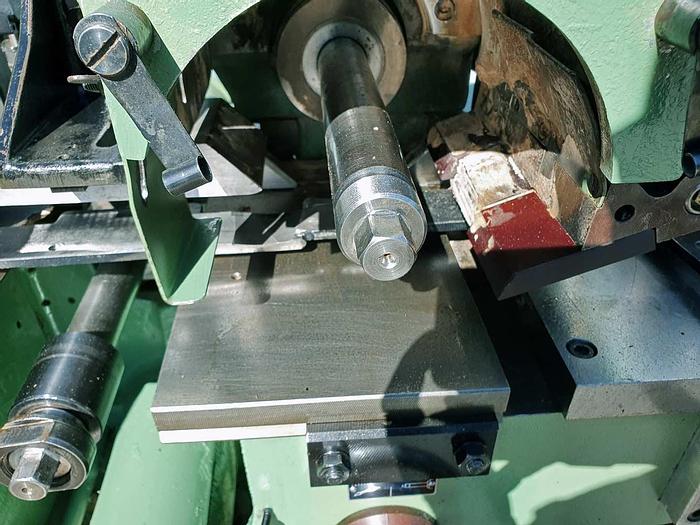

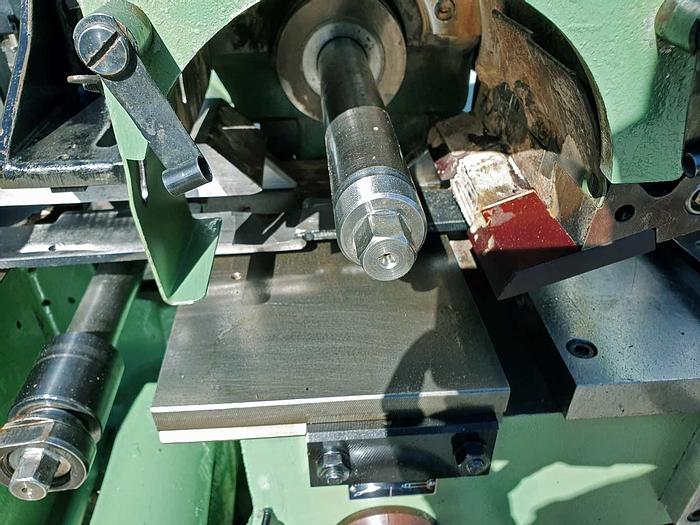

spindle diameter 40 mm

Flight circle of the dressing spindle 125mm

Flight circle of the jointing spindle 100-180mm

Largest flying circle of the moulding spindles 180mm

Cardan feed

Feed speed infinitely variable 6-36 m /min.

Manual waxilit pump

Outer dimensions L 6000 mm x W 1600 mm x 1700mm

5500 Kg
