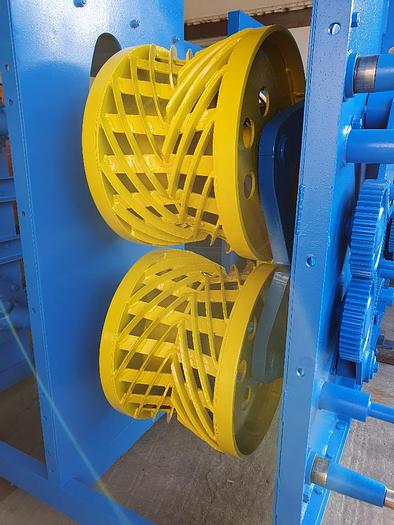

Valonkone debarking machine VK26T, refurbished

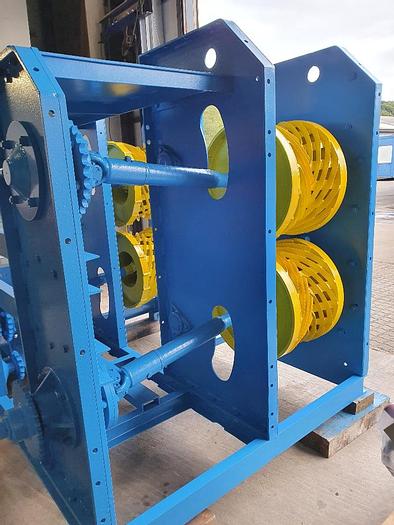

Debarking machine Valonkone VK26T with slide cradle (out feeding table)

Year 2012 ( from a 1974 Valonkone )

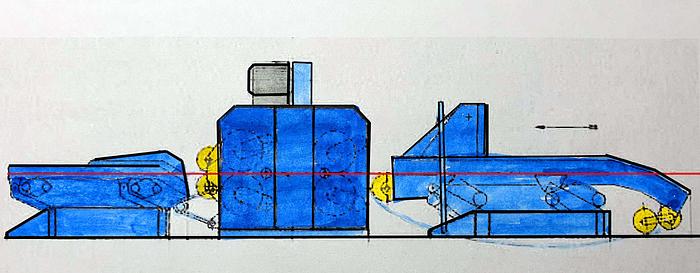

The Valonkone VK26T lines consisting of:

•   main machine

•   infeeding table (motor driven)

•   slide cradle

•   new electric cabinet

•   hydraulic aggregate for pressure (knives)

technical main specification:

debarking capacity: 10cm - 61cm diameter

log length min. 3.0m

4 abrader knives

4 cutting knives

speed of the rotor =210 rpm / min

Rotor opening=65cm

45 KW motor, rpm 1500/ min

Speed ca 45m/min

Dimension (without in feed and out feed table)

L= 11.3400 mm

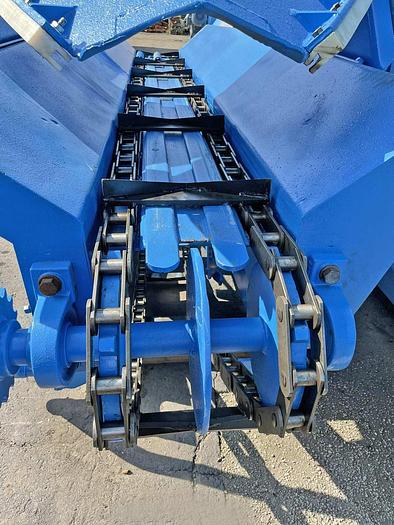

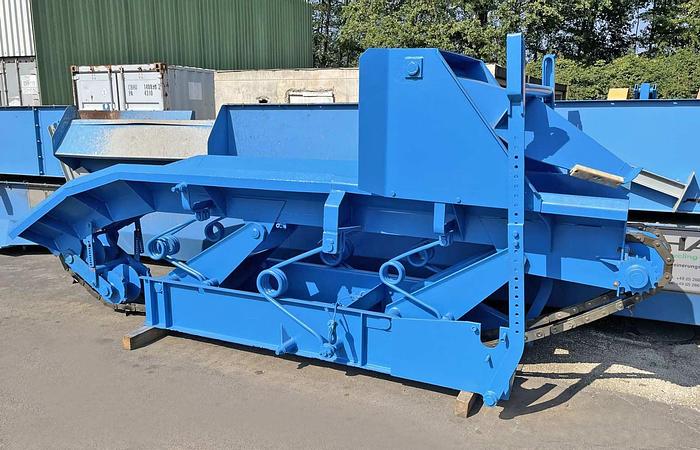

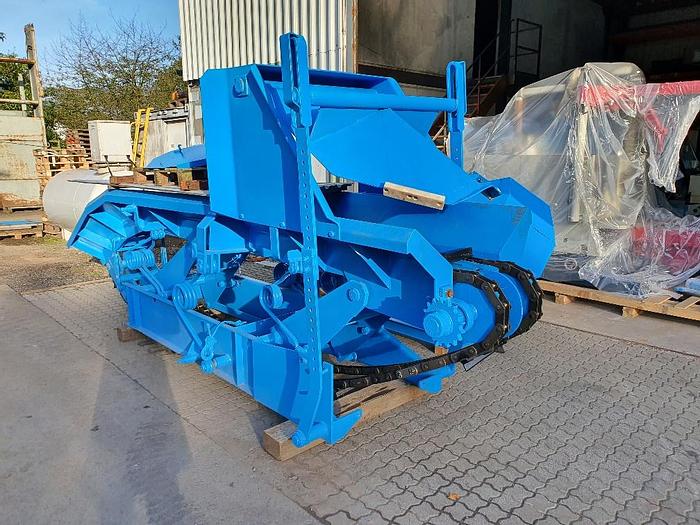

In feeding table:

5006 mm x 1000mm x 1930mm

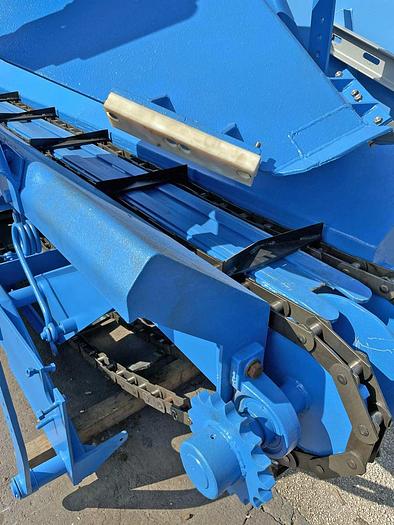

conveyor chain feeder

direct motor driven 11 Kw

Weight 1800 Kg

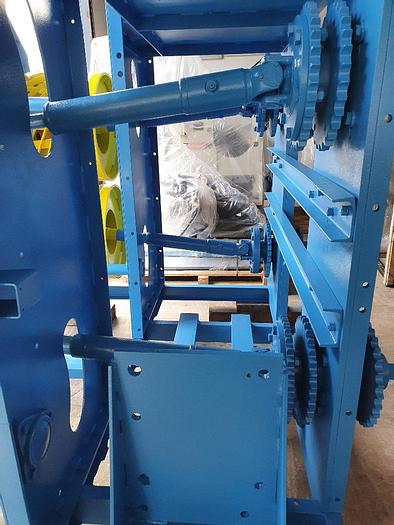

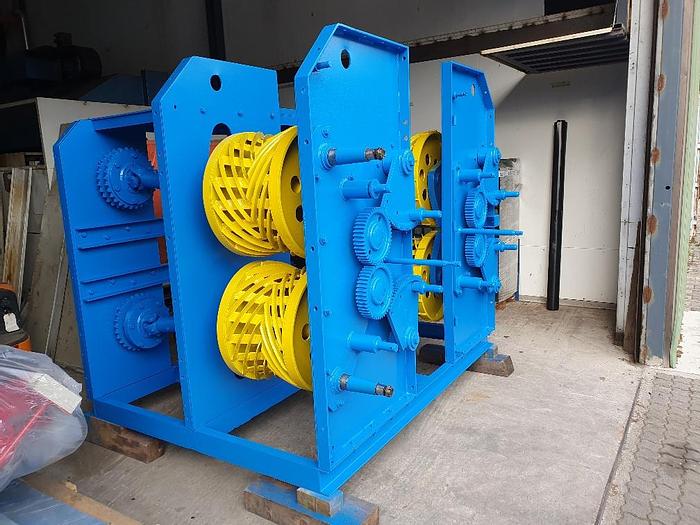

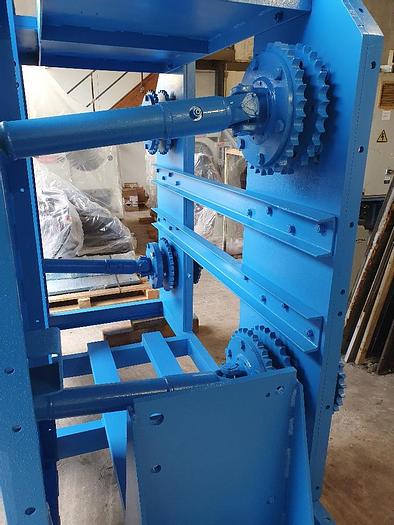

main VK26T machine:

2740mm x 2200mm x 2790mm

Main motor 45 kW

Gearing motor 22kW

Weight 5500 Kg

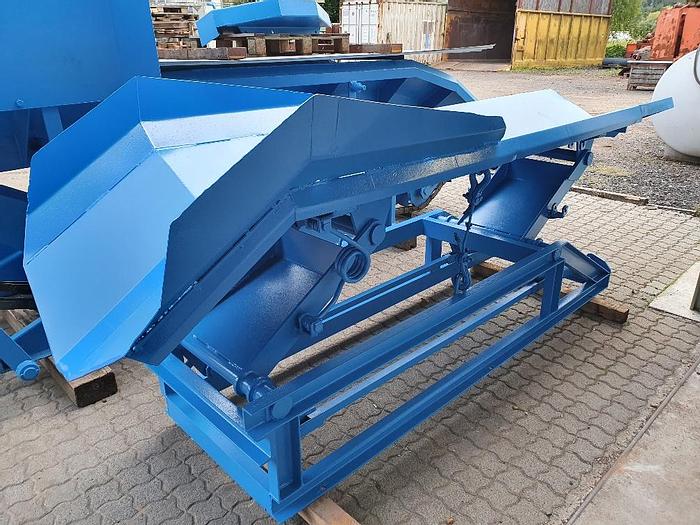

out feeding table (slide cradle):

3060mm x 960mm x 1350mm

Weight 760 Kg

Electric cabinet and safety devices

with Delta 3 phase start for 45 kw main motor

with Delta 3 phase start for 22 kw gearing motor

Main starter

Stop emergency

Emergency stops at main machine and in feeding tables

Renovated and workshop inspected

Operating: for softwood

Timber length 1,8- 6m

Log diameter: 10-61cm

The speed of the debarker is, depending on the ambient conditions 20-45m/ min

available middle of October 2012

more photos coming soon
