GRECON DIMTER OPTICUT 204 CUTTING LINE, year 2001

Malax, Finland

orCall 358-44-3654070

Description

GRECON DIMTER OPTICUT 204 CUTTING LINE

Manufacturer: GRECON DIMTER HOLZOPTIMIERUNG GMBH, Germany

Model: OPTICUT 204/1, operating side: LEFT SAW



Timber dimensions:

- Enterable dimension mm 400 - 6300

- Enterable width mm 30 - 200

- Input thickness mm 12 - 80

- Timber cross-section max 200 x 50 ,  max 150 x 80

- Fixed dimensions: min 140



Technical information:

- saw motor 7.5 kW

- conveyor motor 7.5 kW

- feed speed (adjustable) max. 180 m / min

- cut-off speed (deceleration-cut-off acceleration) 0.7 - 1.2 sec

- saw blade diameter 500 mm

- saw blade shaft diameter 30 mm

- blade speed max. 3600 rpm

- cutting accuracy: 0.8 - 1.5 mm

- working height 900 mm



Connection information:

- operating voltage 400 V / 50 Hz

- voltage range max. 5%

- total input power approx. 17 kW

- exhaust air speed approx. 30 m / sec.

- working pressure 8 bar

- air consumption approx. 1200 l / min.



Users:

1 - 2 people in the feed and fault marking

1 person behind the machine at the stacking station

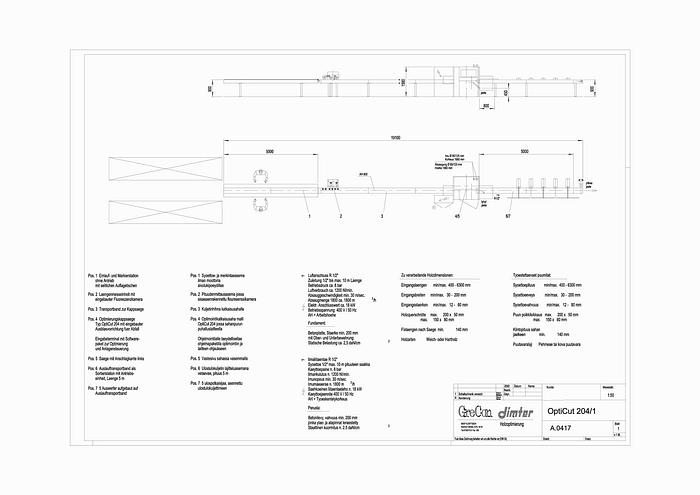

The cutting line consists of the following positions:

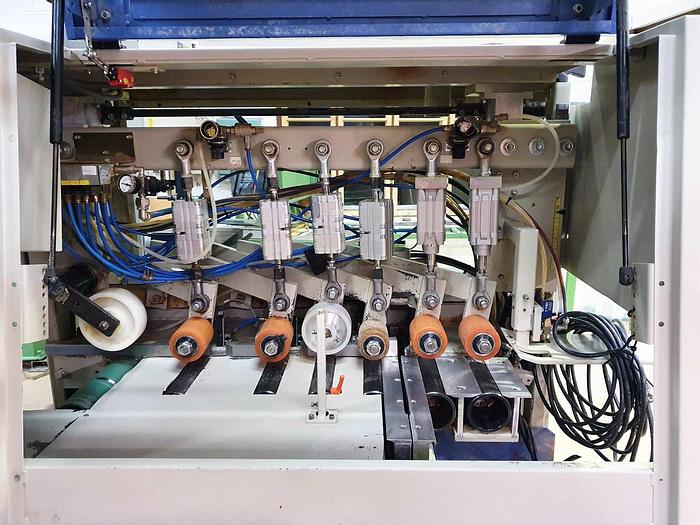

1) Marking and feed table for two markers, not Pull. Length 5 meters.

2) The board length measuring station with a built-in camera reads the qualities and fault rectifications marked with fluorescent chalk.

3) 5 m conveyor belt for cutting saw.

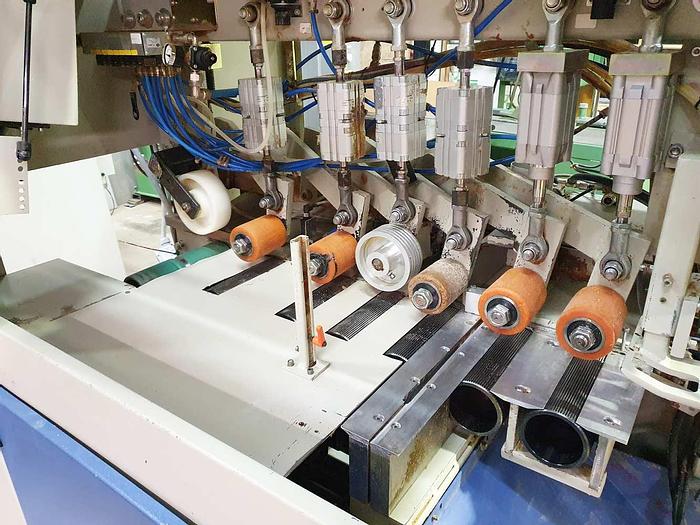

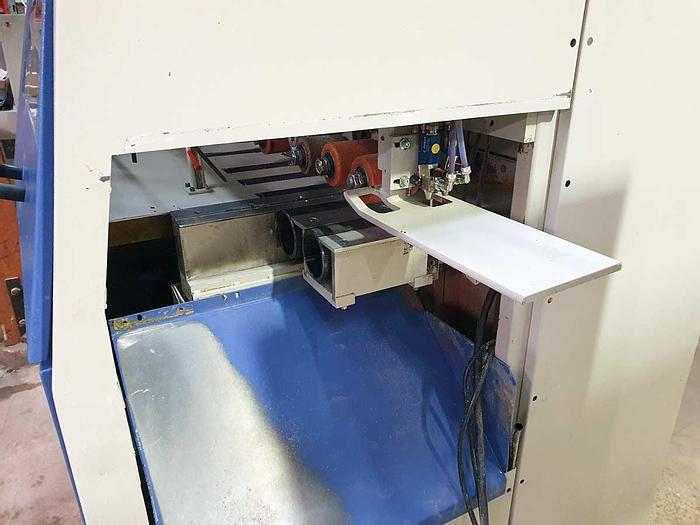

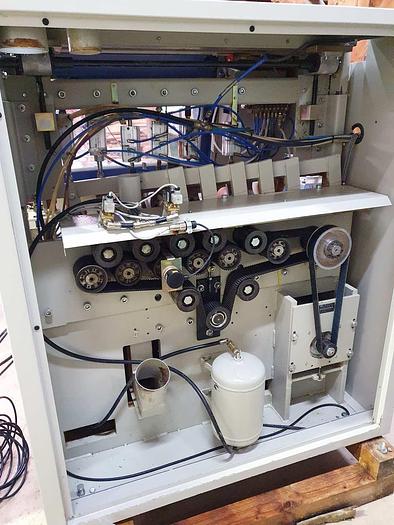

4) Optimizing cutting saw DIMTER-204 cutting saw with debris blowing.

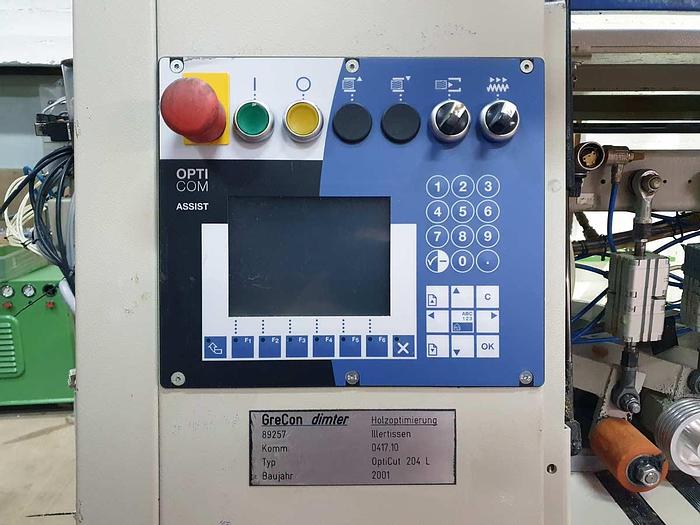

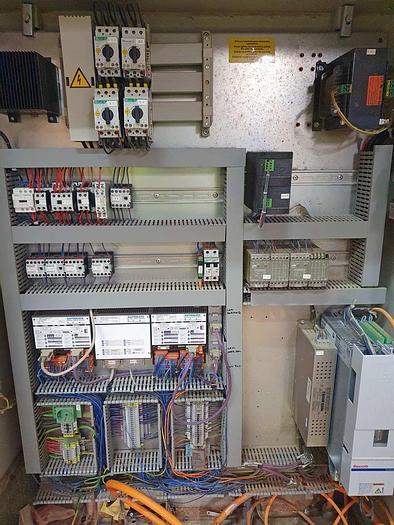

5) Built-in control of industrial PC saw



Includes complete optimization software and line control interfaces

Program card 1-5 pcs for controlling kickers

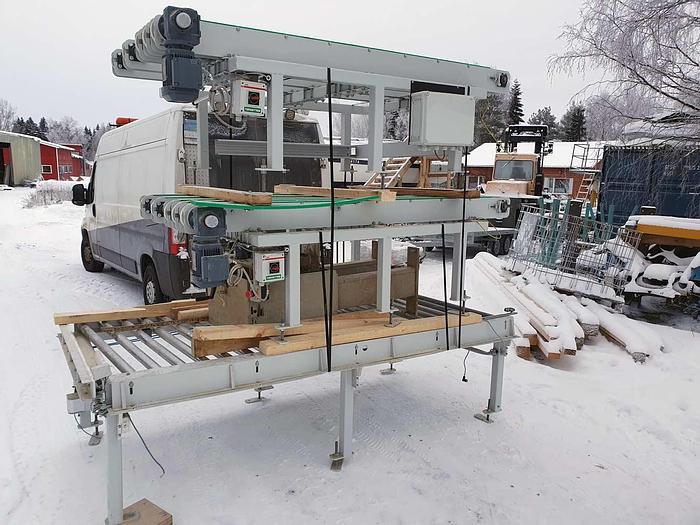

Outfeeding conveyor

- belt conveyor 5 m can be equipped with kickers

- 5 kickers on the output side of the saw, requires a program card



outfeed conveyor has been continued by 2,5 m at some point so total lenght should be 7,5 m.

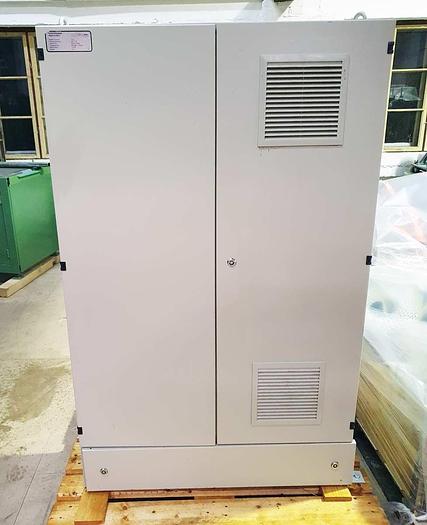

UPS rectifier

Devices for connecting an additional PC:

- CAN dongle communication bus to PC

- PC software package that runs in Windows 98 environment

- CAN cable for connecting the cutting saw to the PC. Length10 m.



Capacity:

Capacity calculation (example calculation):

- average dimension 4.2 m / n. 8 saws

- 4.2 m feed 1.4 sec. (180 m / min)

- 8 saws (0.7 s) 5.6 sts

- additional time 0.5 s



COPD. TIME 7.5 s



CAPACITY                           60 s x 4.2 m

                                            ------------- = 33.6 m / min

                                            7.5 s



400 min / shift => 13,440 m / shift



To calculate the actual production capacity, the capacity must be multiplied

with a quality factor that meets the customer’s production requirements.



Specifications

ManufacturerGrecon Dimter
Model204 L
Year2001
ConditionUsed
