Aciera High precision drilling and milling machine Type 22 VA

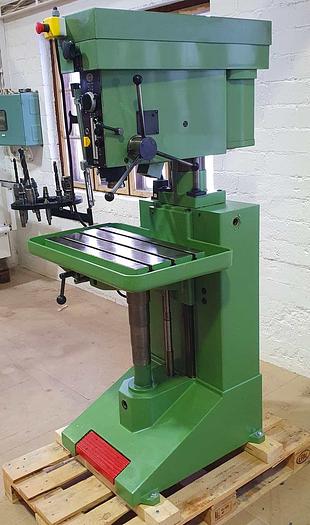

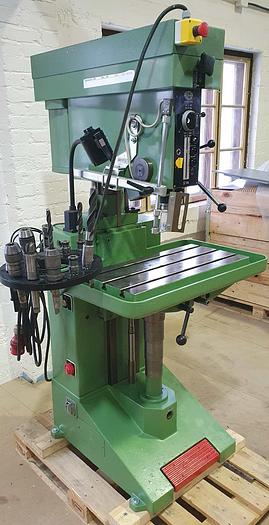

High precision drilling and milling machine Aciera 22 VA

Good condition from school use

Year of manufacture approx. 1990

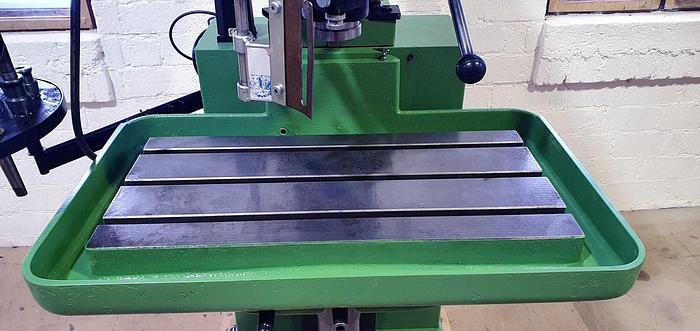

table 600 x 320 mm

Speed 40 - 3600 rpm

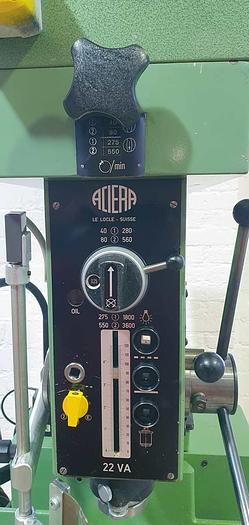

Speed adjustment rpm

4 automatic feeds

40-280

80-560

275-1800

550-3600

Spindle diameter 65 mm

Drilling spindle stroke 120 mm

Spindle adaptor: Aciera quick-change system

Automatic thread cutting system

Drilling capacity in solid material 25mm

Max drilling capacity up to 30mm

Height adjustment via a hand crank

Motor: 1,1 KW

Lamp

Some quick-change attachments

Dimension WxDxH 90 x 130 x 185 cm

Weight approx. 800 kg

Technical specifications subject to change
