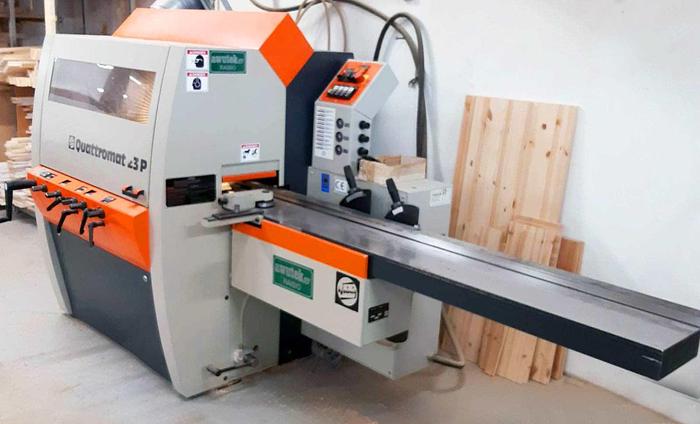

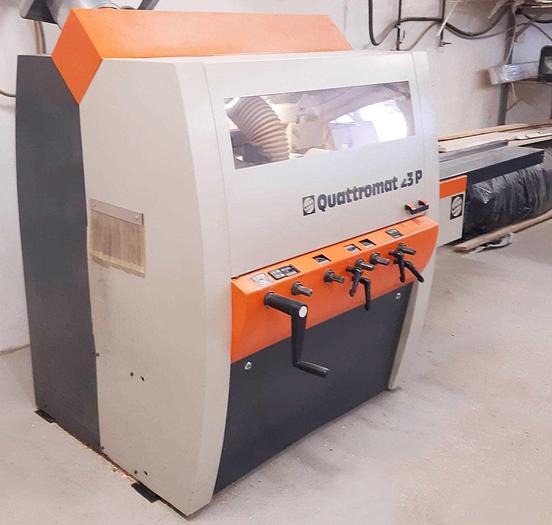

Weinig Quattromat 23P planer Moulder

Planer moulders Weinig Quattromat 23P

Manufacturer Weinig Germany

Year of manufacture 1999

solid cast construction

pneumatic pressure of the feed rollers

compact construction

central adjustment with mechan. Digital displays

the number of spindles is 4 pcs.

working width 13 - 230 mm

working height 6 - 120 mm

Feed speed 8 m/min.

Diameter of feed rollers 140 mm

Feed motors 3 x 0,85 kW

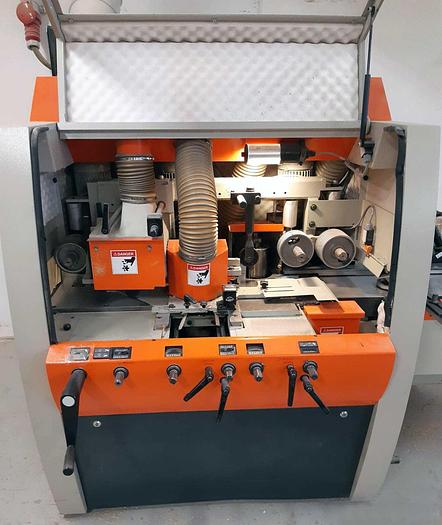

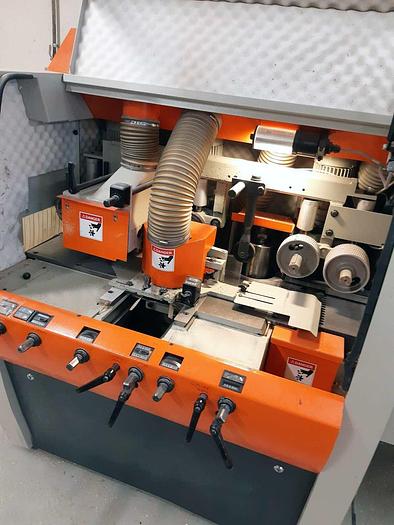

Spindle arrangement:

1st spindle Bottom, 4 kW

2nd spindle right, 5,5 kW

3nd spindle left, 7,5 kW

4nd spindle top / 5,5 kW

Spindle speed 6.000 rpm

Spindle diameter 40 mm

The axial adjustment range of spindles 30 mm

max. diameter of horizontal / vertical tools 140 mm / 180 mm

Central lubrication of the table plate

Length of dressing table 2 m

Connected loads

400 V, 3Ph, 50 Hz

Machine dimensions L X W X H = 3.6m x 1.4m x 1.75m

Weight 1000 kg
