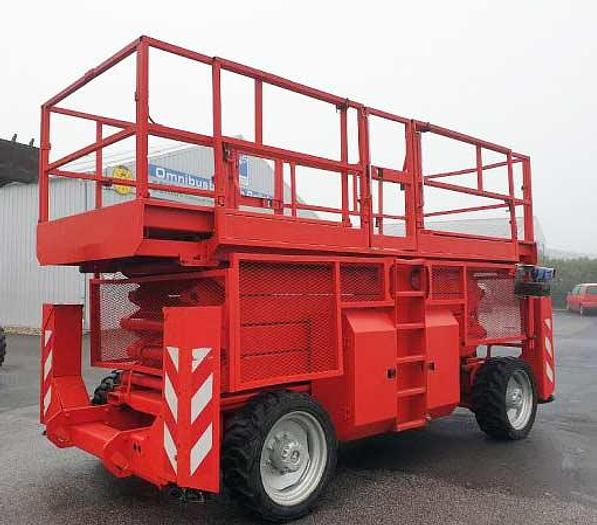

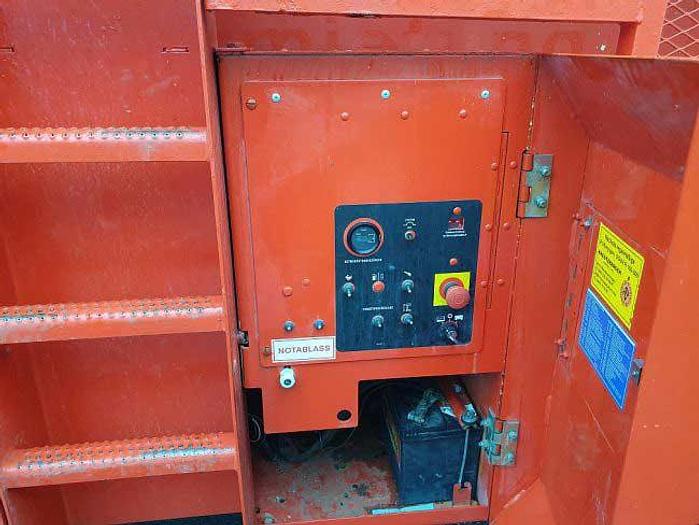

Genie GS 4390 RT Diesel Scissor Lift

Genie GS 4390 RT Diesel Scissor Lift

S/N: Genie GS4390NRGS90-40919

Type: Scissor X 4WD

year of construction 2002

incl. new UVV inspection* ( we will arrange this beforehand at the time of purchase )

The Genius was bought in 2020 ( photos in delivery condition 2020)

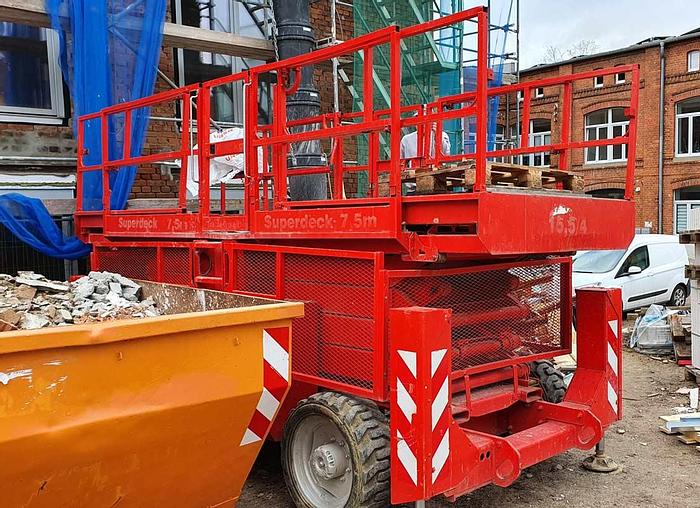

and is now in daily use at a construction project in 06217 Merseburg.

available from 04/05- 2022

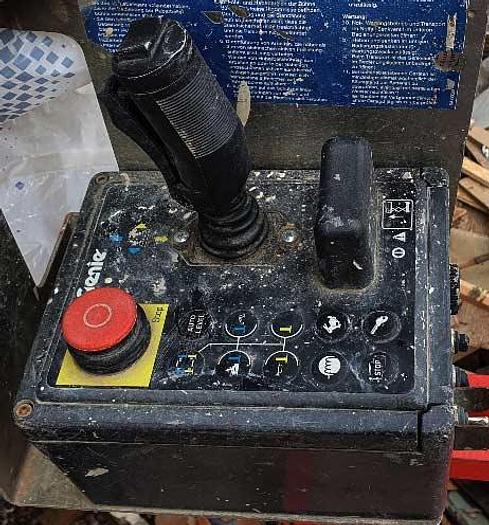

The joystick control was renewed in 2021.

Maximum working height 15.1 m

Maximum platform height 13.1 m

Height, fully retracted 2.9 m Railing erected

Height, fully retracted 2.9 m Railing lowered

Width, standard tyres 2.3 m

Width, high pressure tyres 2.6 m

Length, platform retracted 3.9 m

Models with two platform extensions Length, platform extended 6.6 m

Models with two platform extensions

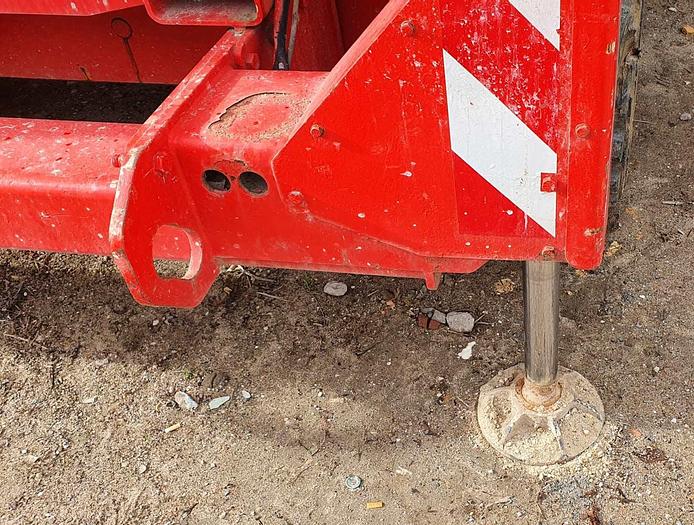

Length, platform retracted 4.9 m Models with support legs

Models with two platforms in excess length Length, platform extended 7.4 m

Models with two platforms in excess length Maximum load, 680 kg

Maximum load capacity, 816 kg

GS-4390 with one platform extension and outriggers

Wheelbase 2.9 m

Turning radius (outside) 5.3 m

Turning radius (inside) 2.2 m

Ground clearance 36 cm

Noise emission 80 dB Maximum noise level during normal working operations

Deutz diesel L1011

Control system Proportional

AC socket Standard on platform

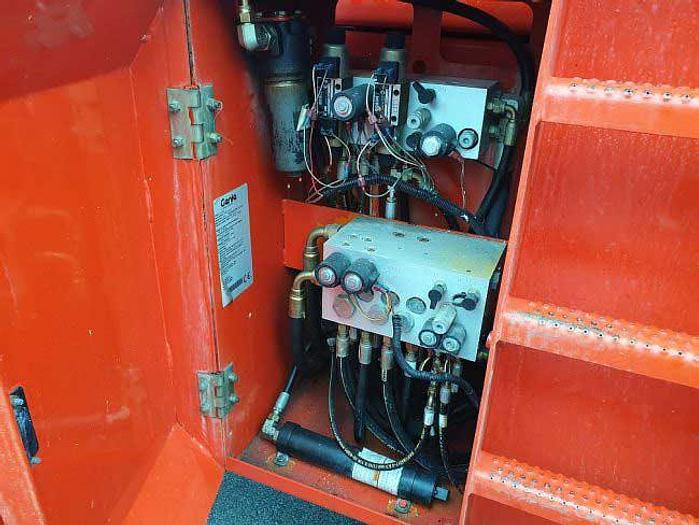

Maximum hydraulic pressure 241.3 bar

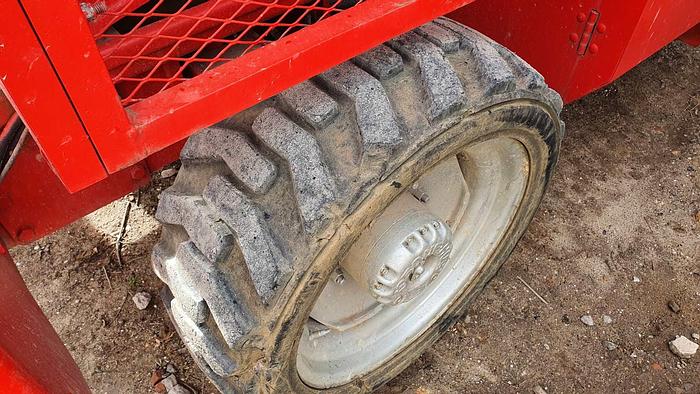

Tyre size - standard tyres 12 x 21.5

Tyre size - high pressure tyres 33/16LL500, 10 plies

Work platform dimensions Platform length x width 3.8 m x 1.8 m

Length of platform extension 1.5 m

Travel speeds

Retracted, maximum 8 km/h

Platform raised, maximum 1.1 km/h 12.2 m/39 sec.

Floor loading information Gross weight + permissible load 6 931 kg

Maximum axle load 4 082 kg

Maximum wheel load 2 041 kg

Point load pressure per tyre 8.8 kg/cm2 862 kPa

Total load pressure 7.55 kPa

Total weight approx. 5,900 kg

Technical specifications subject to change
