Valonkone VK26 debarking machine

Malax, Finland

Sold

Description

Valonkone VK26 as renovated debarker incl. in and out feeding table

Renovated and workshop inspected

Operating: for softwood

Timber length 2,5- 6m

Log diameter: 10-61cm

The speed of the debarker is, depending on the ambient conditions 20-35m/ min

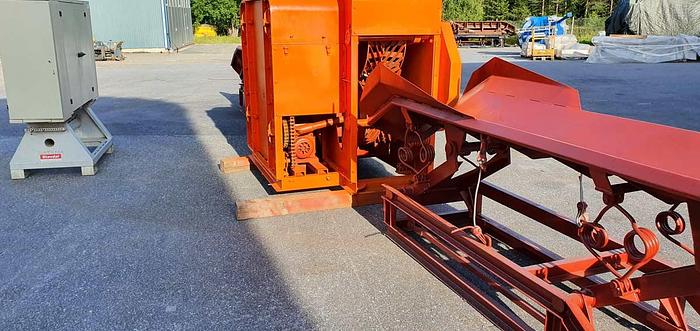

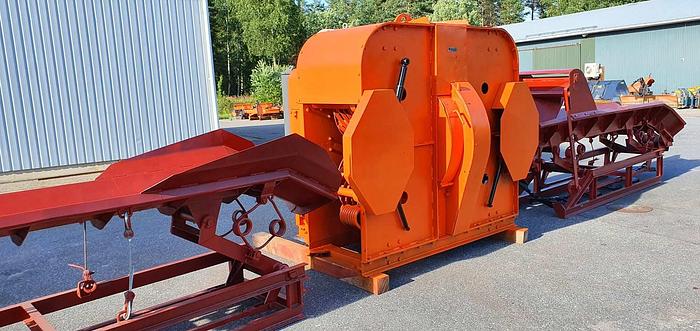

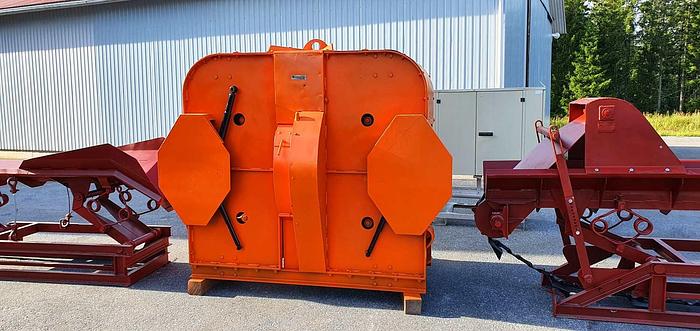

The Valonkone VK26 lines consisting of:

• main machine

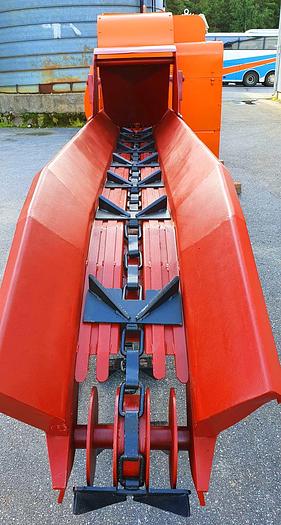

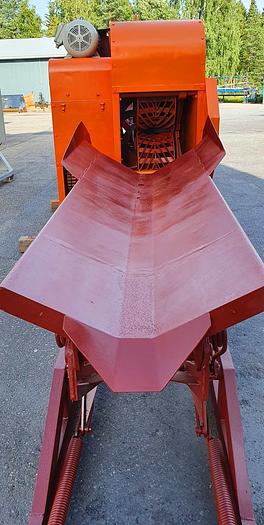

• infeeding table

• outfeeding sliding table

• new electric cabinet

technical main specification:

debarking capacity: 10cm - 61cm diameter

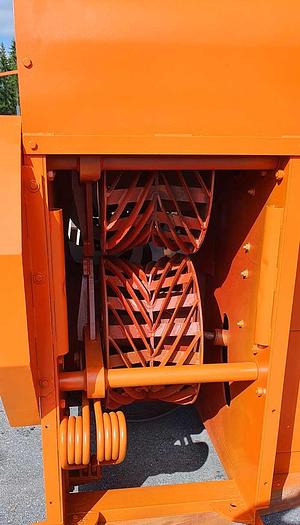

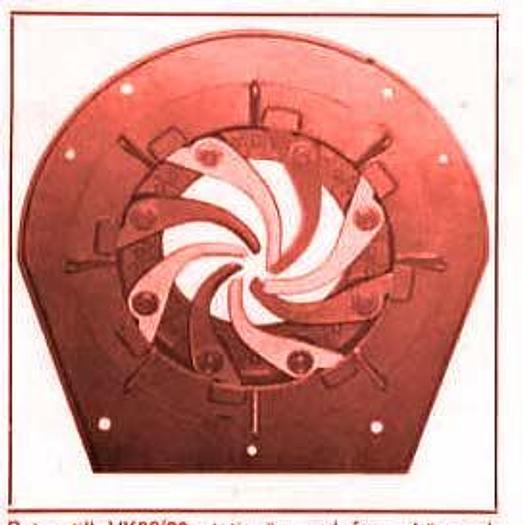

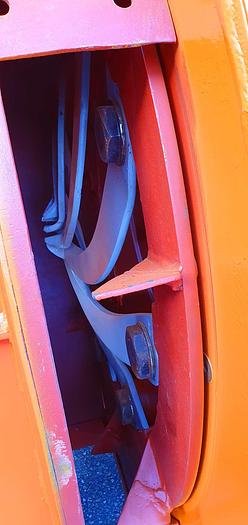

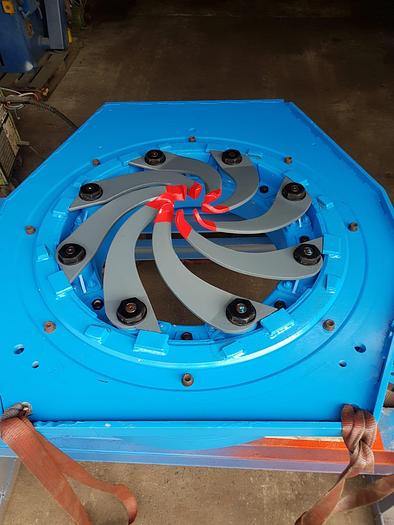

4 cutting knives ( or abrader after demand )

4 cutting knives

speed of the rotor =210 rpm / min

Rotor opening=65cm

30 KW motor, rpm 1500/ min

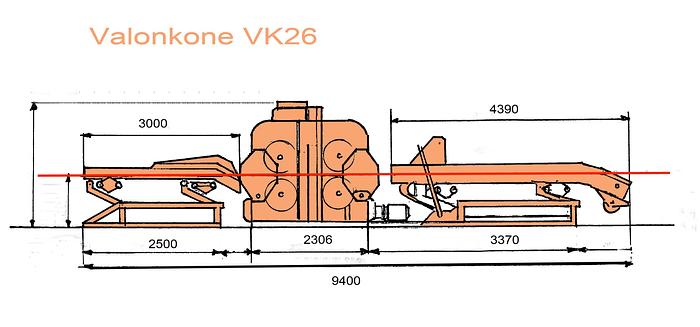

Dimension (without in feed and out feed table)

L= 9400mm

In feeding table:

3490mm x 1000mm x 1930mm

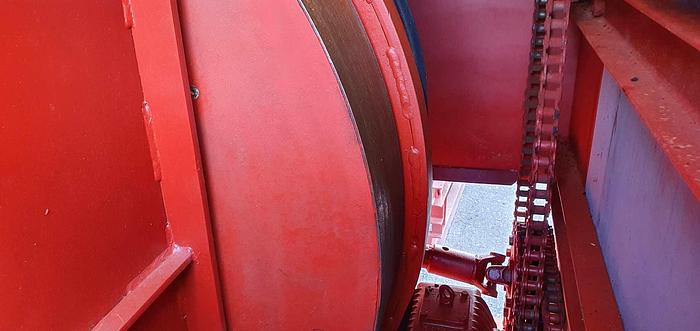

conveyor chain feeder

Power transmission with separate motor

Weight 1170 Kg

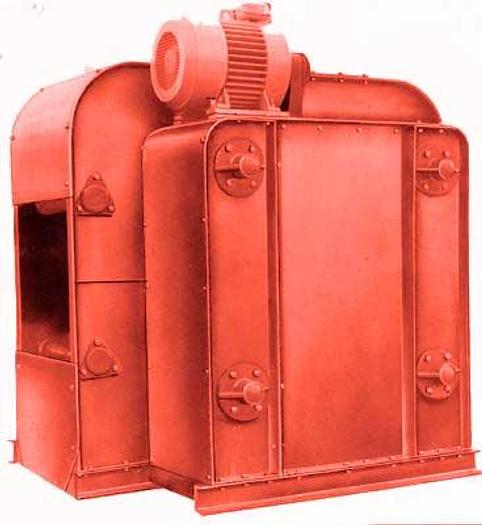

main VK26 machine:

2370mm x 2200mm x 2350mm

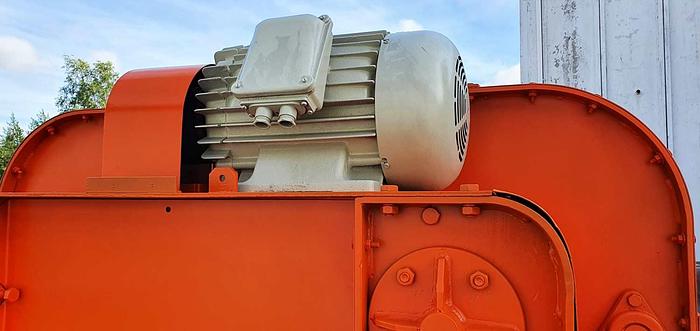

Main motor 30 kW

Gearing motor 11 kW

Weight 3800 Kg

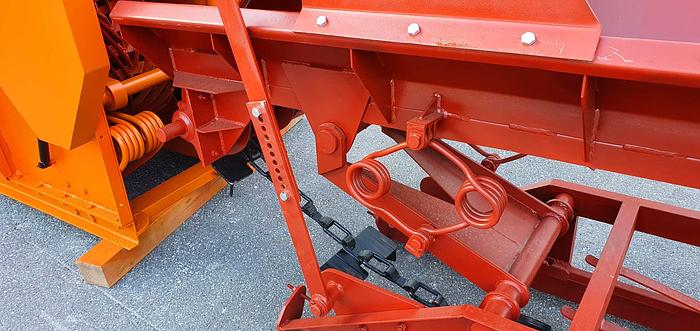

out feeding table (slide cradle):

3000mm x 960mm x 1350mm

Weight 760 Kg

We are by the renovation and can provide soon original photos.

The renovation process essentially comprises

- complete disassembly ( all parts except the frame are removed )

- repairing the sheet metal, replacing any cut-outs

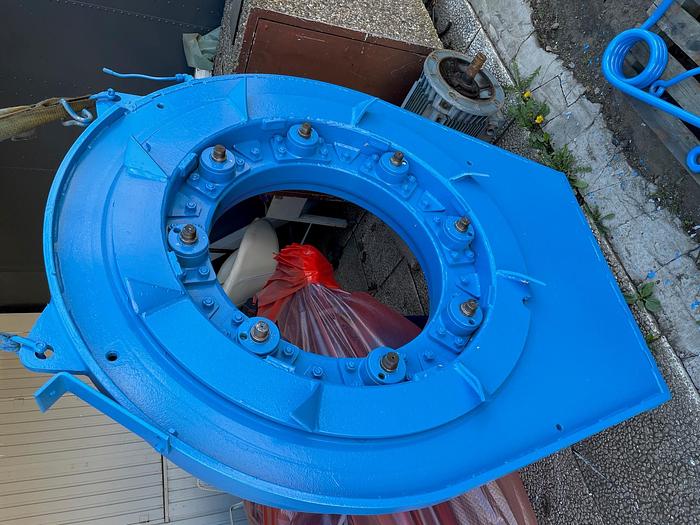

- Check rotor bearings, check blade axles and partially repair them.

- Order bearings and wear parts (cardan shafts).

- Repair the tables and add new plates to the edge strips, partly new conveyor chains.

- New belts

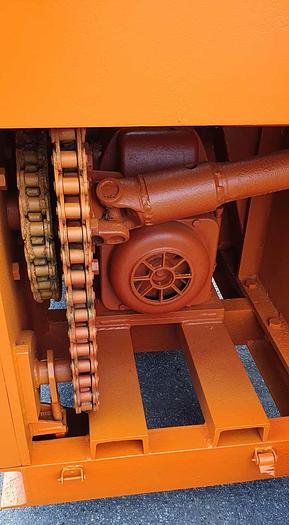

- Check and repair the gear motors.

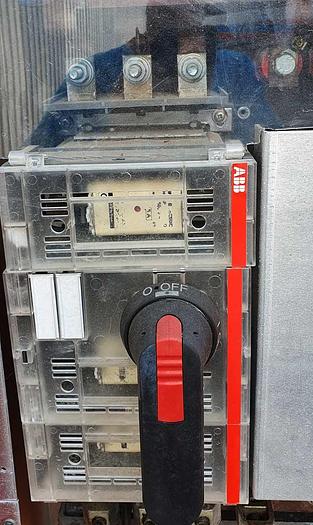

- New switch cabinet

- partly sandblasting or derusting and new primer top coating


Specifications

ManufacturerValonkone
ModelVK26
Year1995
ConditionRefurbished
