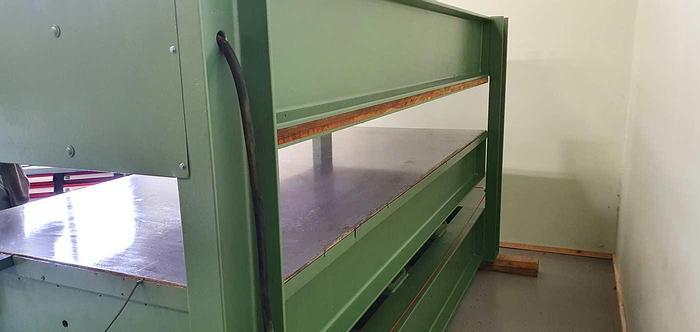

Höfer hydraulic veneer press H120 SS, 300 x 130cm

Höfer hydraulic veneer press H120 SS

Year of construction ca.1990

Manufacturer: Höfer Austria

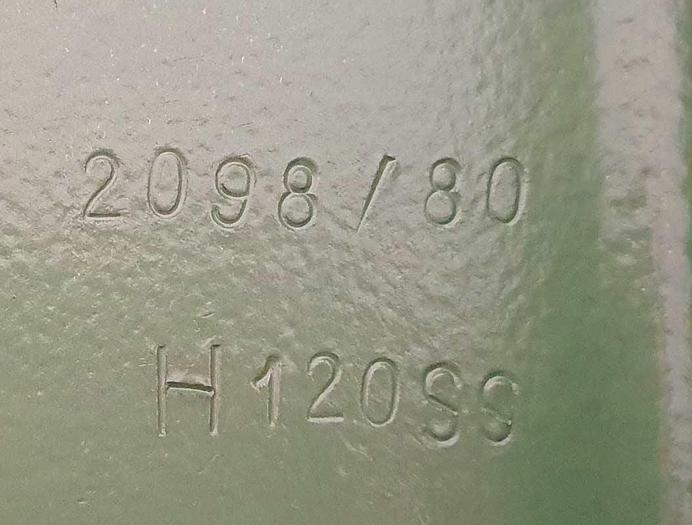

S/N 2098/80

good condition

technical data:

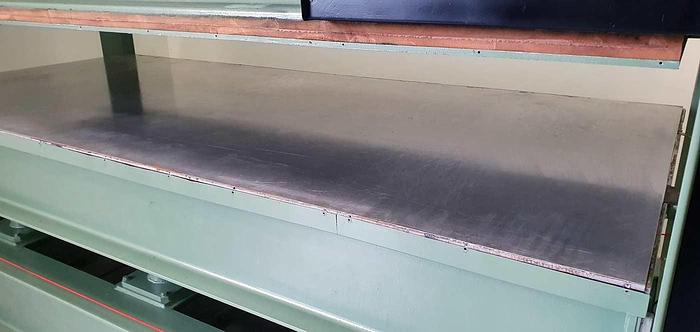

platform size 3000 x 135cm

Total pressure (kN) 1200

Spec. pressure ( N/cm2 ) 60

Connected load kW 16,8

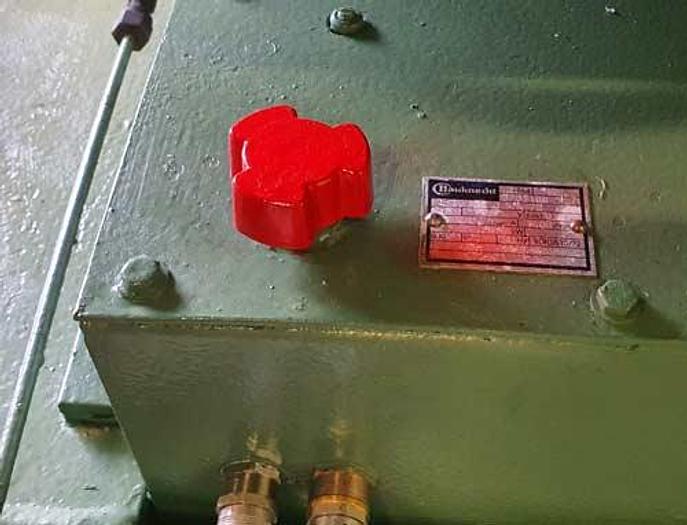

Hydraulics 2,2 kW

Operating temperature (C): 150

Max temperature 180 C

Number of cylinders / diameter : 6 /85

Opening= stroke 350mm

Heating time 80 C 12min

Closing time 12 sec

• Full passage on all 4 sides
• Lockable main switch

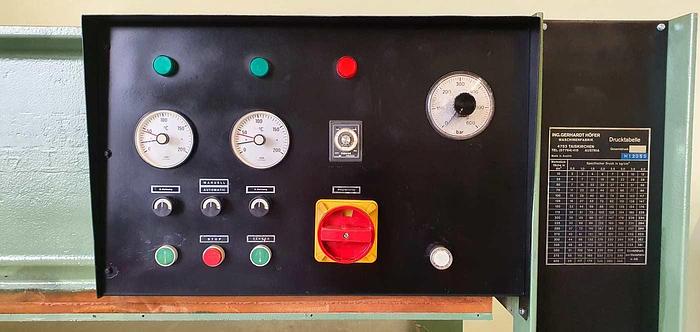

• Push button control
• Stop button
• Safety line on each side
• Timer
• Automatic temperature control system
• Stroke limitation
• Handrail compensation

total weight 6200 Kg

space requirement: L X W x H =348 x 151 x 180cm

CE-marked
