1998 Weinig H23

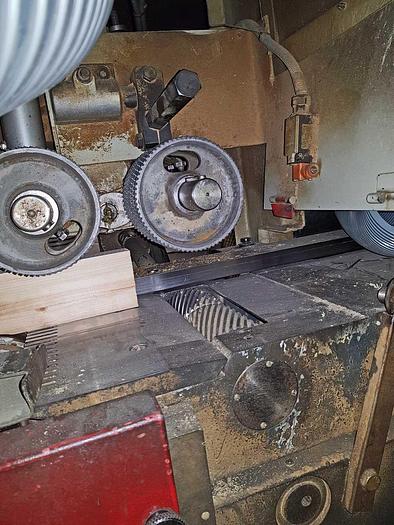

Sequence of the 7 spindles and table rollers: 1.spindle bottom 7,5 kW (125/183mm ) 2.spindle right 7,5 kW (112/250mm ) 3.spindle left 7,5 kW ( 203mm ) 4.spindle top 7,5 kW (112/250mm ) 5.spindle bottom 7,5 kW (112/250mm ) 6.spindle top 7,5 kW (112/250mm ) 7.spindle bottom 7,5 kW (112/250mm ) Spindel 6000 min-1 Cardan drive 6 - 36 m/min. with existing planing heads and extraction hose distributor to the main pipe Extraction diameter 140mm / 200mm 400V, 50 Hz Dimensios 4150 x 200 x 1800mm 7500 Kg
