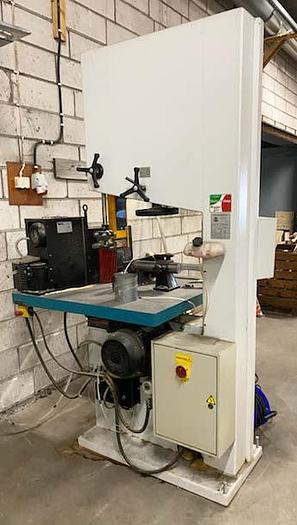

ACM bandsaw BS 740 RS3, with feeding unit

Malax, Finland

Sold

Description

ACM bandsaw BS 740 RS3, with feeding unit

Year 2005

In very good condition

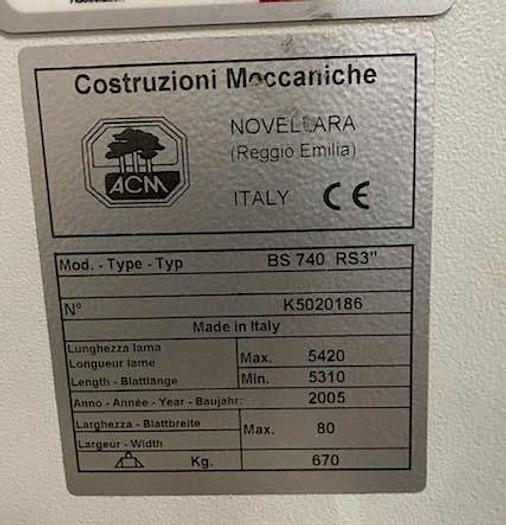

S/N K5020186

Max bandsaw width 80mm

Wheel diamter 740mm, speed 640rpm

Max cutting height 450mm

Blade length from 5340 – max 5420mm

Table dimensions 720mm



 400V/4 hp self-braking motor

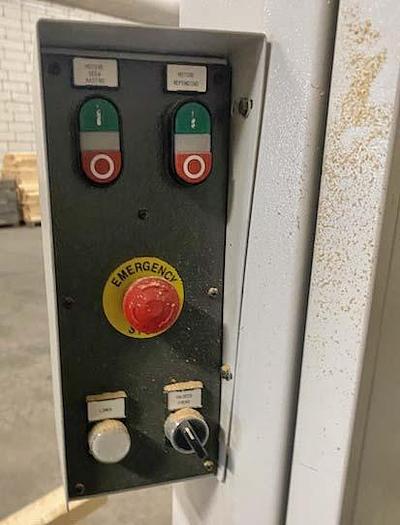

 Front emergency stop acted by cable

 Rear push-button emergency stop

 Solid flywheels (1/3 crowned in the front) without rubber

 Bronze scrapers on flywheels

 Gravity-fed blade lubrication system on felt pad

 Automatic star-delta starter

 Blade tension gauge

 Wooden insert upper/lower saw blade guide

 Rack and pinion blade guide raising with incorporated blade protection



 Weight 450 Kg



 technical specification under subject


Specifications

ManufacturerACM
ModelBS 740 RS3
Year2005
ConditionUsed
