GANNOMAT "ELITE 25 "S, year 2002
FULLY-AUTOMATIC DRILLING GLUING AND INSERTING MACHINE
Drilling and dowel insertion machine for simultaneous drilling, gluing and dowel insertion
Year of construction 2002

- Universal drilling and dowel inserting machine
- Simplest operation
- Closed glue system
- Suitable for panel and solid wood processing
- Optional, additional vertical drilling unit
- Relieves strain on CNC machining centers
- Optimal complement to nesting machines

1 horizontal drilling unit with 25 spindles, pitch 32 mm, motor 2,2 kW
6 dowel insertion stations for 0 8 mm, dowel length 25 - 50 mm (adjusted to dowel length 35 mm)
4 Pneumatic clamping cylinders

Digital totalizer for setting:
Drilling depth from 0 - 45 mm,
Drive-in overhang 5 - 15 mm
Position adjustment for drilling height above support table 5 - 40 mm

1 pair of side stops from 5 - 40 mm
-Closed glue system with 6 bar glue pressure
-Glue quantity freely adjustable via potentiometer by means of electronic control
-1 stainless steel container for 5 kg glue as well as - 1 stainless steel container for 51 water for rinsing
-LEIM/WASSER selector switch for flushing the glue system
-Control lamp for glue residue indicator in glue container
-Fully automatic electronic control with foot valve (self-diagnosis) Masch. No. 140.089

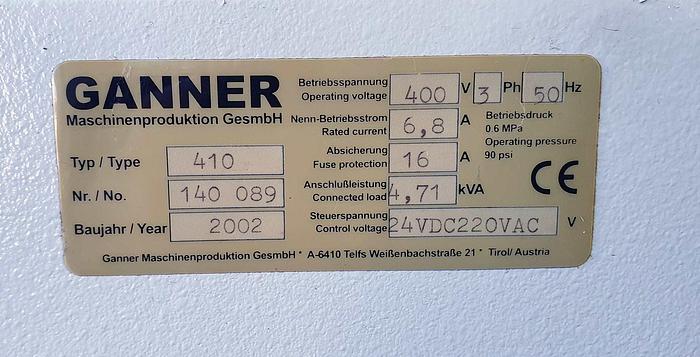

(400V, 3Ph, 50Hz, 2,2 kW,)
1pcs 0410-0080 Exhaust device, dm 120 mm
2pcs 0410-9010 Seperate dowel insertion station for dowels 0 8x35 mm
1pcs 0410-9020 Upcharge for electronically controlled mirror image program
