Contact us for price

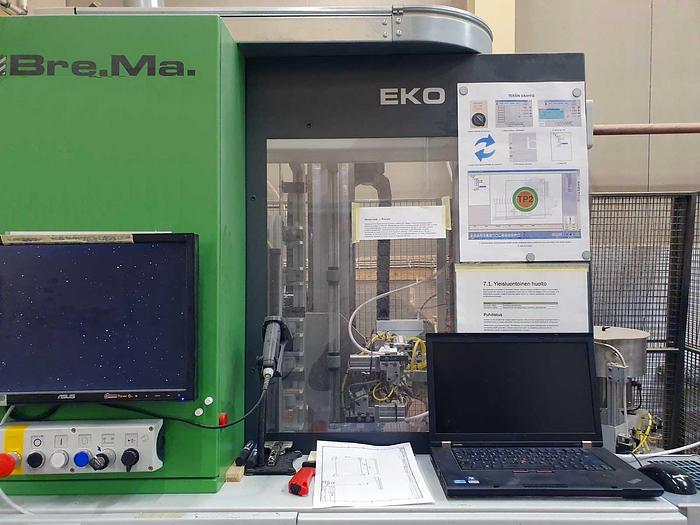

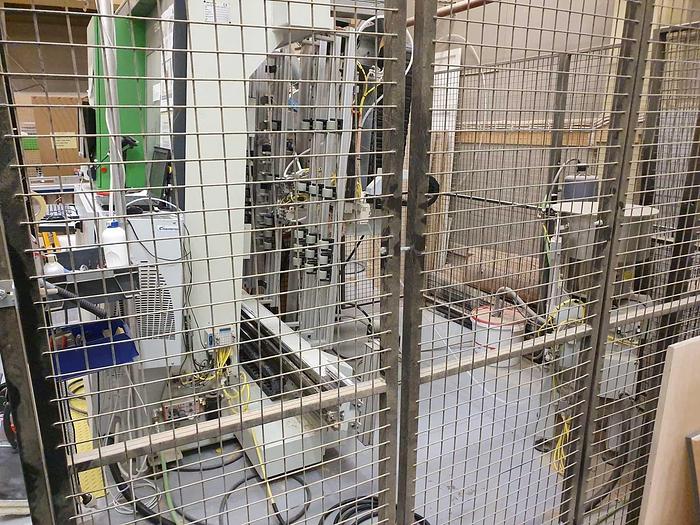

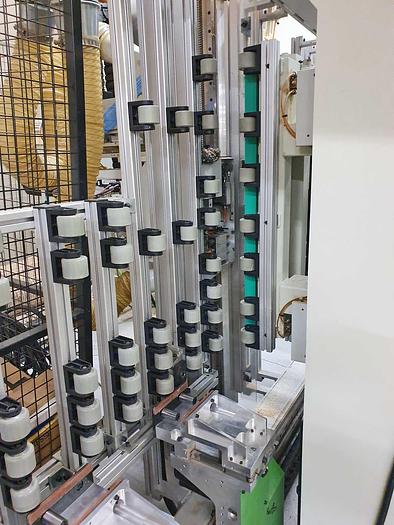

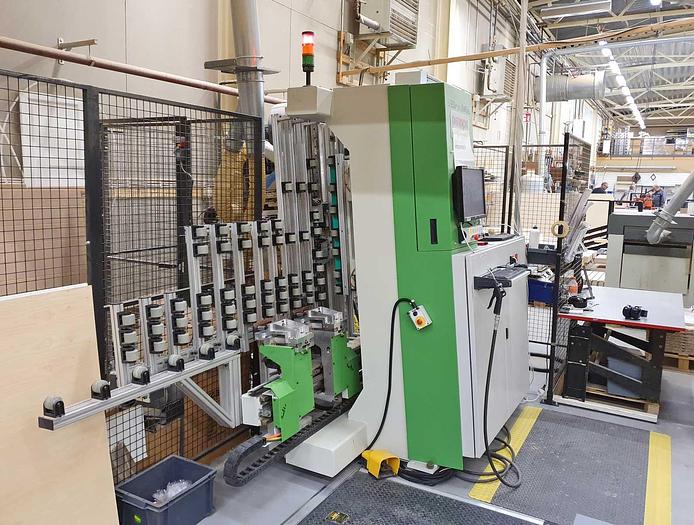

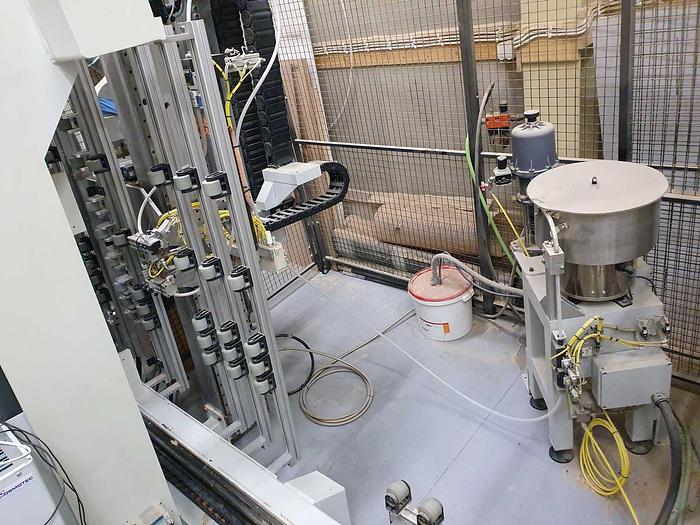

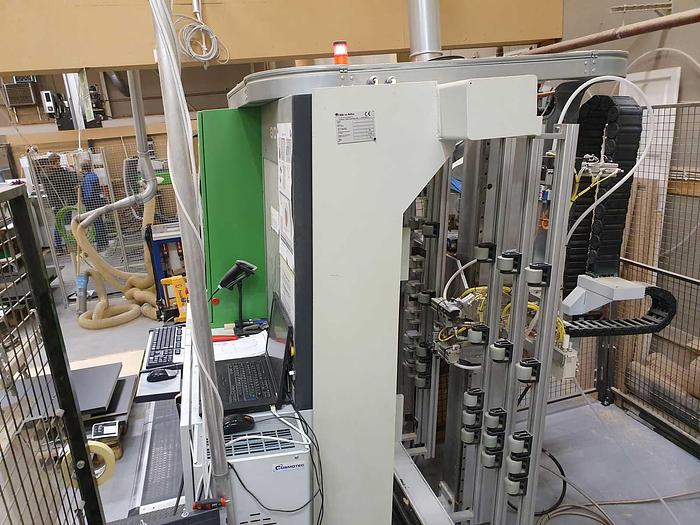

2011 Biesse Brema EKO 90

Malax, Finland

orCall 358-44-3654070

Description

Biesse Brema EKO 902
CNC-controlled vertical drilling and dowel inserting machine
Year of construction 2011
3-axis controlled
Milling spindle:4,5(ISO 30) kW
Tool changer:8-fold
13 Vertical drilling spindles (7 in Y direction and 6 in Y direction)
8 horizontal drilling spindles (3+3 in Y-direction and 1+1 in Y-direction)
Grooving saw: Ø 120 mm in X
Workpiece dimensions max:
Workpiece dimensions (max. working area):
Length (X axis) Min. mm 140 - Max mm 3200
Width (Y axis) Min. mm 20 - 900
Thickness (Z axis) Min. mm 10 - 80
Compressed air requirement:390 NL/min.
Suction requirement:2.400 m³/h
Machine Programming:bSolid

Specifications

ManufacturerBiesse Brema
ModelEKO 90
Year2011
ConditionUsed
Milling spindle4,5(ISO 30) kW
Tool changer8-fold
Compressed air requirement390 NL/min.
Suction requirement2.400 m³/h
Machine ProgrammingbSolid
