1999 JFK JK 60 - 3.5 Blower Filter

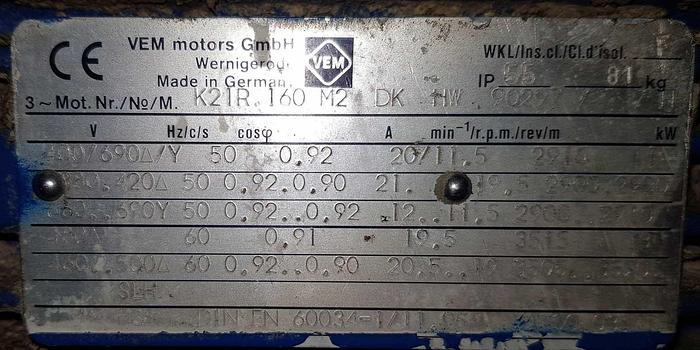

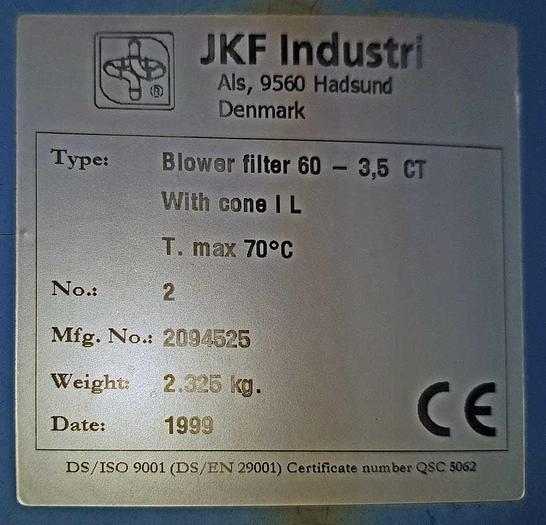

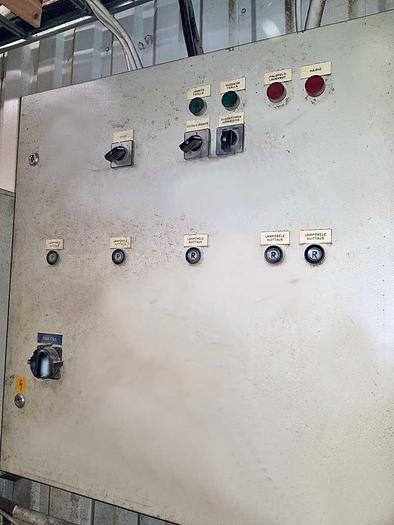

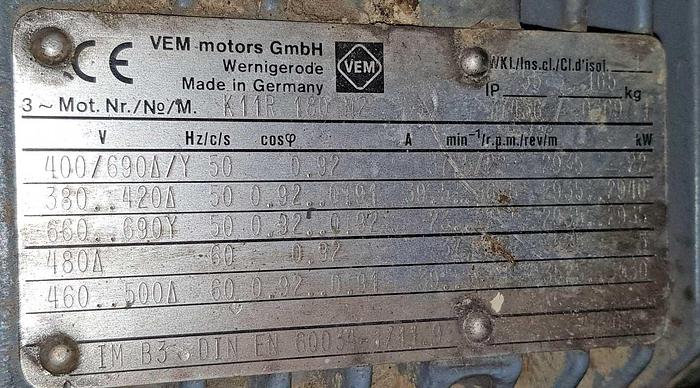

BLOWER Filter JKF with filter unit Type JK 60 - 3.5 Year of construction 1999 Filter area 98.7 m2 - External dimensions of the filter Diameter 1900 mm - height 7400 mm - Airflow max. 20000 m3/h - Resetting the slime to the factory condition. - Closure feed at the bottom of 100 filters - Cleaning with counterpressure blower - a return air duct from the filter to the factory including a fire damper and an air damper. The duct ends at the inner wall of the housing. Main filter Motor JK 45 K (VEM ) - Engine power 22 kW - V-belt insert Transfer filter motor JK 30 D ( VEM ) - Motor power 7.5 kW Direct drive - an electrical control center which controls the main vacuum, the transmission vacuum, control and filter function
