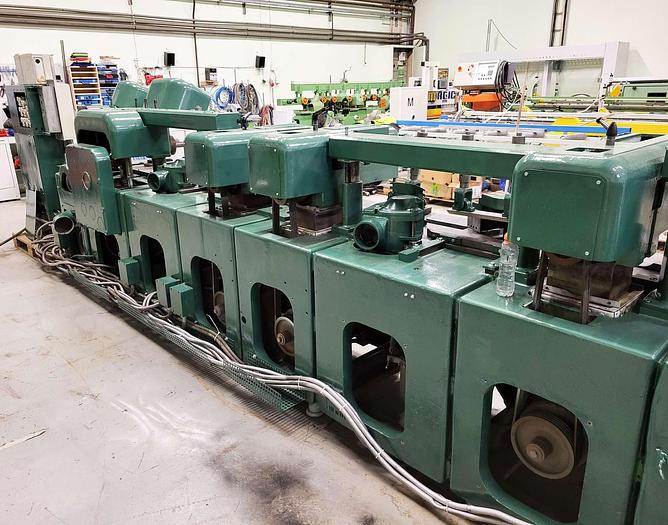

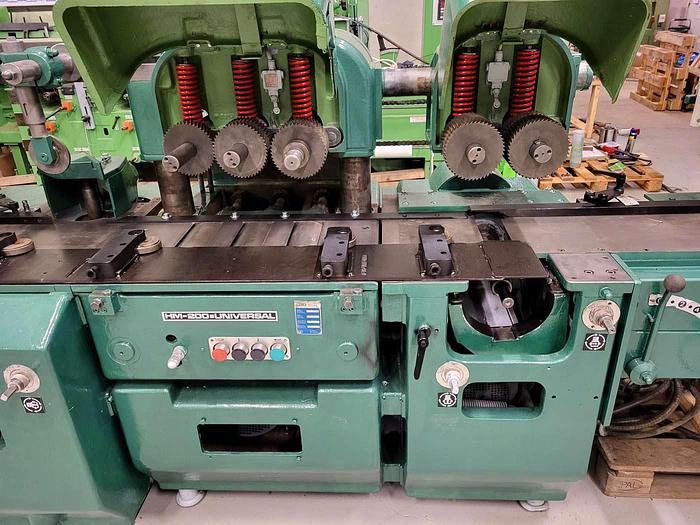

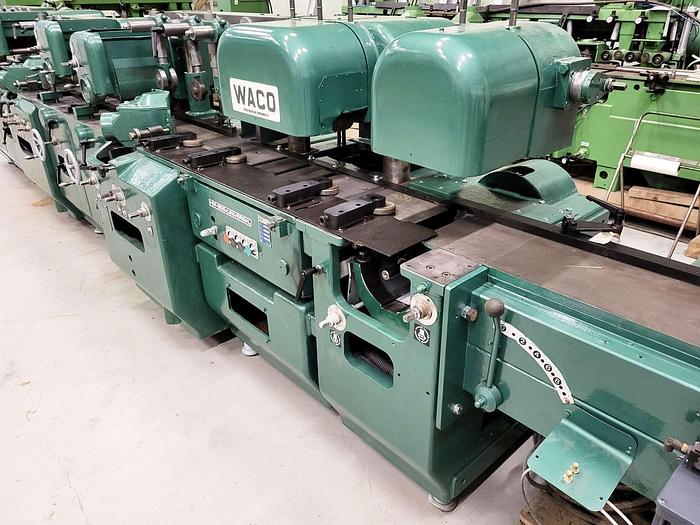

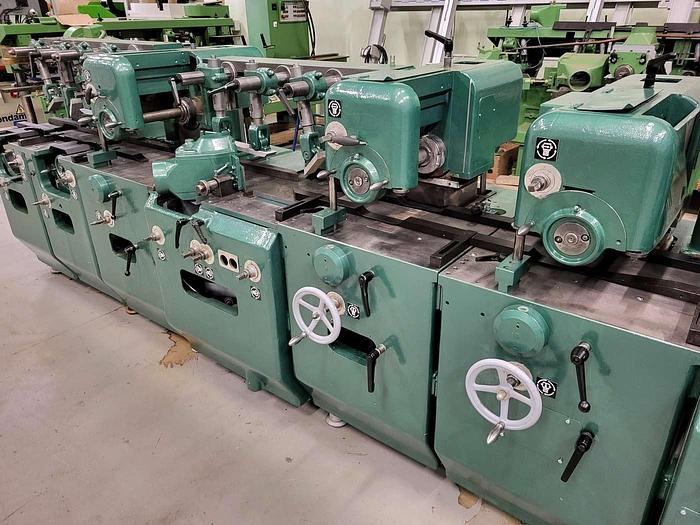

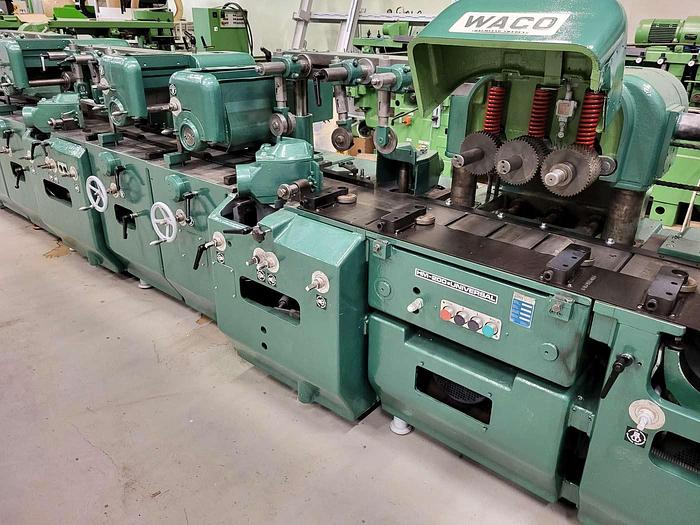

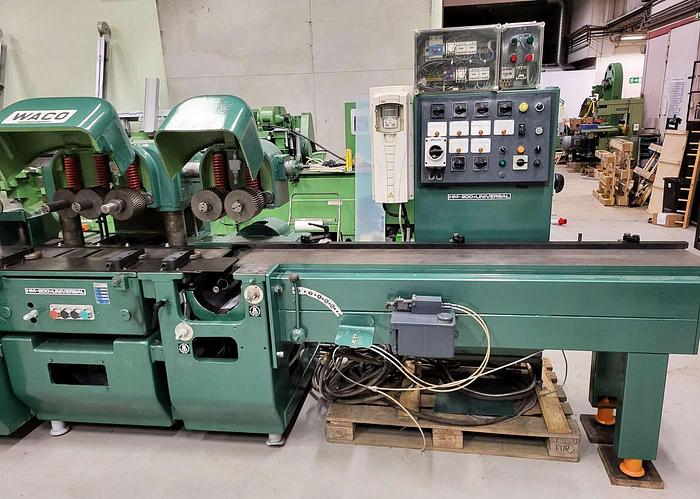

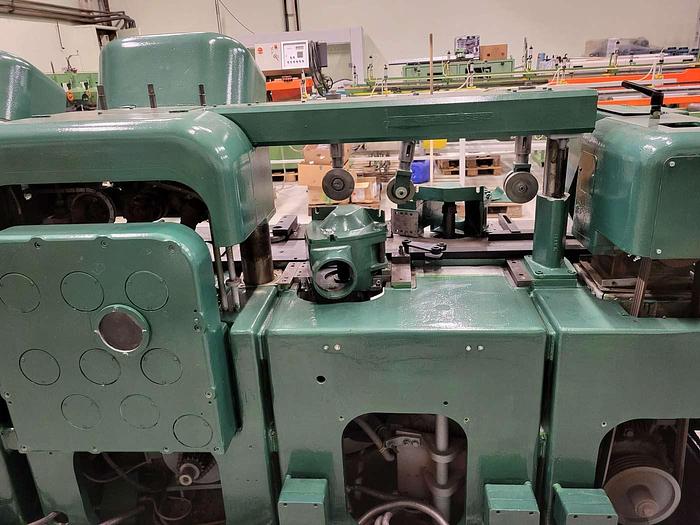

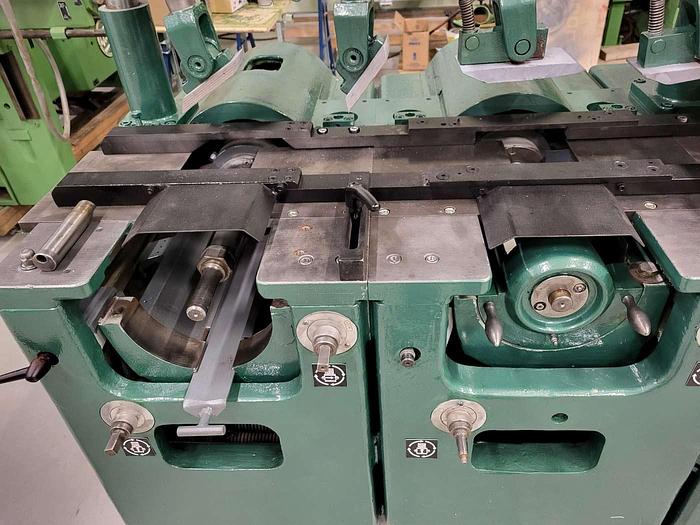

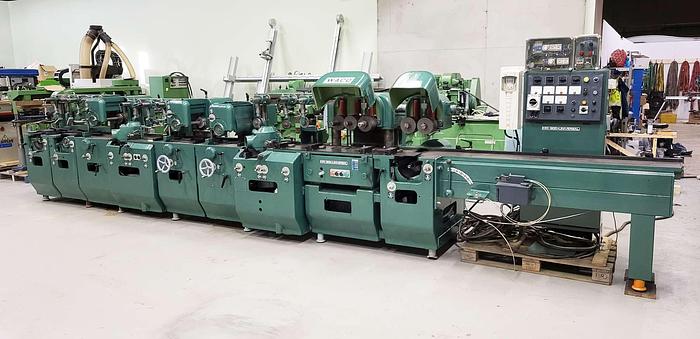

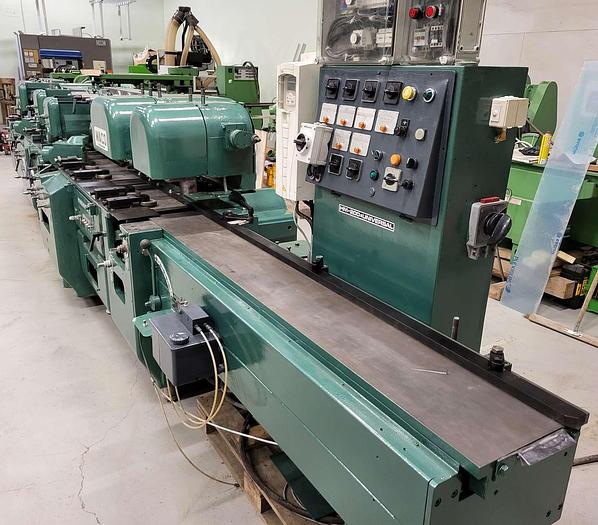

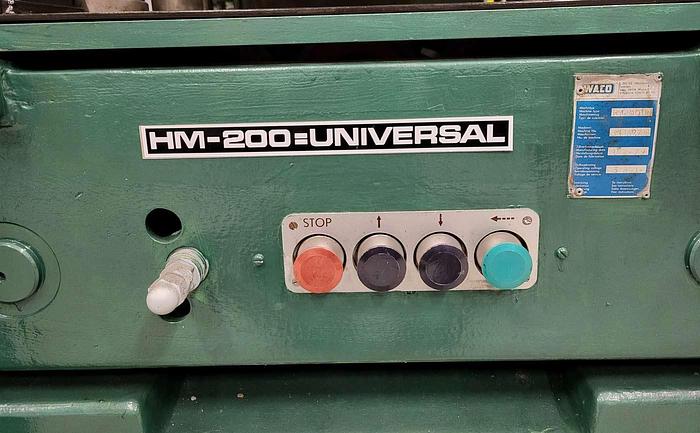

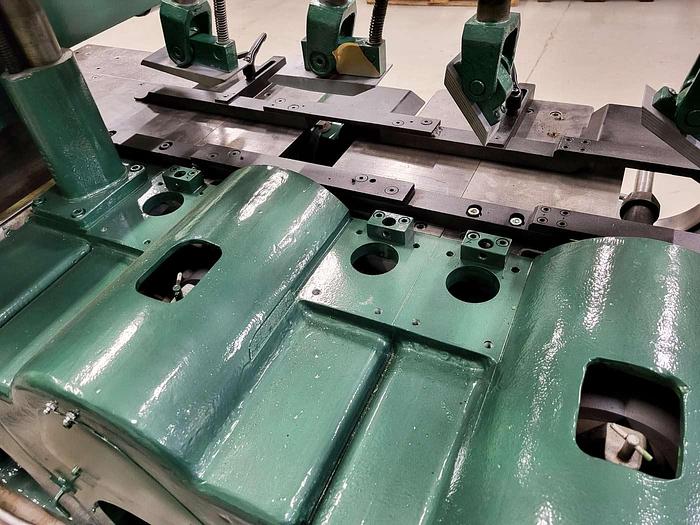

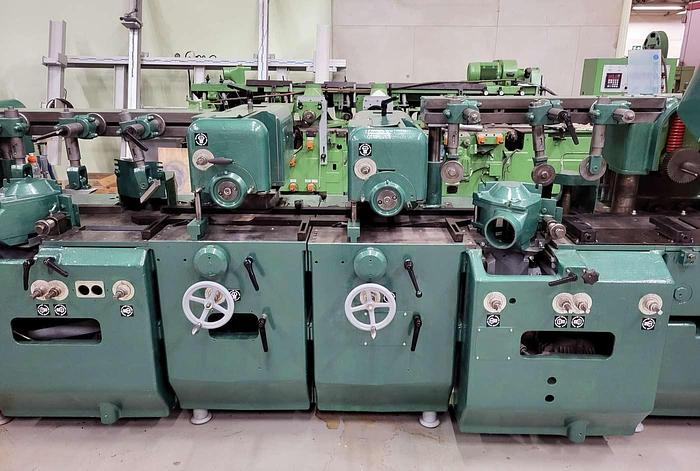

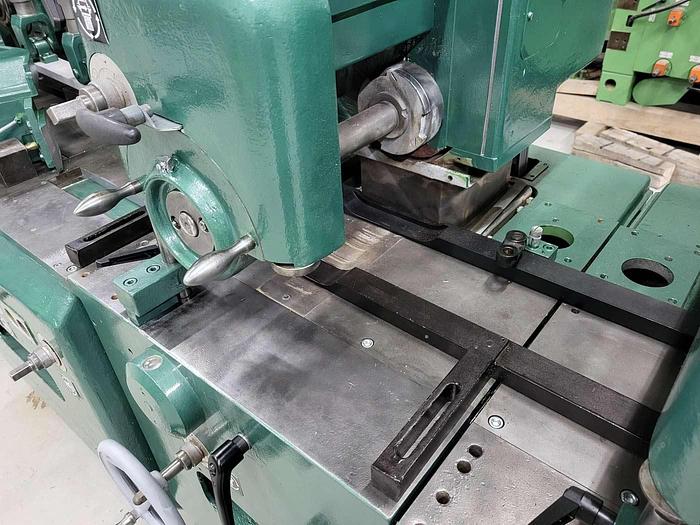

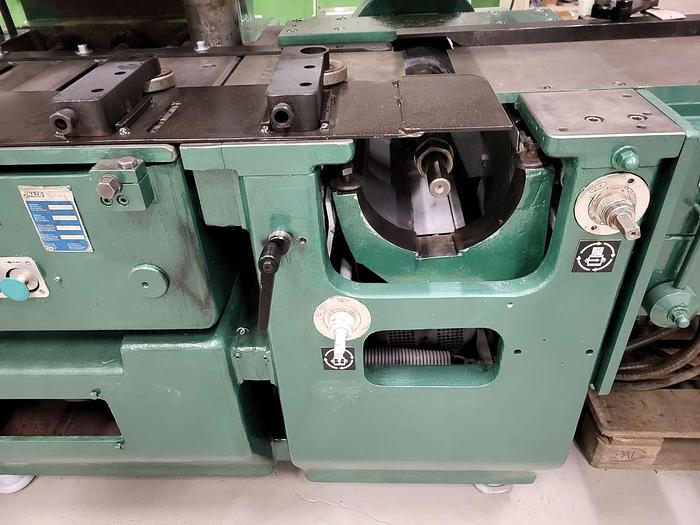

WACO HM200 UNIVERSAL, Planer-Moulder 10 spindle machine

WACO HM200 UNIVERSAL, Planer-Moulder 10 spindle machine

Year 9/1979

S/N 31469.708

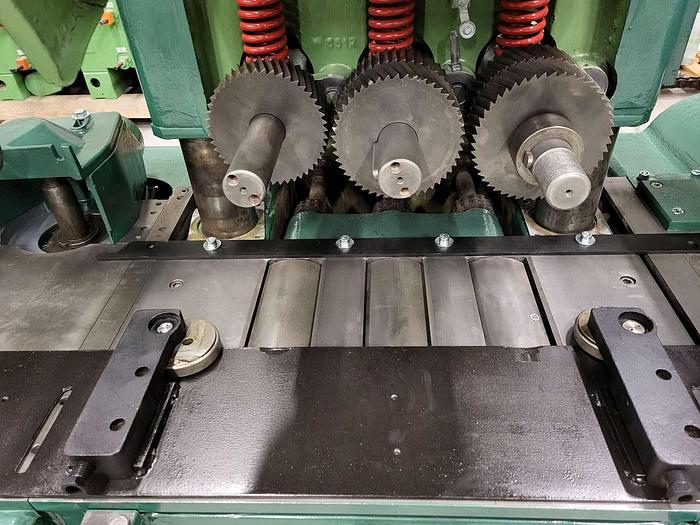

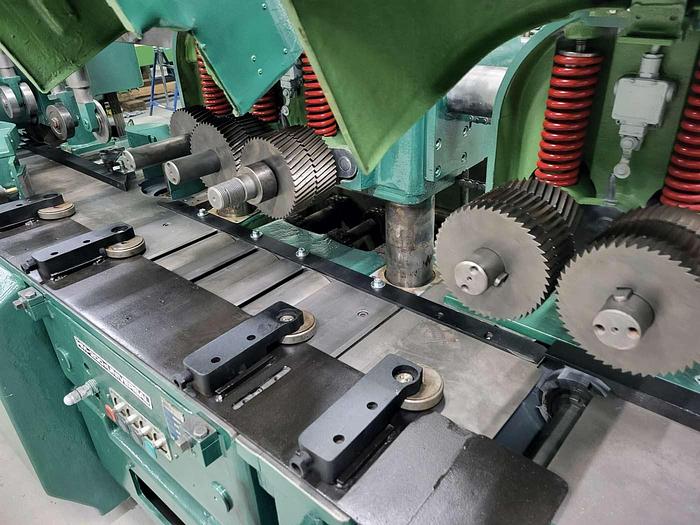

Hydraulic feeded powerful spindle moulder.

Feeding speed 0-50m/ min

counter bearings on all horizontal spindles.

1. / 5. / 8./10. spindles equipped with jointer

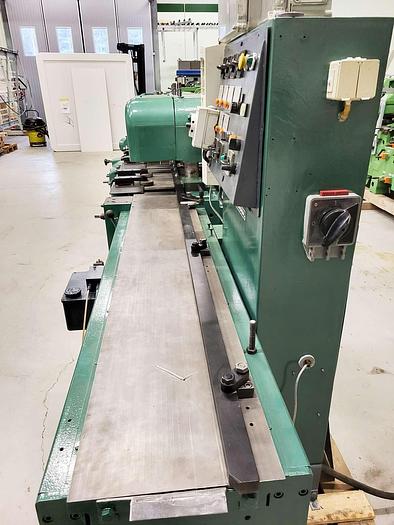

Infeeding table 200 cm

Technical describtion:

working capacity 200x100mm (width x hight)

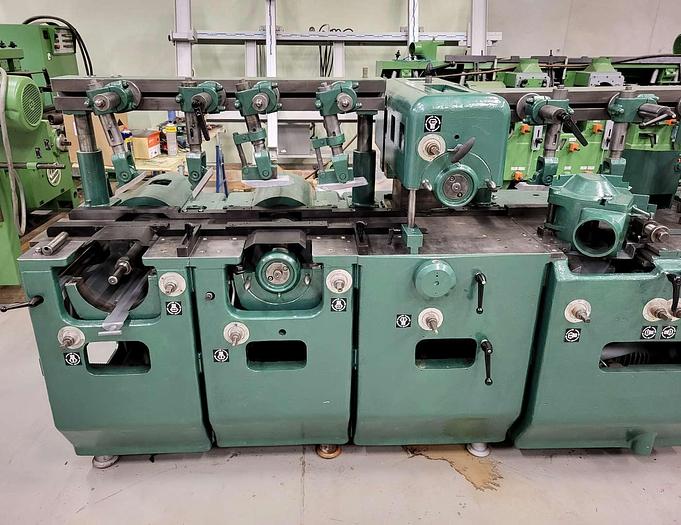

Spindle configuration:

1. Spindle Bottom 7,5Kw (10Hp)

2. Spindle Right 7,5kw (10HP)

3. Spindle Left kw (15HP)

4. Spindle Top, 7,5kW

5. Spindle Top, 7,5 kW

6. Spindle Right 7,5kw (10HP)

7. Spindle Left kw (15HP)

8. Spindle Top, 7,5 kW

9. Spindel Bottom, 7,5 kW

10.Spindle Bottom 10 kW

Bottom spindle max tool diameter 160mm, work length 210mm

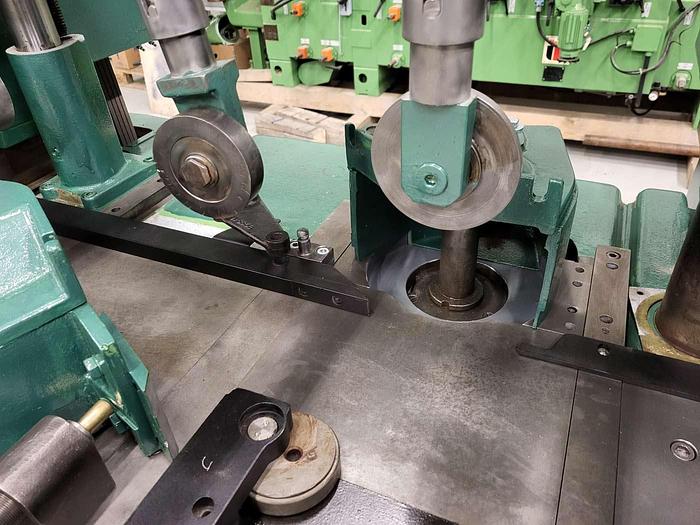

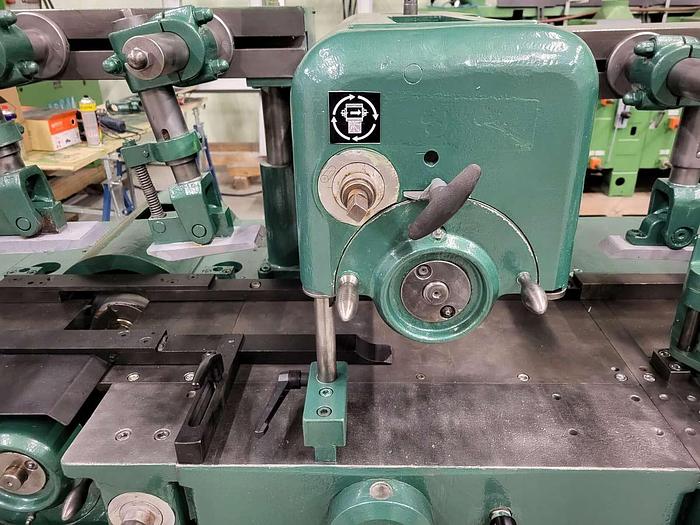

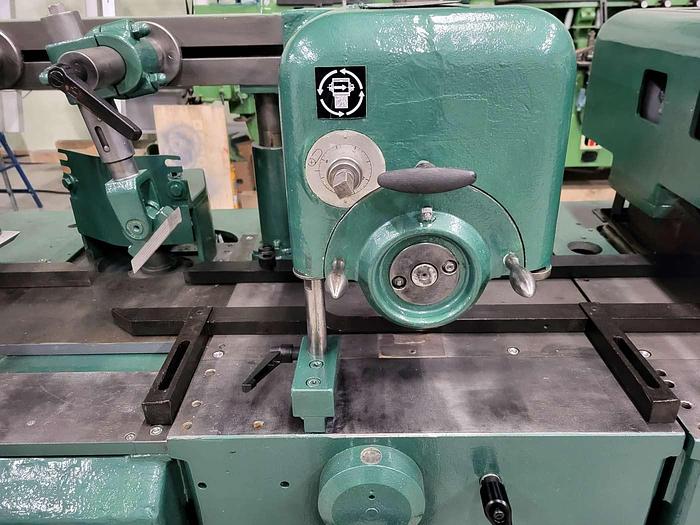

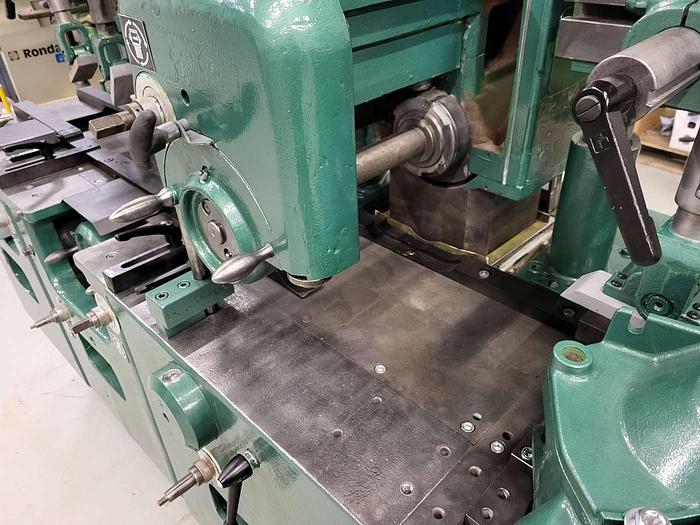

Side spindles (right / left) max tool diameter 200mm, work length 110mm

Top spindles max tool diameter 225mm, work length 210mm

Spindle diameter 45mm

L x W x H =

Weight 10 t
