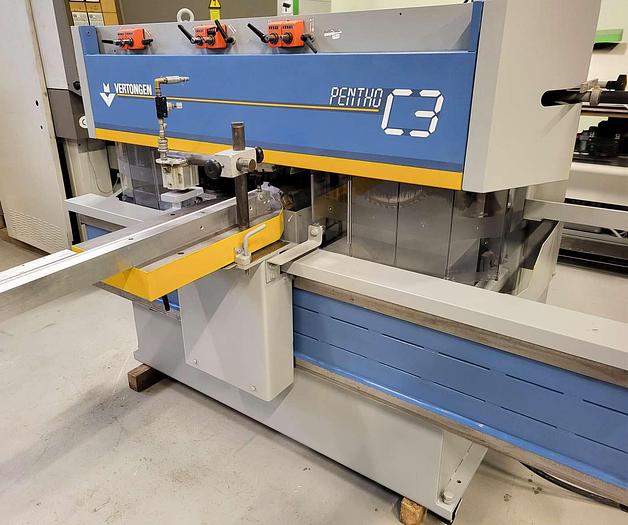

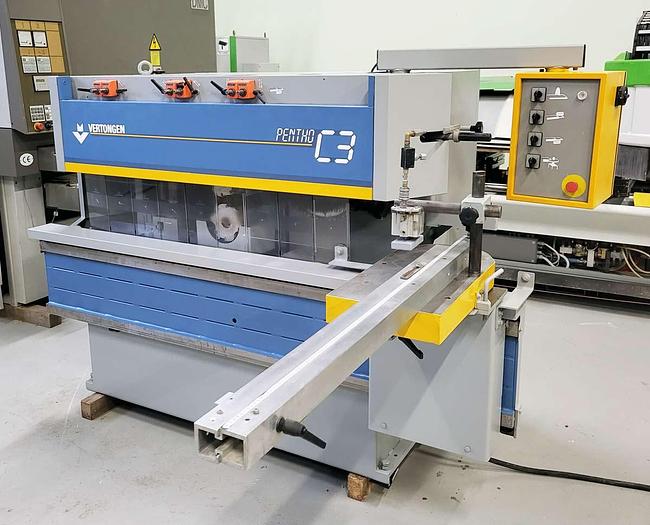

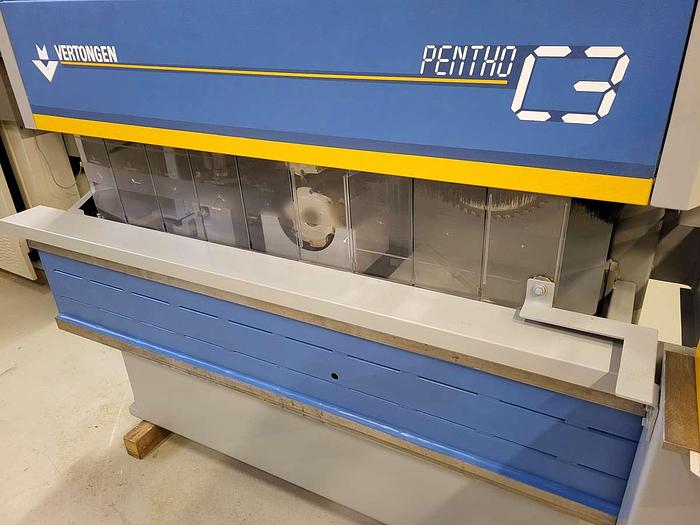

Vertongen Pentho C3 Universal tenoner ( 4 head )

Universal Tenoner Vertongen Pentho C3 ( 4 head )

manufacture: Vertongen Belgium

Year of manufacture 1997

CE marked

in good condition ( from a vocational school )

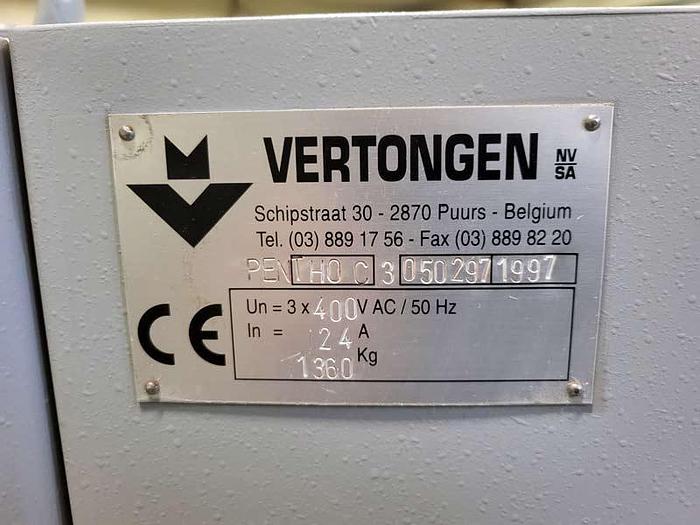

S/N 050297

The Pentho C3 has a cut-off saw, tenon heads and one vertical spindle.

The machine has a solid table on a stable vertical slide bar.

The cut-off capacity of the machine is 150 mm.

The total table can be swiveled +/- 45° in two directions.

Technical description

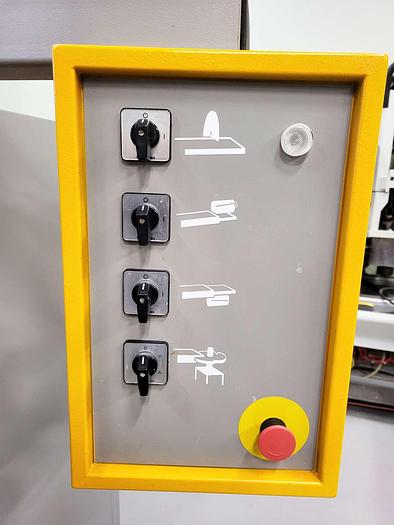

Selecting of all motors by the panel

Security: Conform CE.

Dimensions: 2200 x 1700 x 1600 mm

Total extraction: 1 x Ø 80 mm, 3 x Ø 150 mm

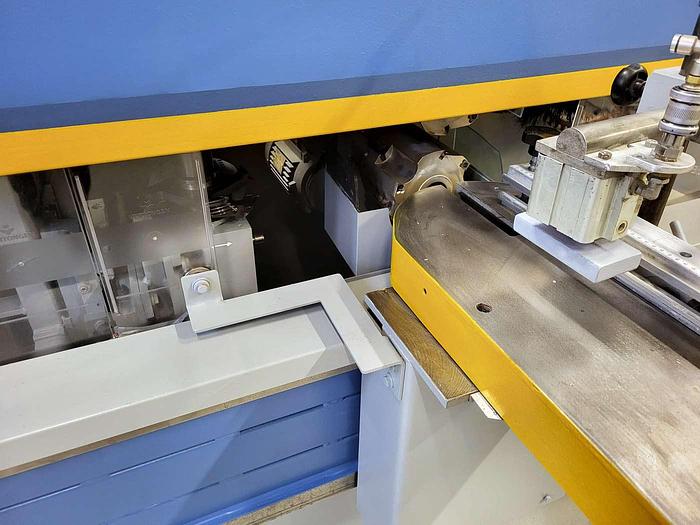

Table

Table mounting: Vertical attached, extra solid

Movement: Manual; automatic movement option

Table: Swiveling +/- 45°, fixed in height

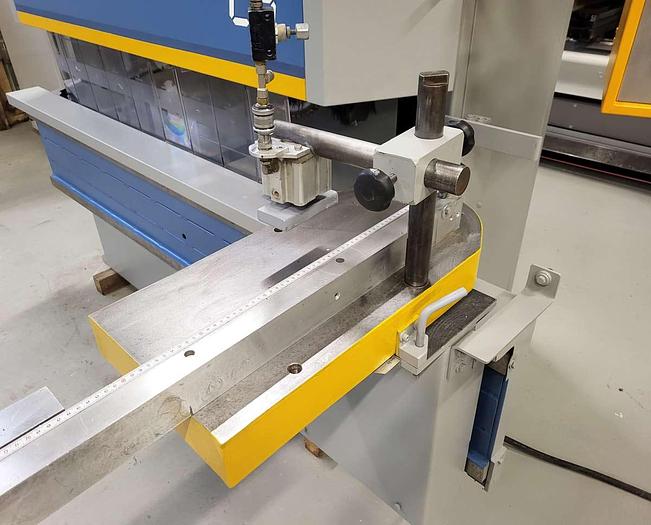

Clamps: pneumatic clamps vertical

Length fence: 2.4 m

Dimensions: 160 mm x 600 mm (useful)

Cut off saw

Motor: 2,2 kW - 3000 rpm

Adjustment: Hor. 20-155 mm ,cut-off capacity 150 mm

diam. max 400 mm

Extraction: Diam. 80 mm

Positioning: Manual on slide bearings

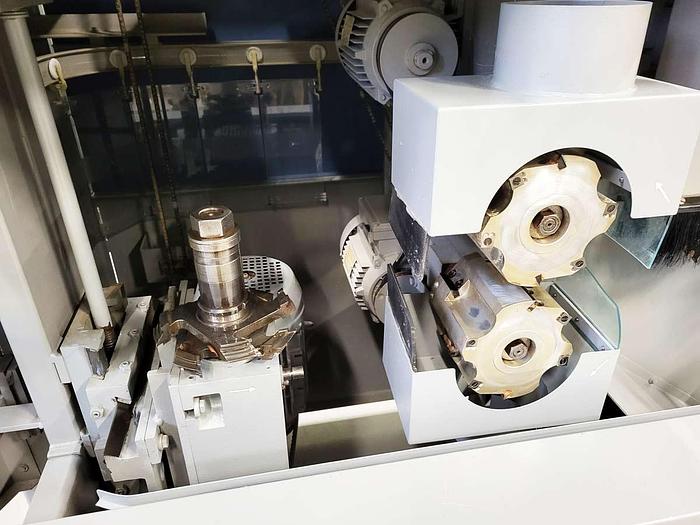

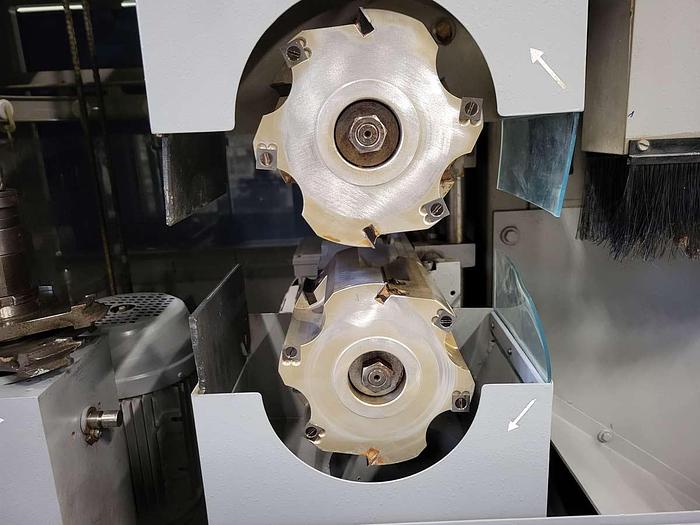

Tenoning heads

Motor 2 x 2,2 kW

RPM: 4500

Suspension: Slide bearings

Reading: Mechanical digital counter on front of machine

Tooling: Tenon heads included

Ø 160 mm, length 145 mm, exchangeable knifes

Extraction: 2 x 150 mm diameter

Movement: Horizontal upper -55 / +25 mm, lower -55 / 0 mm

Vertical upper +3 / +150 mm, lower -2 / +80 mm

technical information under subject of correction
