Ott veneer press 300K/120

OTT veneer press 300K /120

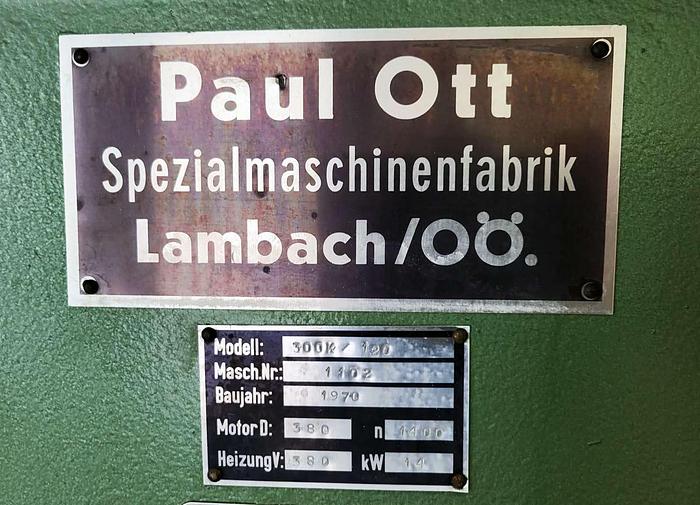

Manufacturer OTT

Type Model 300 K 120

S/N 1102

year of manufacture 1970

heating plate size: 2.550 mm x 1.350 mm

2 electric heating plates, connection per plate 9,2 kW

heating time 20min

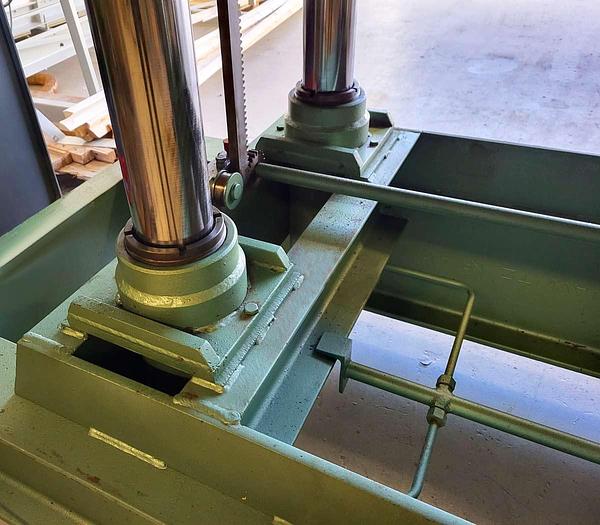

4 hydraulic pressure cylinders

Total pressure: 120 to

Conventional control

Opening width 400 mm

Total pressing pressure: 120 to

Specific pressing pressure: 4/6 kg/cm²

Machine dimensions L x W x H 3,000 x 1,480 x 2,060 mm

Machine weight approx. 4500 kg

Technical data subject to change
