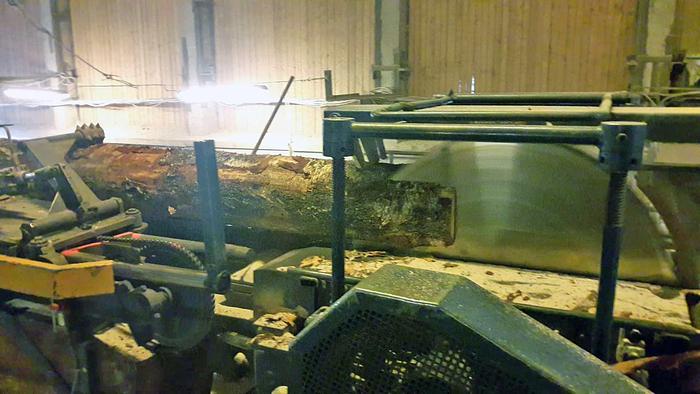

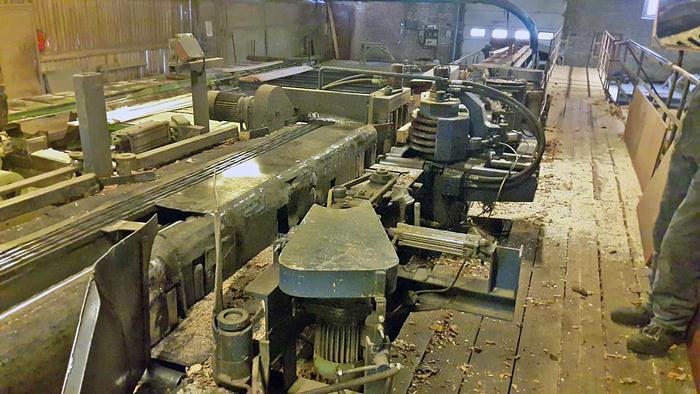

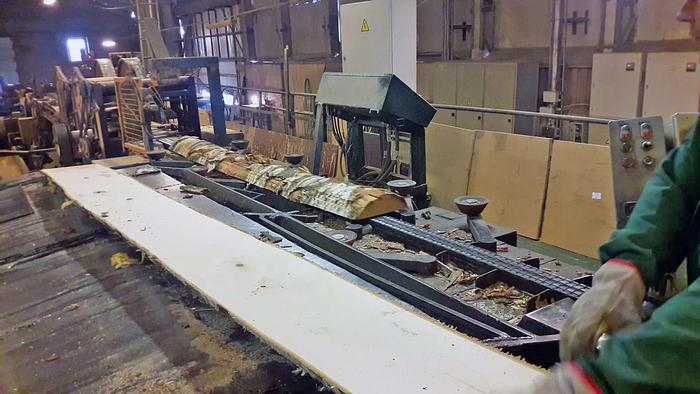

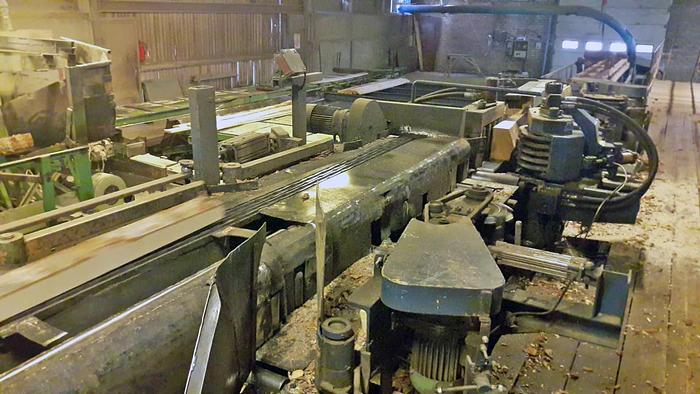

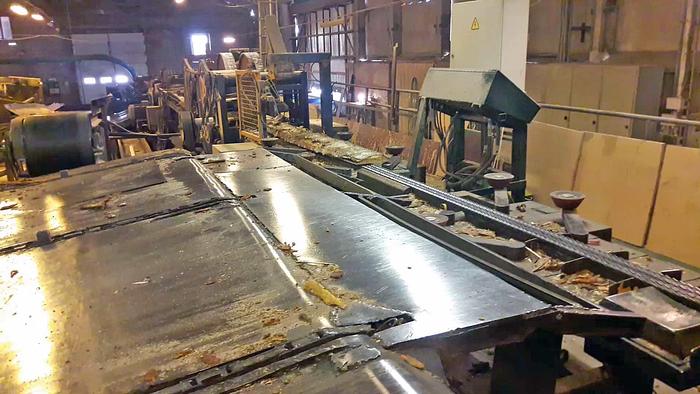

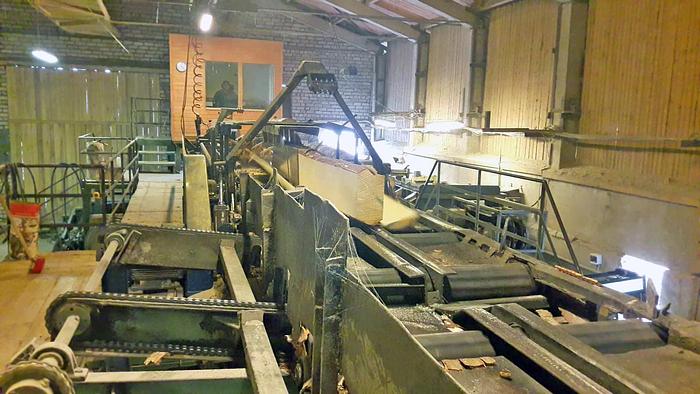

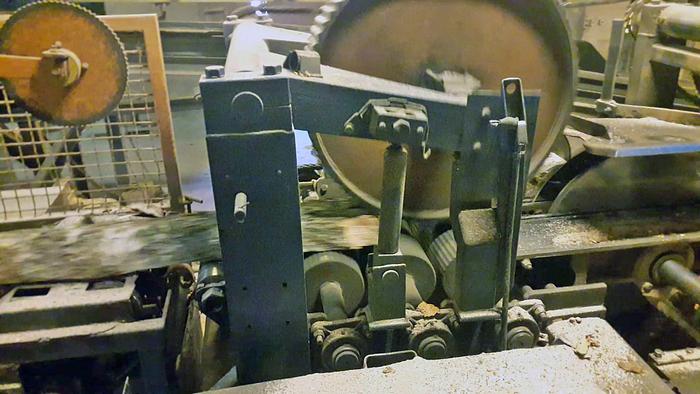

1974 ARI Sweden Complete sawline ARI with 2 sas KL10 and KL12 and edger
orCall 358-44-3654070
Description
Complete sawline ARI with 2 sas KL10 and KL12 and edger
( used for hardwood ) year 1974
location: Sweden
Sawn sizes:
Min and max in thickness and width: KS12 - min 80 mm max 200, max log diameter approx. 47 cm with 1200 mm saw blades;
edger and KL10 - width 63… 250 mm, thickness 15… 65mm
Capacity of the line:
No of logs / 8 hrs: Depending from log length, 500-700 logs / 8 hrs.
Brand and age of the equipment:
ARI Sweden: KS 12 and KL10; production year 1974.
Edger; Norwegian brand, age similar.
Need of electricity:
Motors for machines 4x37 kW; motors for conveyors 10x1.5 kW, 4x2.2 kW; 1x3.0 kW; motors for hydraulics 1x7.5 kW, 2x5.5 kW.
No of blades included for the different machines:
KS12 - diameter 1200 mm 8 saw blades; edger - diameter 650 mm 8 saw blades; KL10 - diameter 750 mm 6 saw blades.
All saw blades are hard-metal teeth.
Conveyors:

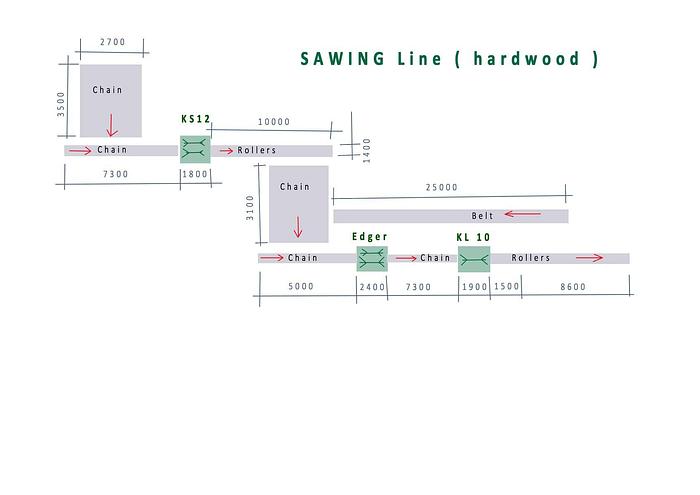

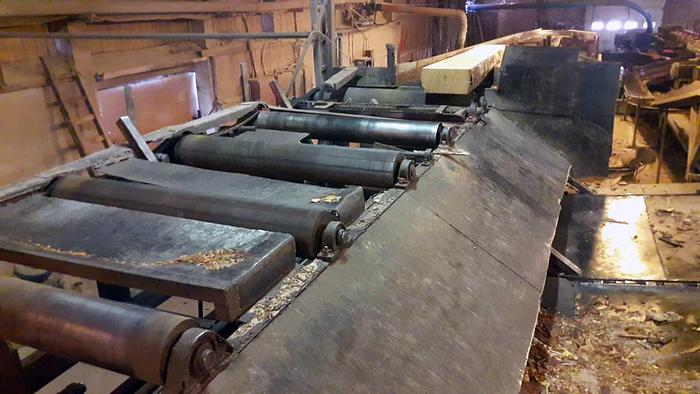

All conveyors are included starting from cross conveyor for logs before KS 12 until roller conveyor after KL 10 (except saw dust conveyors).
Electrical connections
(cables / cabinets / keyboards for operators); All included and all cables are market for easy reconnection.
Spare parts;
No big stock, but some bearings, bushes, belts and motors.
Specifications
Manufacturer | ARI Sweden |
Model | Complete sawline ARI with 2 sas KL10 and KL12 and edger |
Year | 1974 |
Condition | Used |
