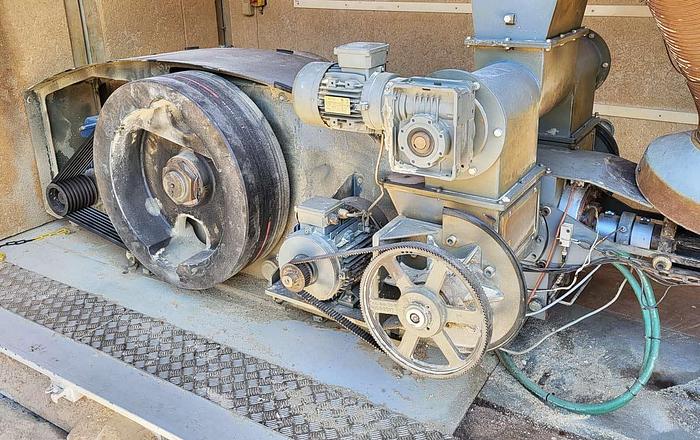

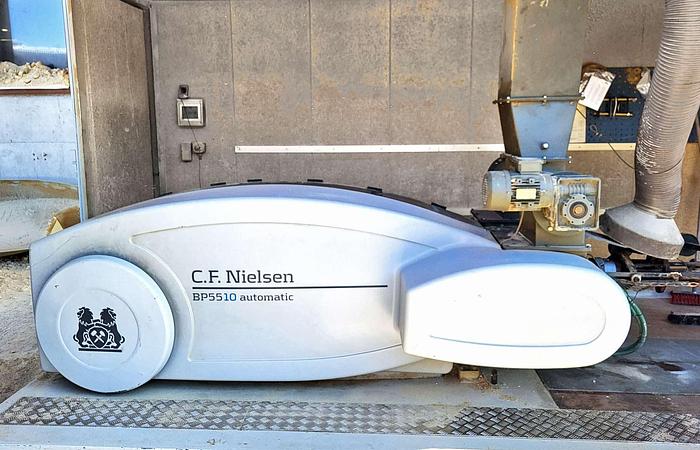

Mobile Briquetting plant C.F Nielsen BP 5510 automatic

Malax, Finland

No longer available

Description

Mobile Briquetting plant C.F Nielsen BP 5510 automatic

Year of manufacture 2017

Operating hours 8500

Manufacture CF Nielsen Denmark

Last service 11/ 2022 from Nielsen Denmark

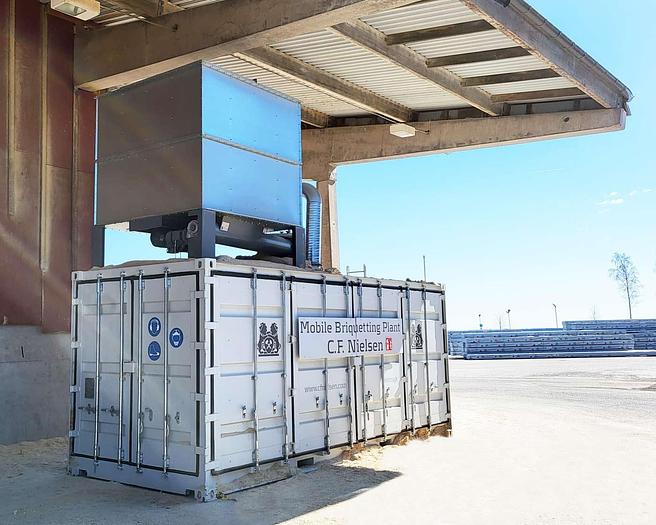

Inbuild in a moveable 20” container

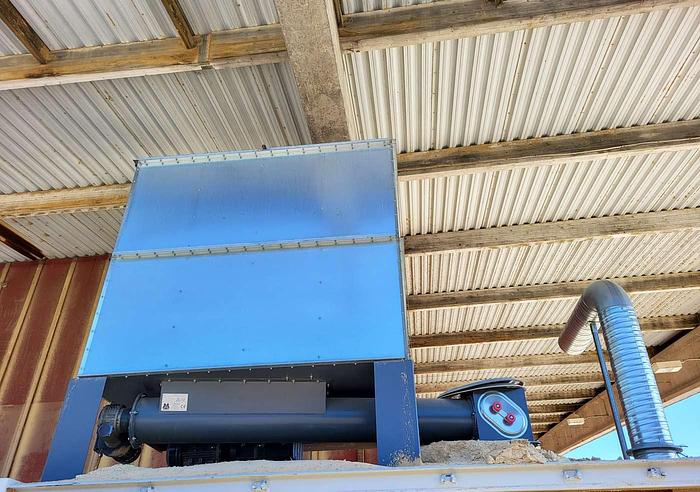

Incl. silo with bottom scraper and dosing screw ( type 582 DS ) for dust transport from the top

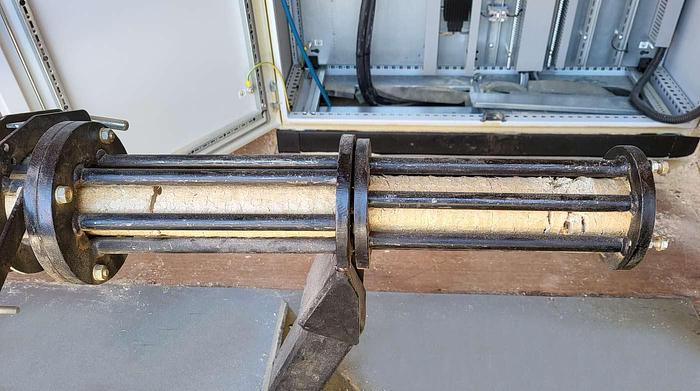

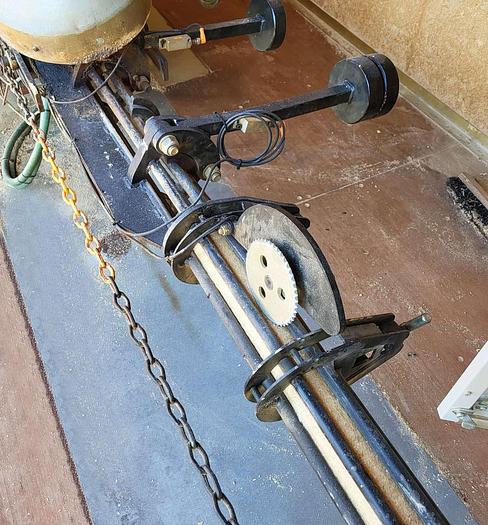

Incl. 22 m intermedia transport line for the briquettes



Technical specifcations:



Briquette size – mm nominel

Briquette size – mm nominel Ø75 / sq. 65×65

Main motor – with softstart 45 kW

Capacity range – Industrial briquetting 900-1400 kg/h*

Capacity range – Consumer briquetting 850-1100 kg/h*

Pressure lubrication

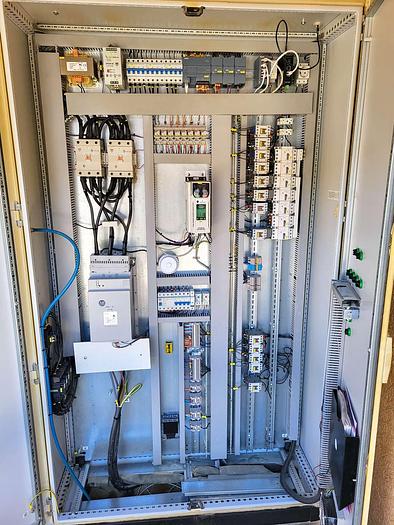

Control system – standard , 14 different language settings

BBCS (ABCS)



  • Modern design with streamlined fiberglass covers
  • Reduced noise level

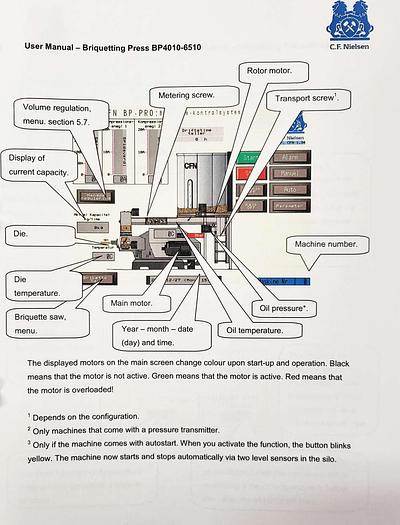

  • Touch screen operation via control panel or your iPad
  • Latest PLC software for control system and itnernet log in
  • Service-friendly and easy to clean
  • Easy to service and low maintenance costs
  • Die system with exchangable wear parts to reduce costs
  • Improved safety system
  • Improved lubrication system

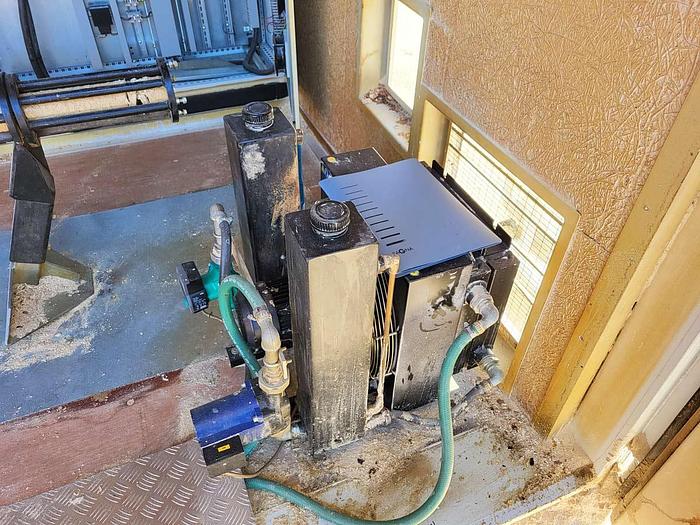

  • Improved oil/water cooling
  • Heavy built and suitable for running 3-shift operation

Briquette size: Ø75, 65x65mm Capacity: 900-1400 kg/h



Dimensions (LxWxH) m

2,9x1,7x1,6

Weight app. (kg)

app. 6000 kg

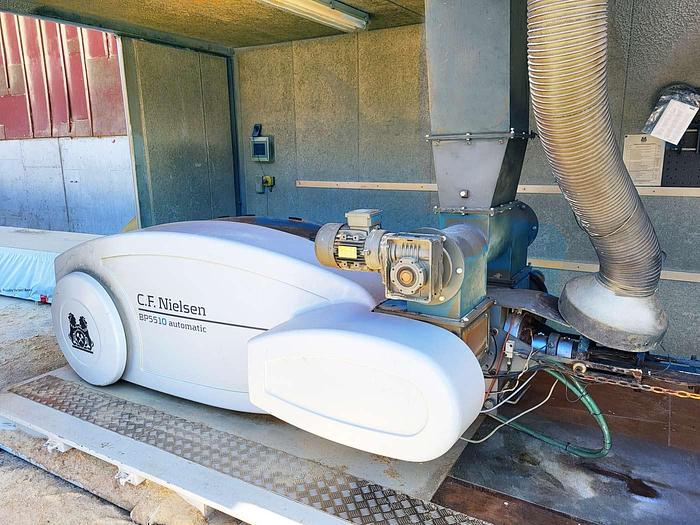

The mechanical briquetting press BP5510 has an advanced design and is the top line in briquetting.

The double feeding system guarantees high capacity, regardless of the density of the raw material.

The press is equipped with an advanced control system that allows internet access.

It is possible to monitor, operate or search for failures and even to reprogram the PLC-function via an internet connection.

All operation texts and failure notices can be shown in up to 16 languages. The log function is an important tool for analyzing and improving the briquetting process.

The BP 5510 is a strong press with a sturdy housing made of high tensile steel and fixed on heavy steel reinforced concrete foundation

which secures a quiet and safe operation with extremely low vibration level.

A unique piston and die system with exchangeable piston crown and wear rings is available for different types of briquettes from various raw materials.

The press is mainly suitable medium sized capacities of consumer briquettes with 10-12% moisture and high capacity production of industrial briquettes

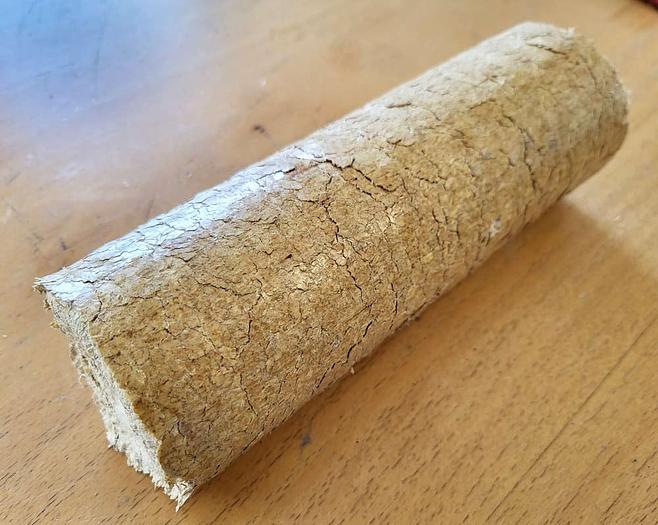

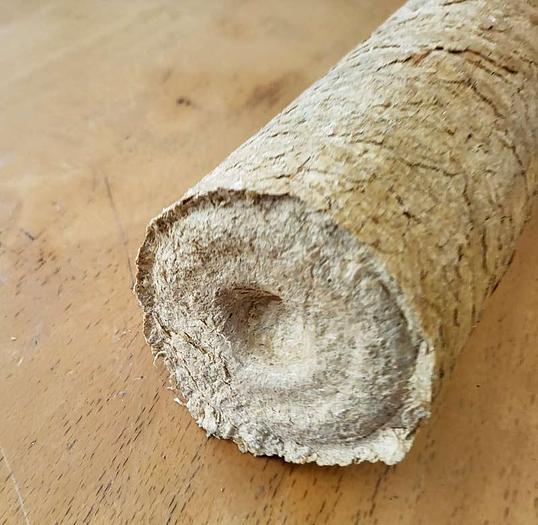

with with moisture ranging from 6-16%  and with a capacity of up to 1100 kg/h. Briquettes can be round with a diameter of 75 mm  or square 65×65 m


Specifications

ManufacturerCF Nielsen Denmark
ModelBP5510
Year2017
ConditionUsed
