RANDEK Notching saw JS400C

RANDEK Notching saw JS400C

year 2005

Notching depth: 30 - 115 mm

- Notching length: 10 - 380 mm

- Wood thickness: 30 - 70 mm

- Electrical connection: 3 x400 V, 50 Hz, 25 A

- Compressed air: 0,5 - 0,8 MPa (5 - 8 bar)

- Saw blades: HM 400/30-3,5/2,5/40

Notching Saw JS400C is an effective tool for manufacturing studs

for walls with lintel beams. With lintel beams, roof trusses can be placed

anywhere along the wall and no custom reinforcements are needed for

wide windows. Easy and compact machine which easily can be moved

around in the factory.

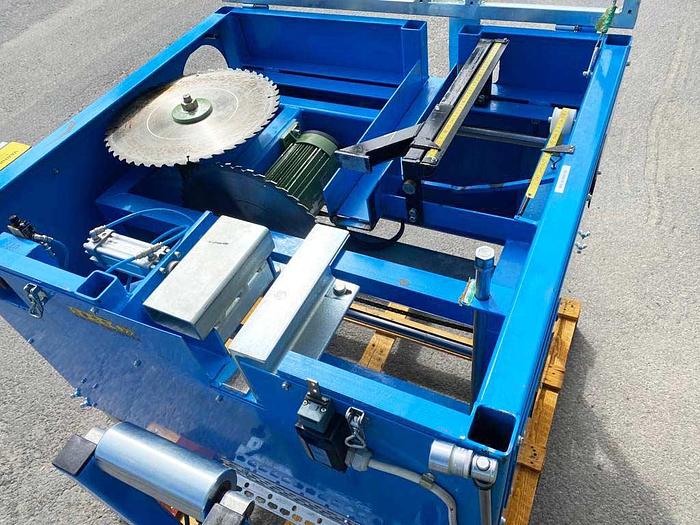

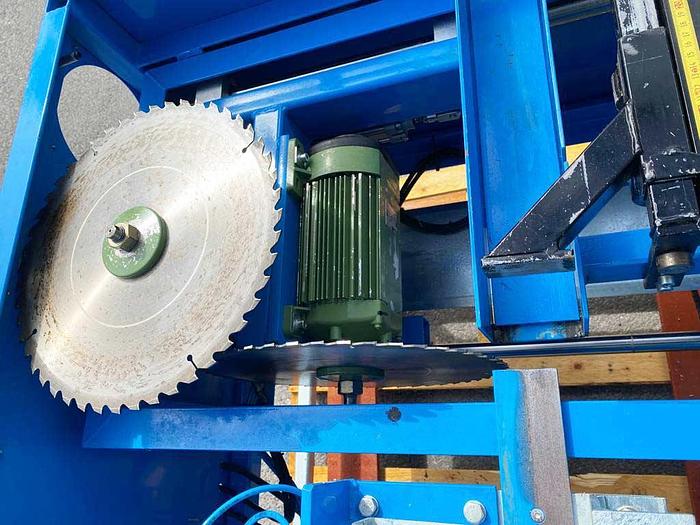

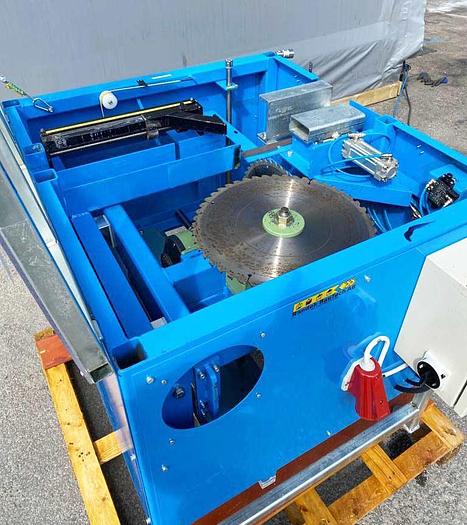

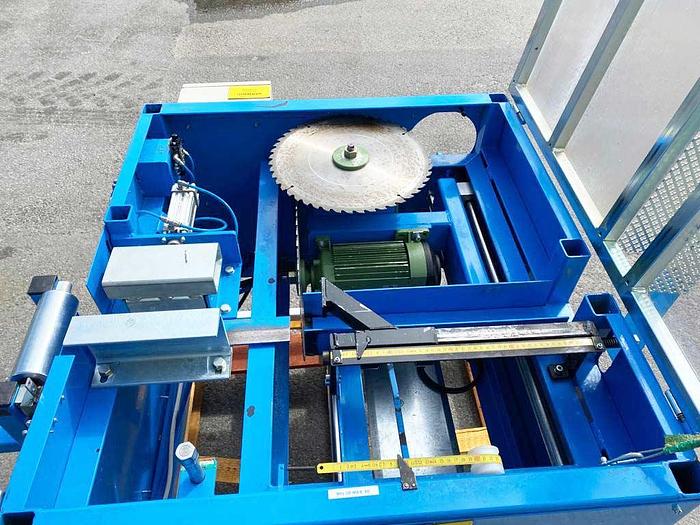

The machine fixes the wood pneumatically and makes two cuts with the two 400mm diameter saw blades.

The maximum length is 380mm and the depth of cut can be adjusted to a maximum of 115mm.

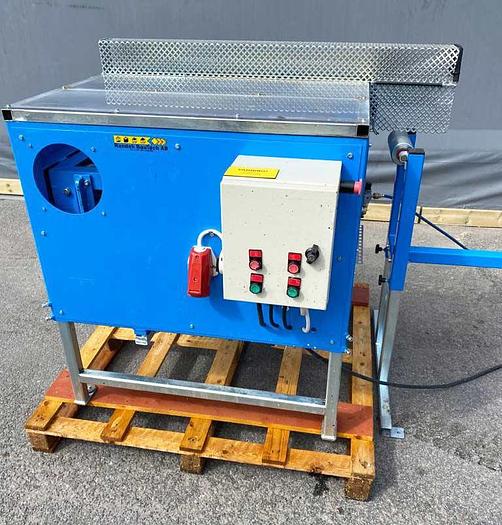

The saw can be operated quickly and easily by push / pressure switch ( electronic )

The wood to be notched, e.g. a handle, is pushed into the covered saw slot up to the set stop. and.

The protruding end is placed on a roller block (not included).

Safety

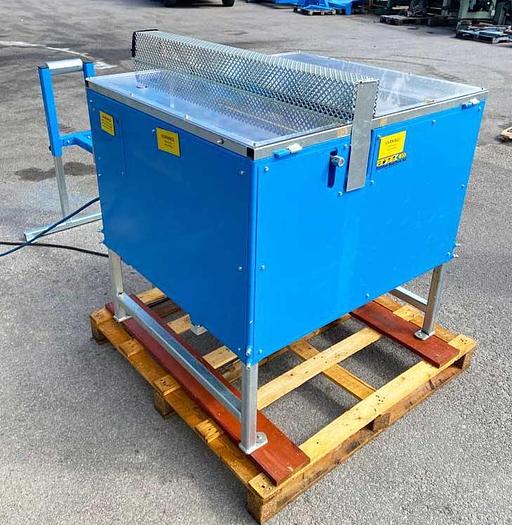

The saw is well sealed against tampering by means of a cover plate.

When the cover is opened, the electric current is automatically cut off, which minimizes the risk of injury.
