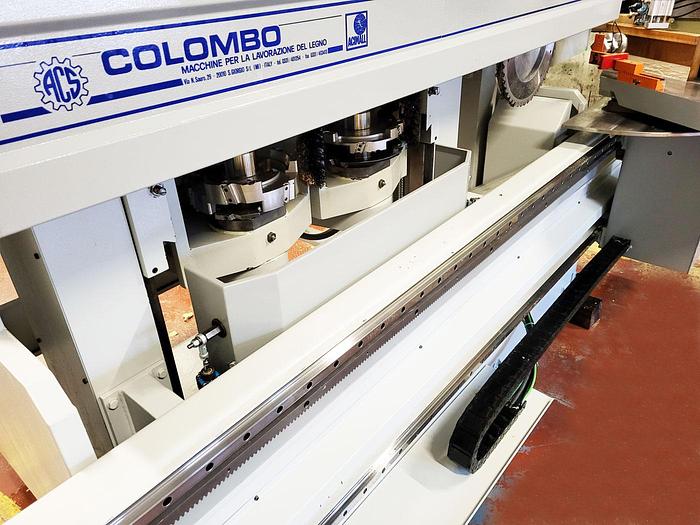

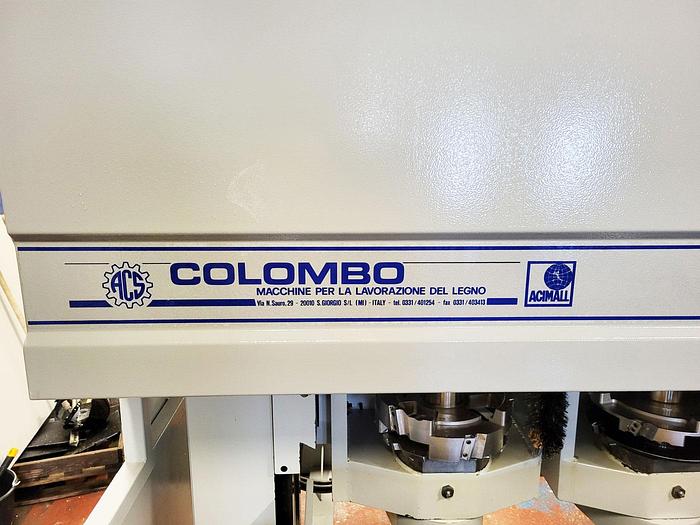

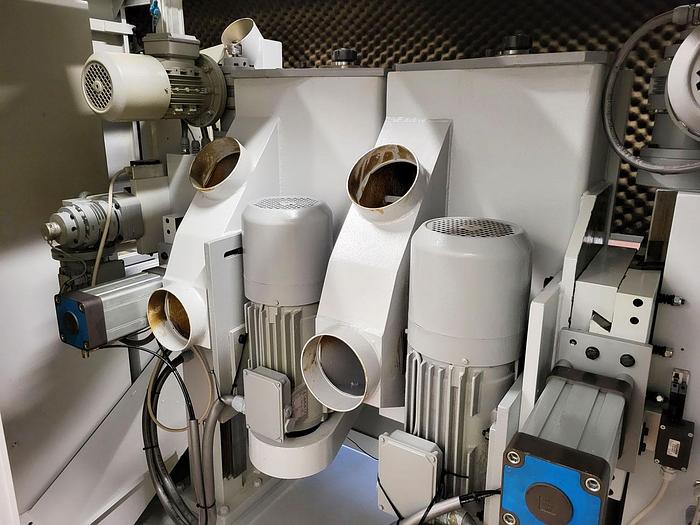

Automatic tenoning machine for door and window construction Colombo AT 35

Automatic tenoning machine for door and window construction Colombo AT 35

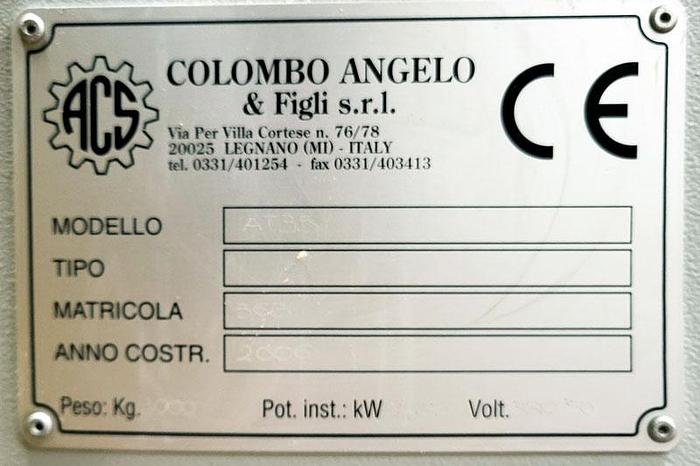

S/N AT35-363

Year of manufacture 2006

automatic tenoning machine with automatic feed

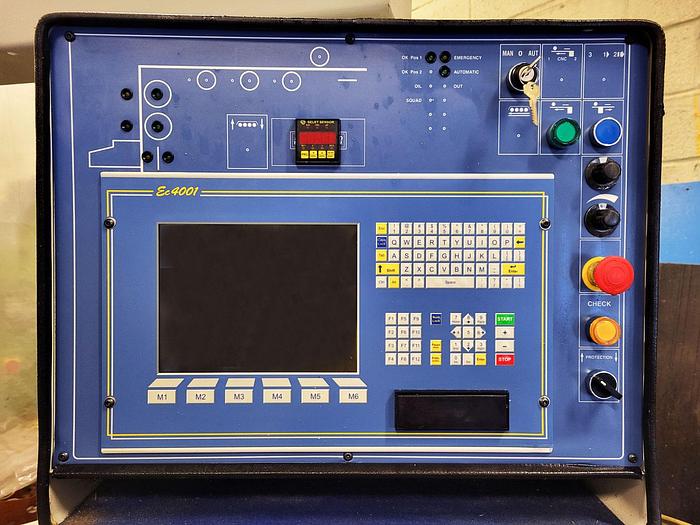

CNC control

movable work table

automatic feed

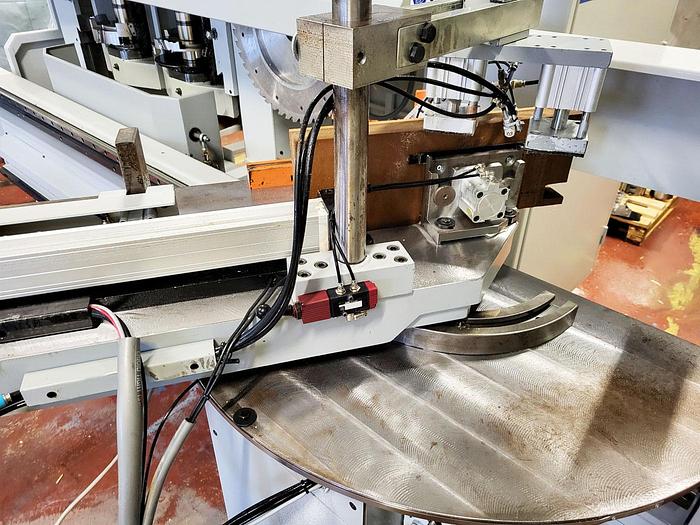

pneumatic cylinder for holding the workpiece

equipped with 1 pressure cylinder

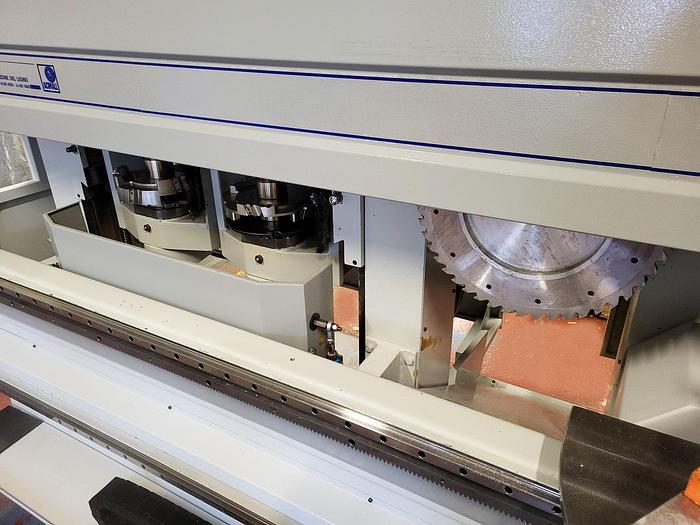

Machine consisting of 2 work units:

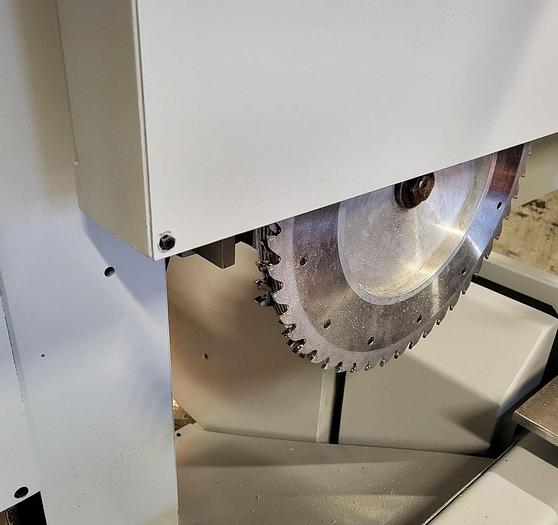

1 circular saw:

Saw blade diameter mm 400

Motor power PS 4

Horizontal movement of the blade mm 130

Max. Cutting height mm. 125

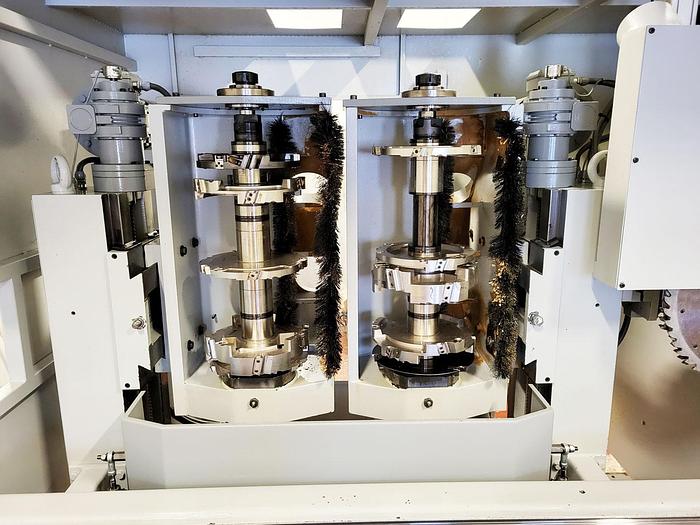

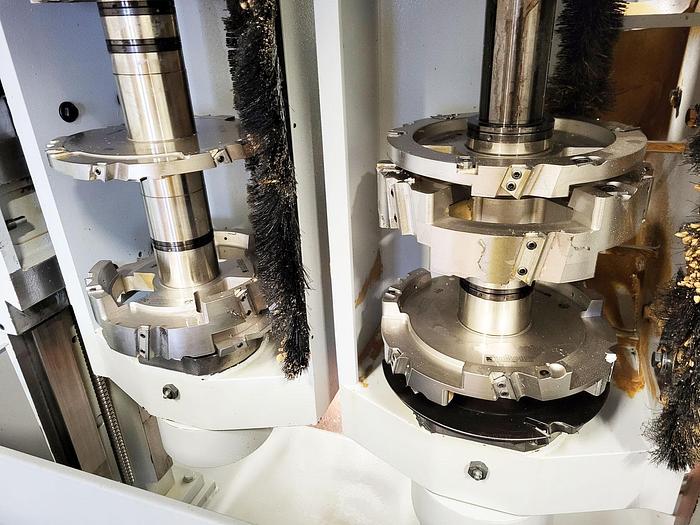

Tenoning spindle:

Automatic tenoning carriage: Stroke mm 1700

Worktable dimensions mm 600 x 1100

Spindle diameter mm 50

Spindle length mm. 620

Vertical stroke mm. 540

Maximum tool diameter mm 320

Motor power PS 10

CE marking: Yes

Weight kg 1800

Volt. 380/50
