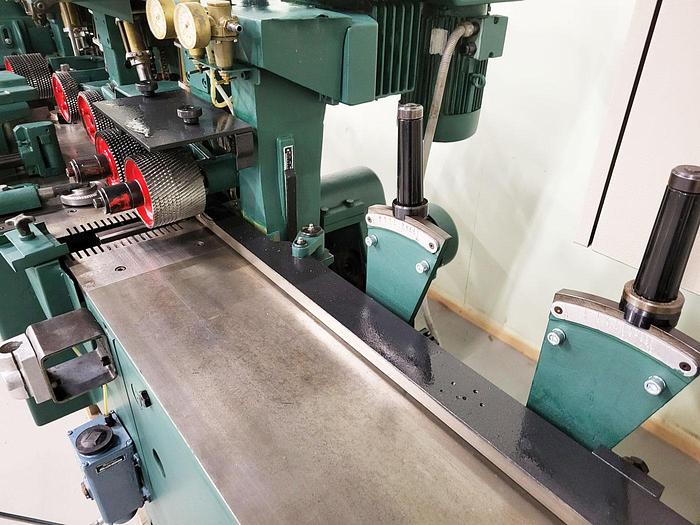

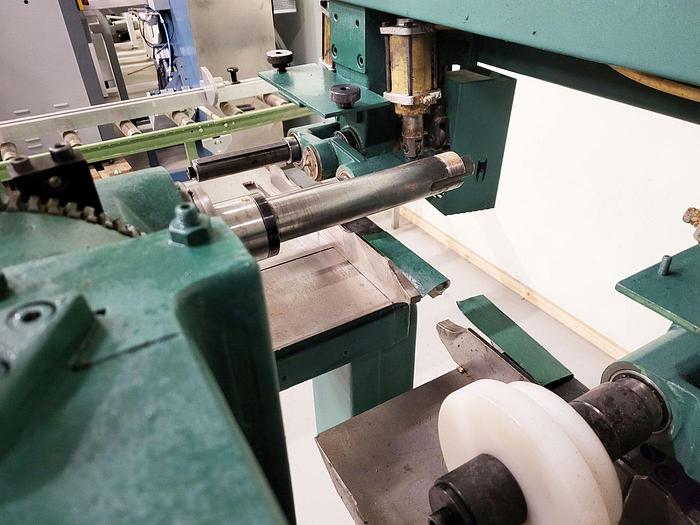

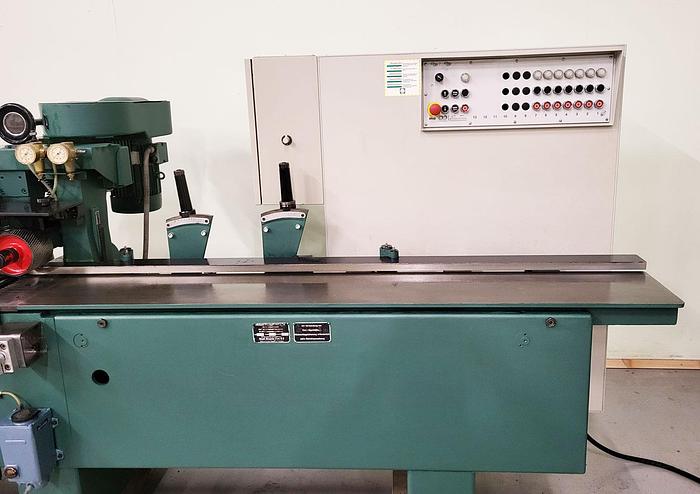

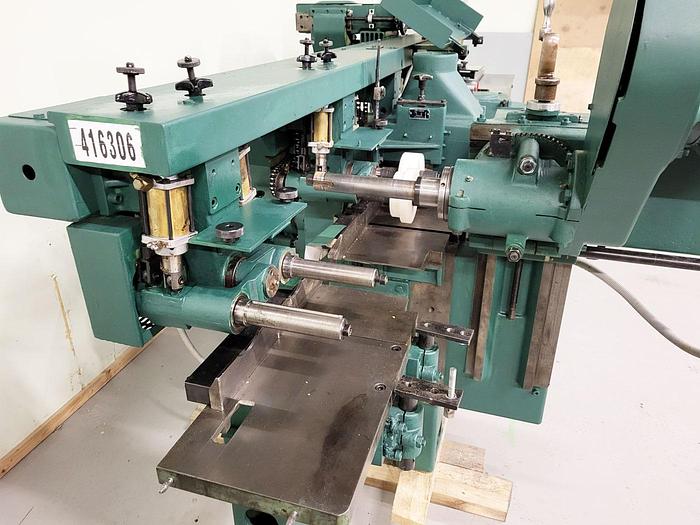

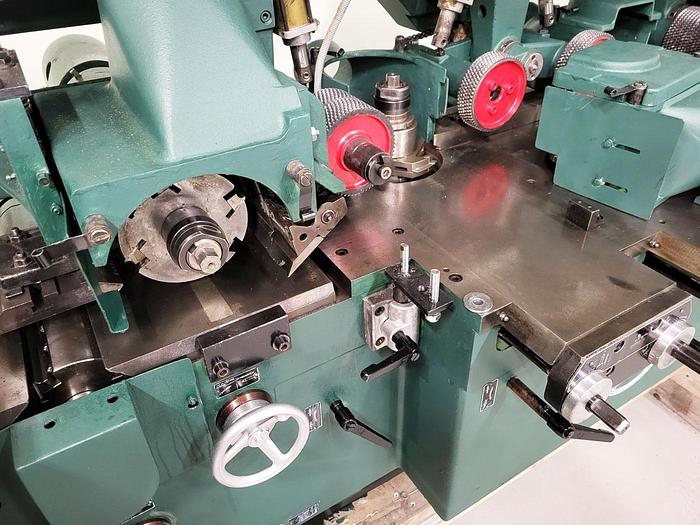

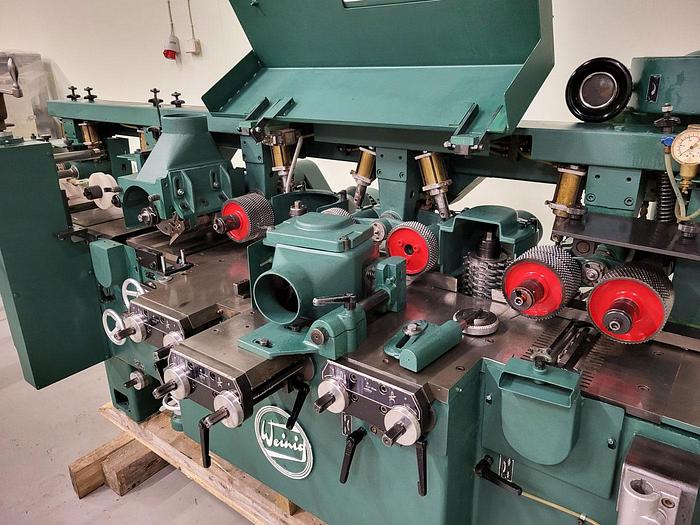

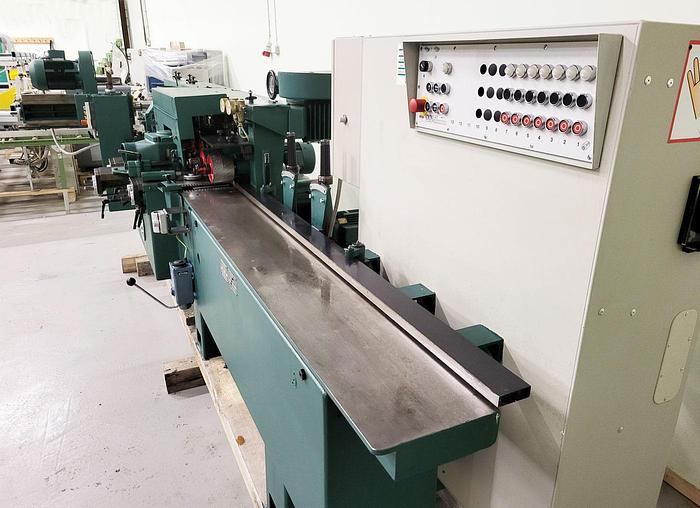

WEINIG Four side planer / moulder Unimat 22A, 7 spindles

WEINIG Four side planer / moulder Unimat 22A, 7 spindles

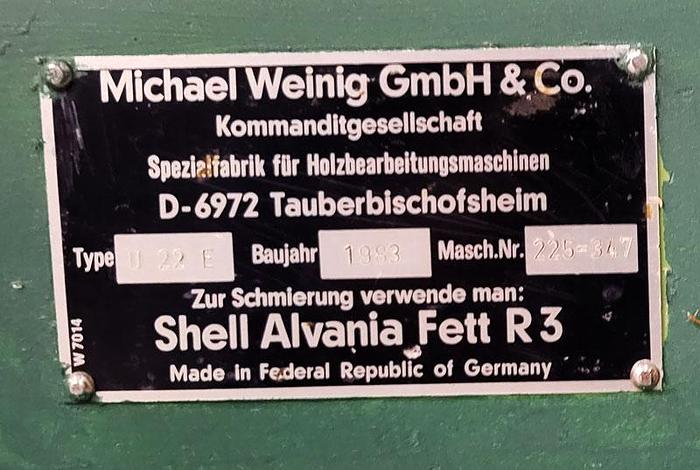

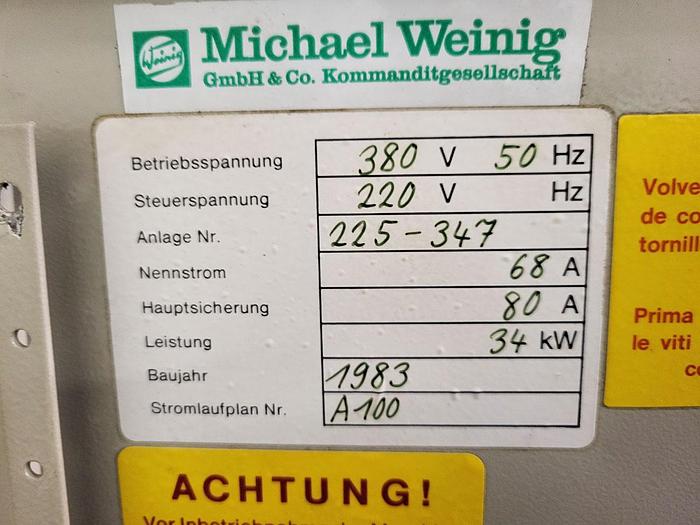

Year of manufacture 1983

S/N 225-347

Manufacturer Weinig Germany

planing width 220mm

planing height 120 mm

7 planing shafts:

Dressing table length 2000mm

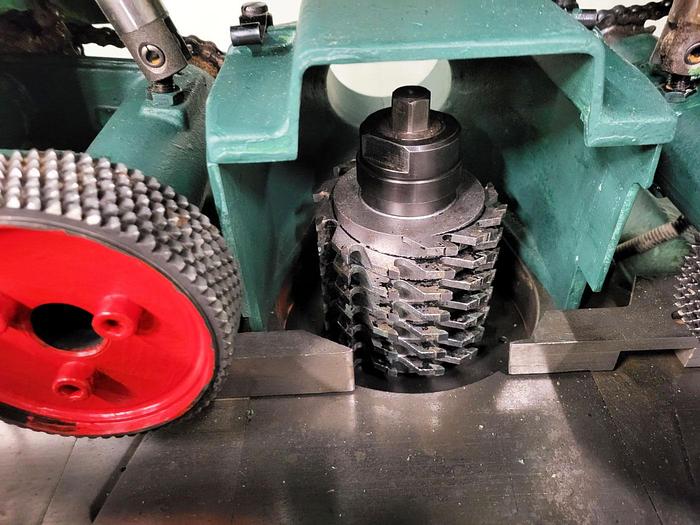

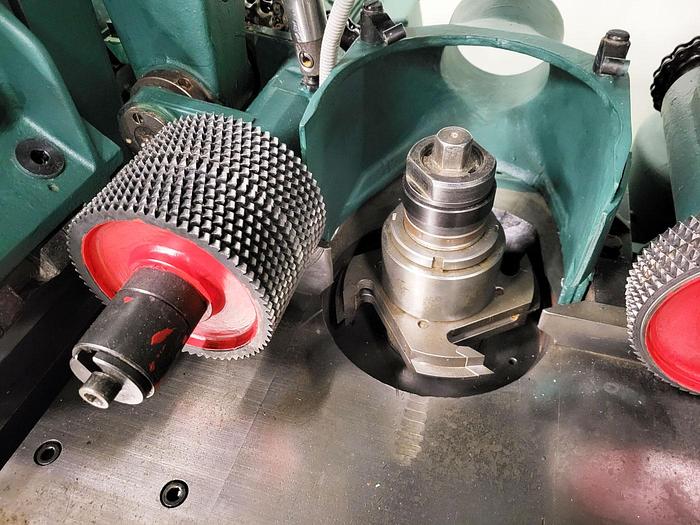

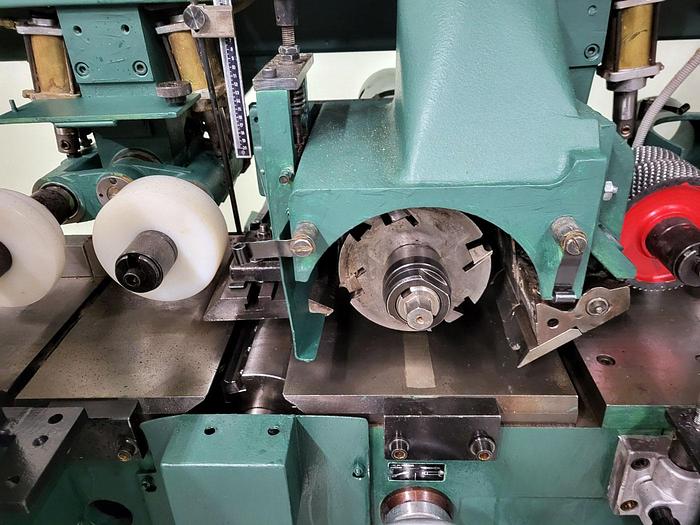

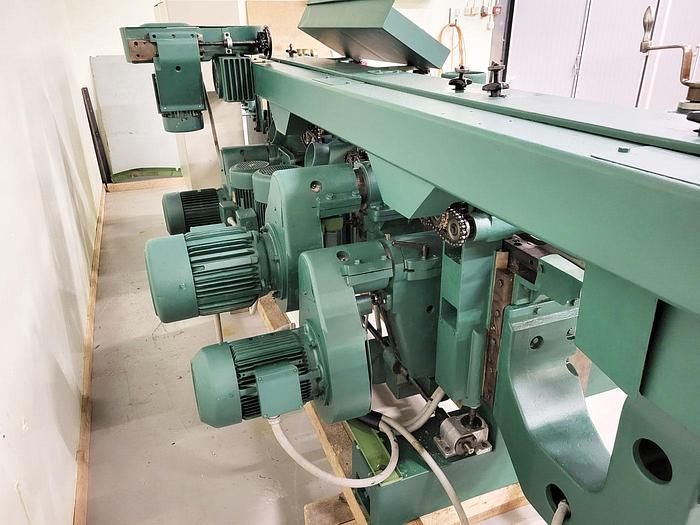

Spindle arrangement ( speed of the working spindles 6000 rpm )

1. bottom, 4 kW

2. right,  3 kW

3. left,  4 kW

4. right,  4 kW

5. top,  7,5 kW

6. bottom,  4 kW

7. universal, 11 kW

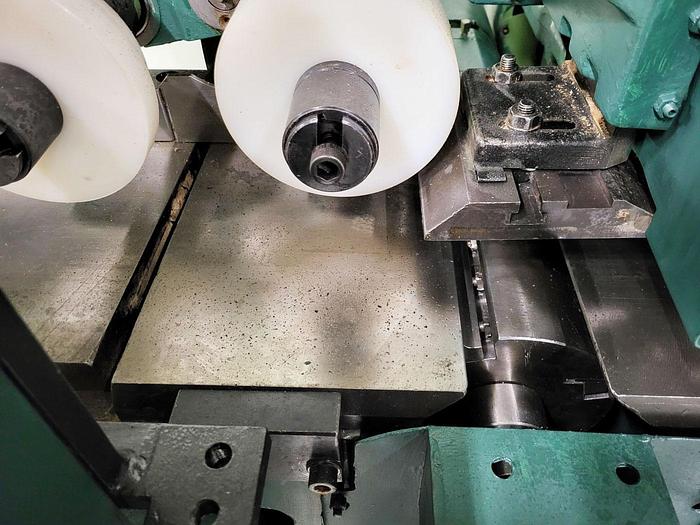

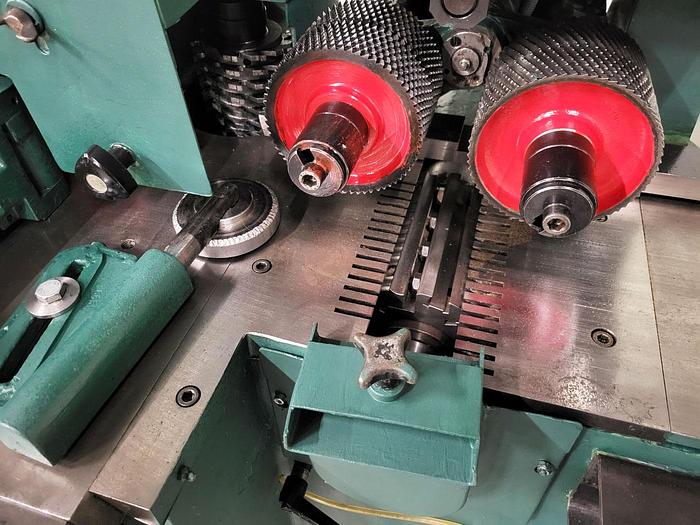

driven smooth pull-out roller in table

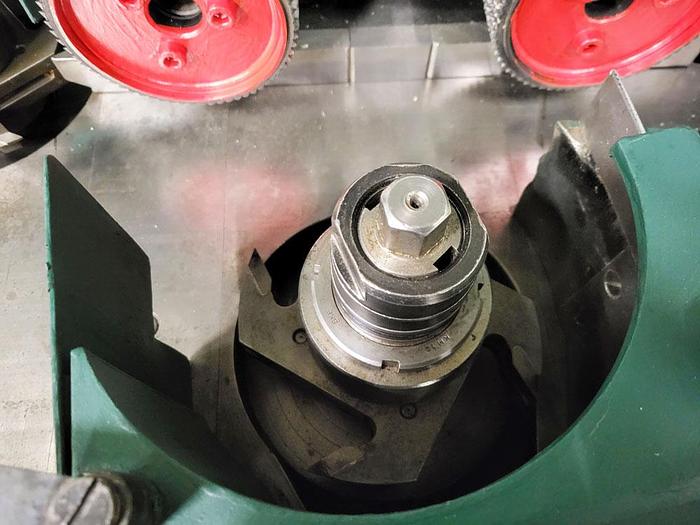

spindle diameter 40 mm

Flight circle of the dressing spindle 125mm

Flight circle of the jointing spindle 100-180mm

Largest flying circle of the moulding spindles 180mm

Cardan feed

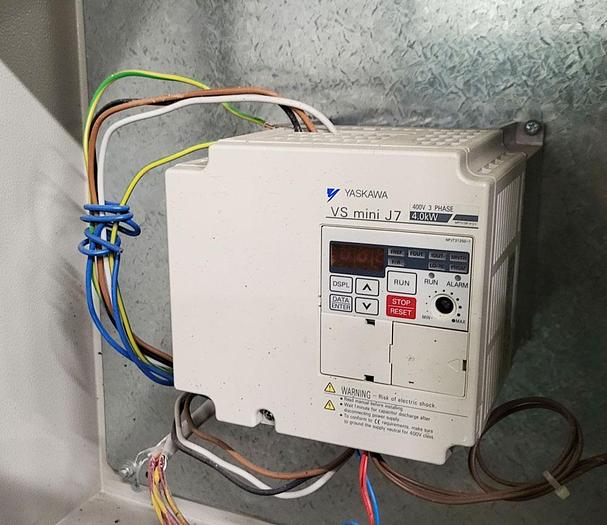

Infinitely variable feed rate (frequency converter)

6-36 m /min.

Manual waxilit pump

Outer dimensions L 4000 mm x W 1600 mm x 1700mm

4500 Kg
