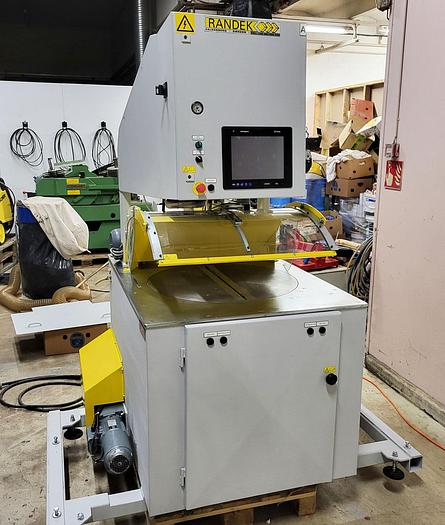

Randek cutting saw SP722

Randek cutting saw SP722

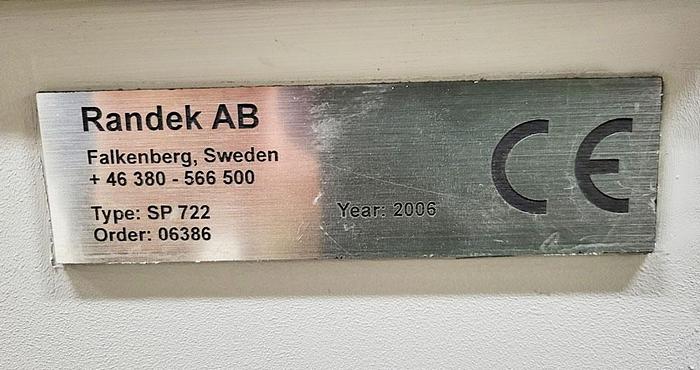

Manufacturer Randek Sweden

year of manufacture 2006

S/n 06386

CE marked

Randek SP722 offers the possibility to turn the saw blade

the saw blade from 0° - 180°

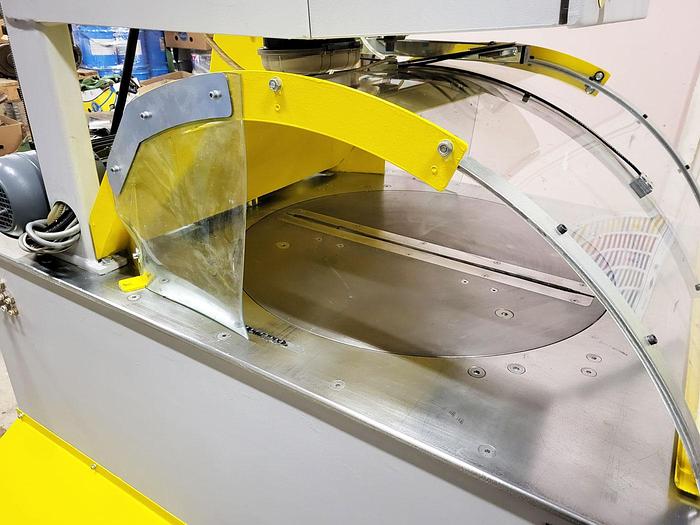

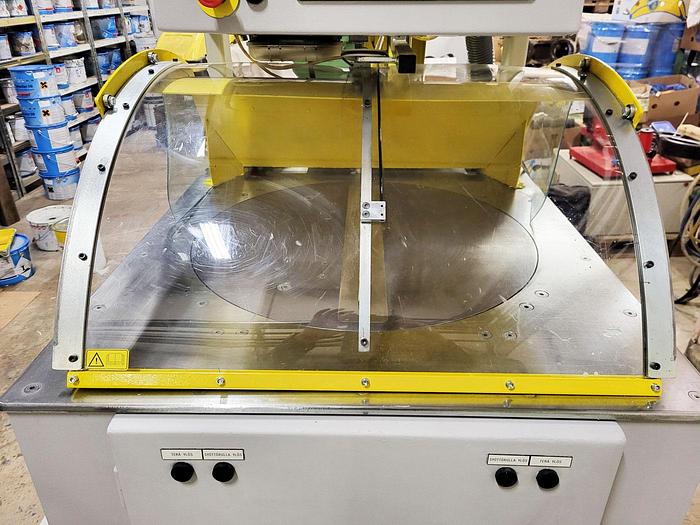

The operator is protected by

a saw blade cover

which is automatically activated before

activated before the sawing process.

Lowering follows automatically

after the sawing process.

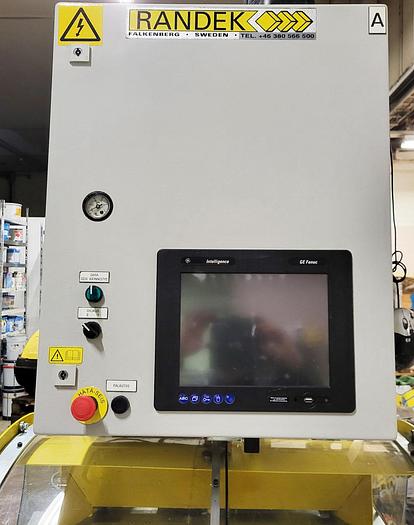

The touch screen is positioned at a

at a comfortable height for the operator

convenient height for the operator and simplifies

working on the saw

Angle cuts from 0° to 360

Cuts up to 260 mm high, simultaneous sawing of up to 3 pieces of wood per cutting cycle possible

Computer-controlled and therefore fast cutting adjustment

The wood is fixed close to the saw blade for precise sawing

Centre line adjustment 0 - 250 mm

Saw blade diameter 700 mm

Saw motor 5.5 kW

Supply voltage 3x400 VAC +N+PE 35A 50 Hz

Air supply / air consumption 7 bar 500 NL/min

Dust velocity 30m / sec

Wood infeed with additional roller conveyor for infeed conveyor

Outfeed conveyor 5,8m

( pictures will follow )

Roller diameter 76mm

Roller length 400mm

Transport roller diameter 150mm

Conveying speed 44m/min
