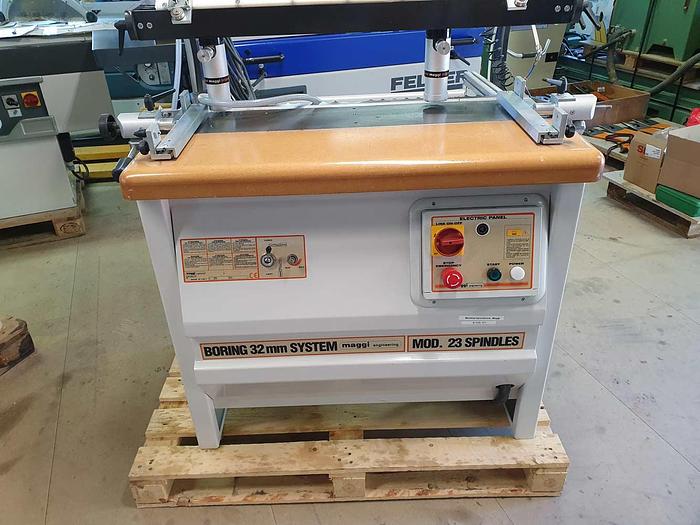

1998 MAGGI Single-head Boring Machine for Horizontal and Vertical Drilling mod. BORING-SYSTEM 23 TOP

Single-head Boring Machine for Horizontal and Vertical Drilling mod. BORING-SYSTEM 23 TOP

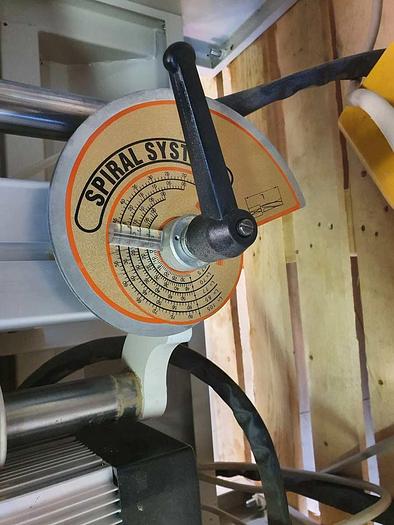

manual head-rotation from 0 to 90 degrees

Safety clamps allows a prompt setting on panels without any adjustments

Quick and precise setting-up

TECHNICAL DATA

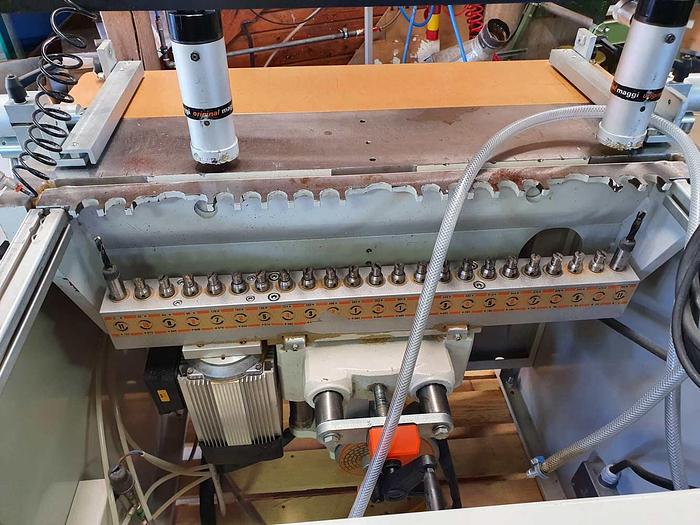

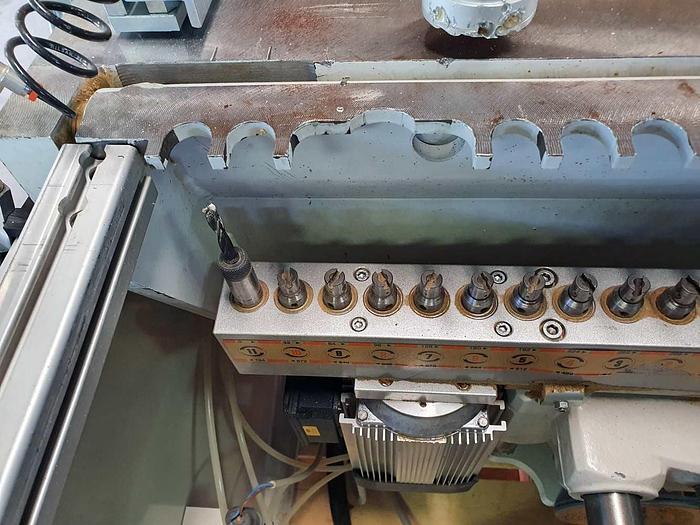

No. of spindles (lft red - rt black) 23 (11 - 12)

Interaxis between spindles 32 mm

Interaxis between first and last splindle 704 mm

Max boring depth 55 mm

No. of clamps 2

Max dimensions of the working piece960 x 3000 x 60 mm

Max height of clamps from working table 65

Max height of clamps from working table 65 mm

Motor power   2 HP (1,5 kW)

Motor r.p.m. (50 Hz)  2800 rpm

Working air pressure 6-8 bar

Standard air pressure consumption 10 l/cycle

Dust suction diameter 80 mm

Overall dimensions 1315 x 960 x 1265 mm

Height of the working table  860 mm

Package dimensions 1070 x 950 x H 1030 mm

Net/gross weight 265 / 300 kg
