1990 WEINIG Unimat 17 AS / 020 moulder / planer




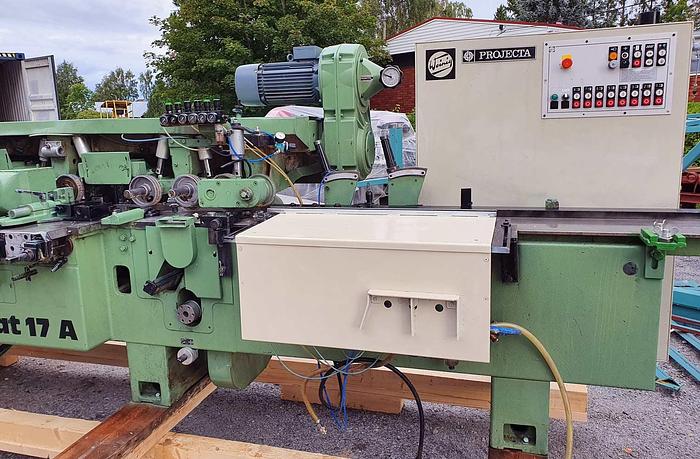

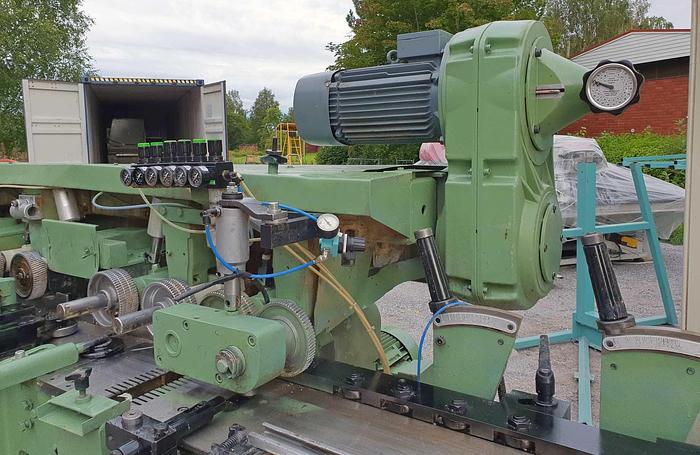

WEINIG Unimat 17 AS / 020 moulder / planer

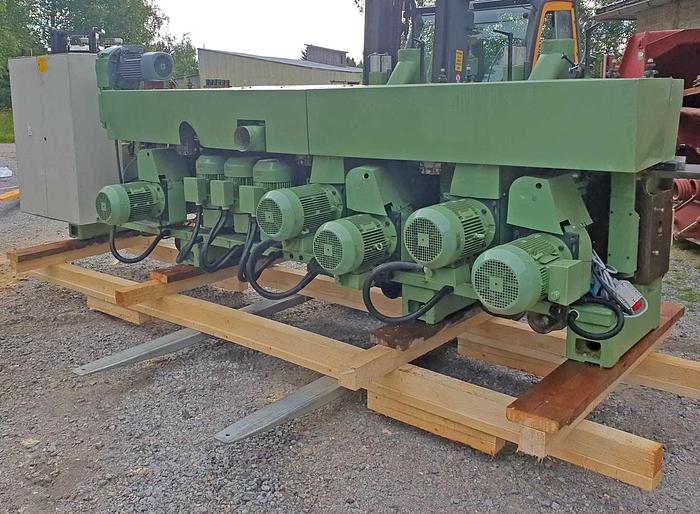

4-sided planer with 8-spindle

S/N 222-1582 / year 1990

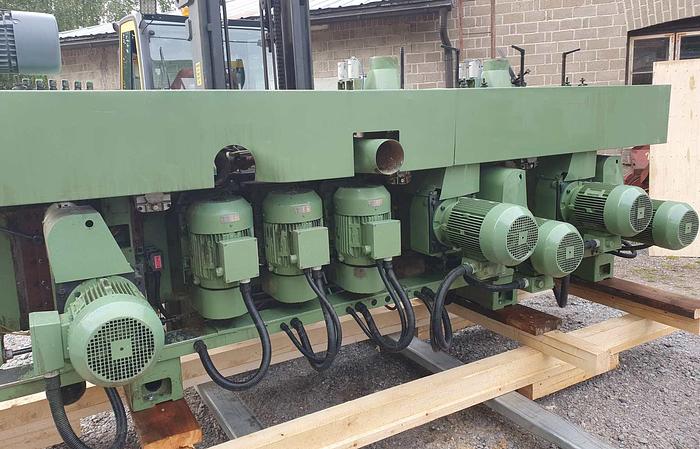

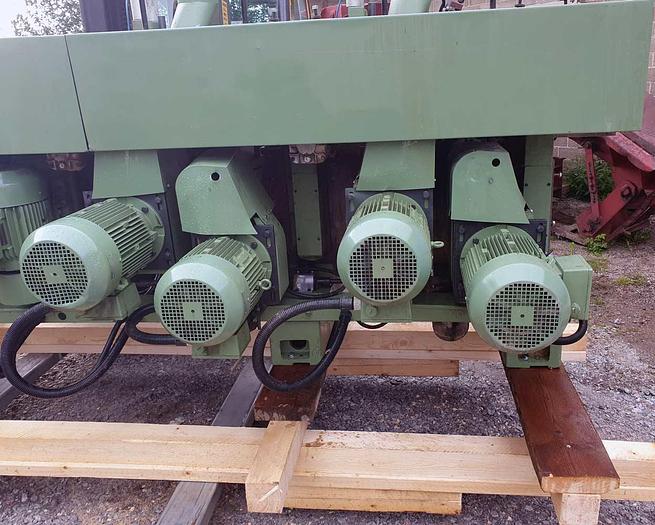

technical data:

1. bottom spindlel 5,5 kW

2. right vertical spindle, 5,5 kW

3. left vertical spindle, 7,5 kW

4. right vertical spindle, 7,5 Kw

5. top spindlel, 7,5 kW

6. bottom spindle 5,5 kW

7. top spindle, 5,5 kW

8. bottom spindle, 11 kW


- working width 170 mm

- working height 120 mm

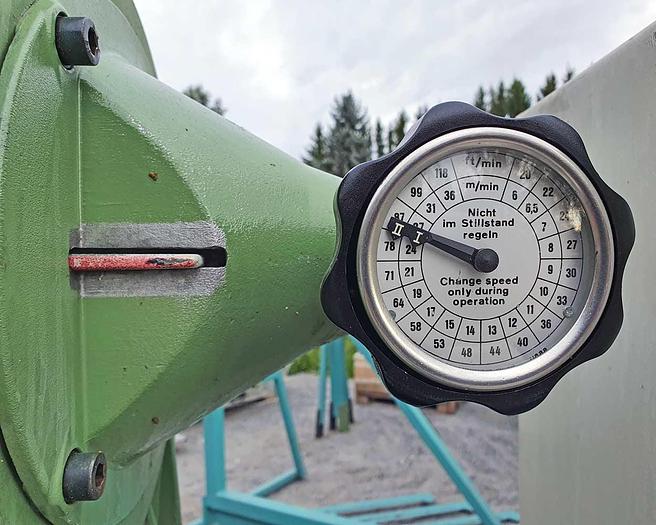

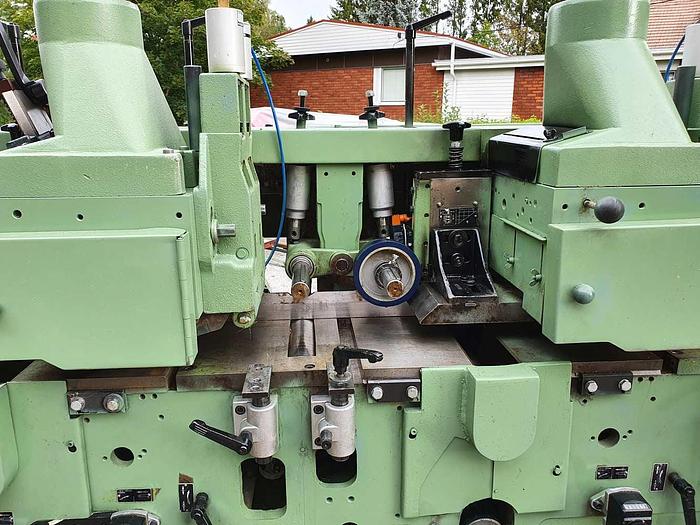

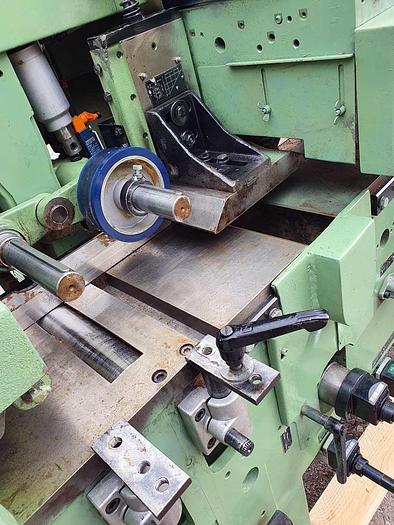

- stepless chainless feed, 6-36 m / min

- centralized harvesting of the automatic spindle, spindle rollers and all buttons with automatic clutch

- a limit switch to limit the height

- baffles (hardened) 140 mm in diameter, width 100 mm (2x50 mm) (hardened and chromed)

feeding: 6 kW

all spindle speed 6000 rpm

spindles diameter 40 mm

- minimum tool diameter 120 mm

- maximum tool diameter in 2nd and 3rd spindles 180 mm

- maximum tool diameter 2. in the right vertical spindle 195 mm (15 mm below the plane)

- maximum tool diameter for upper horizontal bars 200 mm

- the maximum diameter of the tool in lower horizontal tines is 250 mm

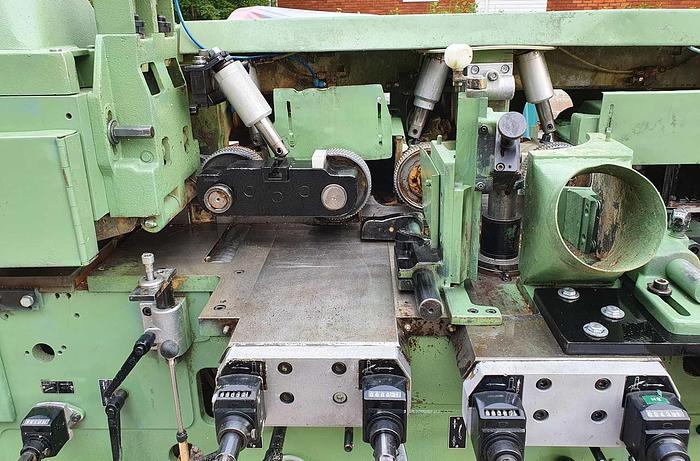

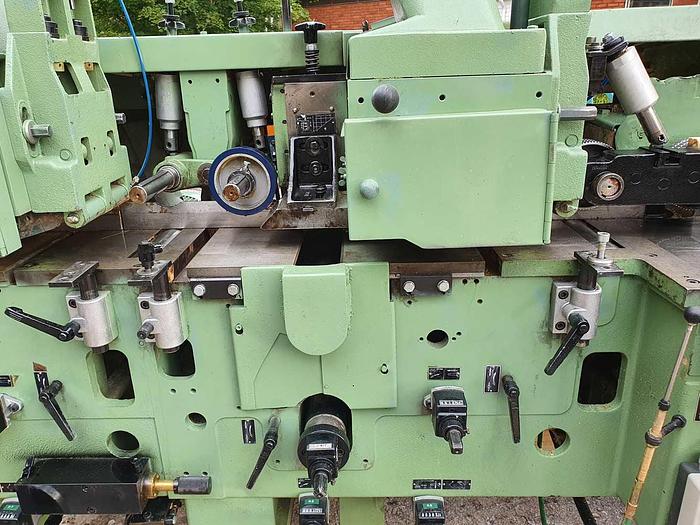

- all spindles can be reached in both directions by means of mechanical number displays (pig), with the exception of the 1st lower spindle and the tilt of the universal spindle.

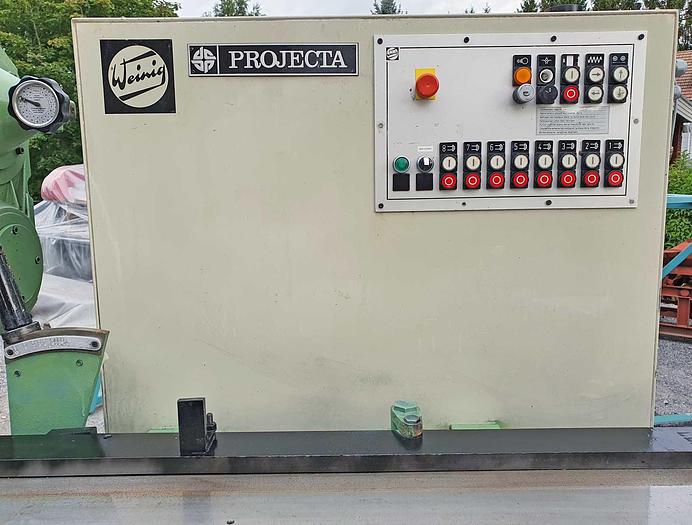

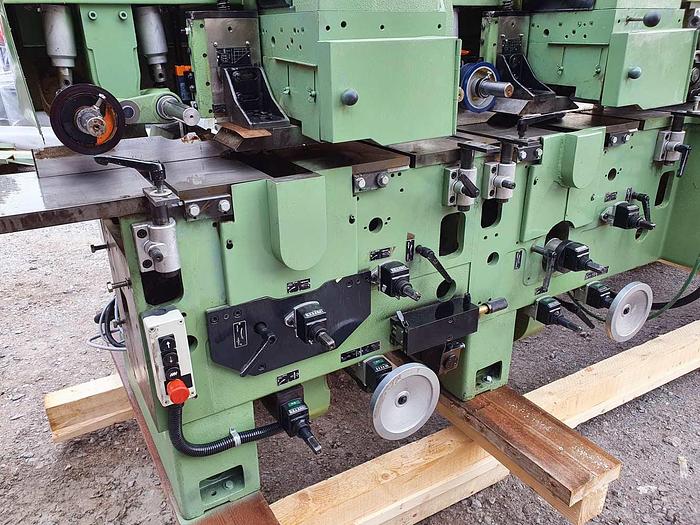

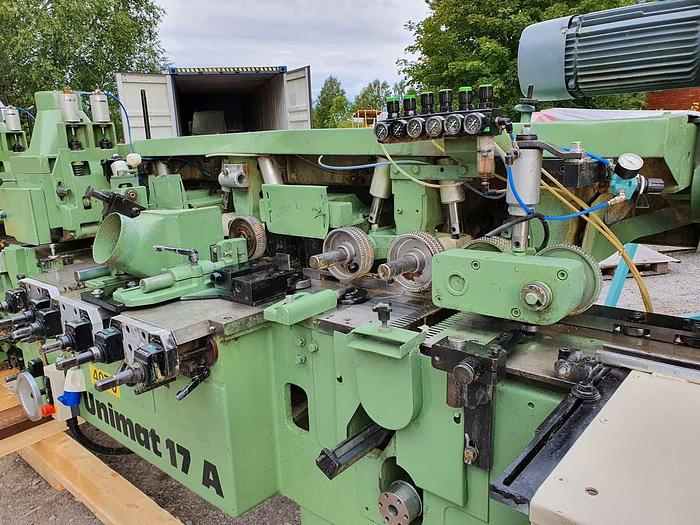

- operation takes place entirely from the front of the machine

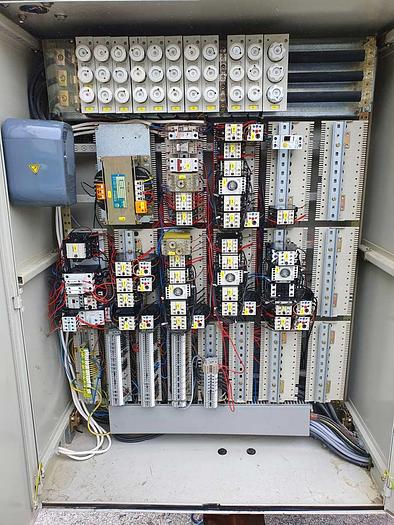

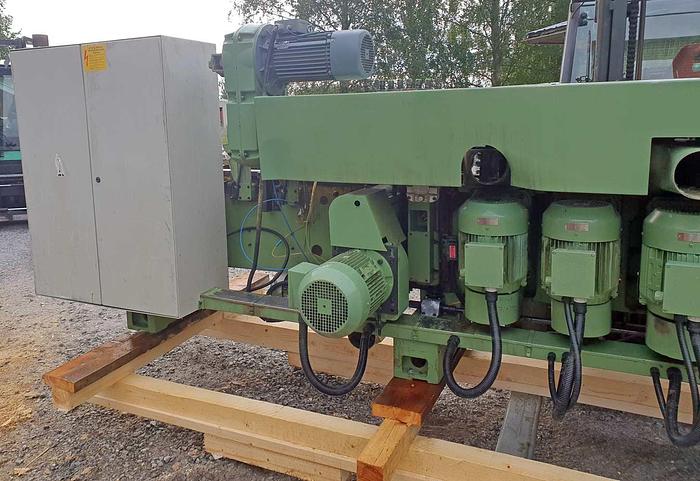

- the machine is equipped with the most complete electrical equipment in accordance with the regulations 380 V, 50 Hz

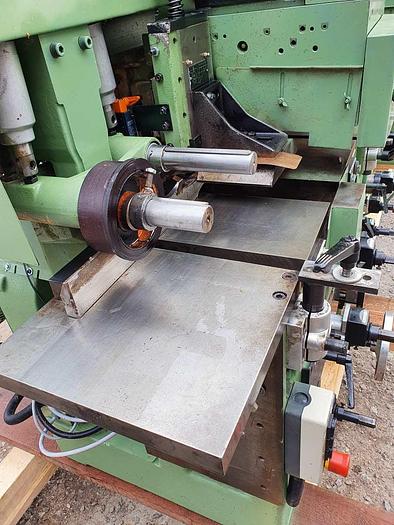

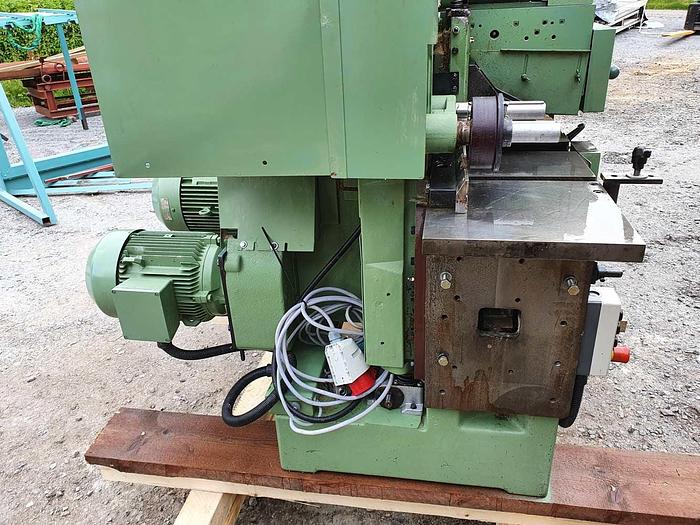

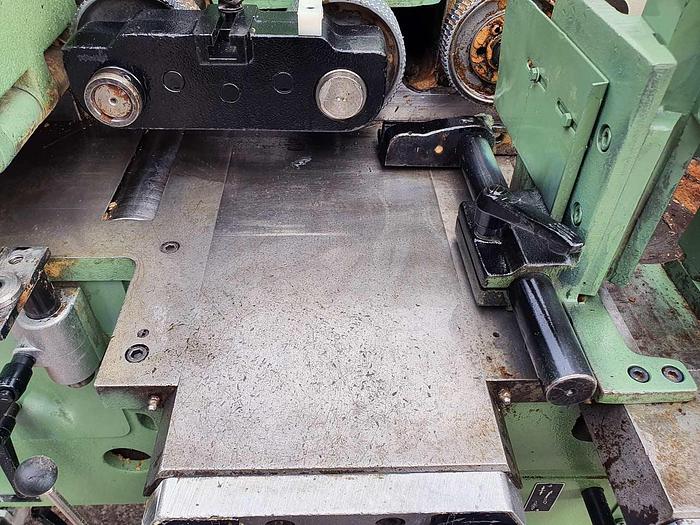

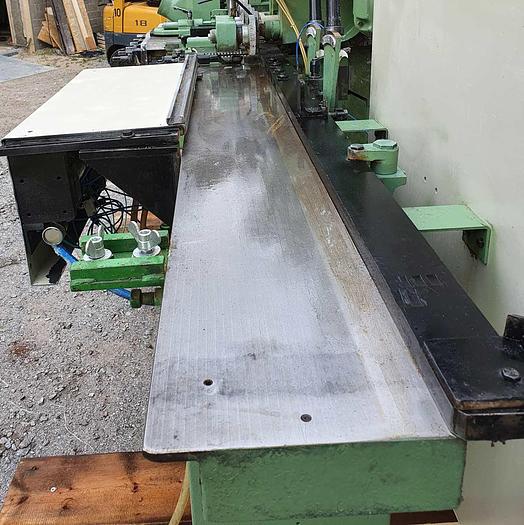

- infeeding table 2 m

- Quick-release straightening and grooving spindle chip removal in the area of ​​10 mm.

- the machine is equipped with normal maintenance tools


Special equipment:

pneumatic compression of start rollers

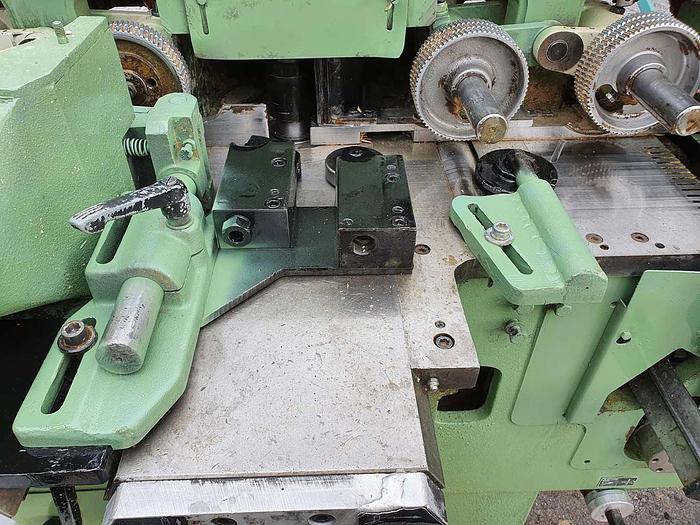

fitting rings on the table for vertical spindles

including guide knife (3rd and 4th)

high precision spindle, lower balance 6 and 8.

high precision spindle , right hand

high precision bearings, vertical spindles 2nd, 3rd and 4th high pressure grease gun

automatic Waxilit pump

height adjustment (to compensate for workpiece thickness differences)

meter counter, mechanical

max grain size 250 nun with upper horizontal spindles '5th and 7th, including high-precision spindle

max grain size 250 mm for vertical spindles 3. and 4.

upper spindle front beam with pneumatic compression 5th and 7th spindle

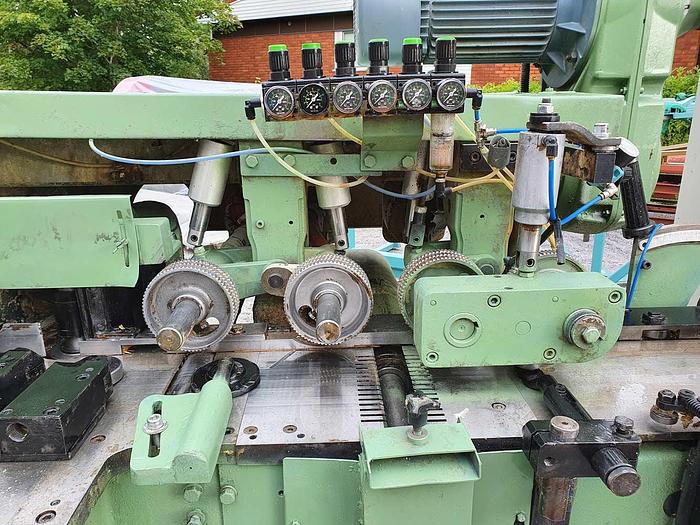

overpressure rollers with compressed air compression

mechanical spindle brake on all spindles

brake for mechanical feeder

straight jointer for spindles 1, 5 and 6.

Compressed air compression of the first feed roller with separate pressure output

equipped with WEINIG EM 4 feeder & cassette, 5.5 kW


total power 66,5 kw / 125 Amp



  • incl. cassette systeme WEINIG EM4

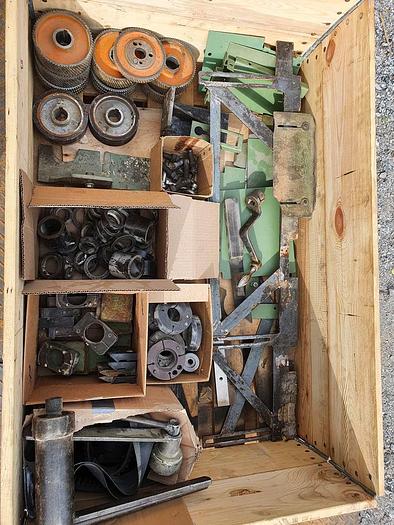

  • all spare parts

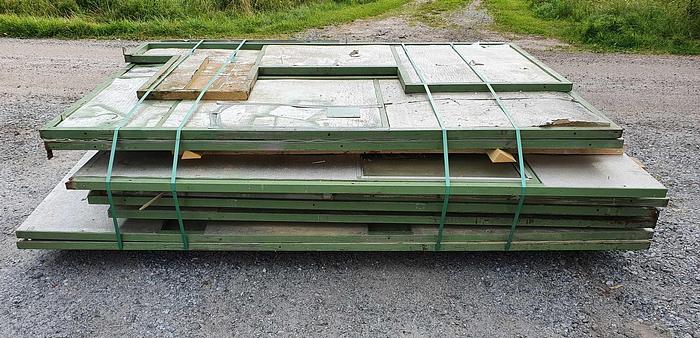

  • and a complete sound cabine with door system



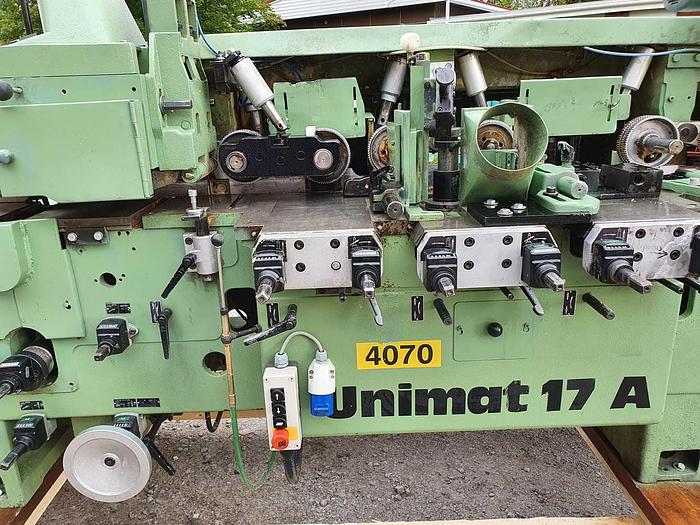

ModelUnimat 17 AS / 020 moulder / planer
