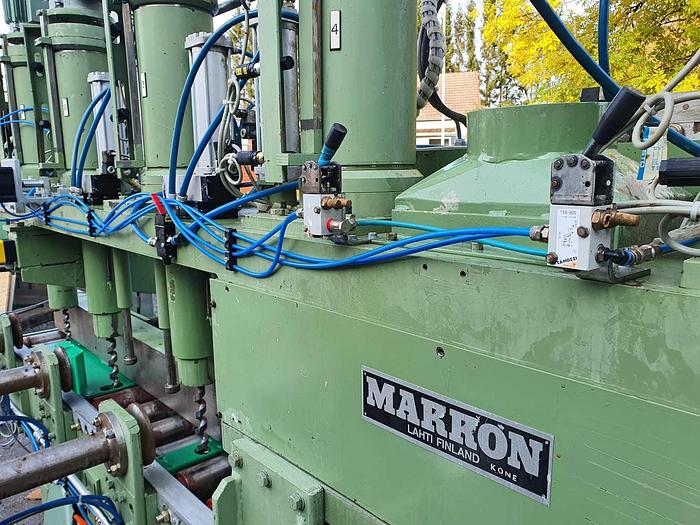

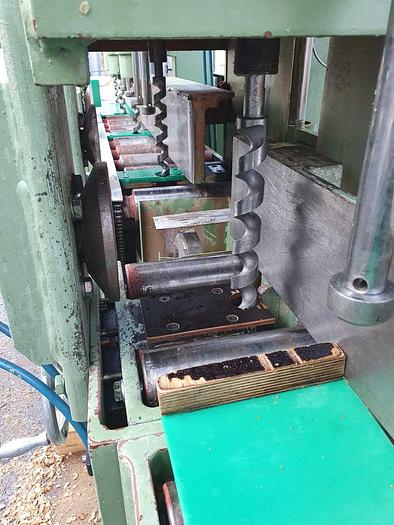

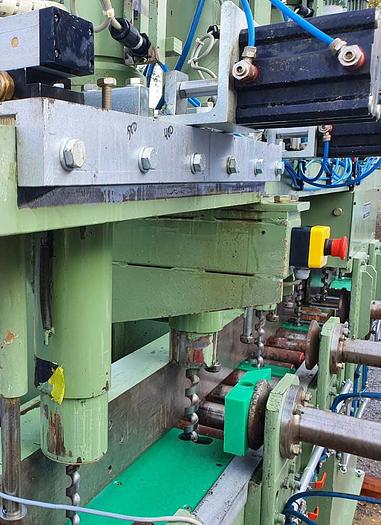

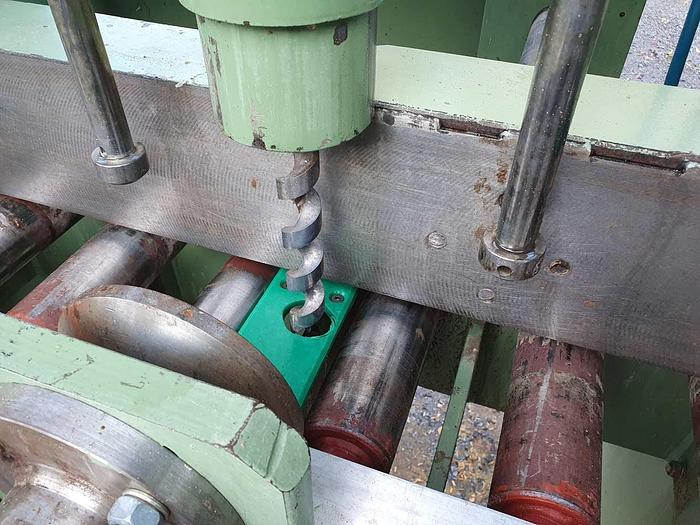

1990 Markon MARKON log house drilling machine with undercutter

MAKRON log house drilling machine with undercutter

Year 1990

Manufacturer Makron Lathi / Finland

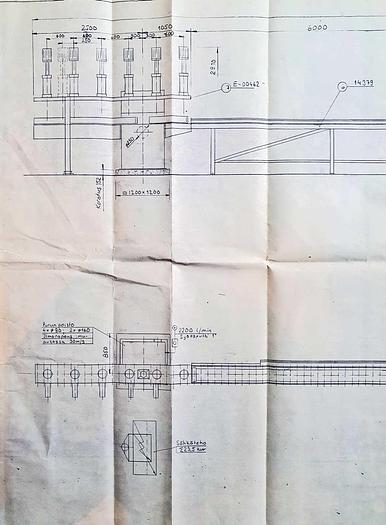

length = 3550 mm

width = 1500 mm

height = 2910 mm

Engine power

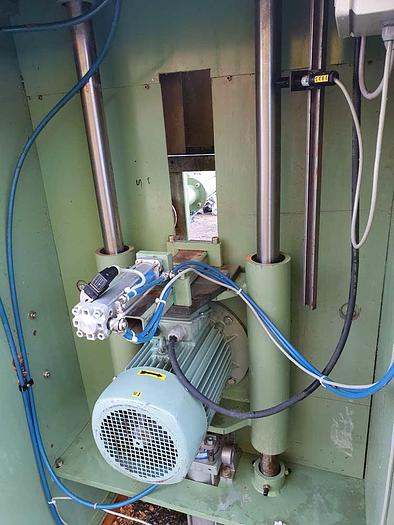

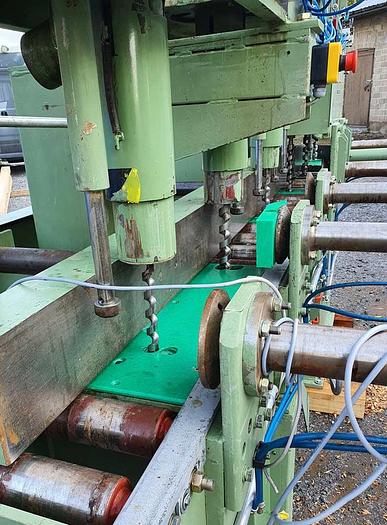

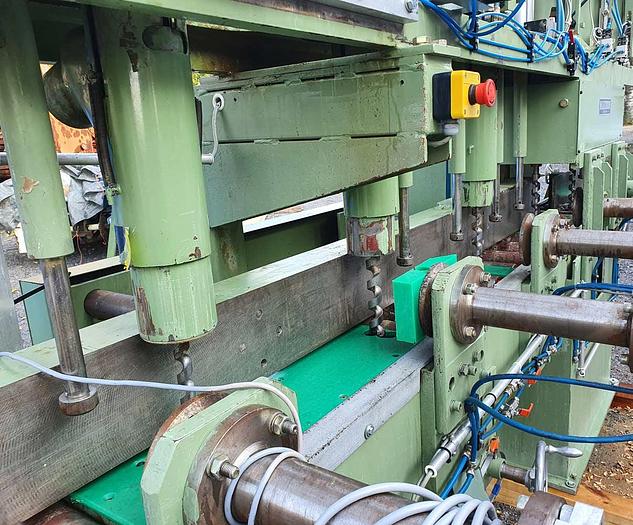

Drilling unit: 6 x 3 kW

Moulder: 1 x 5,5 kW

Dimensions of the protocol to be pushed

height max 250mm

height min 130mm

width max 250mm

width min 60mm

length min 600mm

Tool sizes and speeds

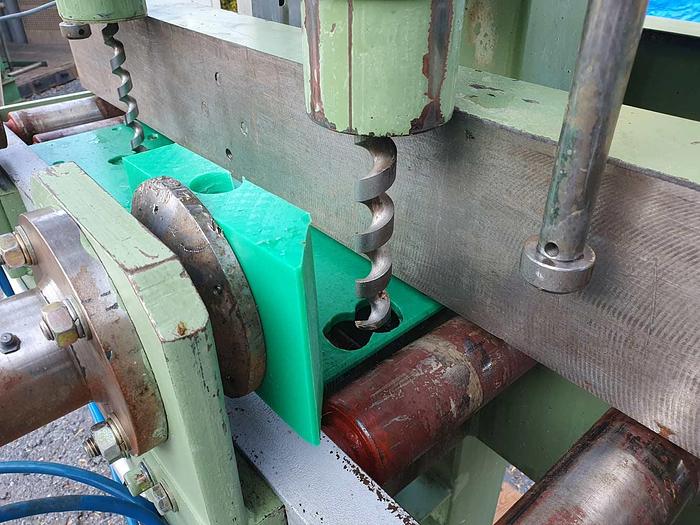

Drill a maximum diameter of 40 mm

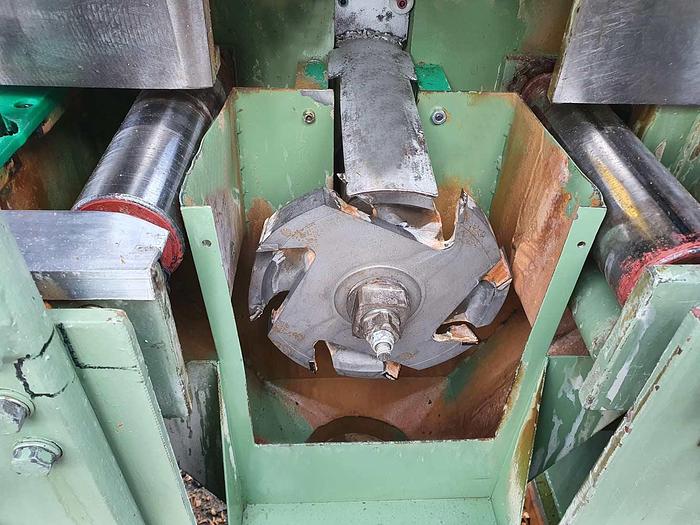

Moulder max diameter 250 mm

Drilling length 325 mm

Diameter of the drilling arm 20h7 mm

drilling speed 2880 rpm

Rotting:

Speed 2880 rpm

AIR

Suction openings Ø 160 mm

2 suction openings

suction opening diameter of the drilling unit 90 mm

Suction openings 6 pcs.

Air speed at the suction opening 30 m / s

Air consumption 8460 m3 / h

electrical connection

Total power

380 V 24 kW

Compressed air supply

minimum pressure 6 bar

Air requirement / stroke of drilling unit "48 1 Total air requirement ~ 2200 1 / min

incl. 3,5 meter roller conveyor

+ 12 drillings
