WEINIG Profimat 23E

Number of spindles: 5 units

Working width: 230 mm

Planing height: 120 mm

Feed motor: 2.2 kW

Feed speed: 5-24 m/min

Total power consumption: 25 kW

Dimensions (length/width/height): 3400 x 1800 x 1610 mm

Machine weight: approximately 2500 kg

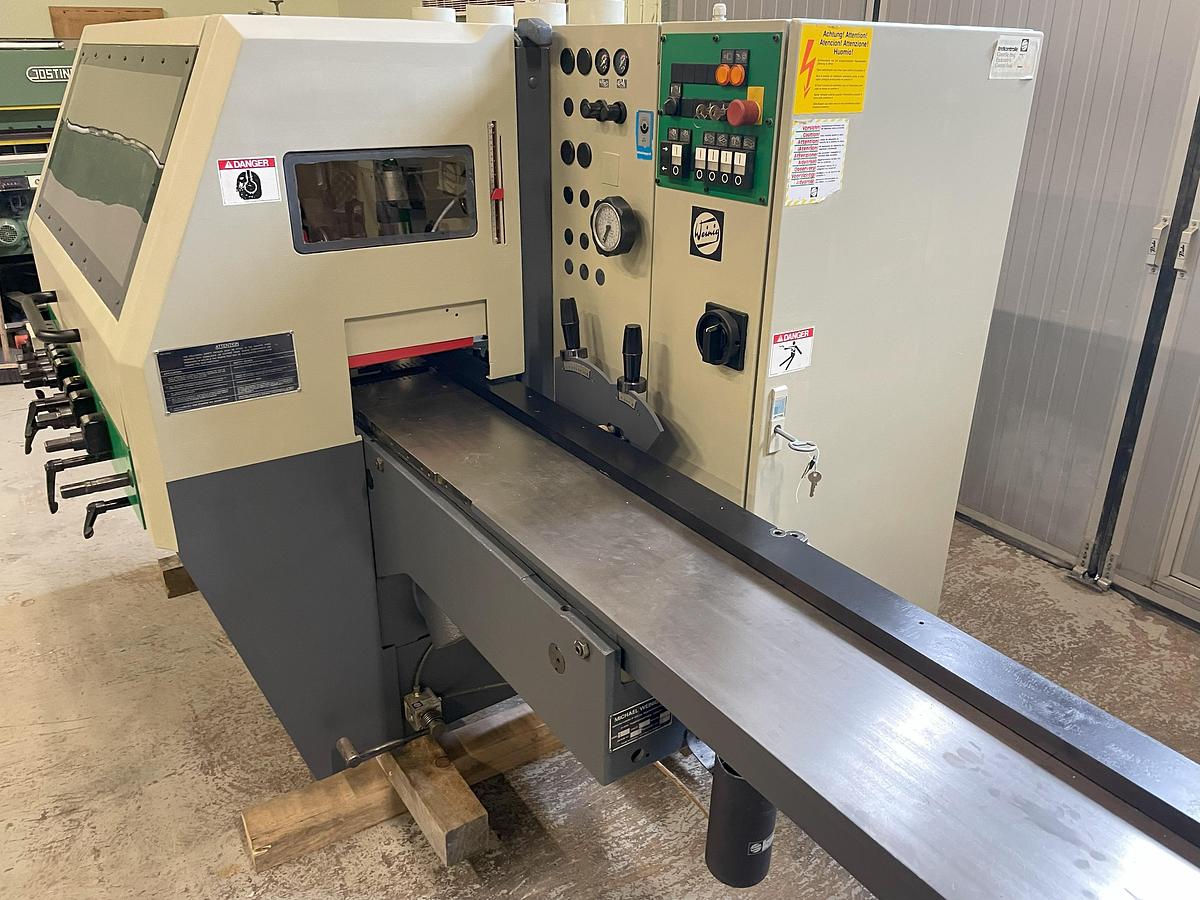

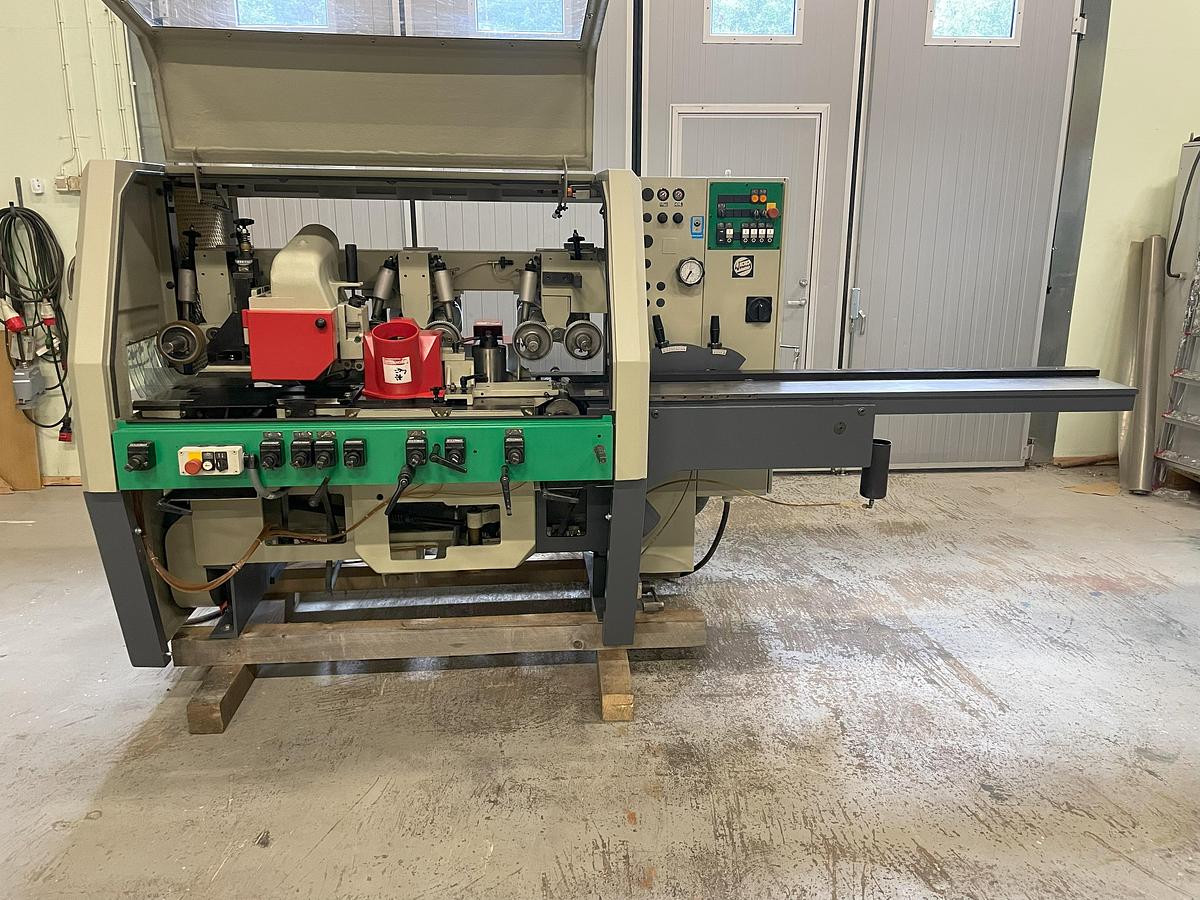

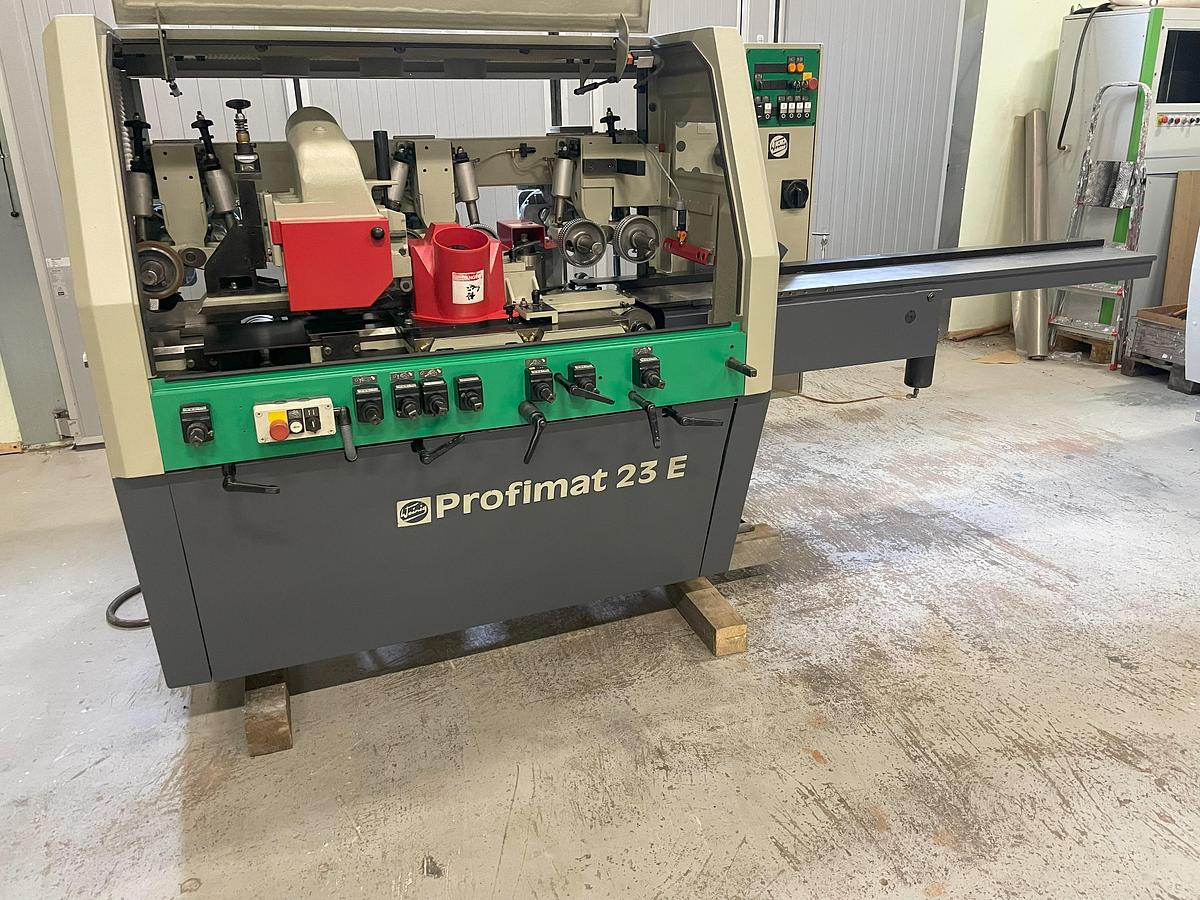

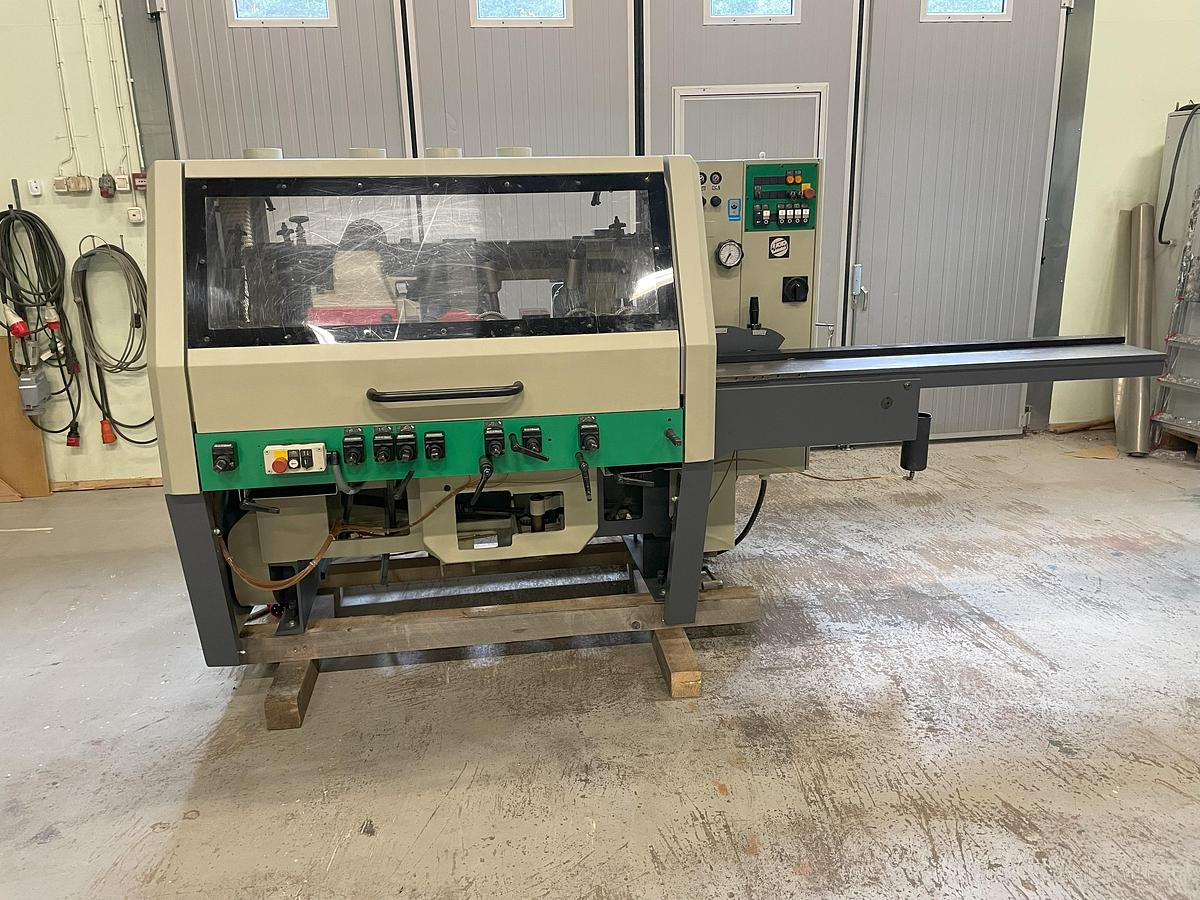

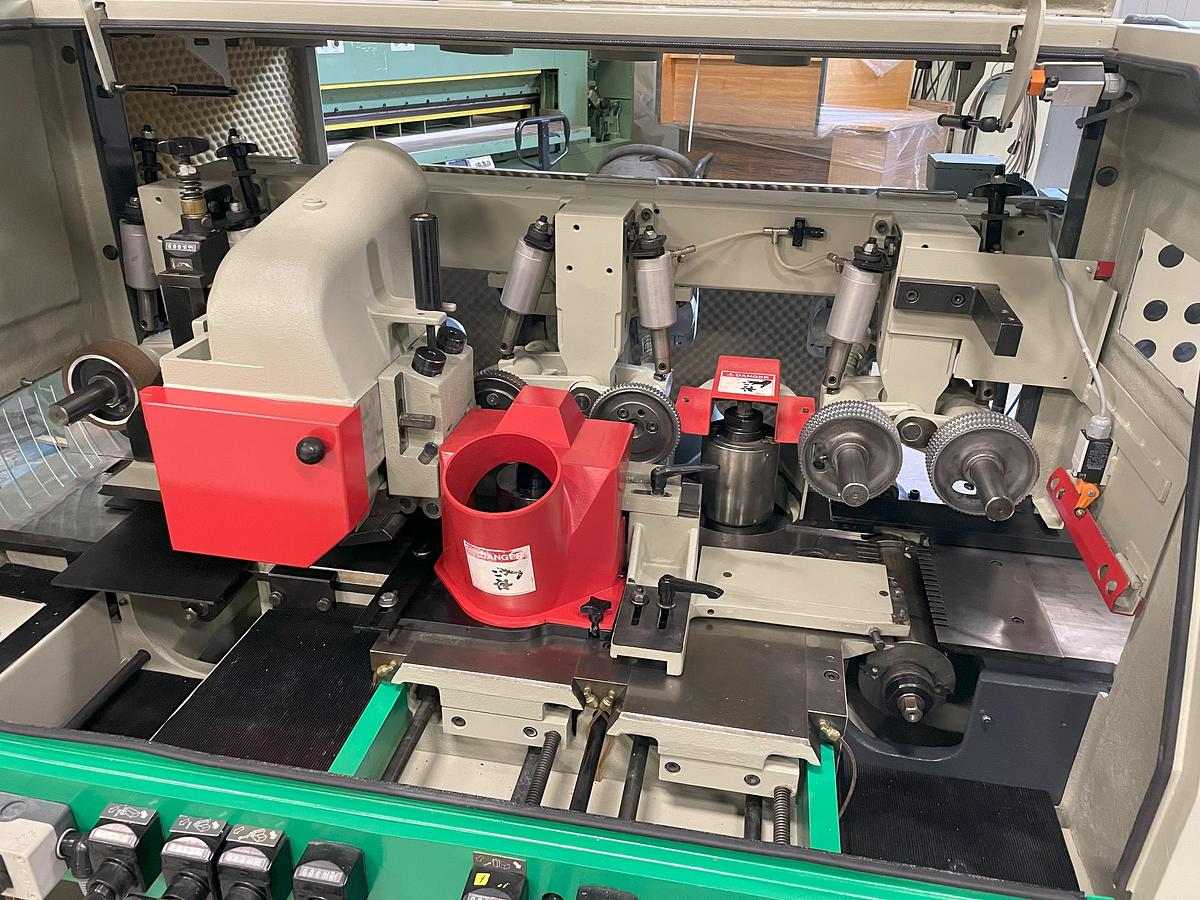

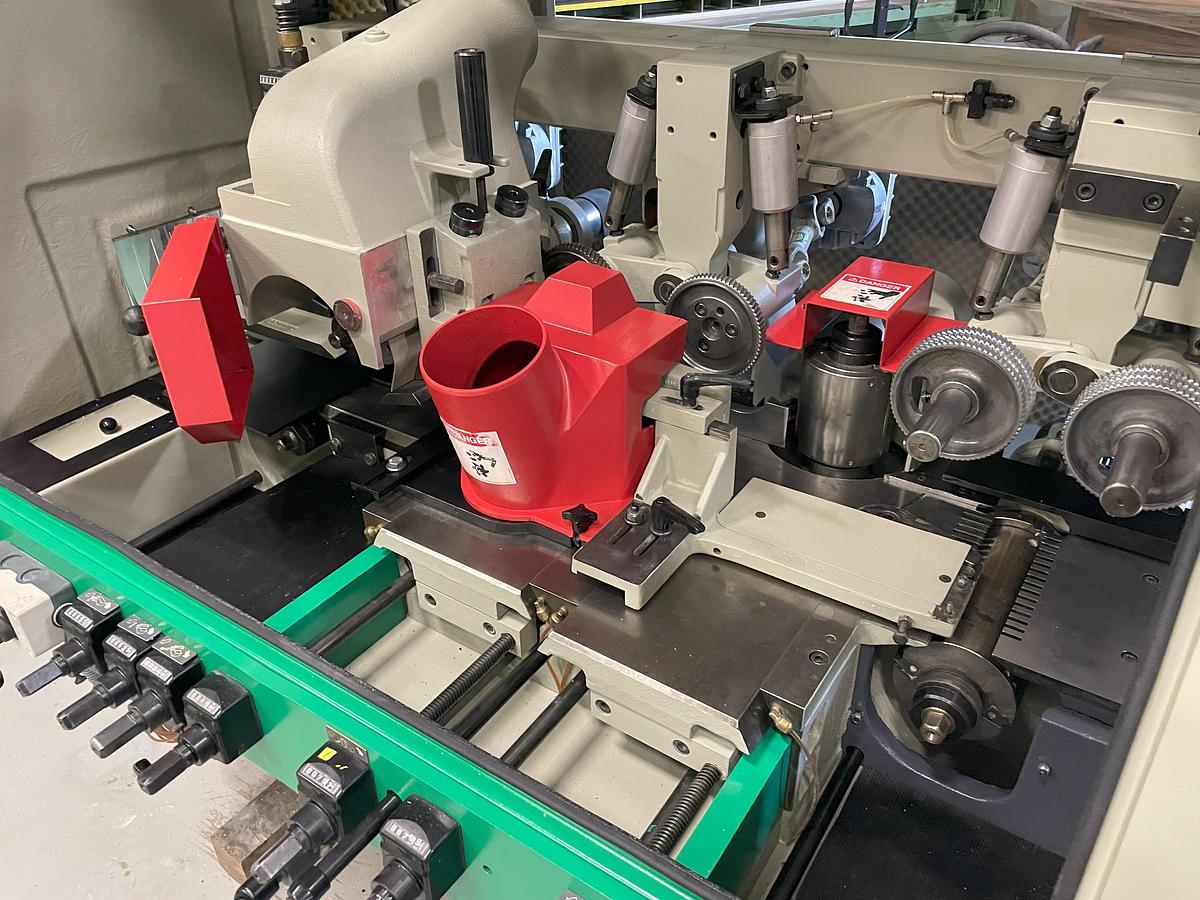

Four-sided planer WEINIG PROFIMAT 23 E

• Year of manufacture: 1997

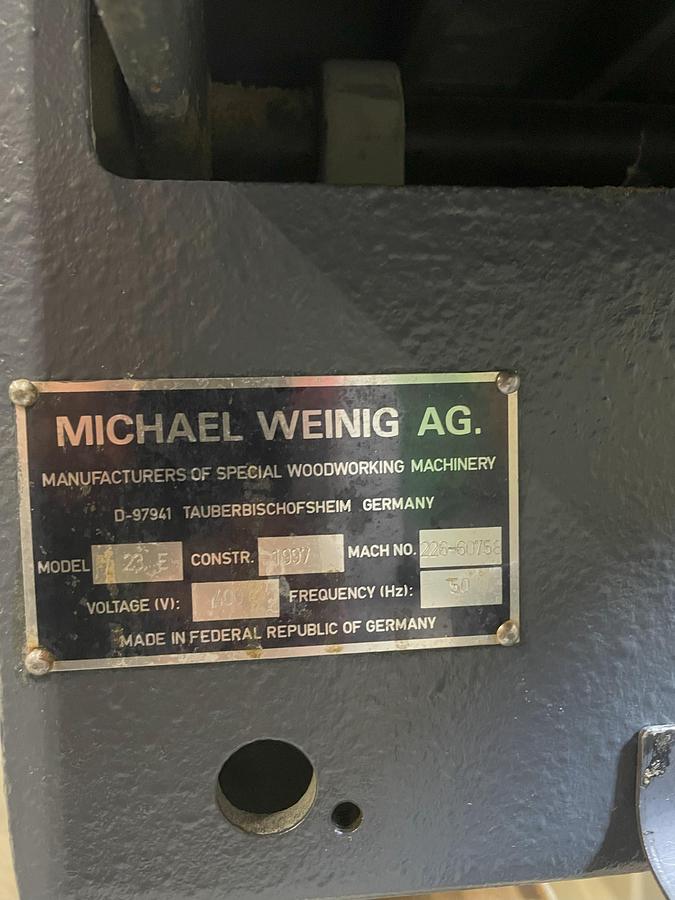

• Serial No.: 226-60758
• Maximum working width: 230 mm
• Maximum working height: 120 mm
• infinitely variable Kardang feed 5-24 m/min
• Feed motor: 2.2 kW

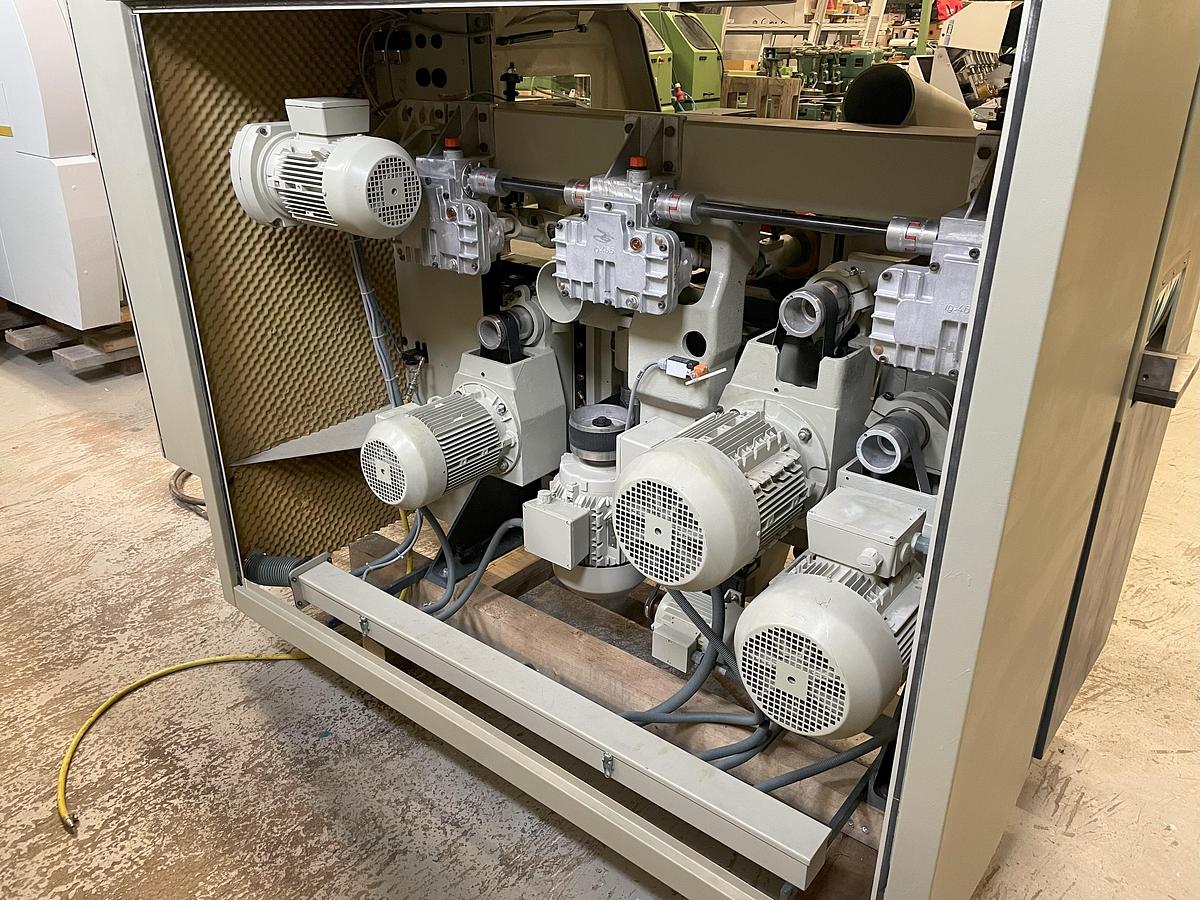

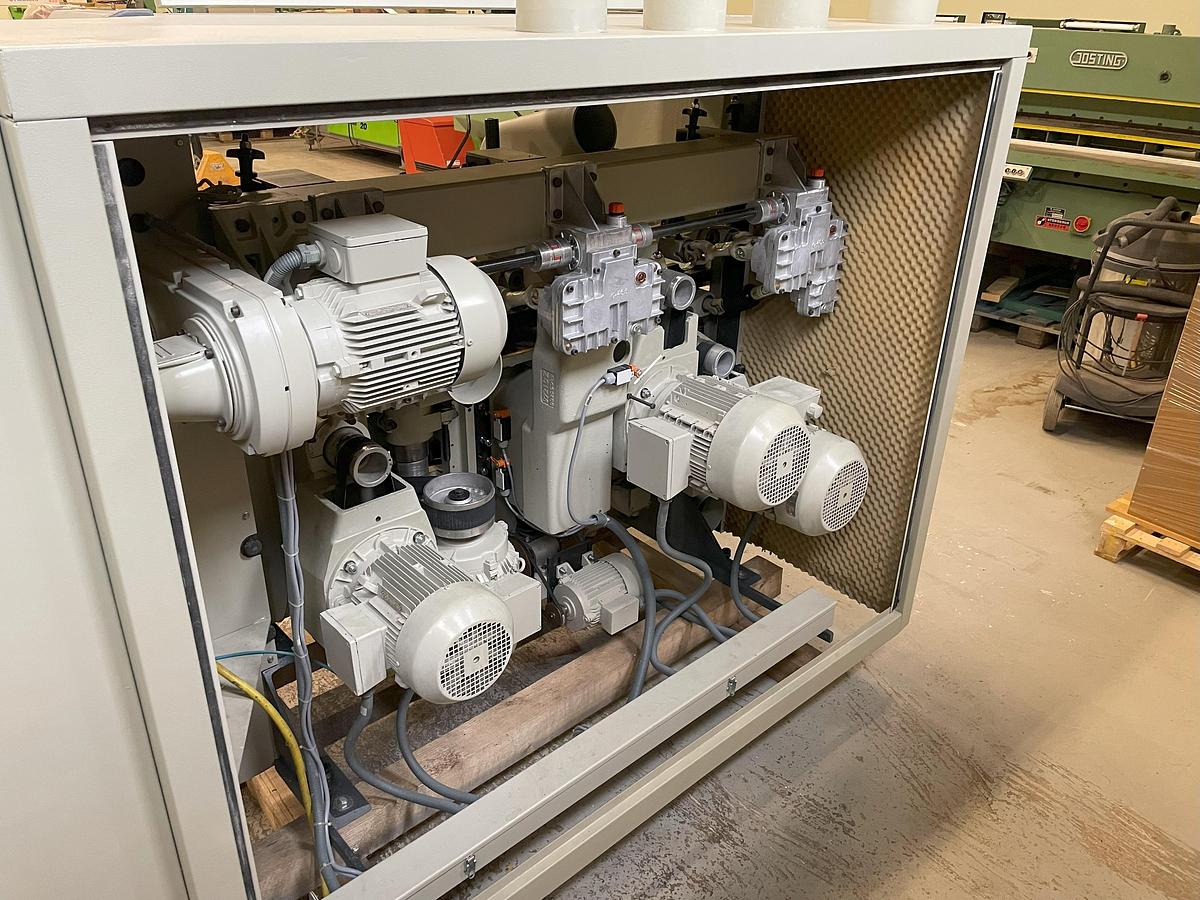

• 1st spindle below: 4.0 kW
• 2nd spindle right – motor for the 2nd and 3rd spindle: 7.5 kW
• 3rd spindle left
• 4th spindle above: motor 5.5 kW
• 5th spindle below: motor 4.0 kW
• Electric height adjustment: 0.25 kW
• All spindles with brake motors
• Spindle speed: 6,000 RPM
• Spindle diameter: ø 40 mm
• Planing table: 2,000 mm with geared fence edges and matching fence rail
• Feed rollers with pneumatic pressure
• Feed rollers diameter: 140 mm
• Conveying rollers opposite the left spindle
• Infeed roller in front of the planing unit pneumatically clocked
• SICO counters
• Manual wax pump
• Central lubrication points
• 1 set of planer heads
• Total power connection: 25 kW
• Machine dimensions: L=3400 mm, W=1800 mm, H=1610 mm
• Weight: 2500 kg
