2001 Biesse Italy Rover 22- 4 axis

Biesse Rover 22 CNC machining center

Year of manufacture 2001

SN 07498

Working range

4 axes

X-axis 3060 mm

Y-axis 1080 mm

Z-axis 155 mm

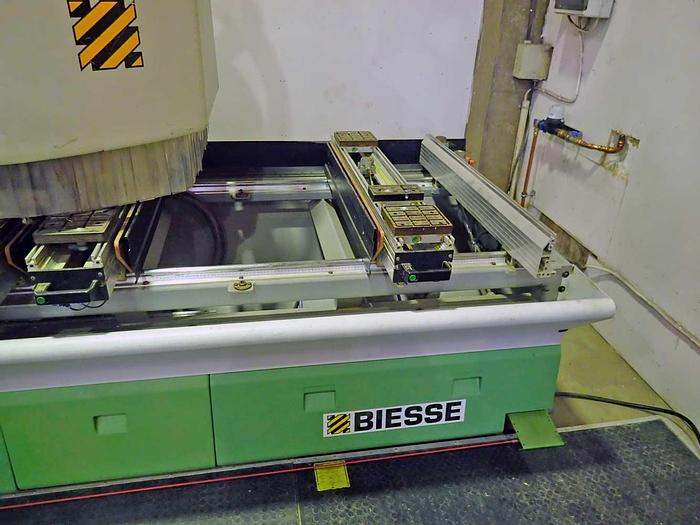

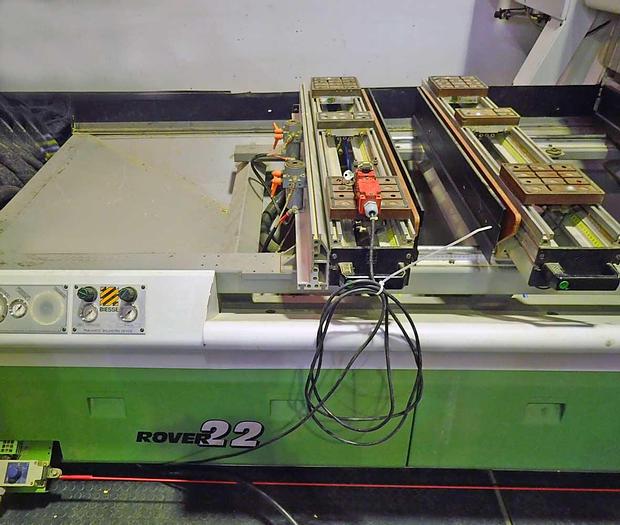

6 consoles with 18 vacuum cup holders

4 pneumatic bakelite bars for lifting the plate

Vertical electro spindle 7.5 kW with automatic tool change, ISO 30 taper

Automatic tool change 7 positions on the working head

Drilling head with 20 spindles arranged as follows:

7 vertical in X-axis

7 vertical in Y-axis

4 horizontal in X-axis

2 horizontal in Y-axis

Grooving saw 120mm

Safety tread mats

110 m3 / h vacuum pump

CE marked

Weight 3500 Kg

Technical specifications subject to change
