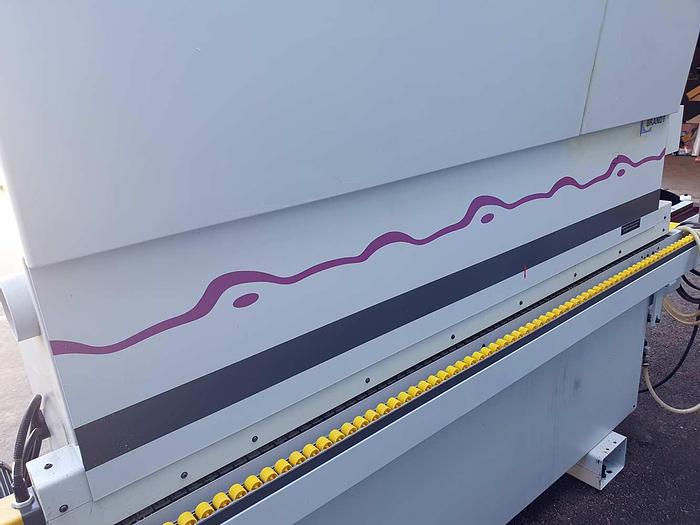

2003 Brandt Brandt KD 56 edge banding machine

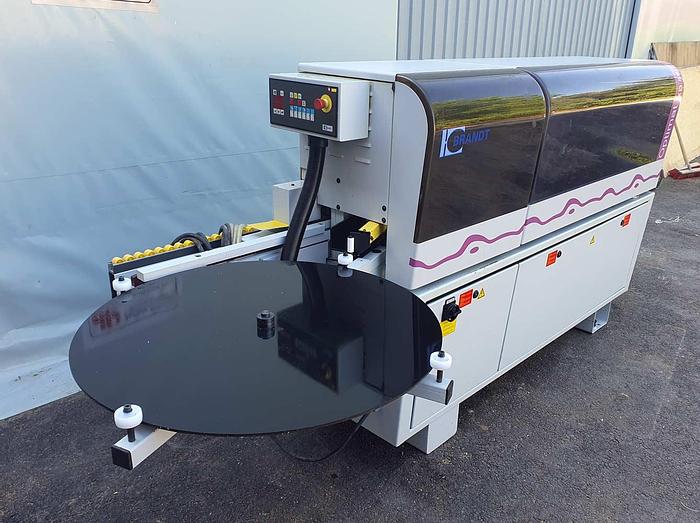

Brandt KD 56 edge banding machine

Year of manufacture 2003

edge thickness 0,4-3,0mm (max 3,0 x 30/ 0,8 x 45mm )

roller cutting 0,4-3,0mm ( max 3,0 x 30/0,8 x 45 mm )

Workpiece width min 60mm

Workpiece length min 140mm

Workpiece thickness 8-40mm

Feed rate 9m/min

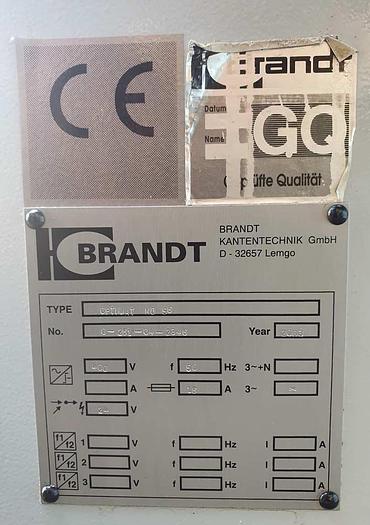

400 V, 50 Hz

Pneumatic connection 6 bar

Automatic coil and strip feed magazine

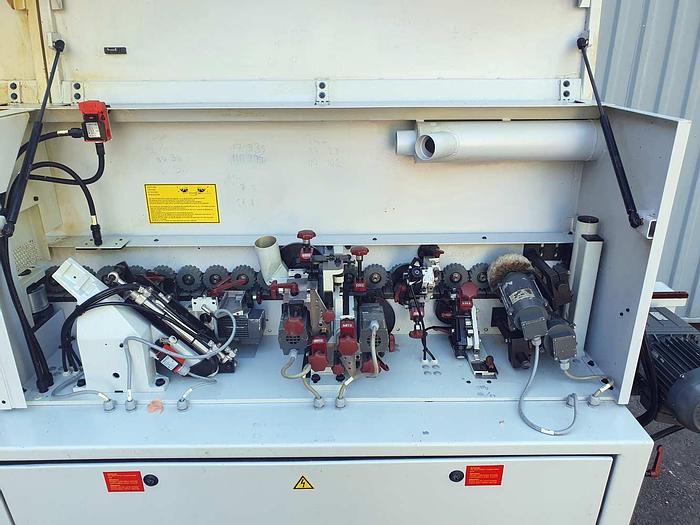

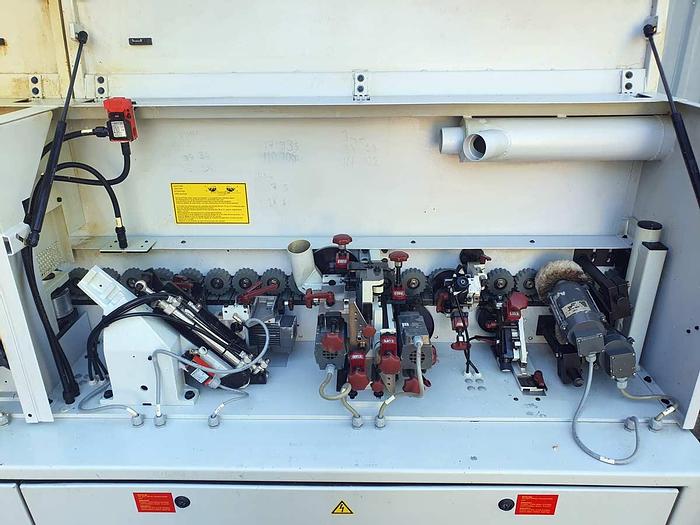

Work stations. Equipped with digital height display for the adjustment

of the upper-pressure beam

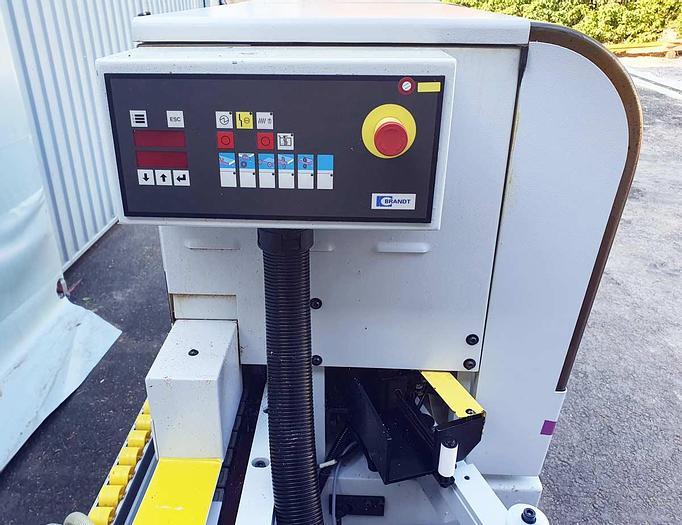

Control panel at the machine infeed for more operating comfort

Electronic frequency changer for all milling motors

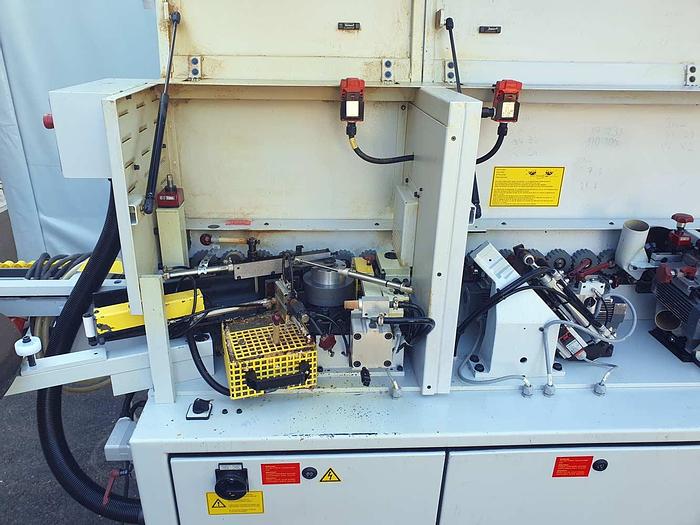

Granulate hot-melt application system with fast heat-up time

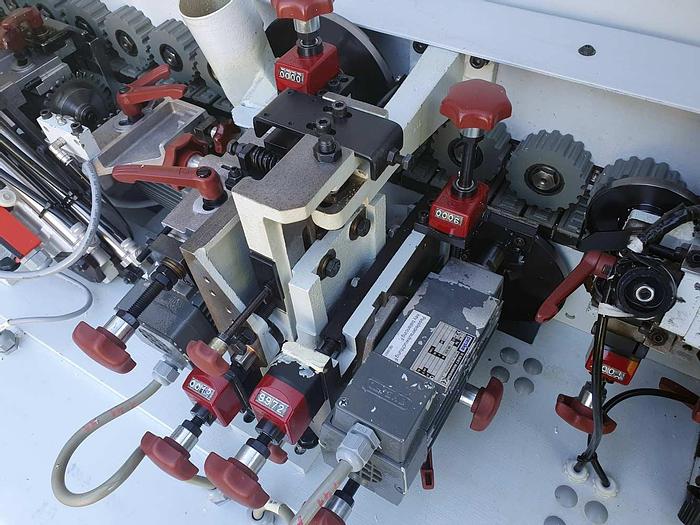

Cross-cutting ( 2 cross-cutting motors 12,000 rpm )

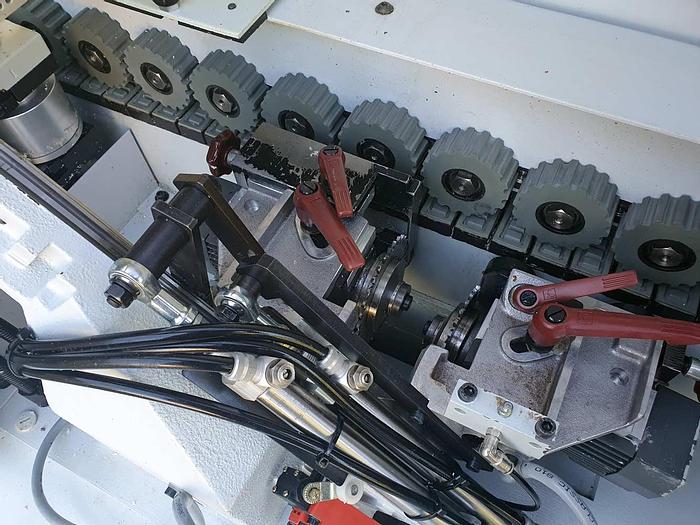

Flush trimming ( 2 swiveling trimming motors 12,000 rpm ) 0.25 degrees

Fine adjustment with digital counter

Scraper- for smoothing, radius, or chamfering

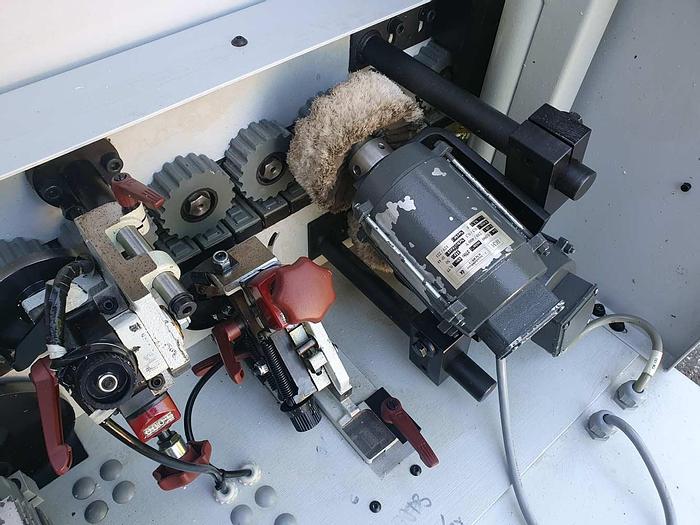

Buffing

Connected load 380 Kg

Machine length 3075mm

Weight 860 Kg

* more pictures soon

technical data under reserve
