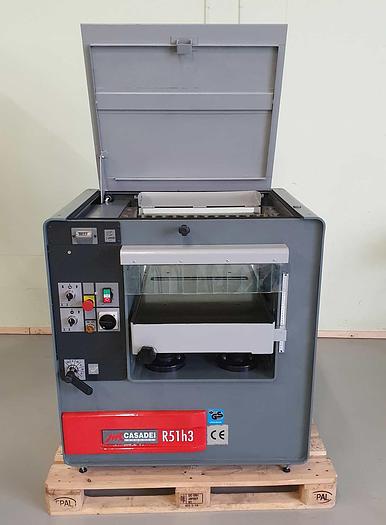

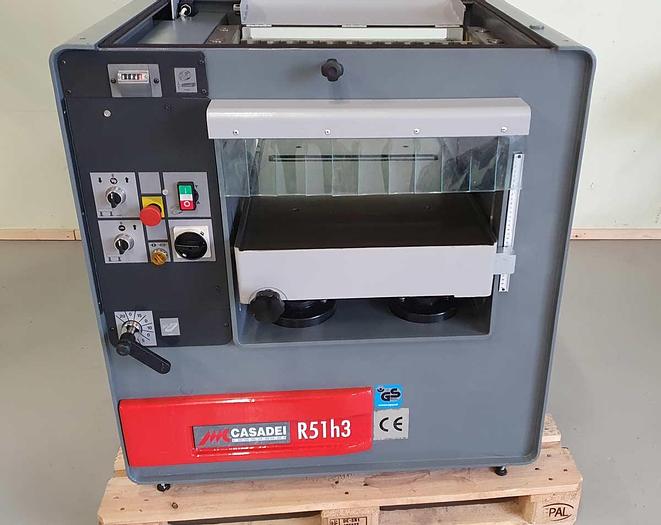

1997 Casadei Thickness planer R51/ H3 R51 / H3

thickness planer Casadei R51/ H3

Year of manufacture 1997

Manufacturer Casadei / Busselato Italy

S/N 97-61-053

Working width: 510 mm

Working height Max.: 300 mm

Workpiece length Min.: 250 mm

Working height Min.: 4 mm

Maximum cutting depth: 8 mm

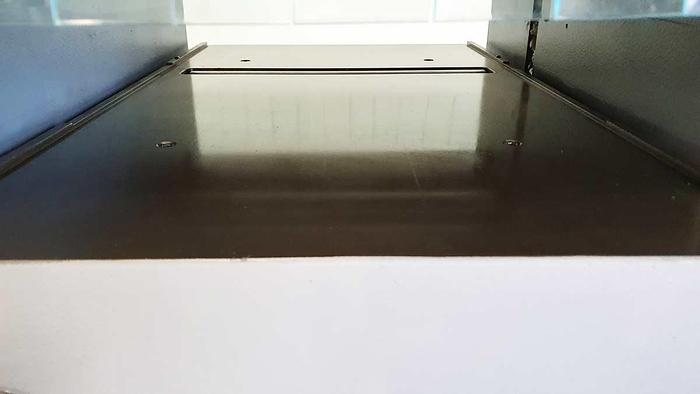

Table length: 860 mm

Variable feed speed : 6 / 9 / 14 /22 m/min

Knife sizes 4 pieces 510 x 35 x 3mm ( standard knives )

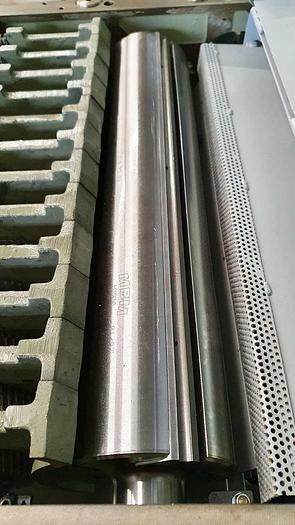

Cutter head diameter: 120mm

Cutter head speed RPM 4600

Main engine: 5,5 kW

Dimensions: 1120x960x1250 mm

Weight: 643 Kg

Electromotive height adjustment

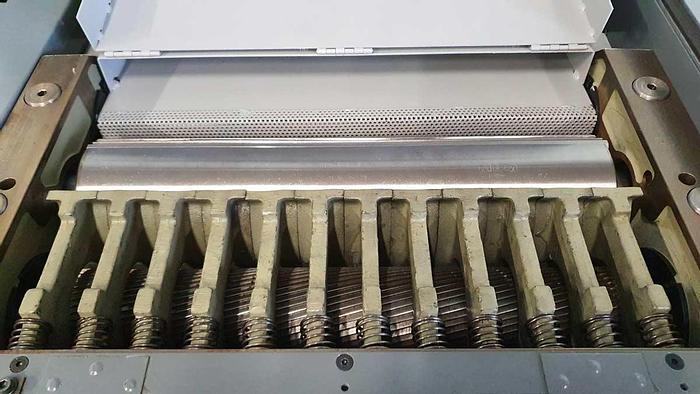

Feed roller on the table

CE marked
