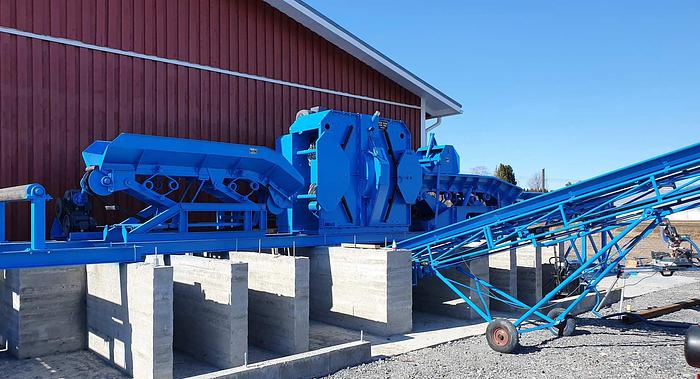

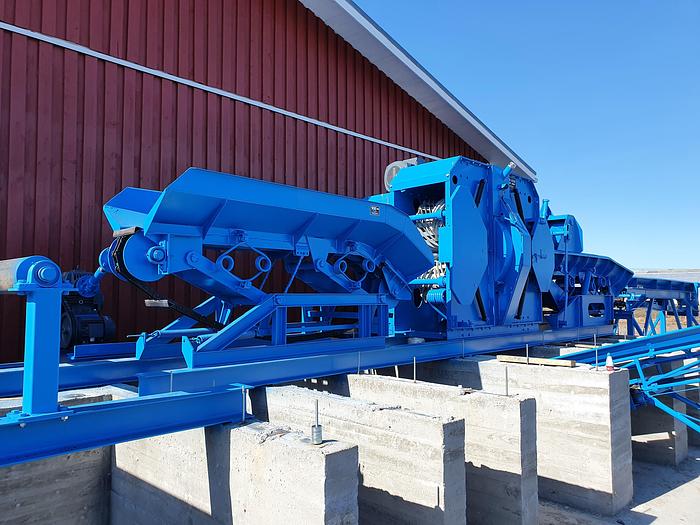

Valonkone VK26 M debarking machine, completly renovated

A., VK26M ( year 1974 line ) with sliding table

B., VK26M ( year 1974 line ) with motorized out feeding table

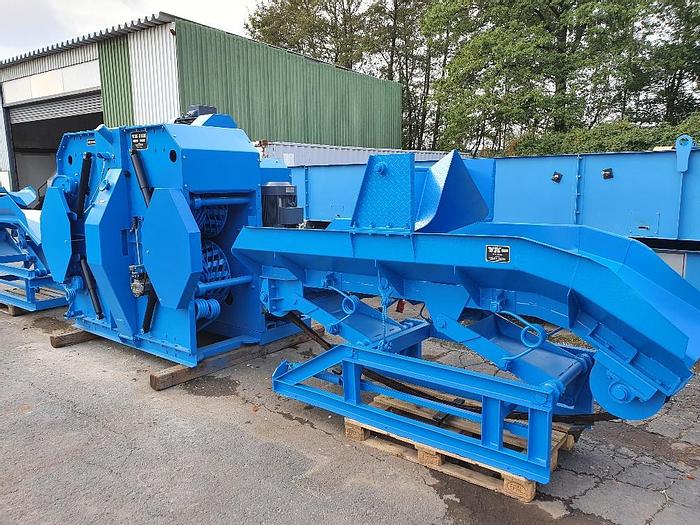

A., VK26M ( year 1974 line ) with sliding table :

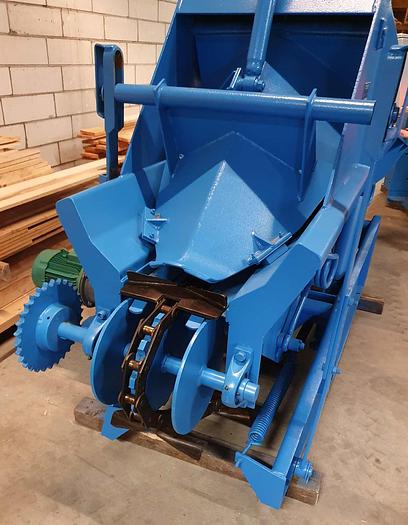

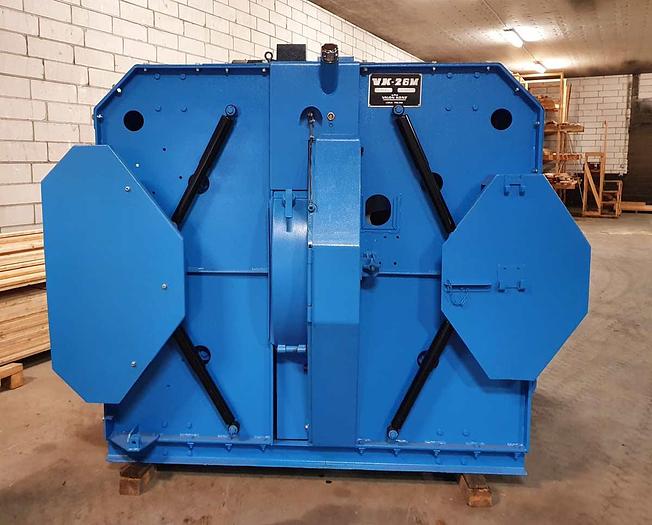

•   main machine

•   infeeding table ( driven )

•   outfeeding table

•   electric cabinet

*

Including infeed and outfeed table , workshop inspected *

•   debarking capacity: 10cm - 61cm diameter

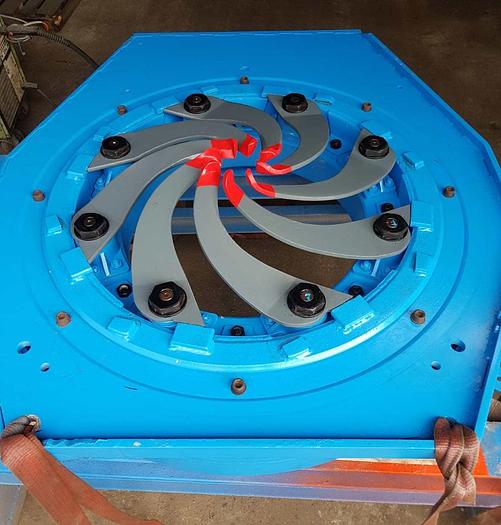

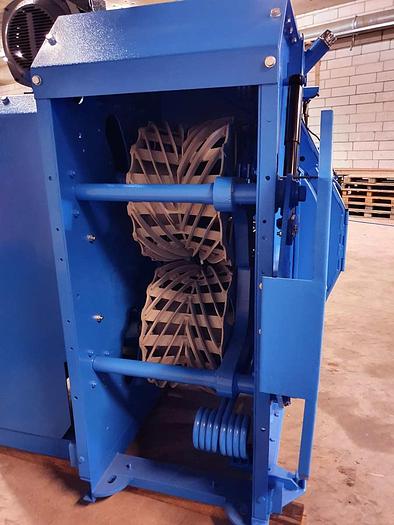

•   4 abrader knives

•   4 cutting knives

•   speed of the rotor =235rpm / min

•   Rotor öppning=65cm

•   30 KW motor, rpm 1500/ min

•   speed: 17-42m / min

•   3m or longer ( timber length )

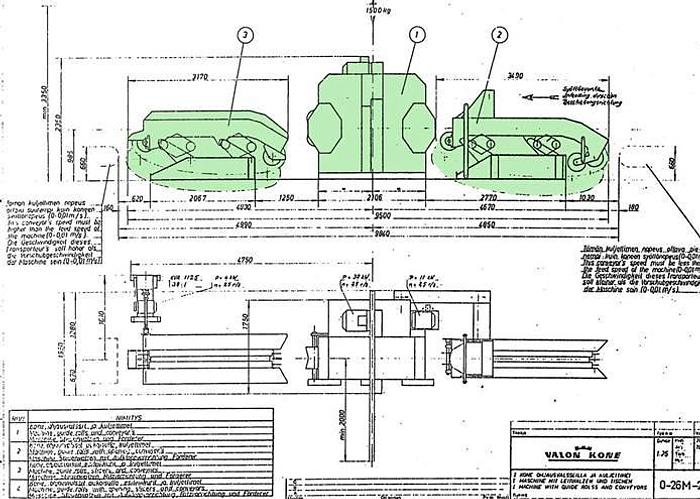

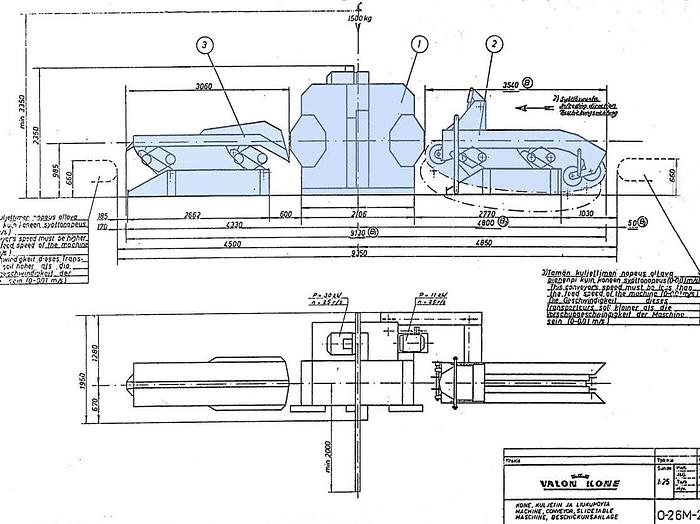

Dimension ( without in feed and out feed table )

L= 9130mm

B., VK26M ( year 1974 line ) with motorized out feeding table :

•   main machine

•   infeeding table ( driven )

•   outfeeding table

•   electric cabinet

*

Including infeed and outfeed table , workshop inspected *

•   debarking capacity: 10cm - 61cm diameter

•   4 abrader knives

•   4 cutting knives

•   speed of the rotor =235rpm / min

•   Rotor öppning=65cm

•   30 KW motor, rpm 1500/ min

•   speed: 17-42m / min

•   3m or longer ( timber length )

Dimension ( without in feed and out feed table )

L= 9840mm

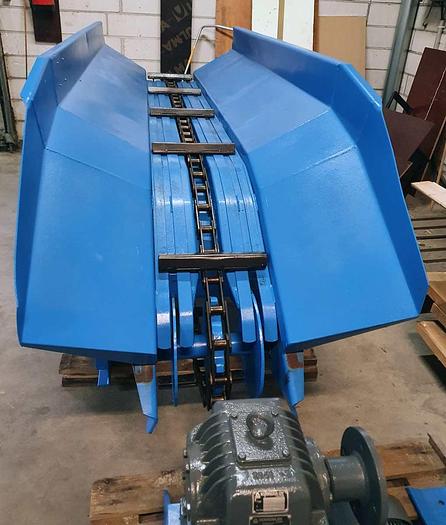

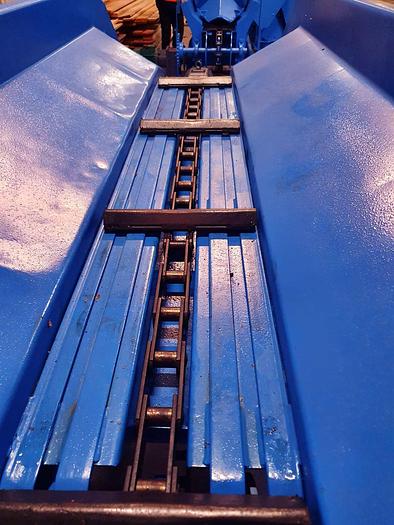

Infeeding table :

3540mm x 1000mm x 1900

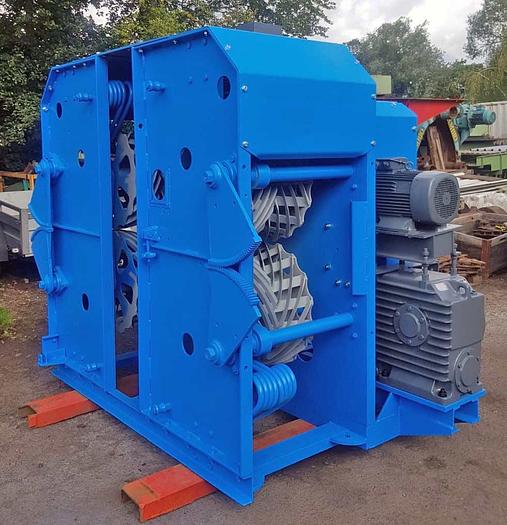

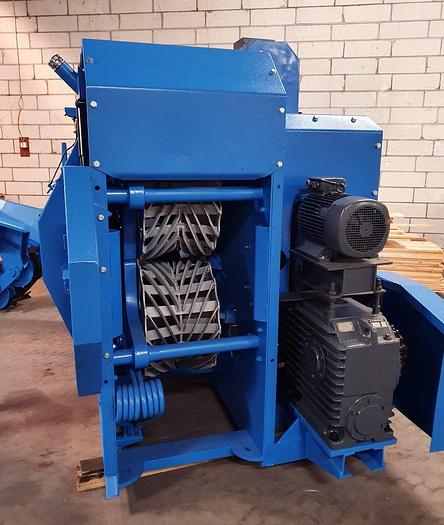

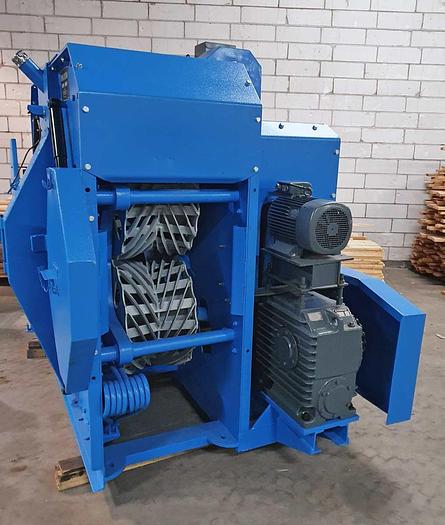

main VK26M machine :

2530mm x 2200mm x 2350

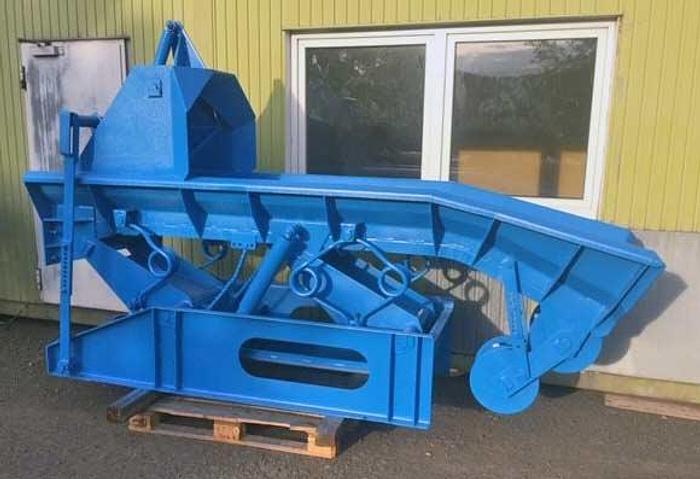

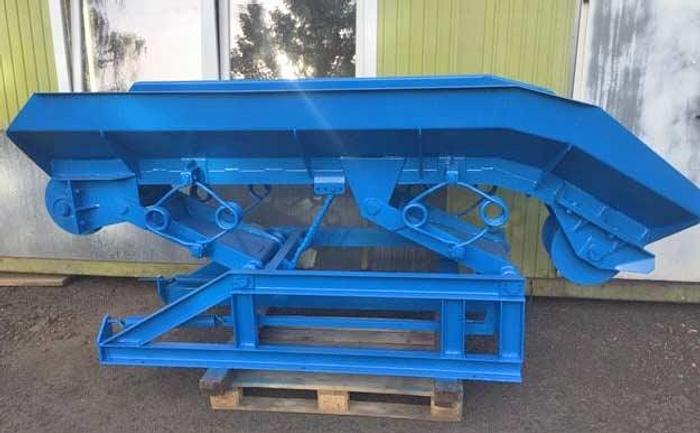

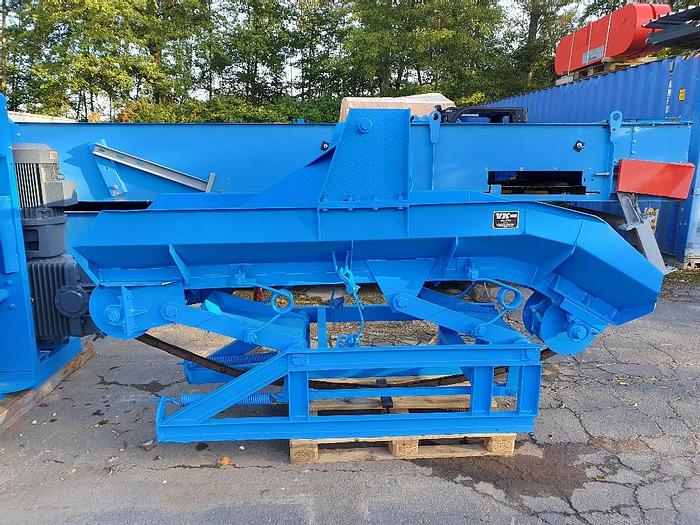

outfeeding table ( slide cradle ) :

3060mm x 1000mm x 1300

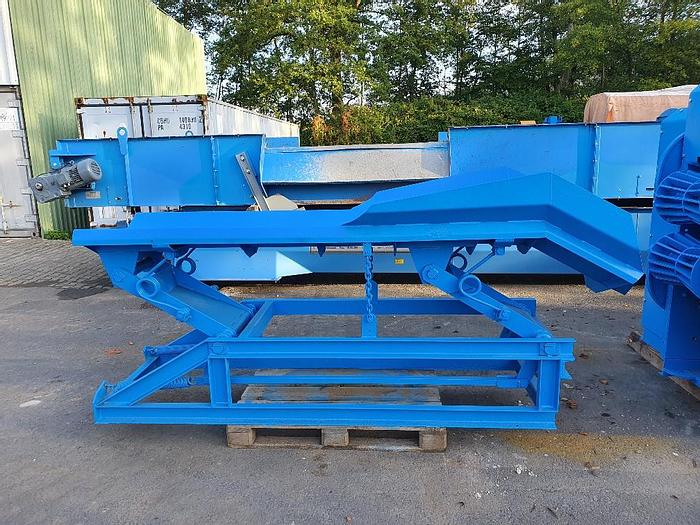

outfeeding table ( motorized table ) :

3170mm x 1000mm x 1300

RENOVATION:

Pos 1   1   Salary: Machine disassembly,washing,sandblasting,Priming and varnishing, repair, assembly

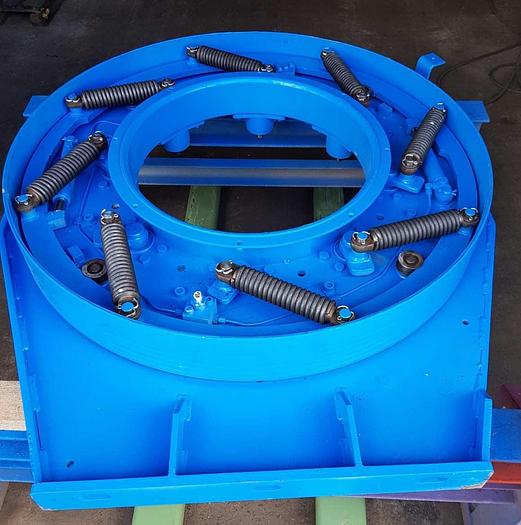

Pos 2   1   Material knife axles on rotor new bearings and sealing ( if necessary )

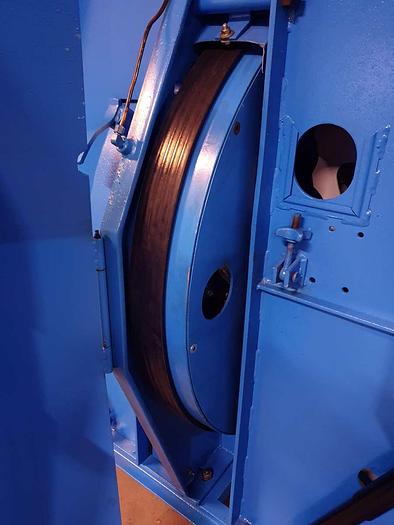

Pos 3   5   Other material: pieces V-belts for rotor drive

Pos 4   1   gear oil

Pos 5   1   Material: abrasive + colours

Pos 6   4   Valonkone piece scraper knife

Pos 7   4   Valonkone Piece Pre shedder

Pos 8   1   Electric cabinet :

with Delta 3 phase start for 30 kw main motor

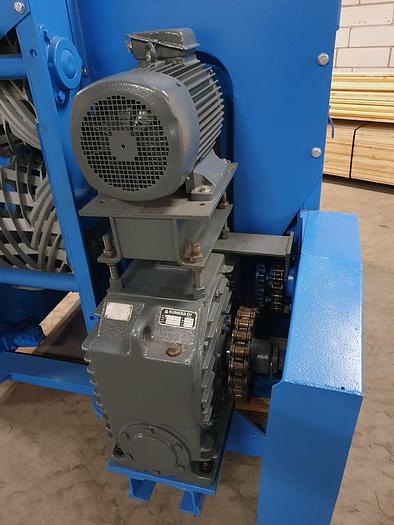

with Delta 3 phase start for 11 kw gearing motor

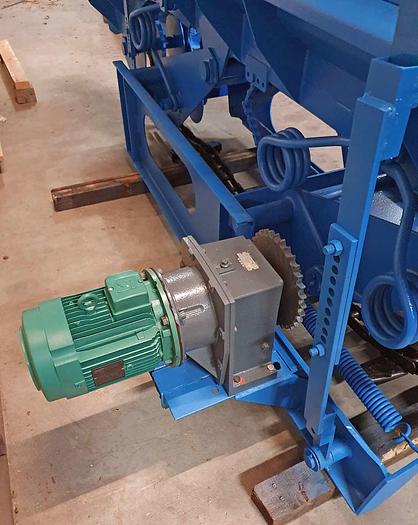

with start for 4 kw gearing motor infeeding

with start for 4 kw gearing motor outfeeding

Main starter

Stop emergency
