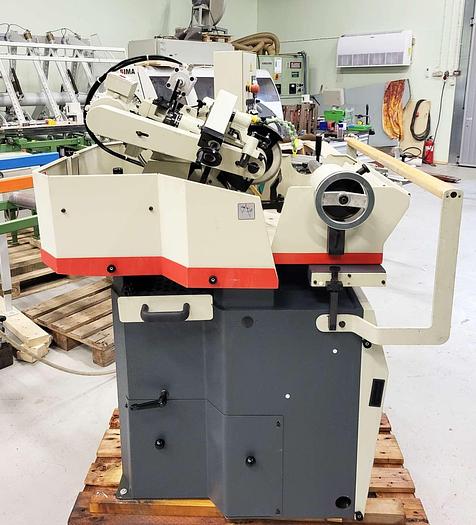

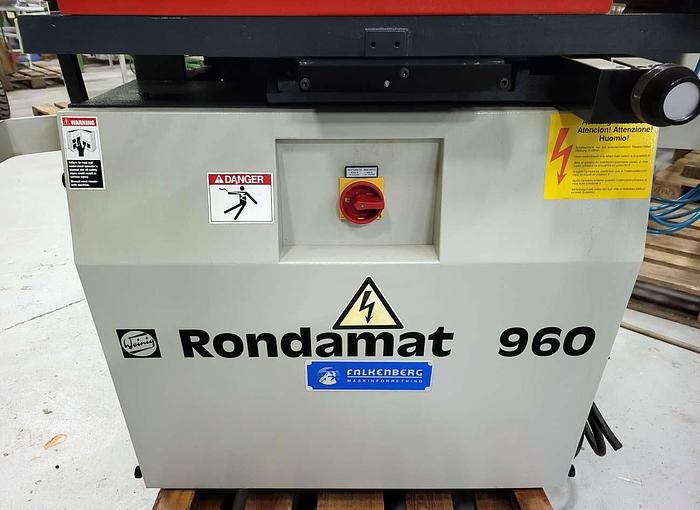

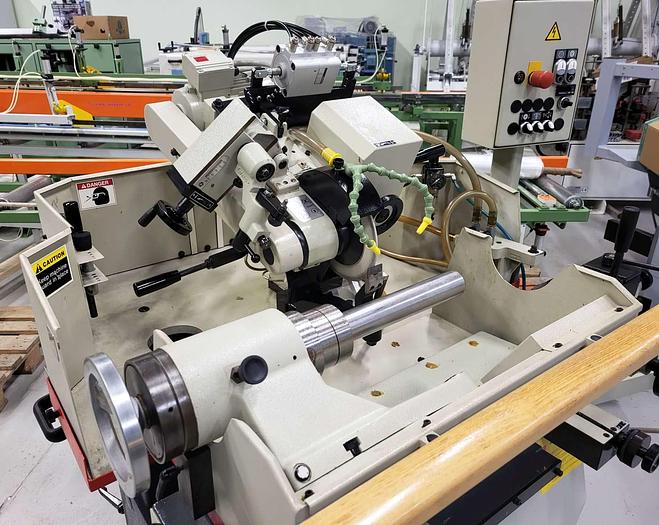

WEINIG Rondamat R 960, profile knife grinding machine

WEINIG Rondamat R 960, profile knife grinding machine

Year of manufacture 2002

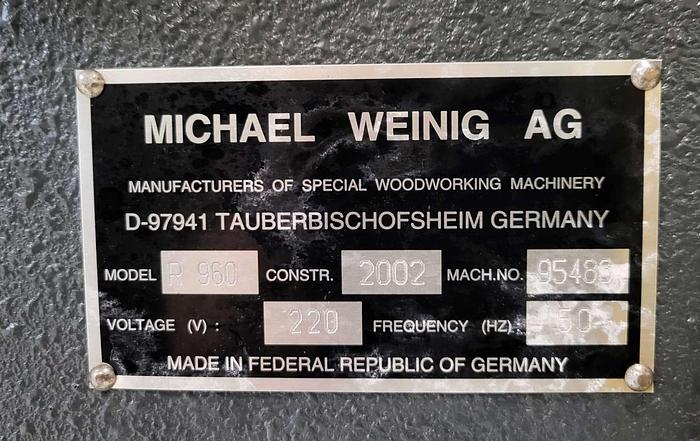

S/N 95483

in very good condition

grinding length max. 240 mm

mandrel holder D= 45 mm

tool diameter min. 100 - max. 300 mm

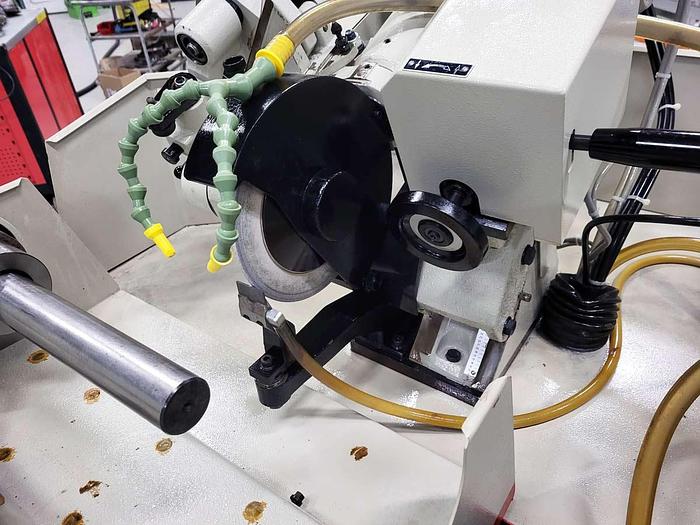

Grinding wheel diameter for profile heads min. 150 / max. 225 mm

Grinding wheel diameter for planing heads 150 mm

Grinding wheel width (ceramic, borazon, diamond) 2 - 3 - 4 - 10 mm

Grinding wheel bore 60 mm

Clearance angle grinding radially on the back of the blade 10° - 30

Clearance angle grinding lateral in manual operation 0° - 22°

Clearance angle grinding for straight cutter heads up to 60°.

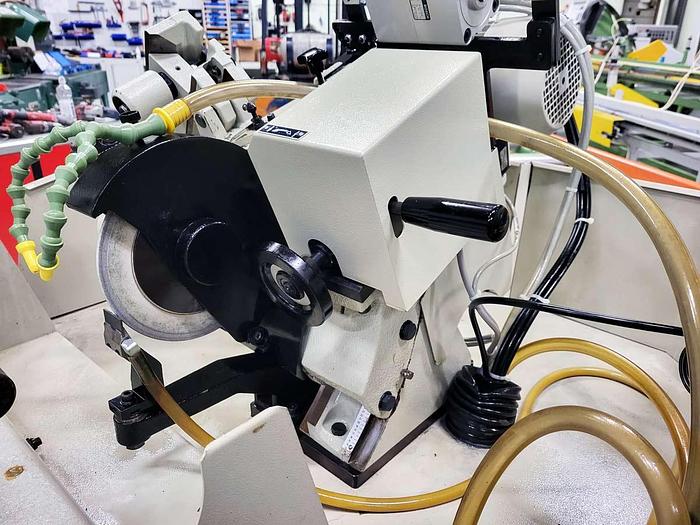

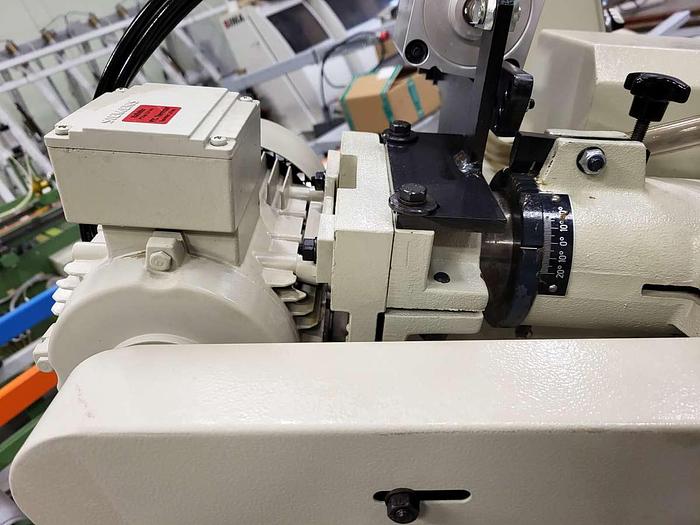

Grinding spindle drive 1.1 kW / 400 V / 50 Hz

Grinding spindle speed 4 steps 1700 / 2000 / 2400 / 3000 rpm.

Coolant tank approx. 50 litres

Motor coolant pump 0.18 kW / 400 V / 50 Hz

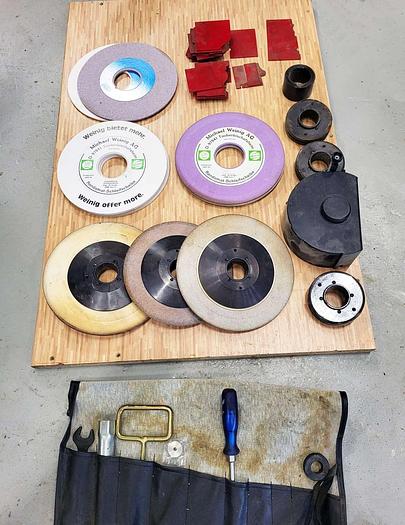

approx. 10 pcs. grinding wheels and various accessories / tools

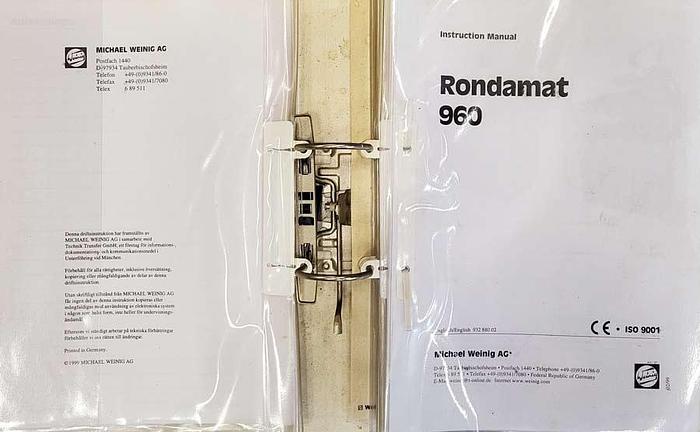

Operating instructions in 3 languages / circuit diagram

Machine dimensions

length 1.090mm

width 1.200mm

height 1.500 mm

800 Kg

technical data under reserve
