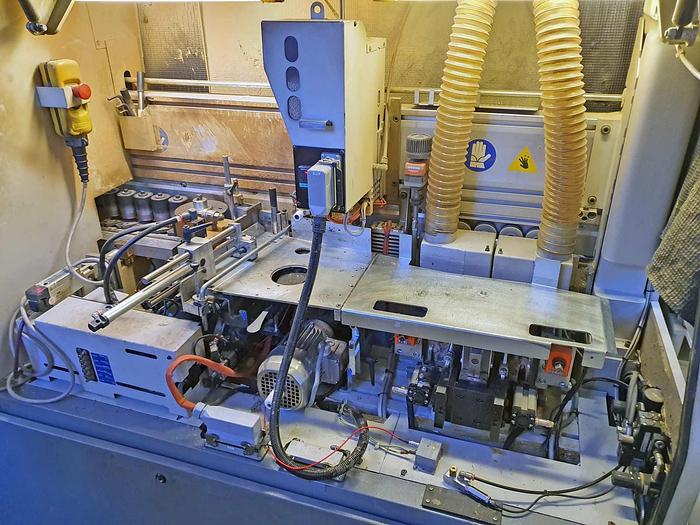

2003 Biesse Biesse Artech Akron 860

Malax, Finland

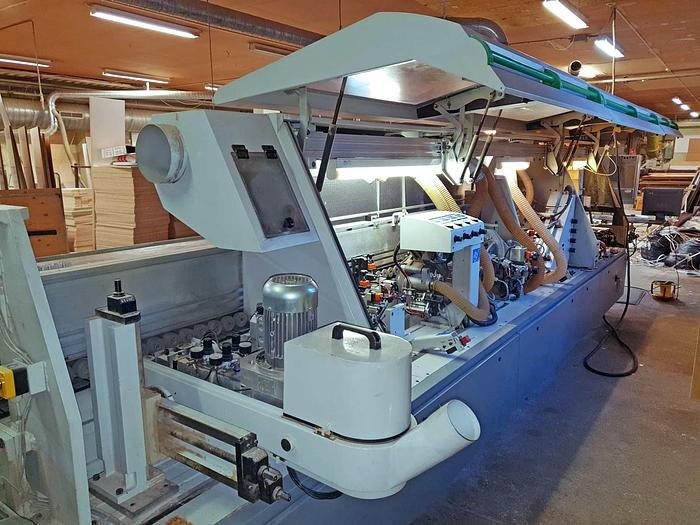

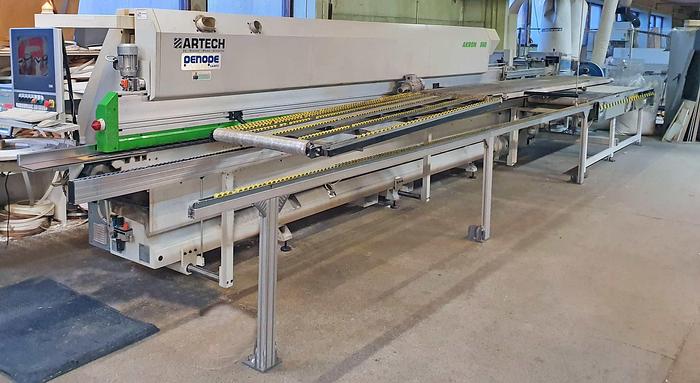

Single-sided edge banding machine Biesse Artech Akron 860, year 2003
Year of construction 2003
Fully automatic edge banding machine up to 15 mm edge thickness

Technical data:
edge thickness 0,4 - 15mm
Edge thickness in rolls 0,4 - 3mm
Workpiece thickness 8 - 60 mm
Workpiece thickness (forming trimming unit) 35 - 60 mm
Workpiece width (with length 140) min. 85 mm
Workpiece width (with length 250) min. 50 mm
Workpiece length min. 140 mm
Feed rate 11-14-20 m/min

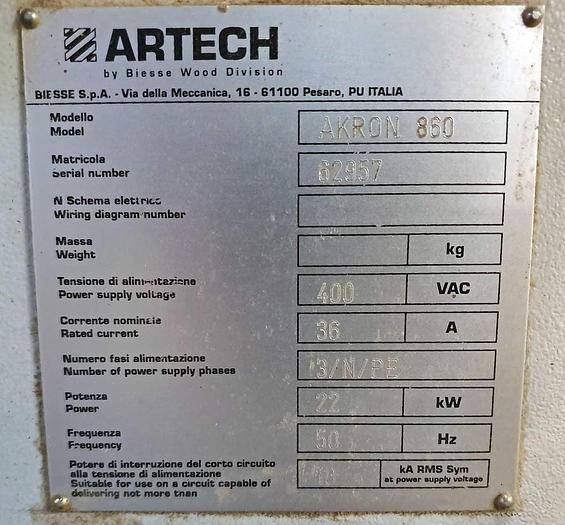

Electric 400 V / 50 Hz
Connected load approx. 22 kW
Pneumatic connection 7 bar
length approx. 7500mm
width approx. 1500mm

basic equipment
Extraction on all cutting units
high-precision transport chain
Control NC 405
3-step variable feed rate
Front adjustable roller support
Automatic top pressure
All axes on linear guides
cabin lighting

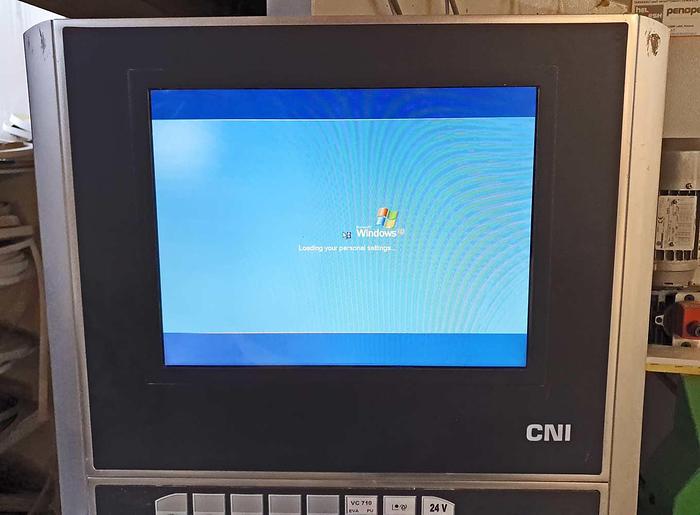

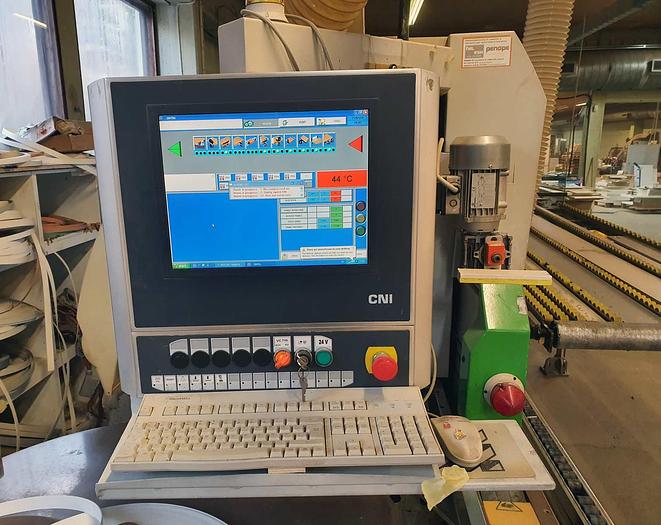

PC control with flat screen ( Windows XP )

Inlet monitoring electrically by warning lamp over inlet
Automatic infeed ruler

• Jointing
• Edge magazine, gluing unit, pressure zone
• flush milling
• Form milling / corner rounding
• radius scraper
• flat scraper
• Hot air unit PH-700
• Oscillating fine grinding unit LV-900
• spraying device

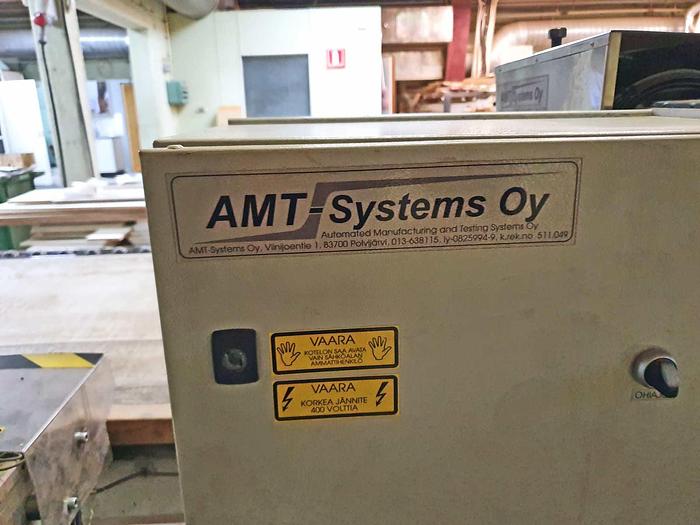

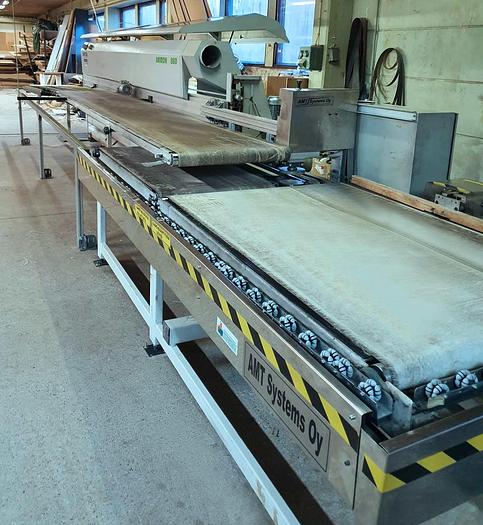

Incl. automatic Boomerang system (ATM System Oy Finland )


ModelBiesse Artech Akron 860
