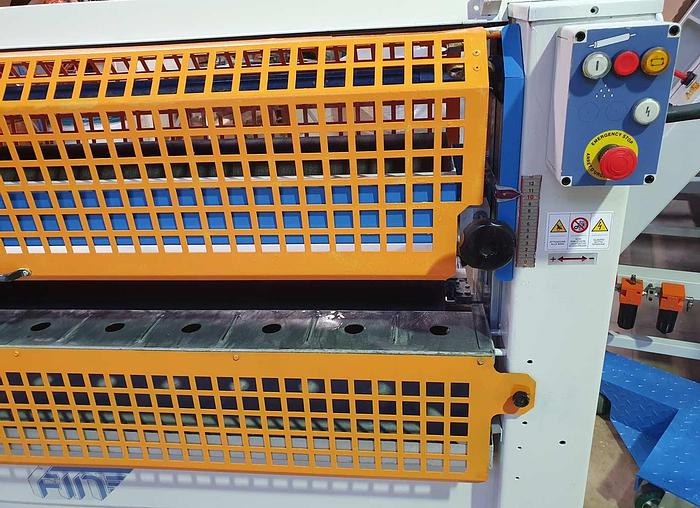

2005 FIN s.r.l. Italy Glue spreader with 2 rollers Mod. SC2R-1500

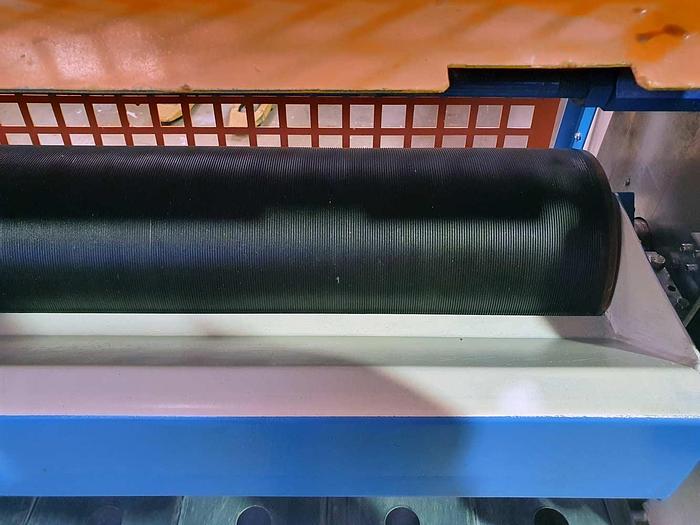

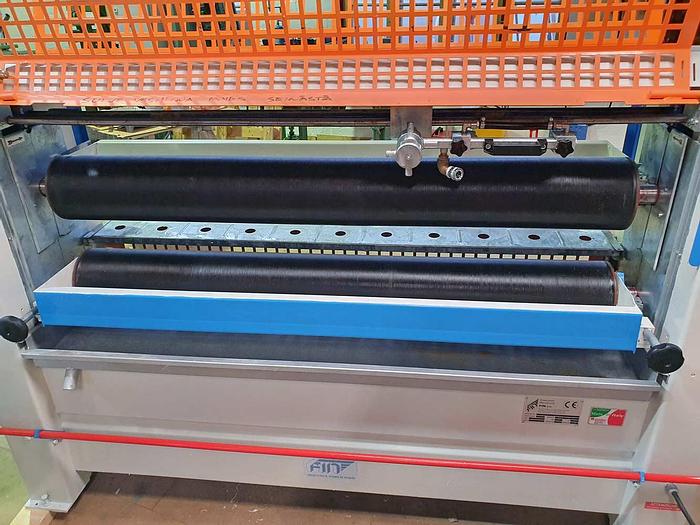

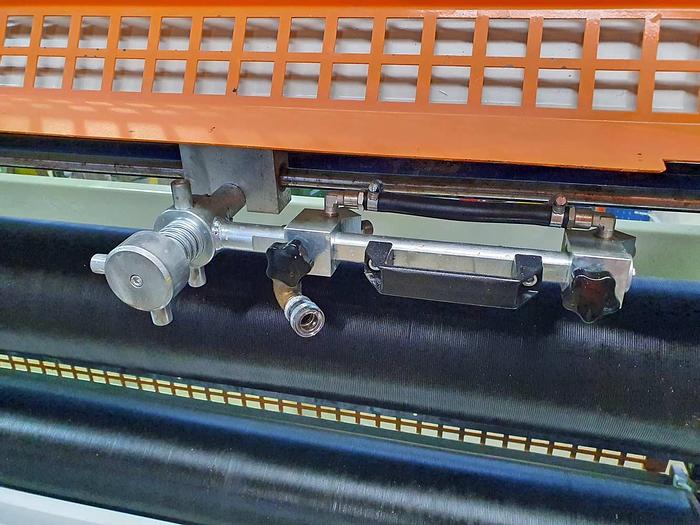

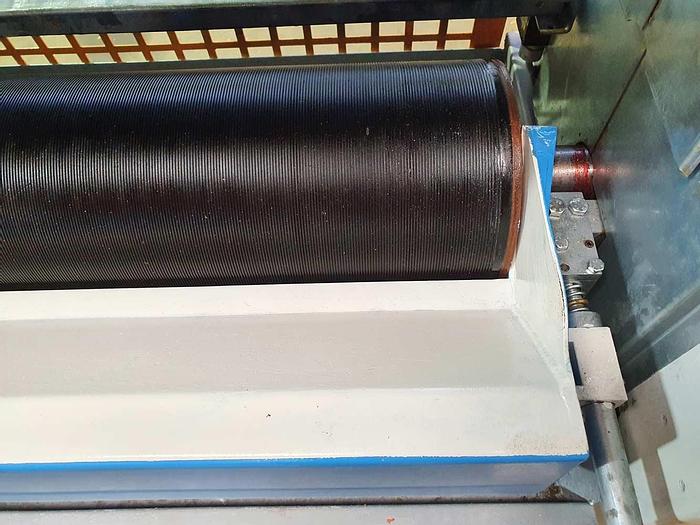

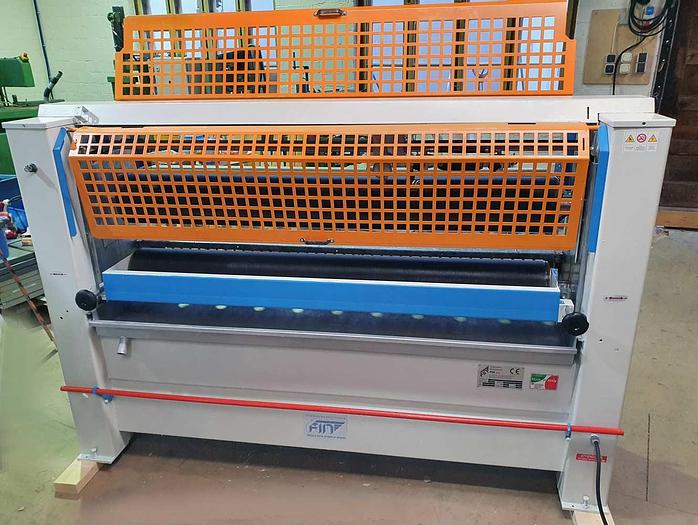

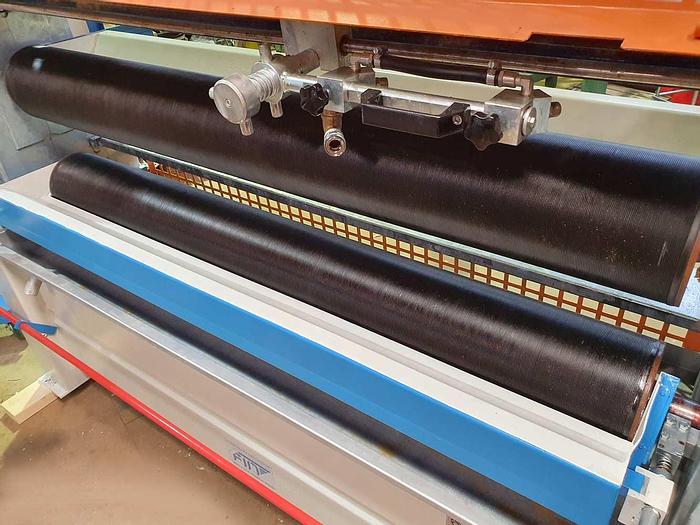

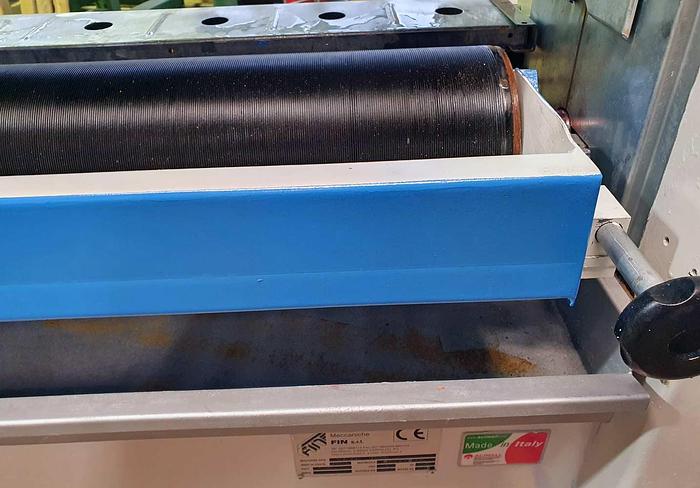

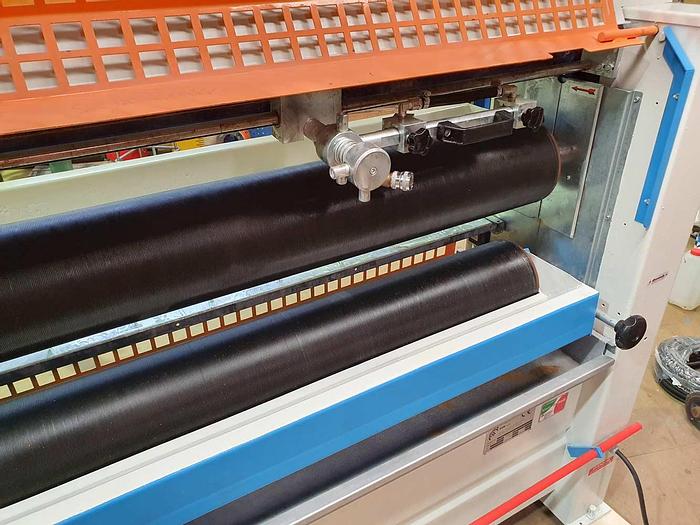

Glue spreader with 2 rollers Mod. SC2R-1500 The year 2005 manufacture: FIN s.r.l. Italy ORIGINAL PHOTOS COMING SOON main technical specification: Width of working: 1500mm The maximum passage between roller: 120mm The diameter of rollers: 185mm Advancement speed: 19m/min Net weight 390 Kg Overall dimensions: 64 x 210 x 136cm Overall dimensions with case: 73 x 222 x 153cm 400 V, 50 Hz, 037 kW Accurate and uniform spreading with any type of glue, excellent technical characteristics, added to the high practicalness, functionality and safety for the operator, place it at the forefront among the 2 roller glue spreaders. Spreading roller covered in antiacid rubber, ground and furrowed, hard wearing, as they are built with a rational layer of rubber it is, therefore, possible to carry out 6-7 grindings. It is easy and quick to disassemble. Spreading, precise and uniform on one or both sides of the panels. Special shock-absorbers, on the roller supports, allow the rollers an automatic opening depth, so as to spread panels of different thickness within 5 mm. they also compensate for eventual parallelism differences of the panel. Uniform glue dosing by a rectified distribution tank, in sheet-iron, with very quick extraction to allow cleaning. Collecting tank, for glue and washing water, in galvanized sheet-iron, extractable for easy cleaning. Safety protections, in sheet metal on the rollers and glue distribution tank, a sheet metal protection prevents the introduction between the rollers of any object more than 5 mm. thick over the transit established, ensuring the maximum safety for the operator. Electrical installation, in a waterproof case with fuses, thermal switch for motor and transformer protection. Control panel, with starting button, stopping button and warning light (24 V). Rollers rotation chain with self-registrable turnbuckle pinion. Roller washing with a bored washing tube, for the water intake during this operation.
|Manufacturer||FIN s.r.l. Italy|
|Model||Glue spreader with 2 rollers Mod. SC2R-1500|
