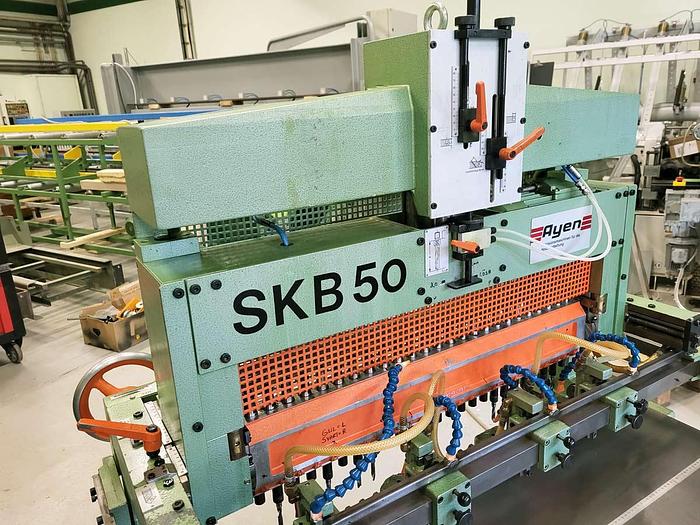

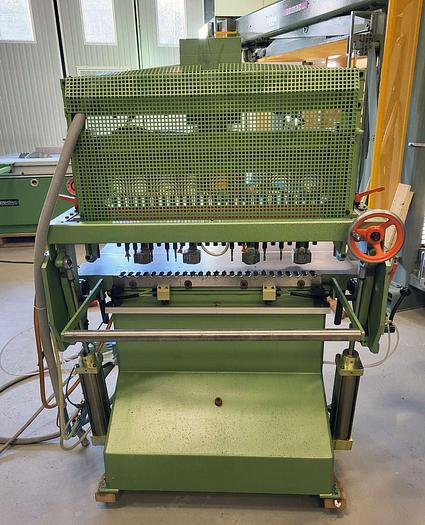

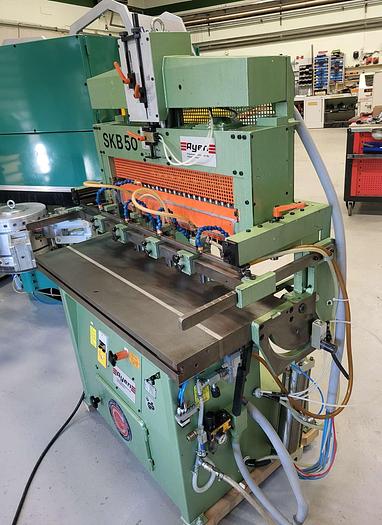

AYEN Dowel Drilling Machine SKB 50

Dowel Drilling Machine AYEN SKB 50

Manufacturer AYEN

Model SKB 50

Year of manufacture 1984

S/N 8411346

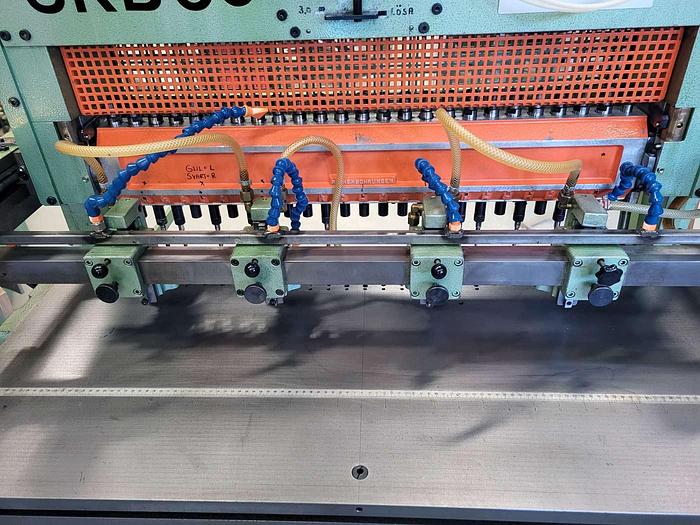

total 50 spindles in (2) swivel heads with (25) spindles each

drills vertically from above and horizontally from behind

drills at any angle between 0° - 90° with a positive stop at 45°

Working width 768mm / passage 1000mm

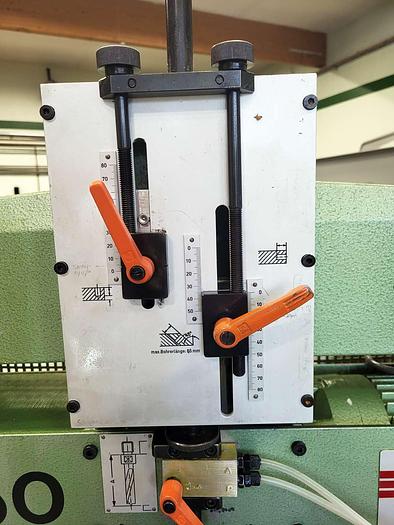

50-spindle swivel head assembly quickly converts to (2) 25-spindle heads for double row drilling,

5-1/8" minimum distance between heads for row drilling.

3 HP - 3,450 rpm gear motor, 39" plate width with a 30-1/4" drilling width.

Complete with: (2) 39" stops with flip stops, (3) pneumatic "Quick Set" hold-downs,

foot pedal control for drill cycle/head positioning

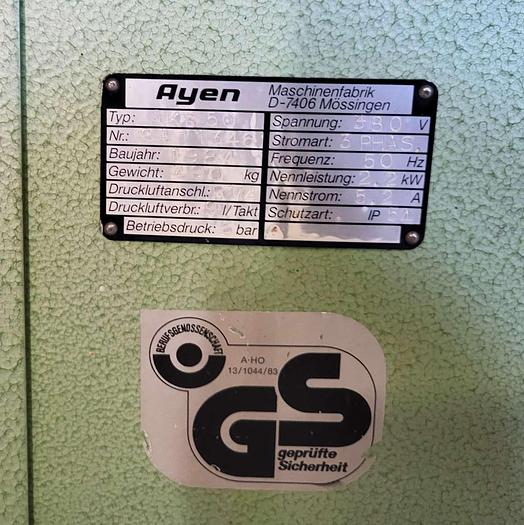

Motors, 3 phases, 380 V / 50 Hz

Compressed air consumption 9l / cycle

Weight 490 Kg
