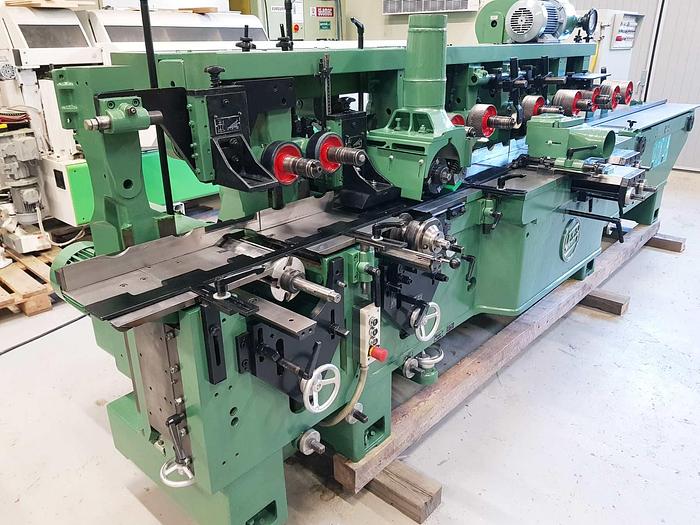

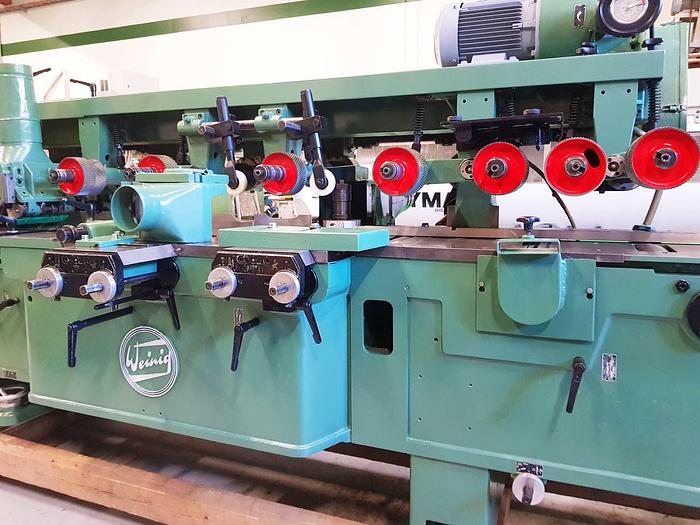

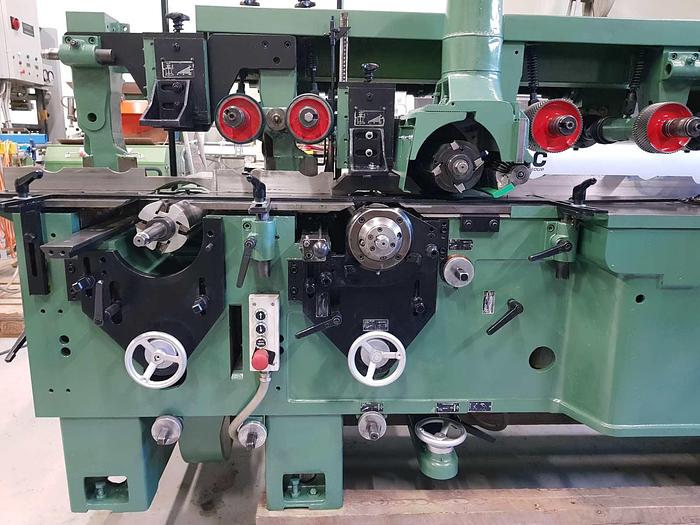

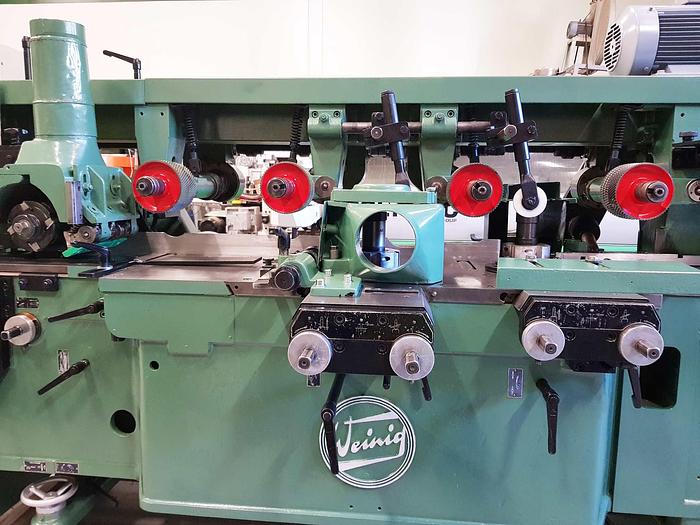

WEINIG planer / Moulder machine UNIMAT U22 N 6 spindles

WEINIG planer / Moulder machine UNIMAT U22 N 6 spindles

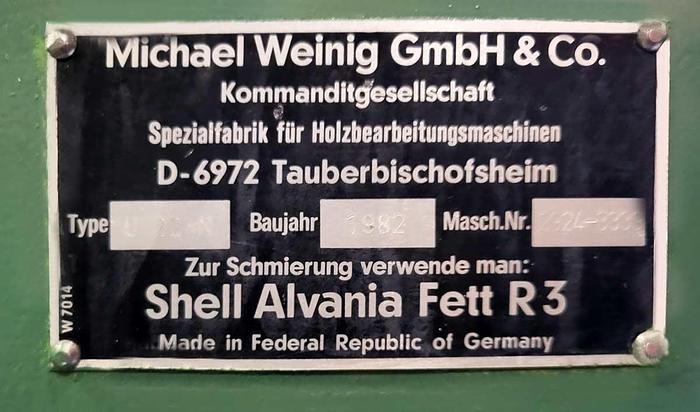

manufacture WEINIG Germany

S/ N 2924-3339

year 1982

The planer is in good working condition and has been partly overhauled, cleaned

and has been subjected to thorough technical inspections.

- The machine has been thoroughly cleaned and technically checked.

- Some wearing parts have been replaced.

- A test run was carried out to ensure functionality.

- The machine is bolted to a wooden construction and is ready for dispatch.

- The planing and moulding machine is equipped with all tools and is sold as is.

Further technical data of the machine:

Maximum planing width: 220 mm

Maximum planing height: 120 mm

Diameter of spindles: 40 mm

Spindle speed: 6000/min

Length of infeed table: 2 m

Spindle speed: 6000 rpm

Diameter of the spindle: 40mm

Smallest tool diameter: 100mm

Max. tool diameter: 160mm

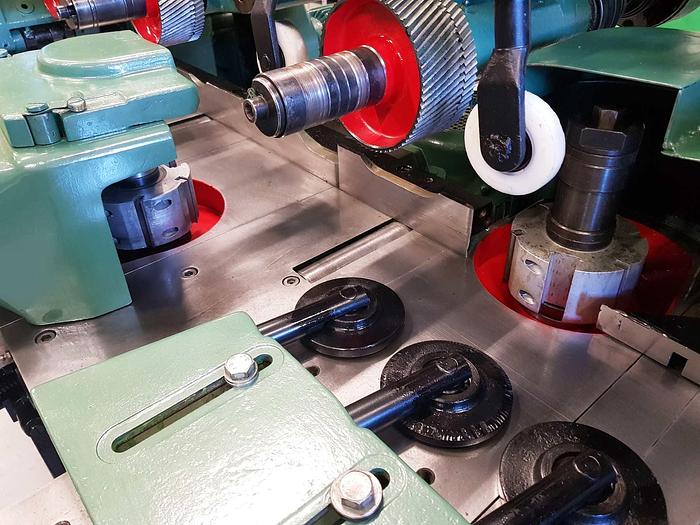

Max. diameter of the vertical spindles : 180mm

Max. tool diameter of the 2nd right spindle: 195mm

Max. tool diameter of the upper spindle: 200mm

Max. tool diameter of the lower spindle: 180mm

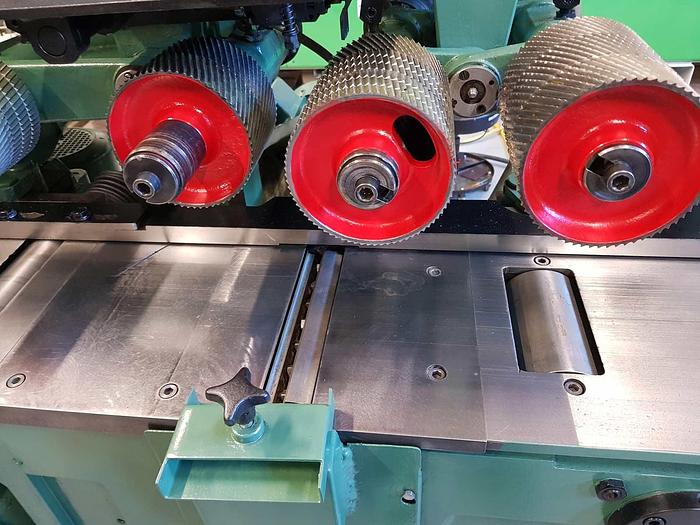

Feed speed variable: 6 - 18 m / min

feeding motor 4,0 Kw

motor for height adjustment: 3,0 kW

Voltage 380 V / 50 Hz

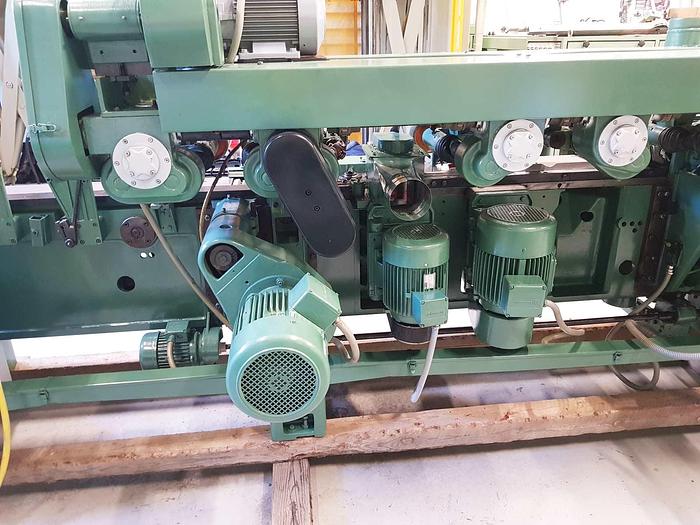

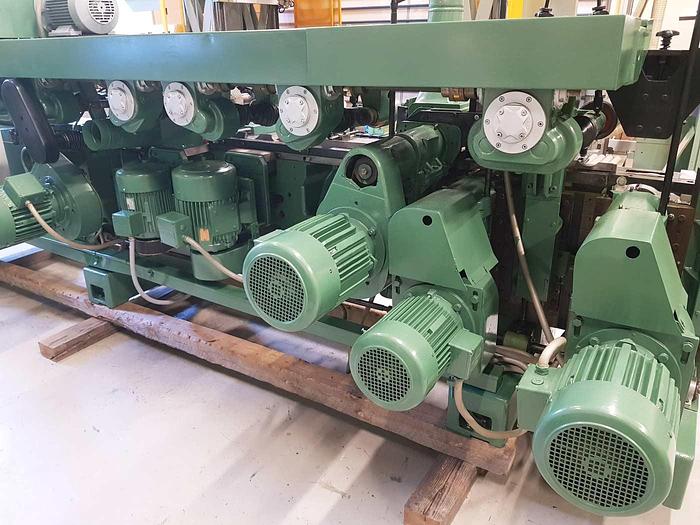

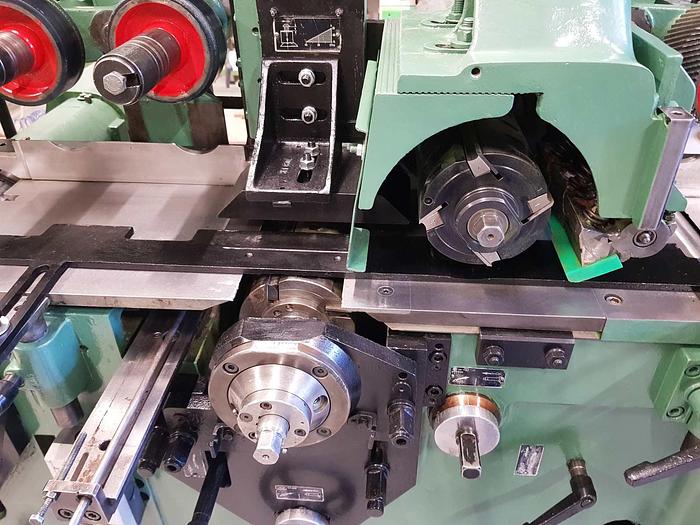

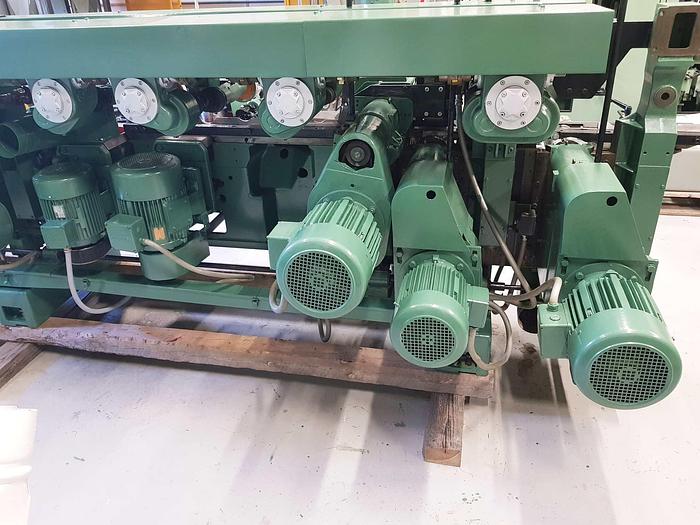

Spindle configuration:

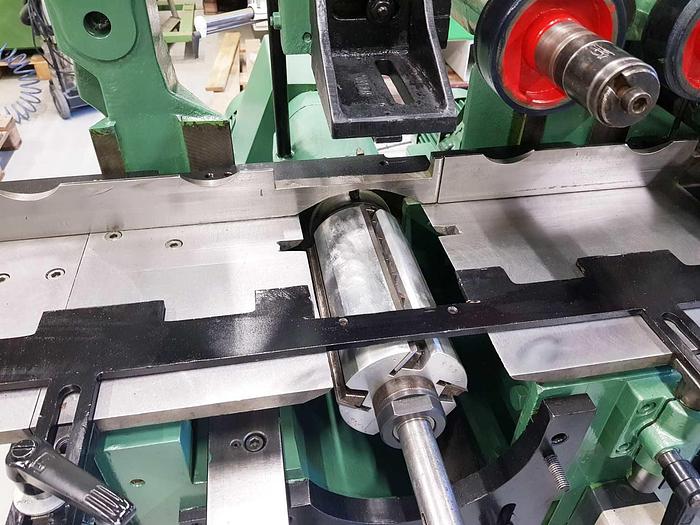

1. spindle bottom hotizontal (planer),5,5 kW

2. spindle vertical right, 4,0 kW

3. spindle vertical left, 5,5 kW

4. spindle upper horizontal, 5,5 kW

5. spindle bottom horizontal 4,0 kW

6. spindle bottom / top horizontal 5,5kW

Dimensions: L x W X H = 5,3m x 1,6m x 1,7m

Weight approx. 3500 Kg
