2016 ACCUTECH Machinery CO UNIVERSAL MILLING MACHINE 2500 UM
orCall 358-44-3654070

Description
ACCUTECH Machinery CO
UNIVERSAL MILLING MACHINE 2500 UM
year 2016

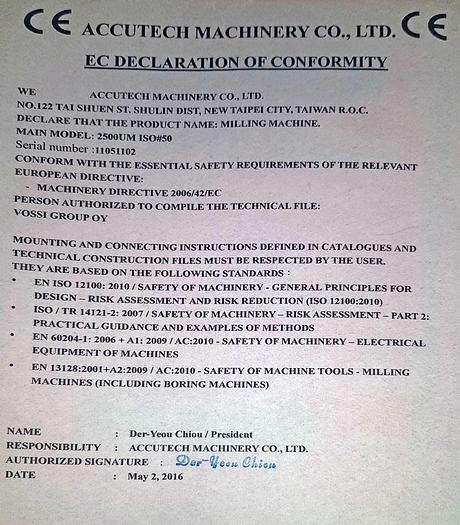

S/N 11051102
in very good condition, used only very sporadically
STANDARD FEATURES:
Rapid traverse on "X", "Y" & "Z" axis.
Via inverter variable feeding on "X", "Y" & "Z" axis
High quality meehanite casting body GC-45/DIN-40.
All gears & shafts are hardened & ground.
Table swivels ±45° degrees left & right.
All "X", "Y" & "Z" wider square slide ways & table
surface are hardened & ground.
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
All square slide way & dovetail way are bigger &stronger.
Cast iron is either ASTM No. 40/meehanite GC-45 or DIN GG-40.
TABLE
Table area 1500x350mm (59x13.7")
Number of "T" shaped slots 5-16H7
Distance between "T" shaped slots 60mm
Rotary movement of table in both direction 45°
TRAVERSE
Automatic Longitudinal 1150mm (46")
Automatic cross 400mm (15 3/4")
Automatic Vertical 500mm (20")
Available distance from spindle to overarm 155mm (6")
SPINDLE (horizontal)
Housing of the taper spindle ISO-40/50
Diameter of the main Shaft nose 88.88-128.57mm
Milling arbor diameter (*) 27mm or (1")
Number of speeds of the spindle (R.P.M.) 12(40-1800) 50HZ
FEEDS
Longitudinal and cross feeds 10-1208mm (0.4-47")
Vertical feed 5-604mm (0.2-23")
RAPID TRAVERSE
Longitudinal and cross 1208mm (47")/min (60HZ)
Vertical 604mm (23")/min
PUISSANCE
V-Belts 4
Main motor HP 7.5
Feed motor HP 2.5
COOLING
Cooling-pump HP 1/8 (0.10)
MOTORIZED OVERARM
Housing of the taper spindle ISO-40/50
Number of speeds 12
Speed range (R.P.M) (35-1600) 50HZ
Power HP 5.5
WEIGHT
Maximum weight on table 600kg (1320 lb)
Net weight 3200kg (7040 lb)
Gross weight with sea packing case 3400kg (7480 lb)
Cubical measure of packing 184x227x227cm (70x89x88")
Specifications
Manufacturer | ACCUTECH Machinery CO |
Model | UNIVERSAL MILLING MACHINE 2500 UM |
Year | 2016 |
Condition | Used |
