€13,900 (EUR)

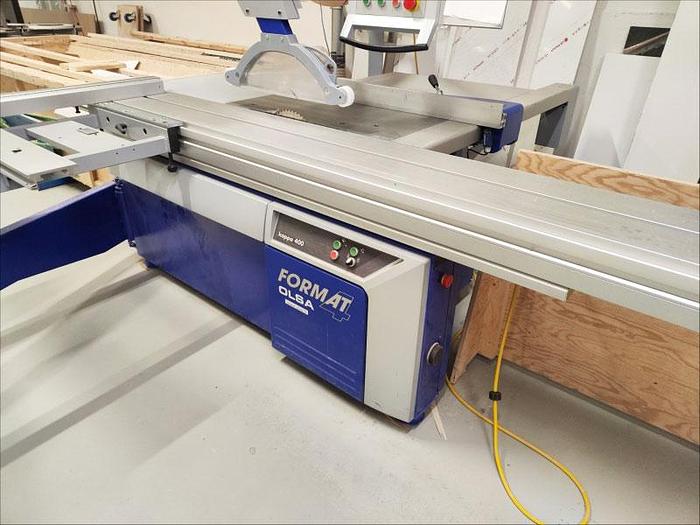

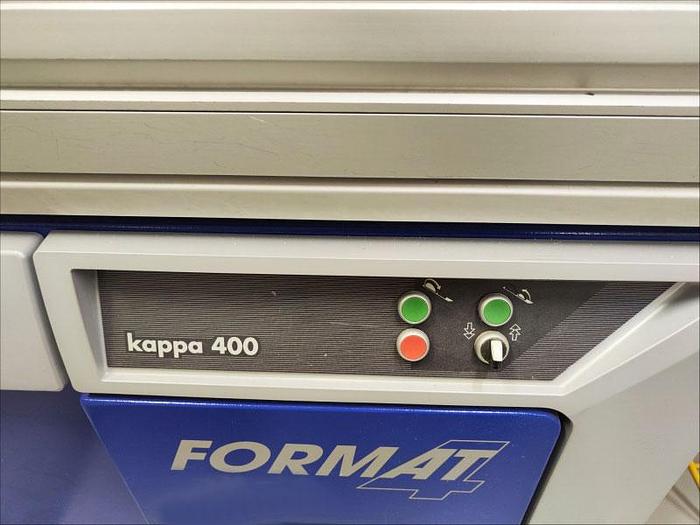

FORMAT4 Kappa 400 x-motion sliding table saw

Malax, Finland

Sold

Description

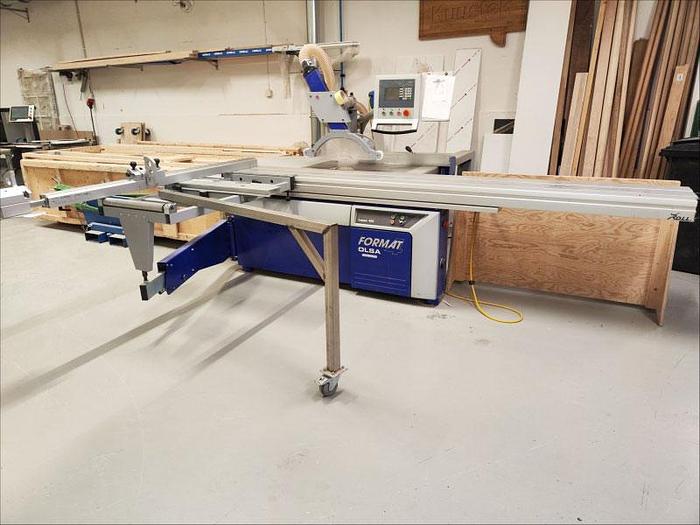

FORMAT4 Kappa 400 x-motion sliding table saw

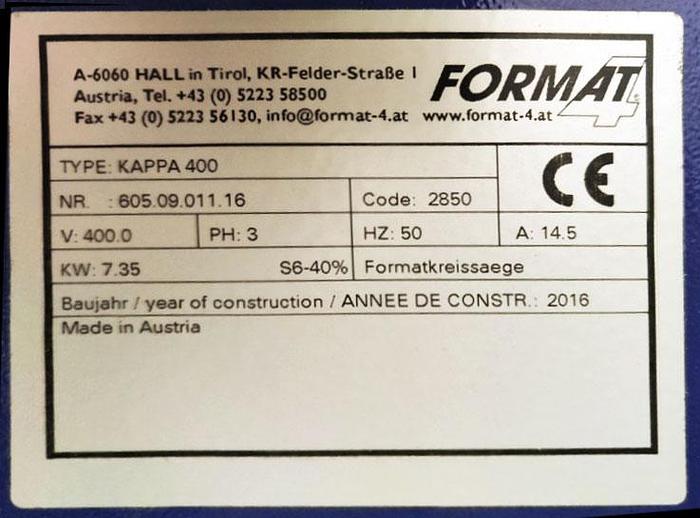

S/n 605.09.011.16

Year of construction 2016

Manufacturer Felder Austria


Cutting length 3200mm

X-roll sliding table ( 10 years warranty )

Cutting width 800mm

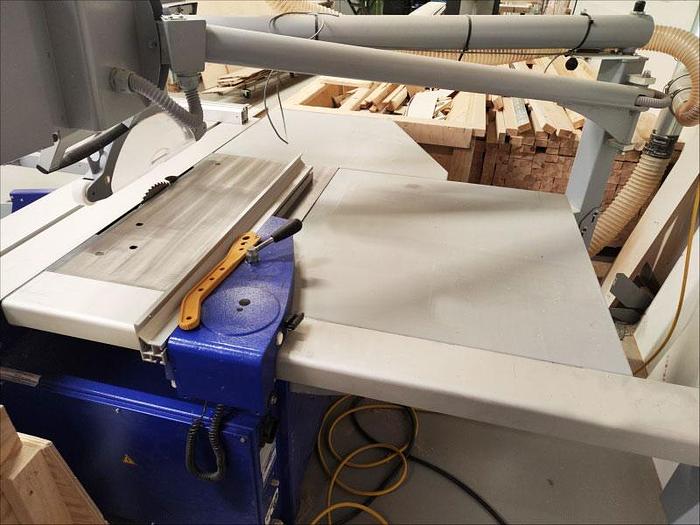

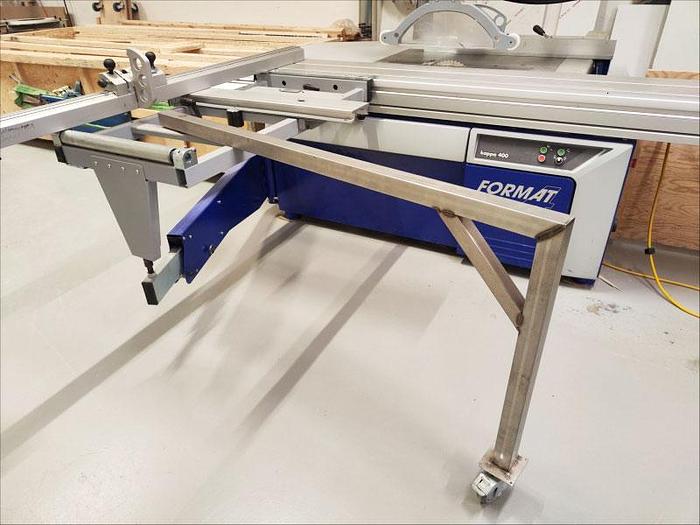

Outrigger table 1500 mm with cutting stop 3200 mm

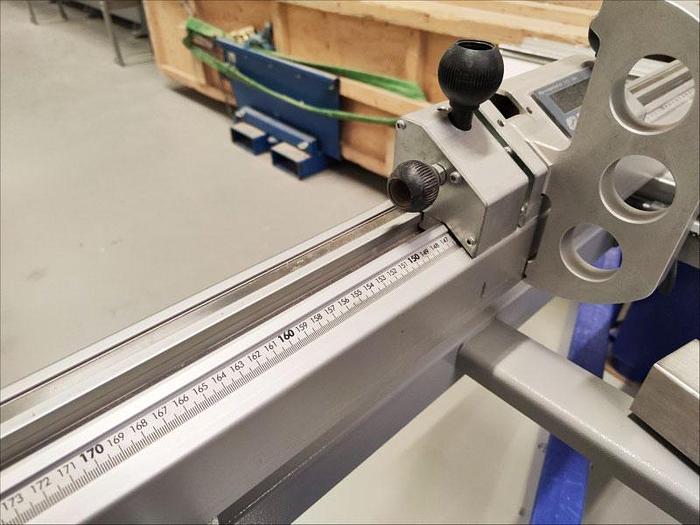

cutting stop 3200 mm, swivelling 90°-45°, 2 stop jaws


x-motion control system

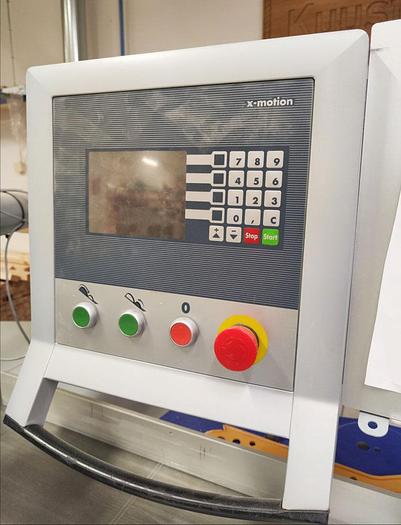

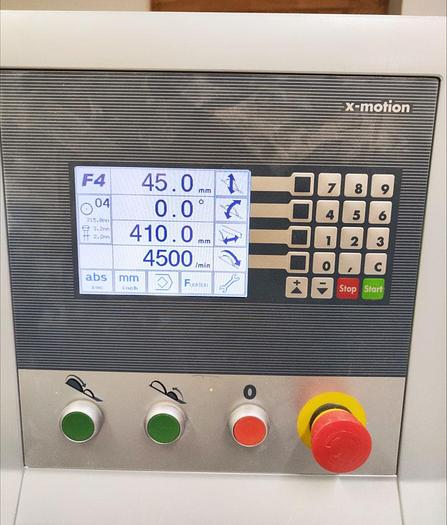

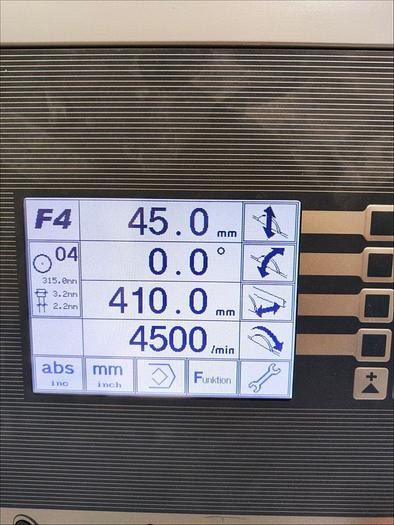

CNC drive unit control with 5.7" (145 mm) LCD screen in the overhead control panel


  •     Positioning control for saw blade height
  •     Positioning control for saw blade angle
  •     Automatic cutting height correction when swivelling
  •     Display for circular saw blade speed
  •     Control for infinitely variable saw blade speed (option)
  •     Positioning control for rip fence with automatic dimension correction when the saw blade is swivelled (option)
  •     All possible functions also available in jog mode
  •     99 memory locations in the tool database
  •     9x 99 memory locations for cutting programmes
  •     Programme level with stored functions (grooves, groove rows, rebates, false mitre, mitre cuts, pocket calculator)



Motor power 7.35 kW (10 HP) with star-delta starter

Upper control unit with 5.7" touchscreen

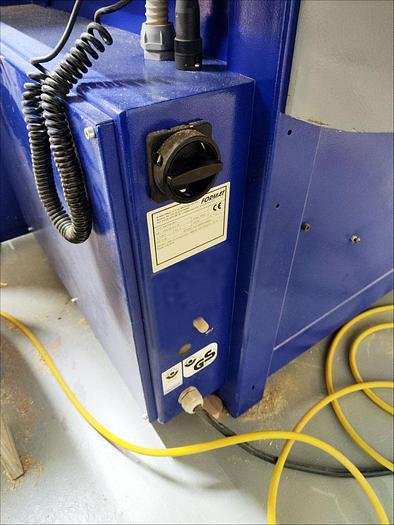

3 x 400V, 50 Hz

3 speeds 3500/4500/5500 rpm

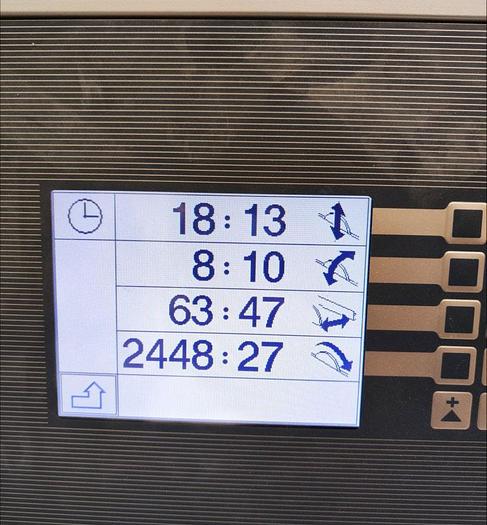

Operating hours counter


Circular saw unit 90°-45°

Electric angle adjustment with digital display

Electric height adjustment with digital display

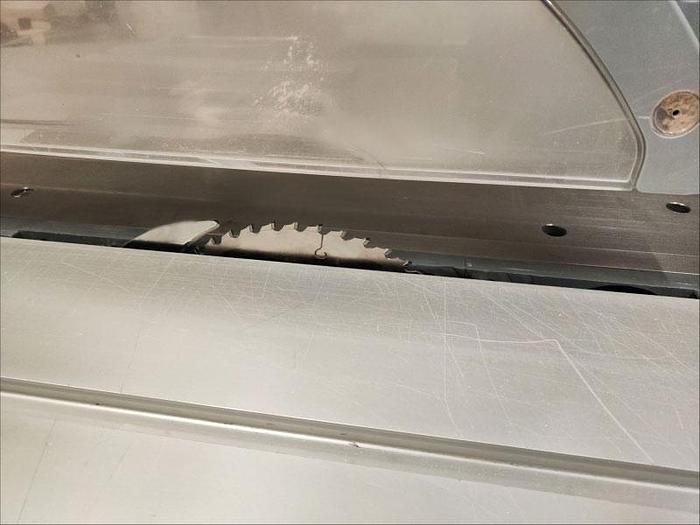

Saw blade diameter 250-400 mm, cutting height max. 133 mm

Top guard, bonnet for 90° and bonnet for angle cuts can be adjusted in height and swivelled out of the working area


Scoring unit with 2 controlled axes ( automatic)

  • Scoring saw blade height and lateral position to the saw blade can be conveniently positioned from the control panel.
  • The scoring unit data can be saved in the tool database specifically for the saw blade.
  • The next time the saw blade is called up, the scorer positions itself fully automatically.


CE labelled

Weight approx. 930 kg


Specifications

ManufacturerFELDER
ModelFORMAT4 Kappa 400 x-motion
Year2016
ConditionUsed
Serial Number605.09.011.16
