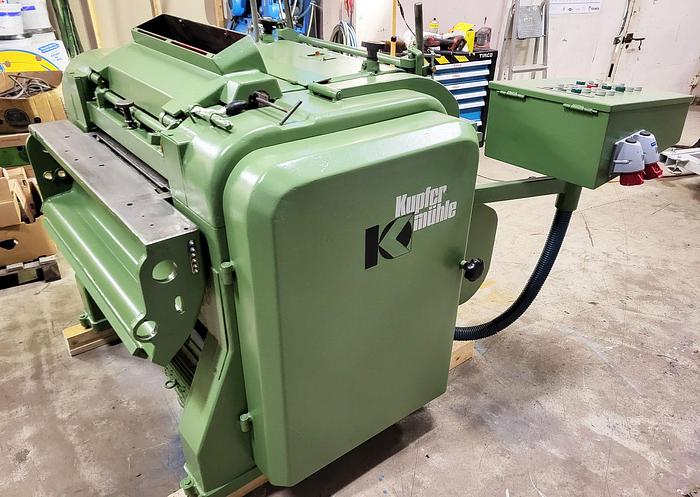

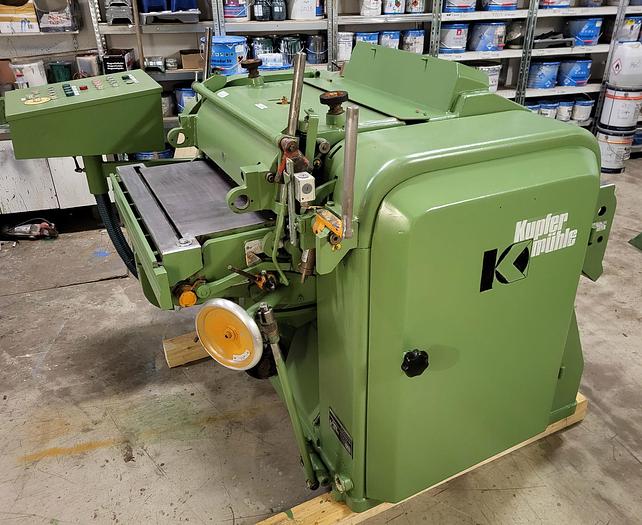

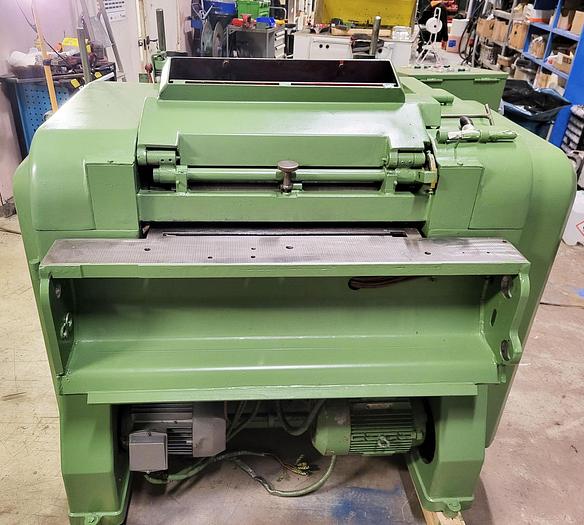

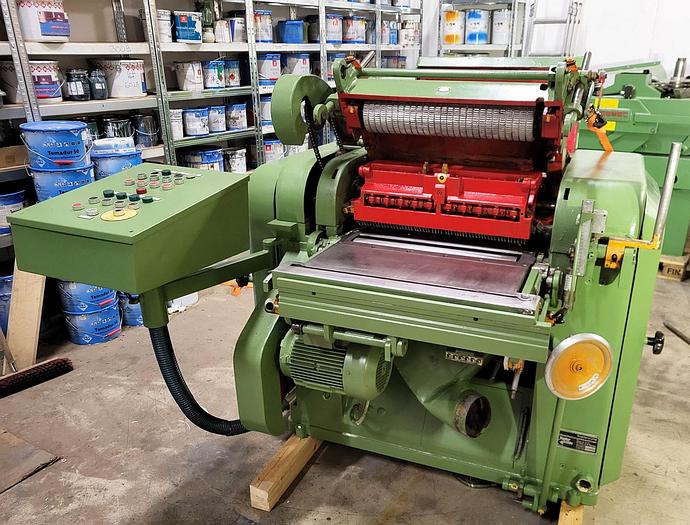

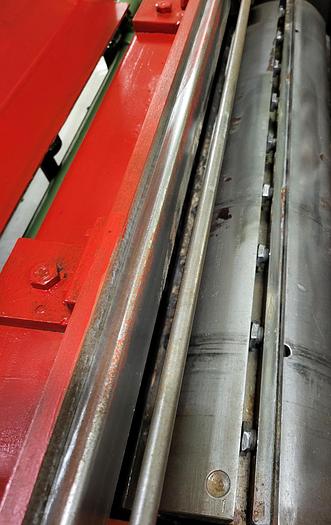

KUPFERMÜHLE DOIN - VUIN Double-sided planer 605

Double-sided planer KUPFERMÜHLEl DOIN- VUIN 605

year of construction 1975

S/N 3310

Manufacturer Kupfermühle woodworking machines

Working width / maximum width 600 mm

Working thickness: 200 mm

chip removal max 20mm ( upper shaft )

chip removal 12mm ( under shaft )

Shortest piece length 350mm

Technical equipment:

from above:

toothed draw shaft

Draw shaft, toothed 2 pcs

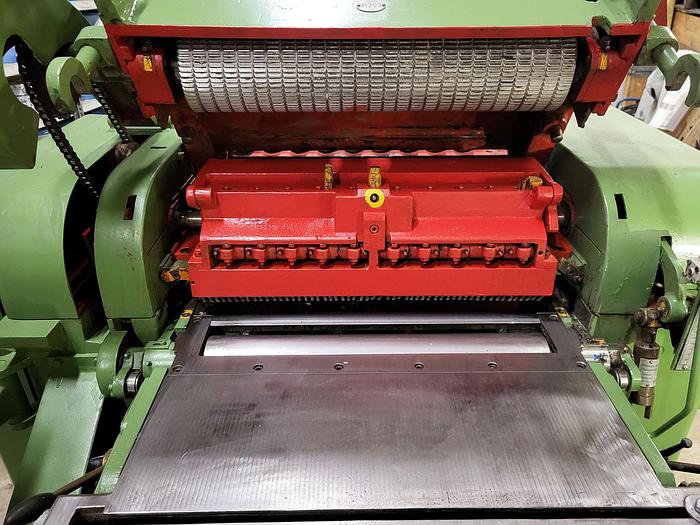

4-blade planer shaft, 605 mm, 15 kW

from below:

Table top, adjustable

Traction shaft, smooth-running, adjustable

4-blade planer shaft, 600 mm, 11 kW

2 adjustable table/pull roller in the lower table top

Electric height adjustment

Lift motor approx. 1.5 kW

Feed speeds: 7, 9, 15.5, 14, 18, 24 m/min

Feed motor 4.4 kW

Dimensions length/width/height 1.85m x 1.8m x 1.7m

Weight approx. 2800 kg

Technical specifications subject to change
