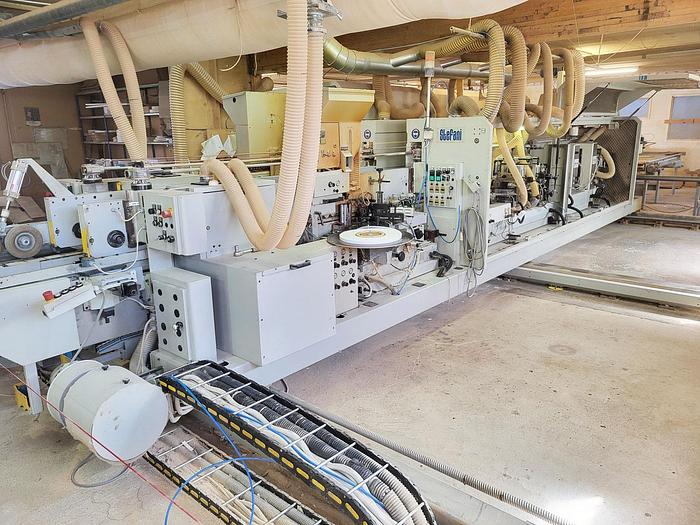

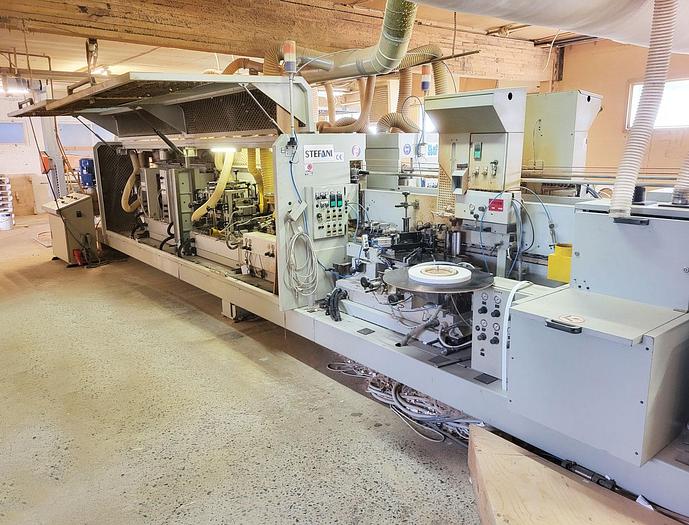

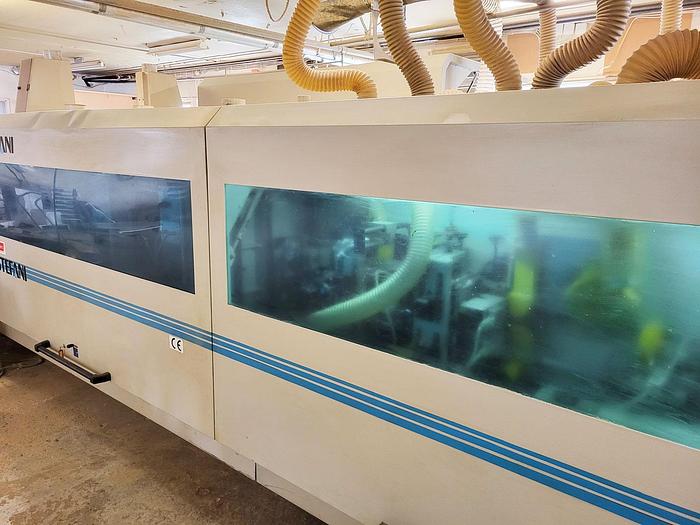

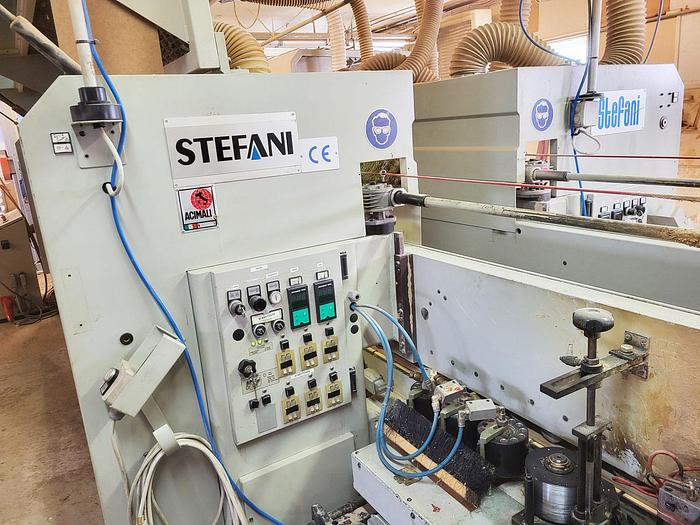

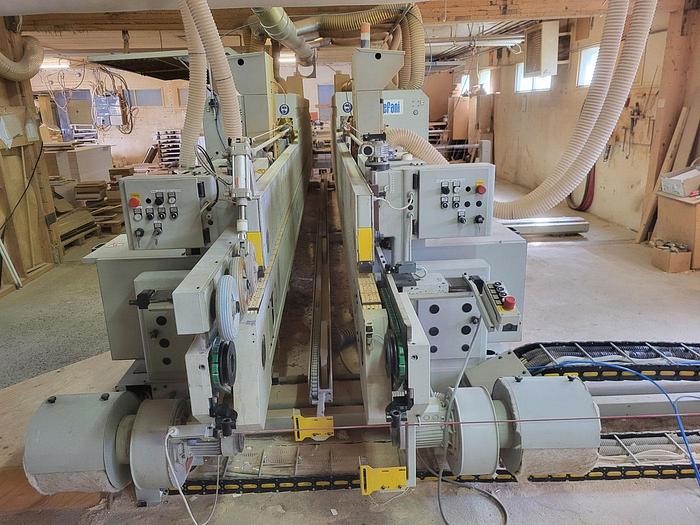

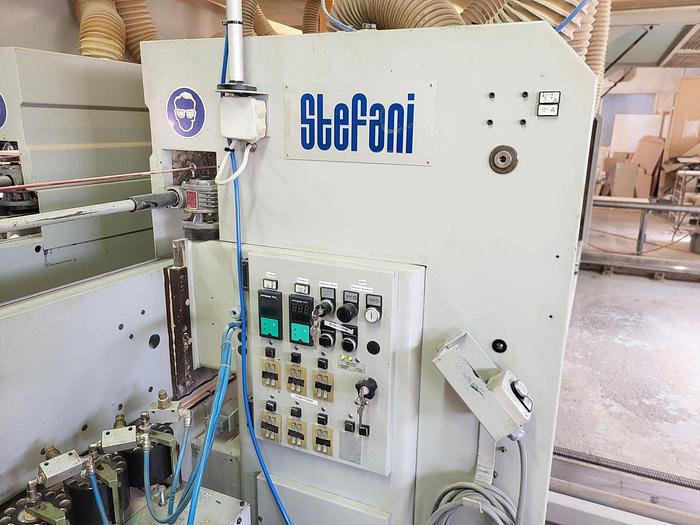

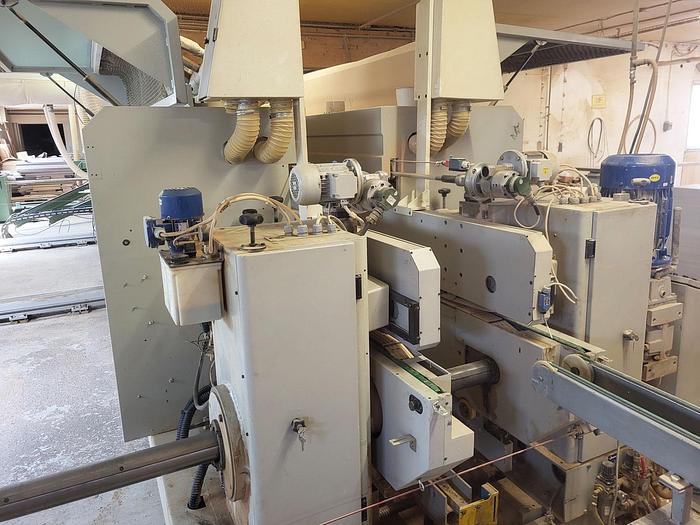

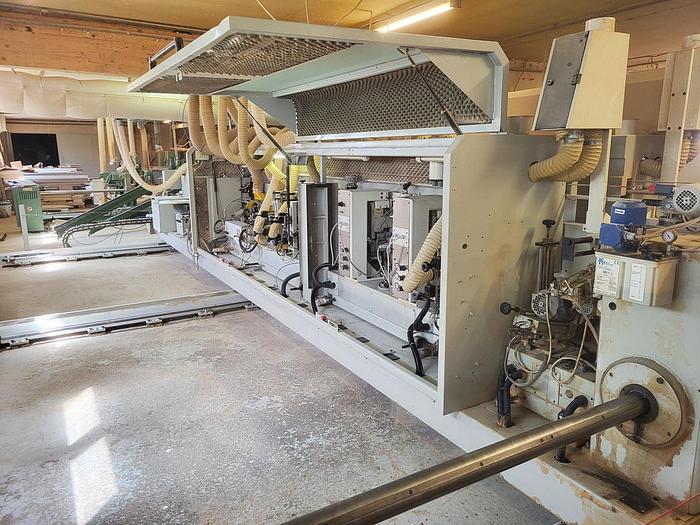

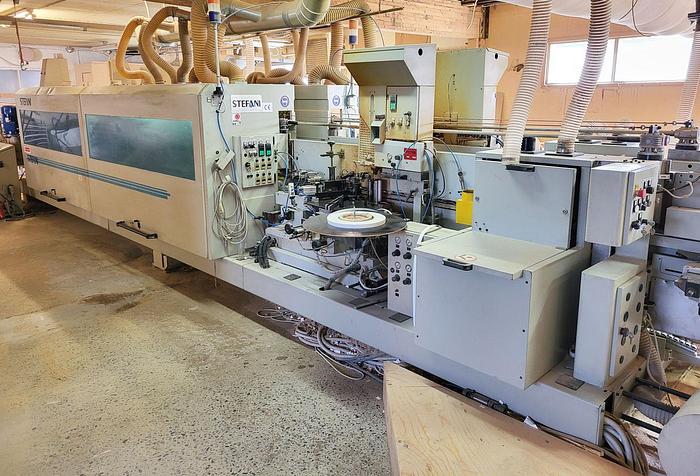

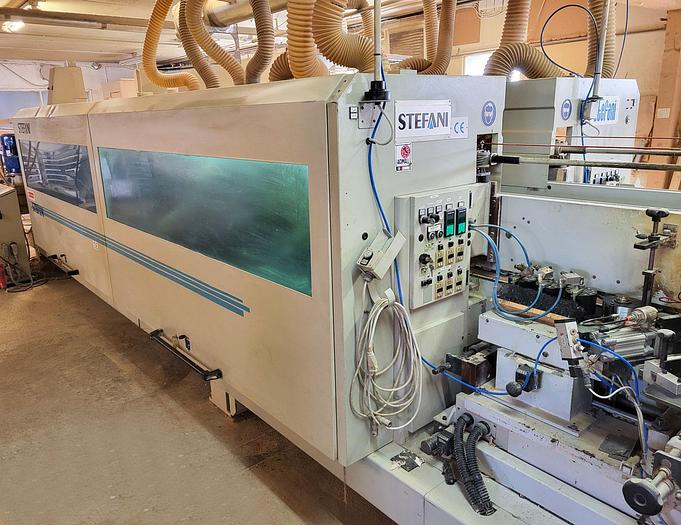

Stefani Ibimatic 9000 Double Edge Bander
Description
Stefani Ibimatic Double Edge Bander 9000
Year 1998
S/N NH 002993
Manufacture StefaniS.p.A. Italy
Maximum working width mm approx. 2150
max thickness 65mm
Adjustable feed speed from 6 to 36 m/min

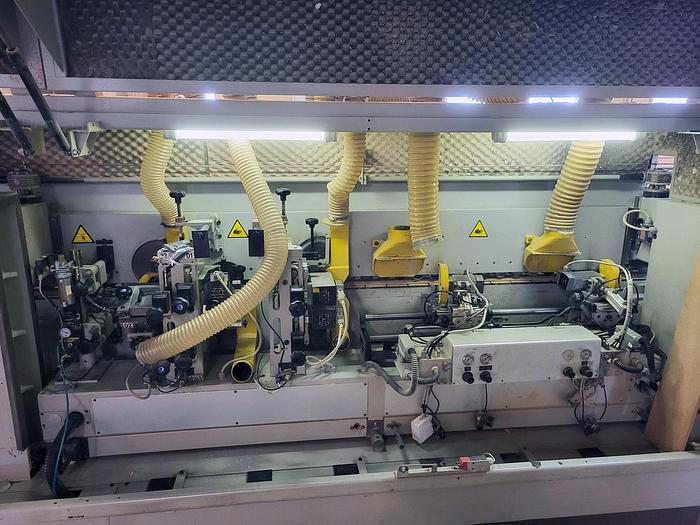

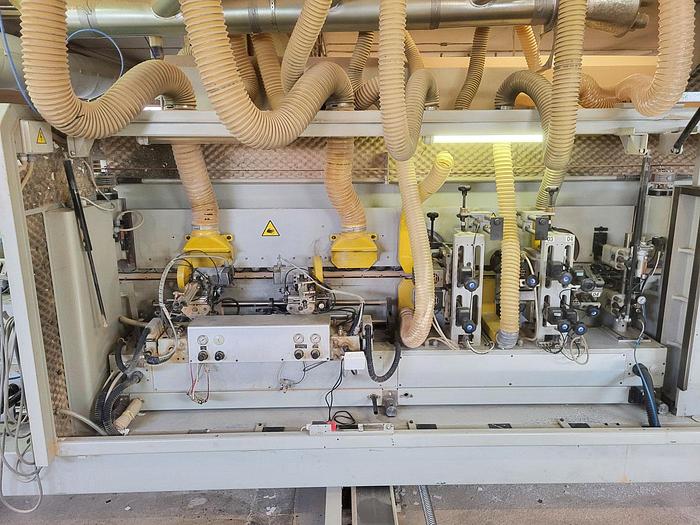

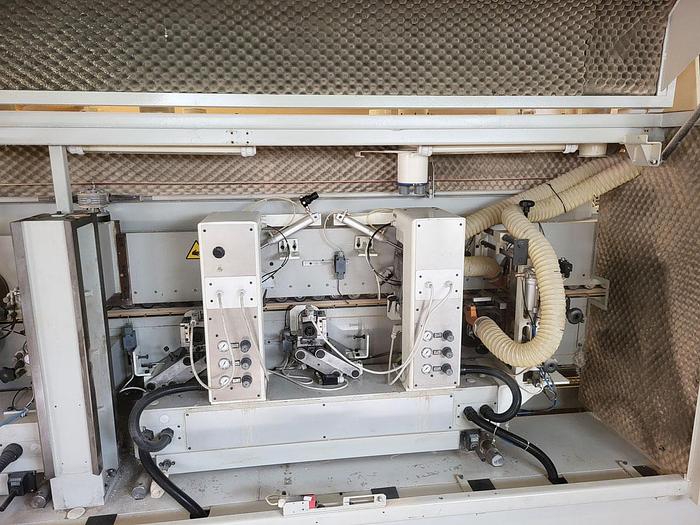

The machine is equipped with the following working units

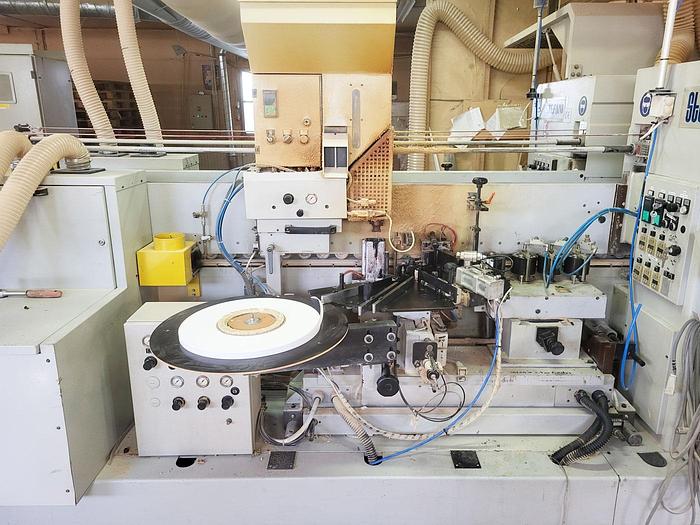

Gluing unit (Hot Melt) ‘HMSA’ with glue pot, Quick Melt System, guillotine and pressure rollers (turret)

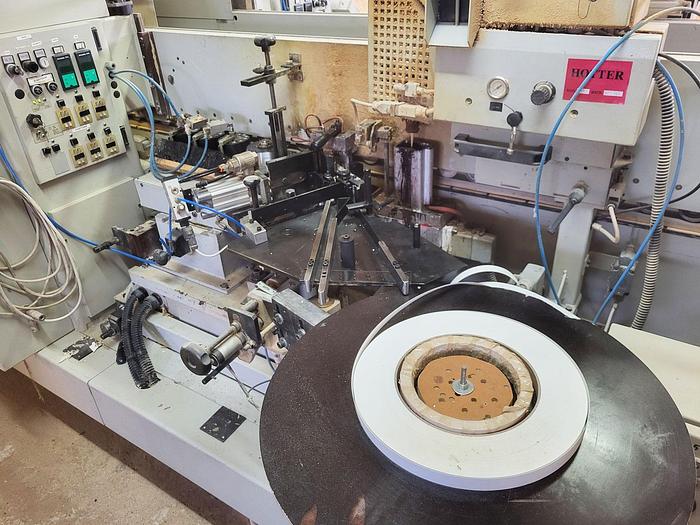

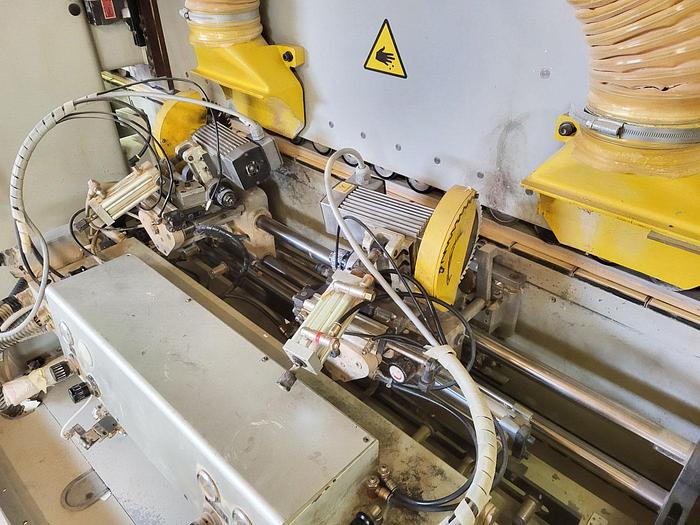

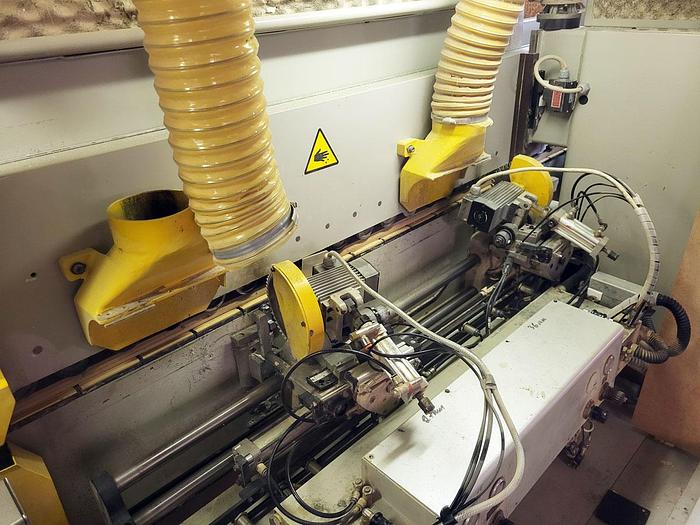

Edge coil support unit End trimmer (KW 0.55x2 at RPM 12000) rotatable by 20°Overlapping trimmer (KW 1x2 at RPM 12000)Fine trimming unit (KW 0.5 x 2 at RPM 12000), 30° swivelling

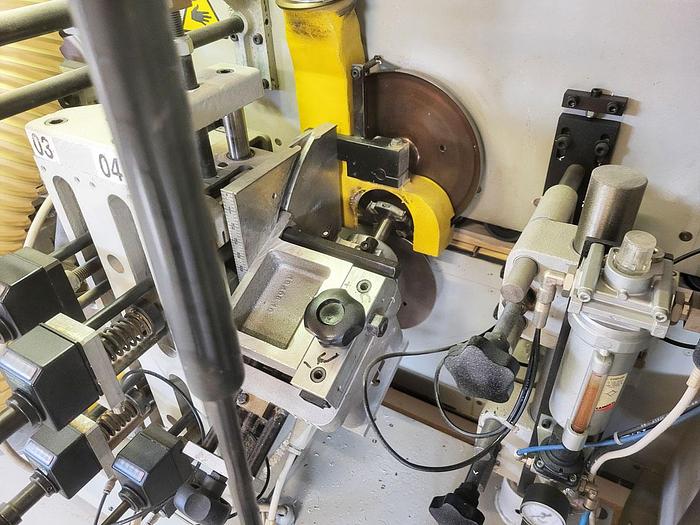

Pneumatic shears with rotating blade (for engraving on the rest of the protruding blade edge)Bottom end cutter KW 0.5x1 at RPM 12000Lower finisher KW 0.5x1 at RPM 12000Upper corner rounder with inclined motor at 45° (KW 0.5x1 at RPM 12000)Buffing unit, oscillating (KW 0.25 x 1 at RPM 1400)
Technical information under subject of correction
Specifications
| Manufacturer | Stefani |
| Year | 1998 |
| Condition | Used |
| Serial Number | NH 002993 |
