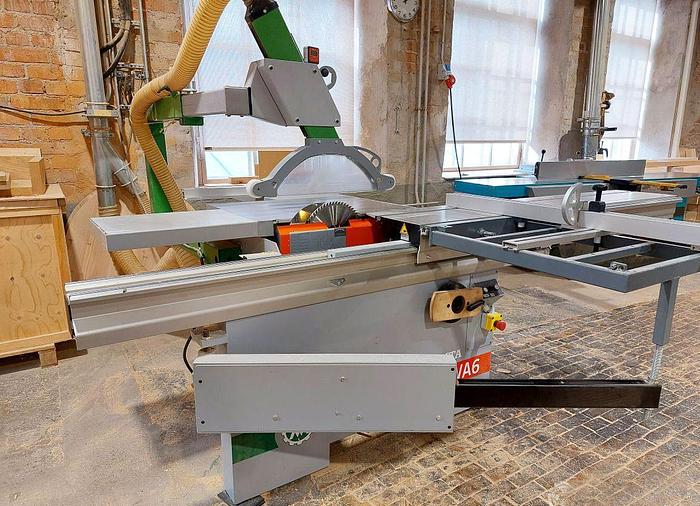

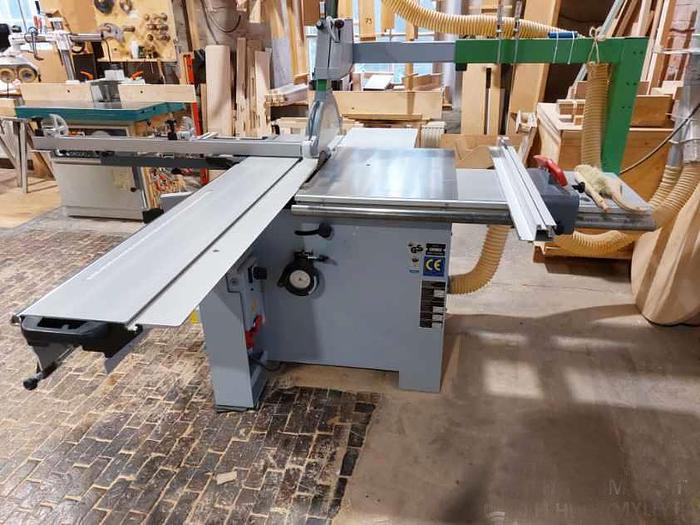

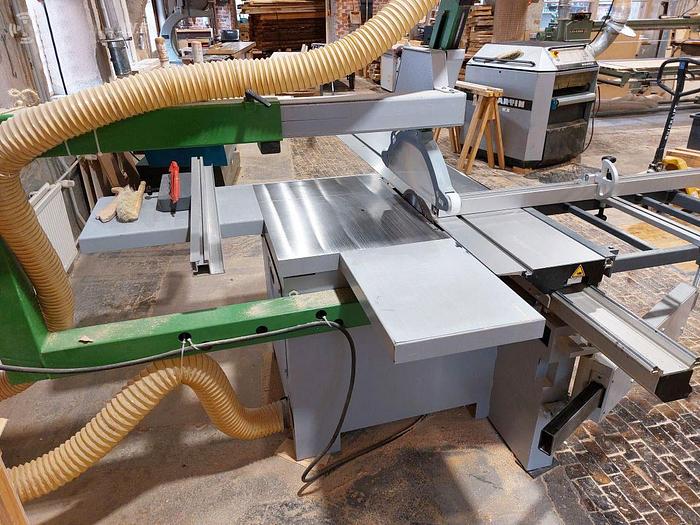

Altendorf Format Circular saw WA 6

Format Circular saw ALTENDORF WA 6

Year of manufacture 2006

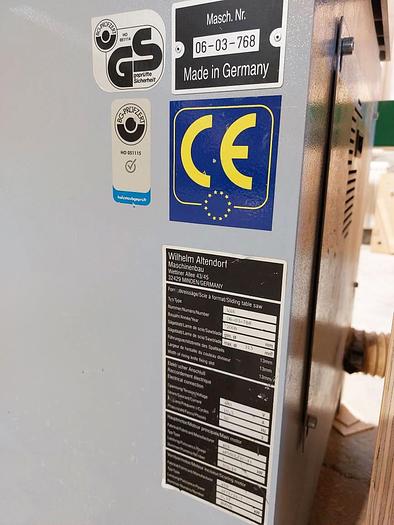

S/N 06-03-768

CE-marked

manual height adjustment,

double roller carriage,

scoring unit,

swivelling,

outrigger table,

angle mitre fence,

automatic brake,

can be lowered below table height

Technical data

Sliding carriage 2000mm

Swivelling range: 0 - 45 °,

Cutting width at rip fence: 1,260 mm,

max. cutting height: 100 mm,

max. saw blade Ø: 315 mm,

Swivelling range mitre fence: up to 49 °,

speeds: 4,200 rpm,

Motor power main motor: 5.5 HP / 4 kW,

Motor power scoring motor: 0.5 hp / 0.37 kW,

Work table height: 910 mm,

Extraction nozzle Ø: 1 x 100 / 50 mm each,

Weight: 450 kg

Max. Space required during operation; length 4.2 m width 2.9 m/4.1 m (with full cutting ratio)
