1999 Raimann Weinig Group knotholes machine with minispot

Malax, Finland

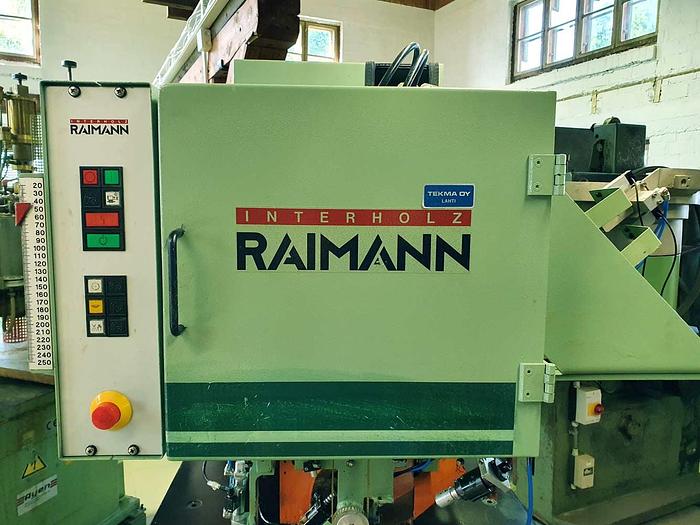

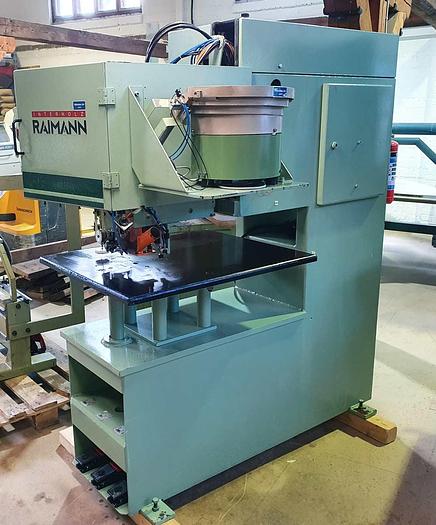

Raimann LA 10 knotholes machine with minispot

Year of manufacture 1999

Manufacturer Raimann / Weinig Group

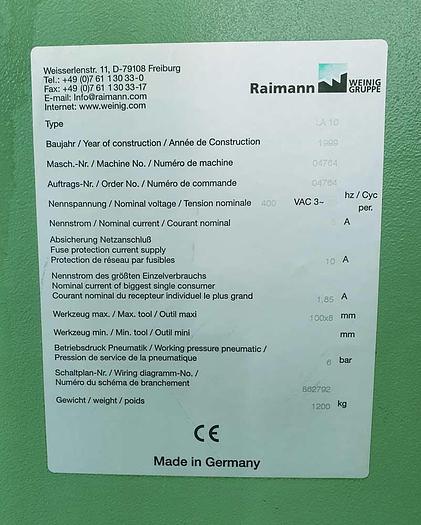

S/N 04764

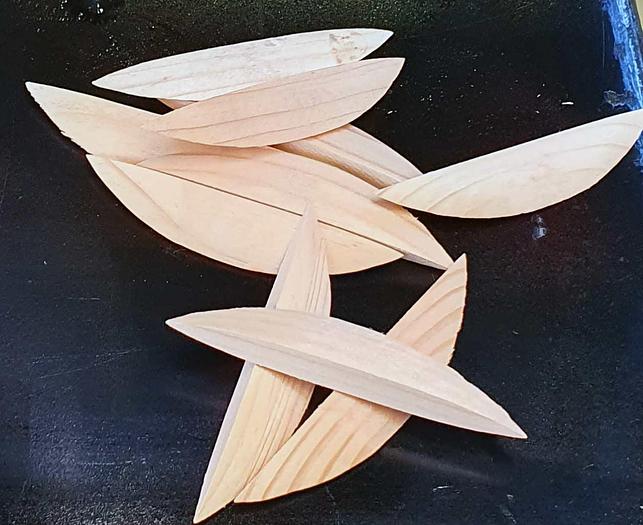

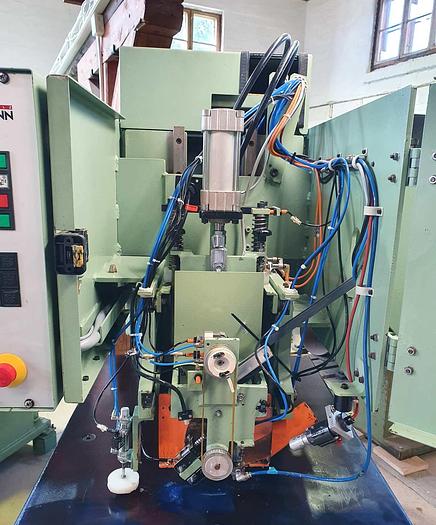

Automatic machine with 1 processing unit for the processing of prefabricated end-grain wood plugs

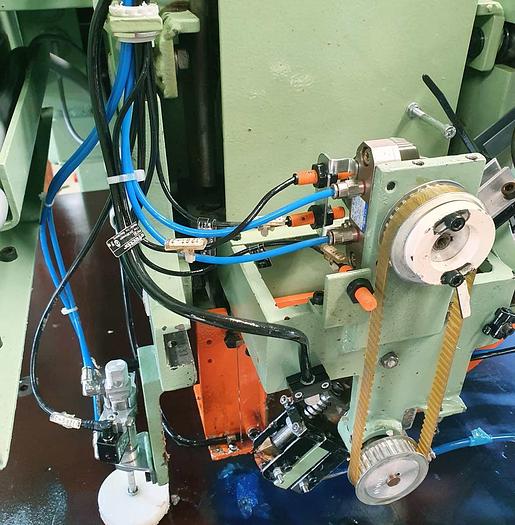

with additional fully automatic mini spot processing unit.

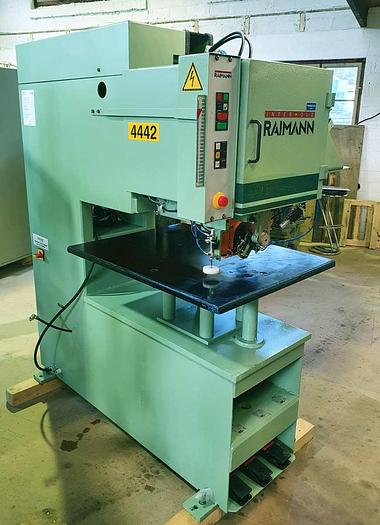

Basic machine in heavy, vibration-free stand construction, designed in modular system.


Swarf extraction system

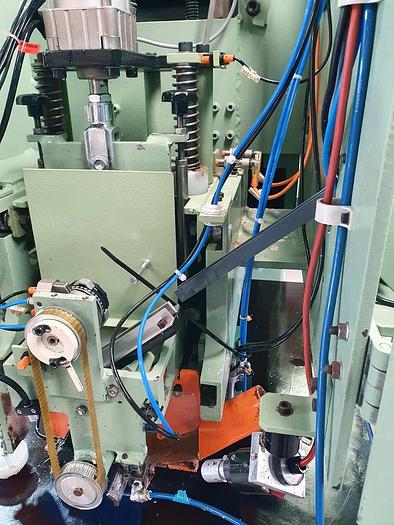

Unit for milling out resin pockets

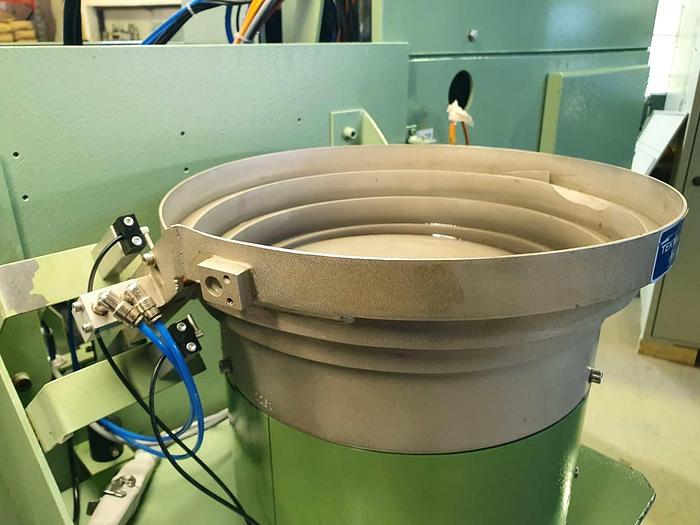

automatic jogger magazine for mini - spots with funnel

5 litre glue tank


he localisation of the defects in the wood is done manually.

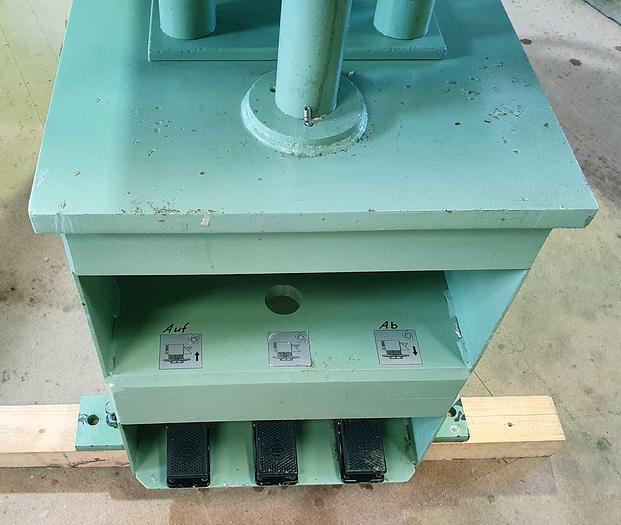

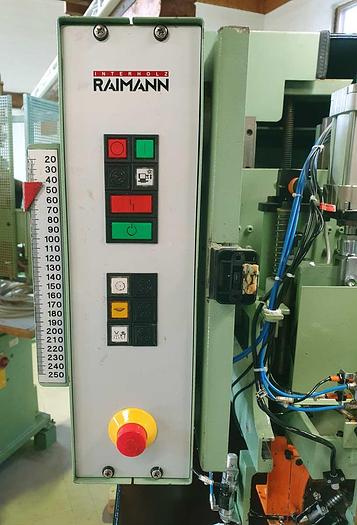

The machining process is started by pressing the foot switch

Technical machine data:

Workpiece data

max workpiece height 150mm

max. drilling / milling depth 20mm

min drilling / milling depth 2,5mm

max tool diameter bar magazine 35mm

Mini Spot size 2mm

Size of work table: approx. 950 x 750 mm

Working height adjustable from: 742 - 940 mm

Compressed air requirement: 6-8 bar

required suction capacity: approx. 175 cbm/h

Operating voltage: 400 Volt, 50 Hz

Weight: approx. 1100 kg

Machine dimensions LxWxH: 1500 x 2000 x 1700 mm

Main milling motor: 0,55 kW each

CE marked

Translated with www.DeepL.com/Translator (free version)


ManufacturerRaimann Weinig Group
Modelknotholes machine with minispot
