Contact us for price

1994 WEINIG WEINIG Unimat 23 Moulder / lamella machine, 8 spindles

Malax, Finland

orCall 358-44-3654070

Description

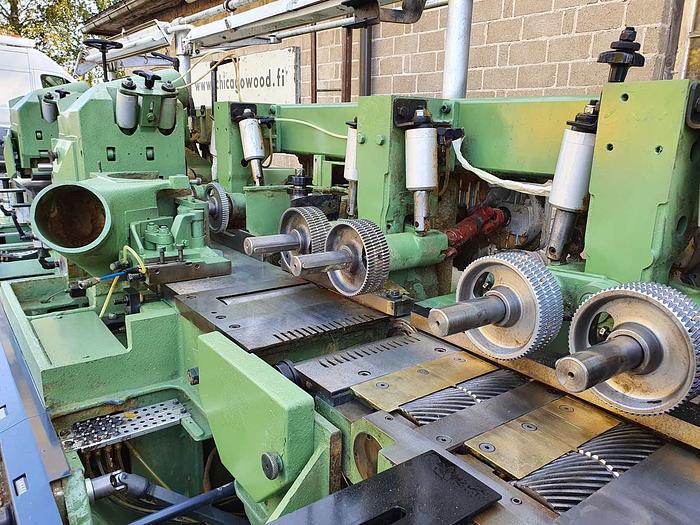

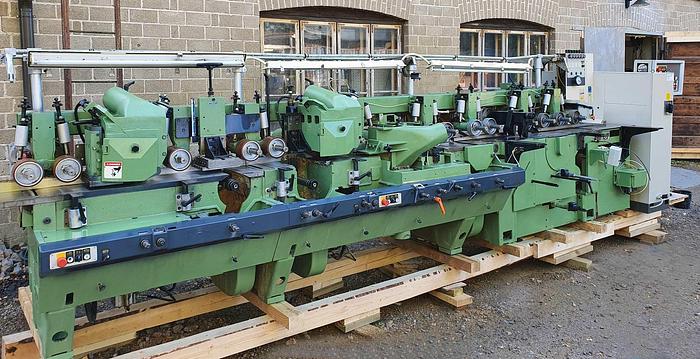

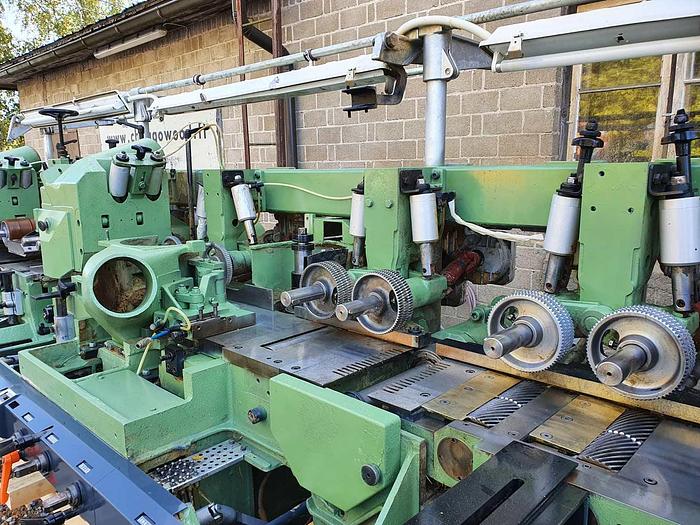

WEINIG Unimat 23, planer / moulder lamella machine with 8 spindles

year 1994

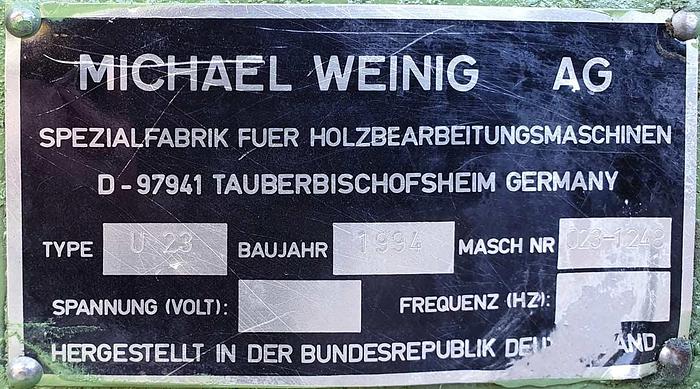

S/N 023-1248


2.0 WORKING WIDTH AND WORKING HEIGHT

  • Working width with blade diameter Ø 125 mm .... min .... 20 mm / max ... 230 mm
  • Working height with blade diameter Ø 125 mm .... min 9 mm / max ... 140 mm

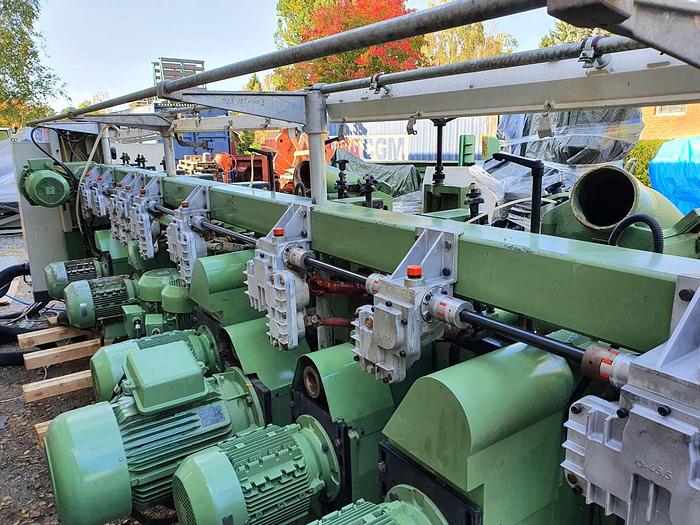

Spindle arrangement:

1. bottom / spindle motor / saw stand, horizontal 7,5 Kw

2. bottom / dressing / levelling / 7,5 Kw

3. right / joining spindle / 7,5 Kw

4. left / vertical spindle / 7,5 Kw

5. top / horizontal spindle / 11,0 Kw

6. bottom / horizontal spindle / 30,0 kW

7. bottom / horizontal spindle / 7,5 Kw

8. top / horizontal spindle / 7,5 Kw





2.0 INPUT TABLE

2.0.1 Short feed table

Length Standard 1200 mm

Adjustment range

Table 10 mm

Guide 10 mm



2.1 First Lower horizontal ( Bottom ) SPINDLE

Tool mounting length Standard 240 mm

cutter (optional) 247 mm

Spindle Ø 50 mm

Adjustment distance axial 17 mm

Tool diameter Standard (planer blade tip) min .... 125 mm

max .... 180 mm

Option 160 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power min .... 7.5 kW



2.2 second lower horizontal surfacing SPINDLE

Blade mounting length 170 mm

Adjustment distance axial 80 mm

Spindle Ø 50 mm

Tool diameter min ... .122 mm

max .... 232 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine in power min .... 7.5 kW



2.3 RIGHT spindle

Blade mounting length Adjustment distance

Karan Ø 170 mm

axial 80 mm

Spindle Ø 50 mm

Tool diameter min. . . . 112 mm max .... 232 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power 7.5 kW


2.4 LEFT spindle

Blade mounting length Adjustment distance

Karan Ø 170 mm

axial 80 mm

Spindle Ø 50 mm

Tool diameter min. . . . 112 mm

max .... 232 mm

Speeds

Standard 6000 rpm

Option 8000 rpm

Engine power 7.5 kW

2.5 TOP SPINDLE

Blade mounting length 240 mm

Adjustment distance axial 45 mm

Spindle Ø 50 mm

Tool diameter min. . . . 100 mm

max .... 225 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power 11.0 kW

2.6  Lower horizontal ( Bottom ) SPINDLE

Tool mounting length Standard 240 mm

Blade mounting length 240 mm

Adjustment distance axial 45 mm

direction of precipitation 17 mm

Spindle Ø 50 mm

Tool diameter min. . .. 100 mm

max .... 225 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power 30.0 kW



2.7  Lower horizontal ( Bottom ) SPINDLE

Tool mounting length Standard 240 mm

Blade mounting length 240 mm

Adjustment distance axial 45 mm

direction of precipitation 17 mm

Spindle Ø 50 mm

Tool diameter min. . .. 100 mm

max .... 225 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power 7.5 kW



2.8 TOP horizontal SPINDLE

Blade mounting length 240 mm

Adjustment distance axial 45 mm

Spindle Ø 50 mm

Tool diameter min. . . . 100 mm

max .... 225 mm

Speeds Standard 6000 rpm

Option 8000 rpm

Engine power 7.5 kW

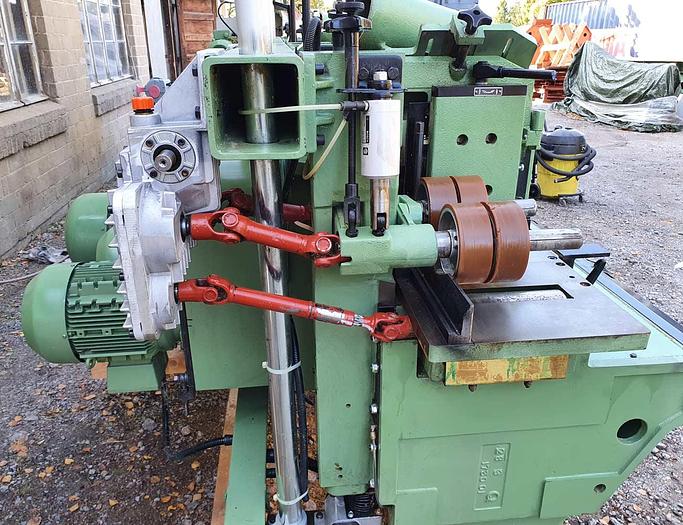

2.9 Feeding

Cardan output infinitely adjustable approx. ... 6-50 m / min ( or more )

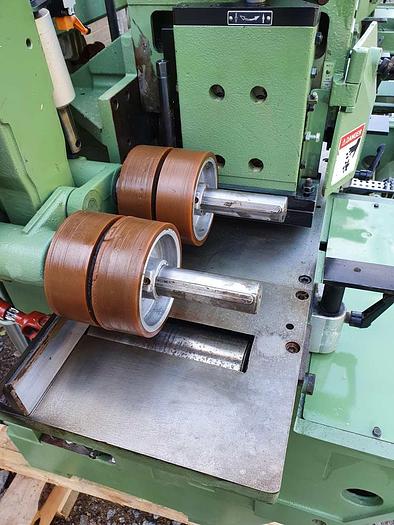

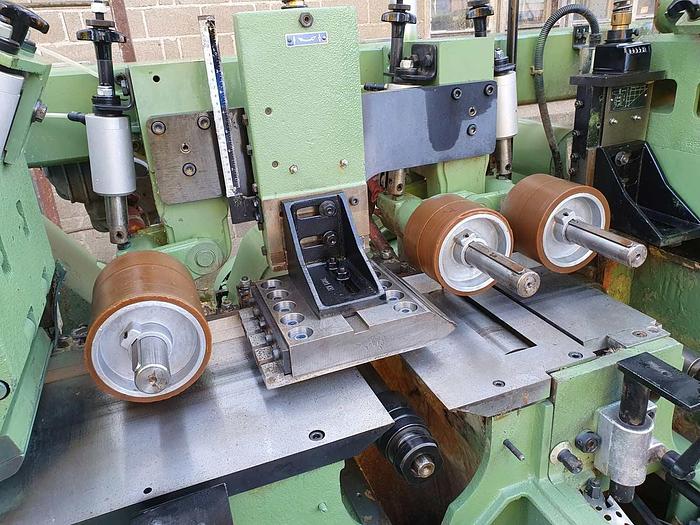

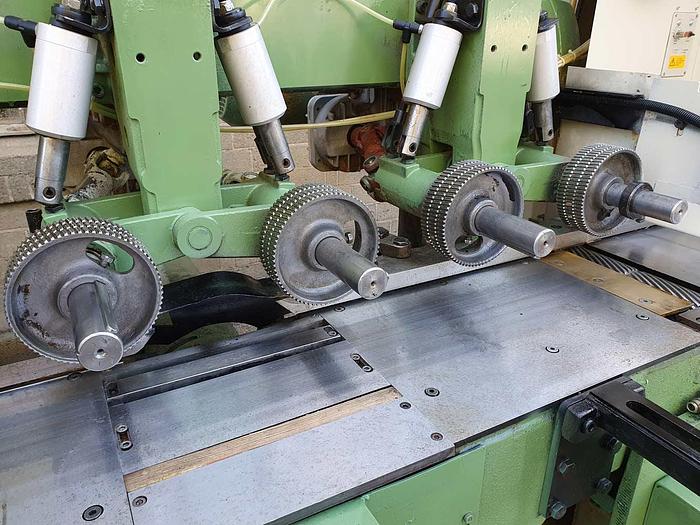

Feed rollers (steel) 140x35x50 mm

140x35x16 mm

140x35x20 mm

(rubber) 140x35x50 mm

Engine power min. 7.5 with brake

Feed of servomotor 0,75 kW



3 driven table rollers

( after the bottom spindle, before the 1st horizontal spindle , between the 1st and 2nd spindle )

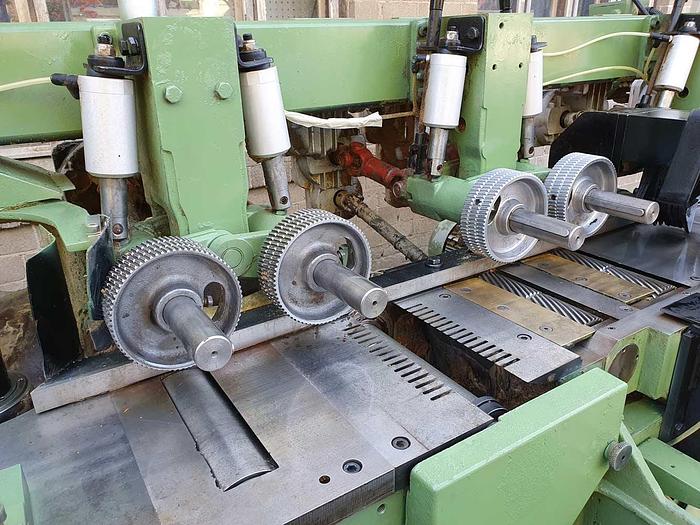

Pneumatic pressure rollers

Trimming stop

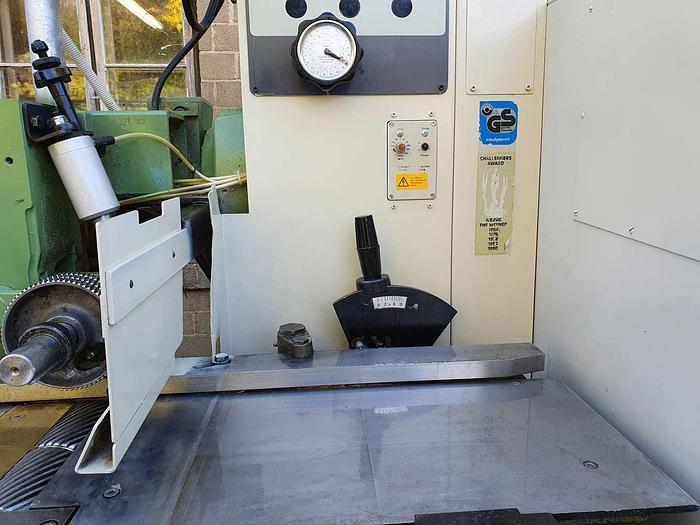

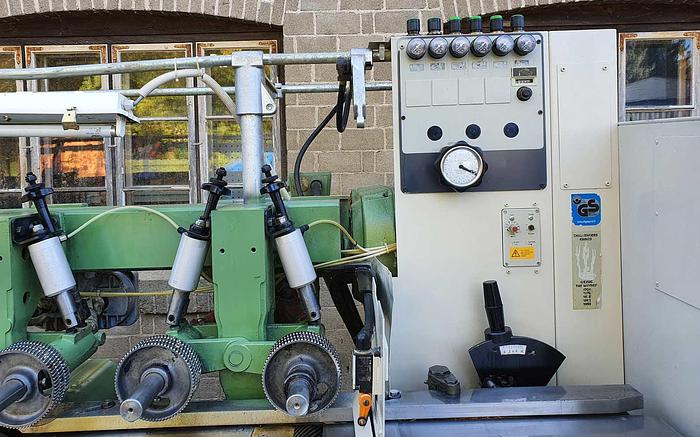

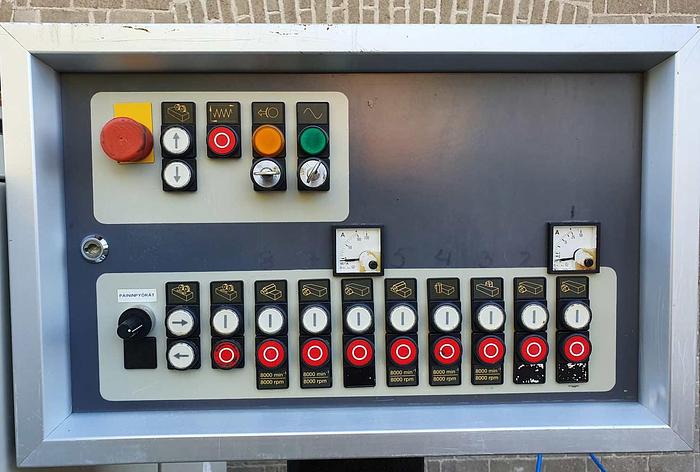

Control panel free standing

without soundproof cabin ( we have 1 extra sound cabinet on stock )



INSTALLATION INFORMATION

General

depends on the number of spindles (see floor plan)

Green RAL 6011

Gray RAL 7032

Slate gray RAL 7015

2.11.2 Electrical equipment

Machine dependent (see section 3.7)

2.11.3 Compressed air Operating pressure

Connection

6 bar

max allowed 8 bar

NW .... 8 mm

2.11.4 Airs consumption

Suction speed measured in spring, pipe fast ... 30-34 m / sec.

Suction amount

Connection Ø. . 100 mm 850-960 m3 / h

120 mm 1220-1390 m3 / h

140 mm 1665-1890 m3 / h

160 mm 2170-2460 m3 / h

180 mm 2750-3120 m3 / h

200 mm 3390-3850 m3 / h





2.12 NOISE LEVEL

Standard machine 6000 rpm.

Measured at the workplace

noise level (DIN 45635) at idle 76.8 dB (A)

Part 1656 loaded. 84.2 dB (A)

Machine barriers 6000 U / min (optional)

Measured at the workplace

noise level (DIN 45635) at idle. .. 72, 0 dB (A)

Part 1656 loaded. .. .80.0 dB (A)

The machine is equipped with 8000 rpm (optional)

Measured at the workplace

noise level (DIN 45635) at idle. . .73.0 dB (A)

Part 1656 loaded. .. .83.0 dB (A)

The measurements have been carried out in accordance with DIN 45635 Part 1656 machining and measuring conditions.



Specifications

ManufacturerWEINIG
ModelWEINIG Unimat 23 Moulder / lamella machine, 8 spindles
Year1994
ConditionUsed
Serial Number023-1248
