2015 Elumatec ELUMATEC MGS 245 Mitre saw + E121 ( lenght + angel )

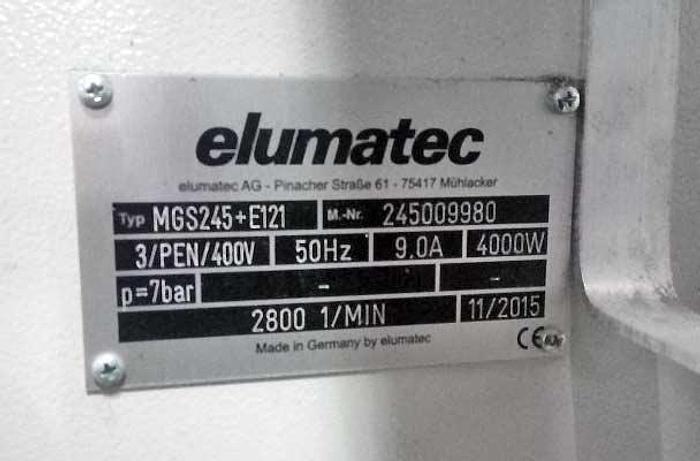

Elumatec MGS 245 + E121,

year of construction 11/2015

S/N 245009980

The proven elumatec principle "sawing from below":

Free table surface enables optimum loading and removal of the profiles

The patented saw arm suspension generates a cutting pressure against the workpiece system, thus safe clamping of the workpiece

Automatically opening protective bonnet

Dosing spray device

with saw blade

Manual swivel range up to 22.5° to the left and right with digital angle display

Inclination range 90°-45° pneumatic

(intermediate angle with turret stop and digital display)

Manual swivel range, 22.5° to the left and right with digital display E 111

Pneumatic tilt range from 90° to 45° with digital display

Cutting area see cutting diagram

Saw blade diameter 550 mm

Saw blade speed 2,800 1/min.

Electrical connection 230/400 V, 3~, 50 Hz

Power output 4 kW

Compressed air supply 7 bar

Air consumption per working cycle 20 l without spraying, 32 l with spraying

length 1,900 mm, depth 1,550 mm, height 2,100 mm, weight 1,150 kg

roller conveyors 6000mm with length adjustment 6.000 mm

E 121 Manual cutting lengths and cutting angle adjustment with digital display

Exact dimensional adjustment through digital display

Changeover from absolute dimension to incremental dimension

Actual value storage of the display at mains switch-off

Quick reading thanks to digital display. Resolution 0.1 mm

Changeover mm/inch

Input of any reference value via the front keypad
