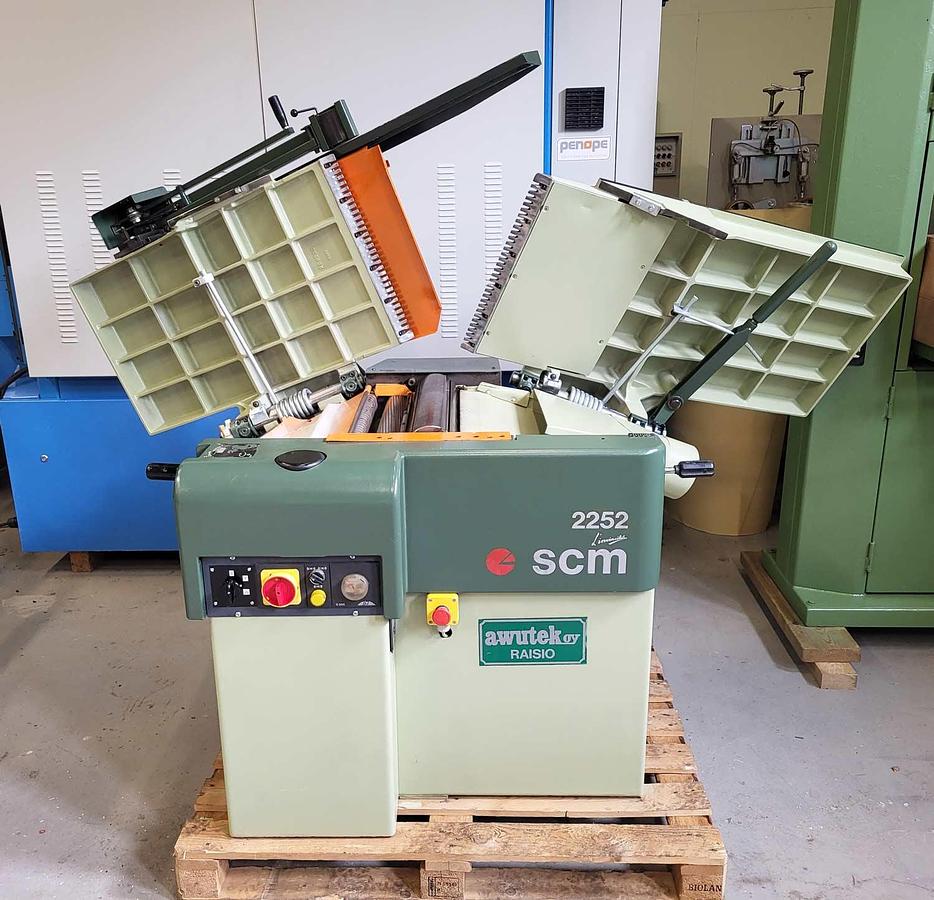

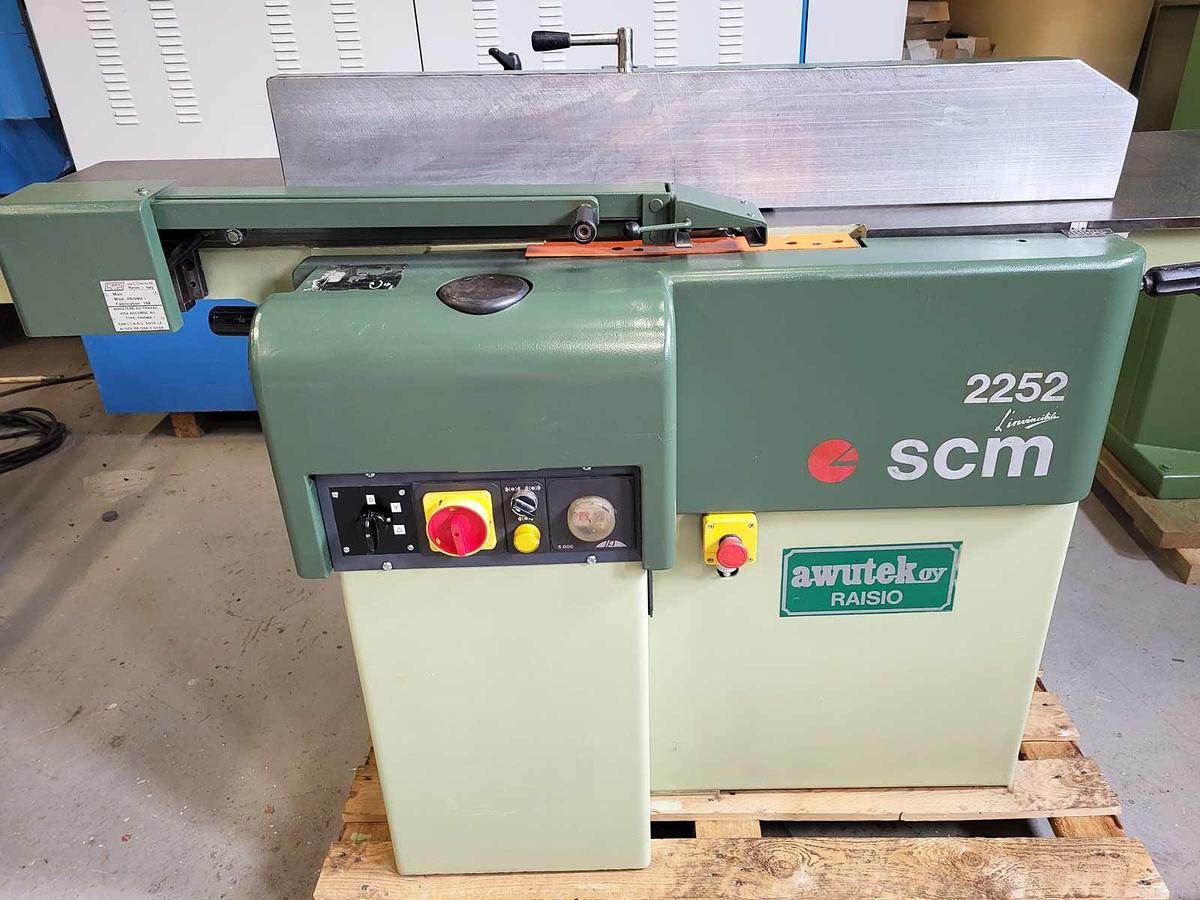

SCM Combi planer 2252

SCM Combi planer 2252

Year 1995

Manufacturer: SCM (Italy)

good condition, from a training company

Planing & thicknessing width 500-520 mm

Planing table length ~2000-2200 mm

Shaft Ø 120 mm, 4 knives (HSS/TERSA)

Motor power 5.5 kW (400 V)

Thicknessing stroke 3 - ~235 mm

Feed speed 5 - 17 m/min

Manual table adjustment (planing), electric with display (thicknessing)

Suction connection Ø 120 mm

The SCM 2252 is a robust combination machine that is ideal for manual applications.

Cast iron tables, HSS shaft, infinitely variable feed, motorised thickness adjustment with display and mortiser attachment make it a versatile tool. Easy table adjustment for changing the thickness planer (spring support)

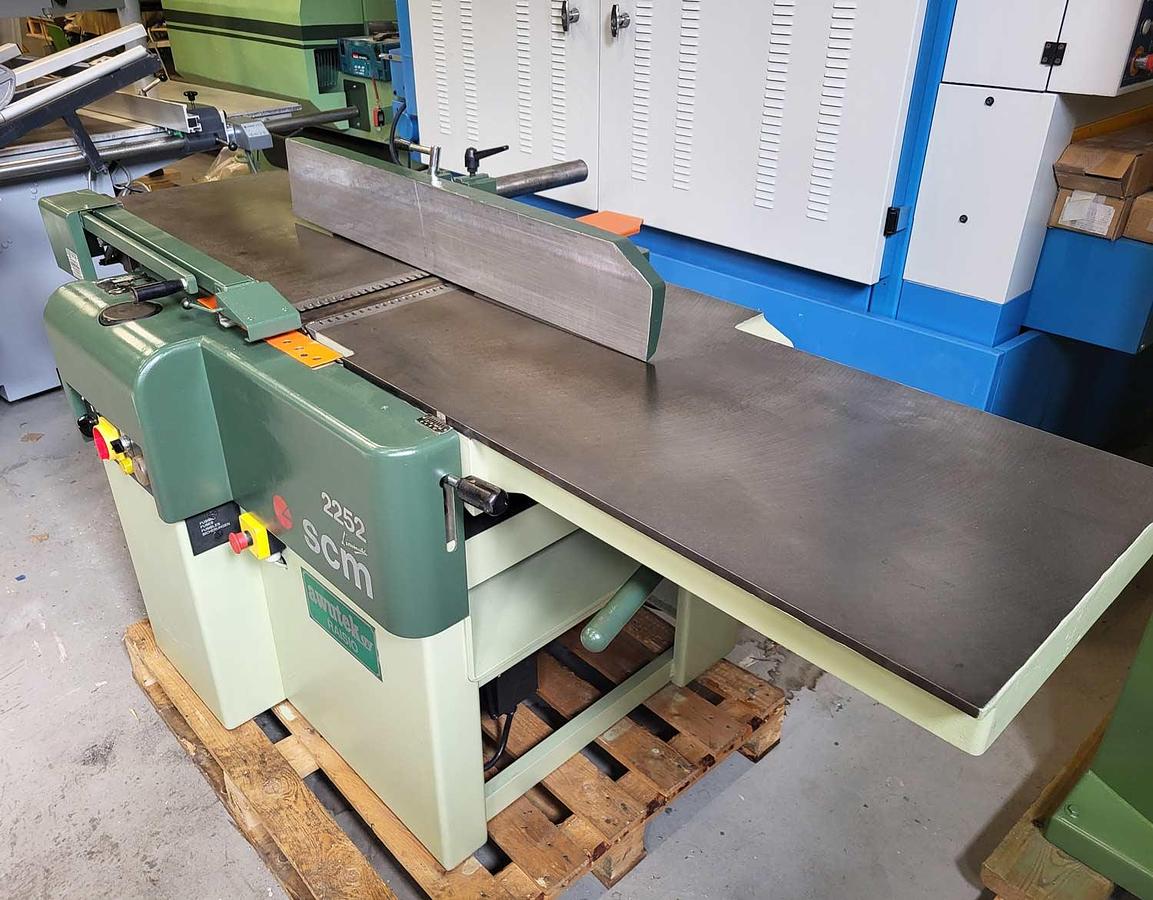

Jointer/ surfacer

Working width: approx. 500-520 mm

Table length: approx. 2000-2200 mm

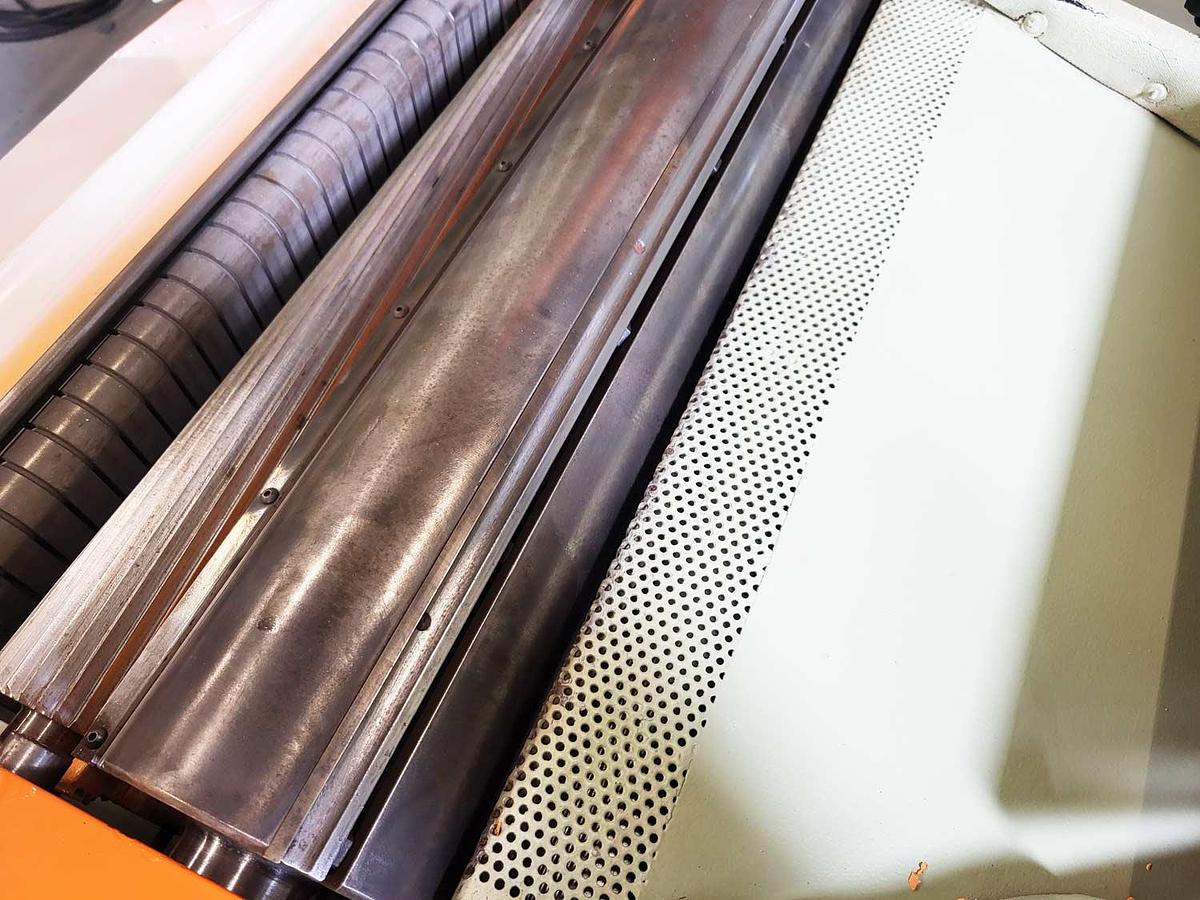

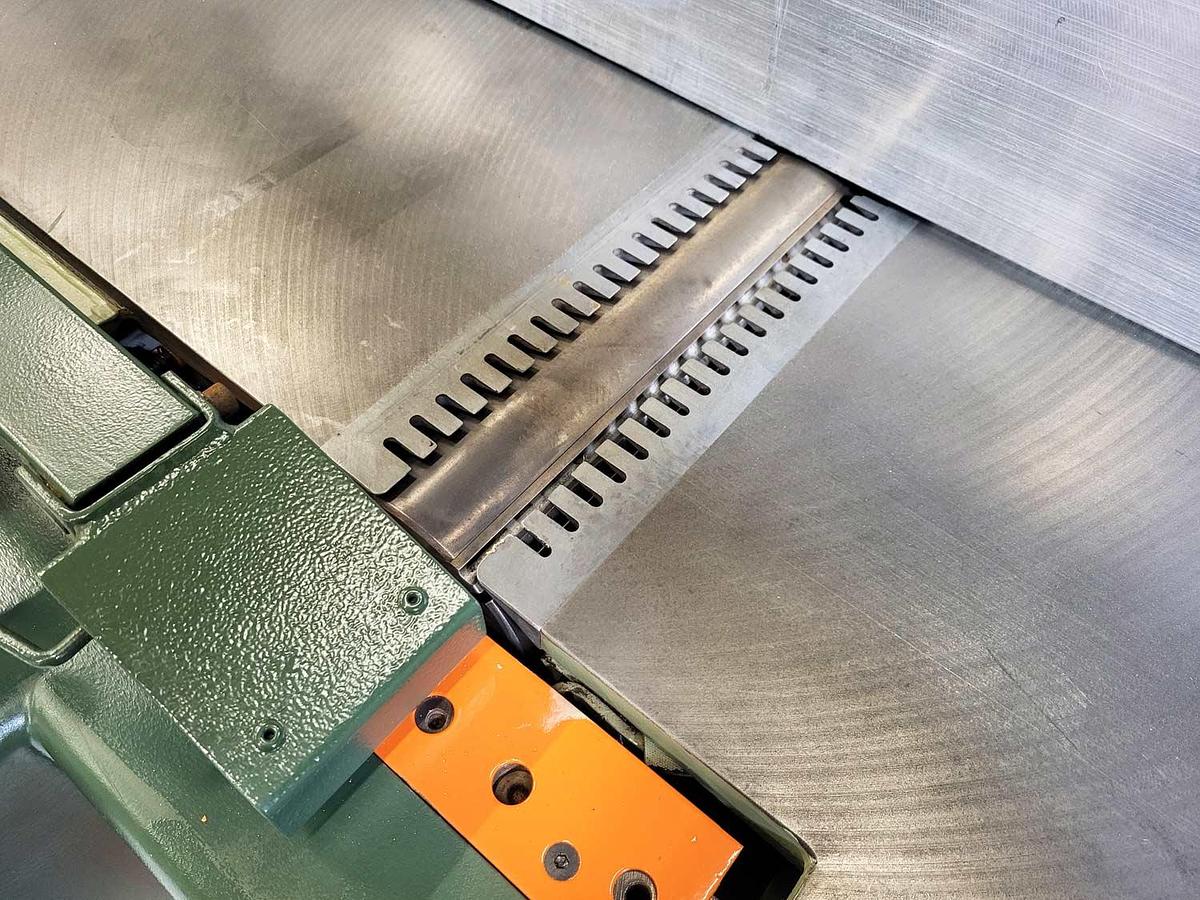

Shaft: d = approx. 120 mm with 4 HSS knives

Power: 5.5 kW (~7.5 hp) motor, 400 V

Start: conventional "YA" start with motorised brake

Alignment & guide: inclinable rip fence (0° to 45°), mostly aluminium, length approx. 1100 × 170 mm

Protection: Suction bonnet (Ø approx. 120 mm) and CPS operator protection

Tables: Cast iron tables, manually adjustable in height

Thicknessing planer

Working width: same range - 500-520 mm

Stroke range: min. 3 mm to max. approx. 235-252 mm

Table dimensions: approx. 500 × 930 mm to 550 × 320 mm realised

Table adjustment: electric, with display (e.g. SIKO, digital height display)

Feed speeds: infinitely variable between ~ 5 and 17 m/min or in steps such as 7.5 / 15 m/min

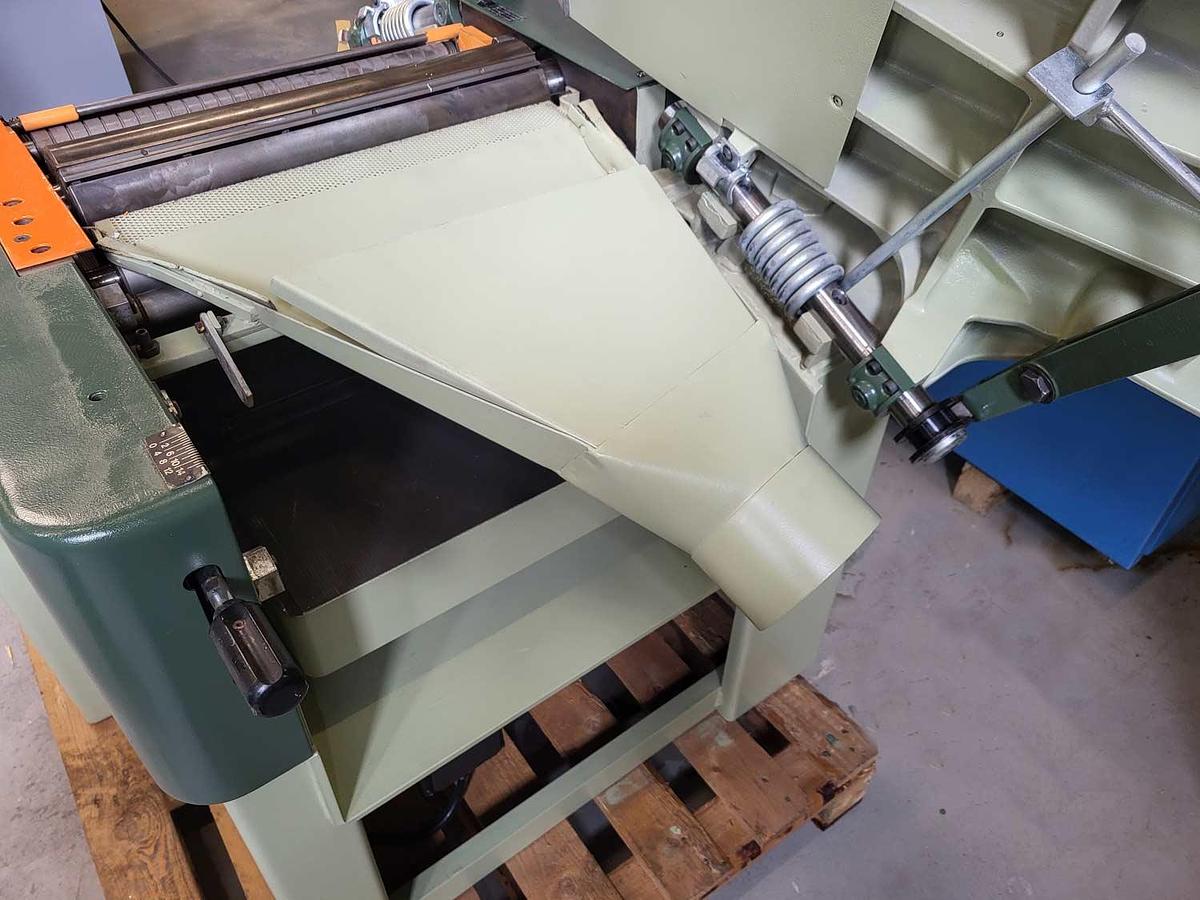

Extraction: usually also Ø 120 mm, often combined extraction option

Machine features & dimensions

Dimensions (L×W×H): approx. 2200 × 1000-1500 × 800-1000 mm

Working height: approx. 800 mm

Weight: 1050 kg
