Zafferani S.R. L. Italy Zafferani Straight line edging machine Junior 2M/ 12

Malax, Finland

Sold

Description

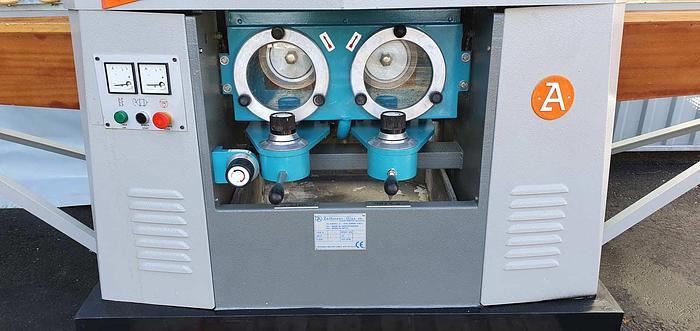

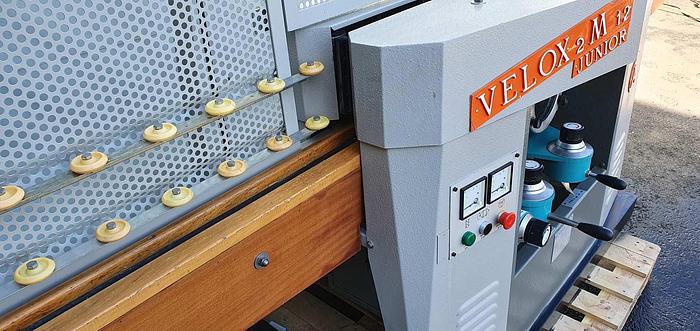

Zafferani Straight line edging machine

with peripheral wheels ( 2 wheels )

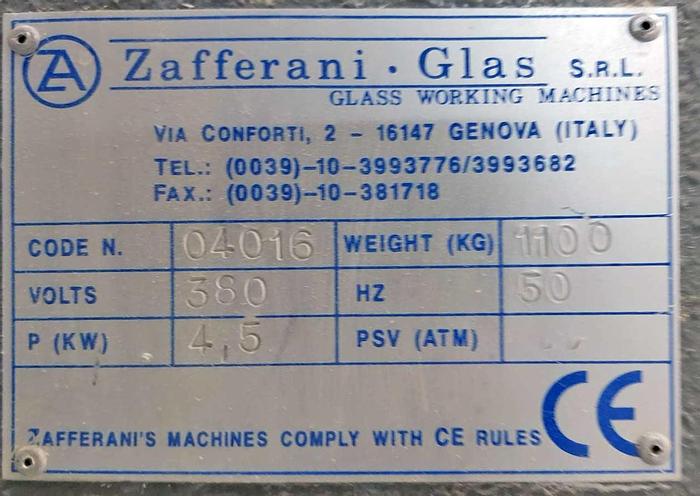

manufacture Zafferani Glas S.r.L. Italy

Type Junior 2M/ 12


Zafferani’s line of peripheral wheel straight line edgers provides a superb answer

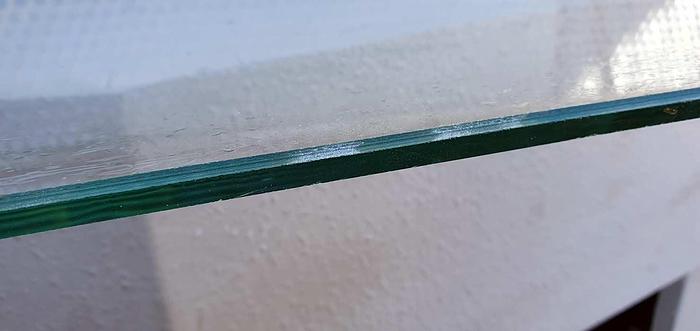

to the demands of straight-line edging::- for pencil edge work- for flat edge work- for OG work- for decorative profile work (waterfall, etc.)in accordance with the type of profile wheels used.

Our line of edgers reflects the Zafferanitrademark of simplified construction and ease of use,

which confers a high level of reliability and optimizes the price/performance equation.

At the same time, the user enjoys the benefits of high working speeds and the resulting high levels of production.

The Zafferani range of edgers, subdivided into four groups (from 2 to 6 wheels), covers the complete range of production requirements.

Zafferani machines are constructed in strict compliance with the European CE safety standards.


DESIGN FEATURES

- Glass direction: from left to right

- Glass thickness: from 3 to 22 mm (1/8”-7/8”)in accordance with the model

- Working speed: 0.5 to 4 m/min(20-160”/min in accordance with the model, with inverter controlled speed adjustment

on the Master models.


CONSTRUCTION FEATURES

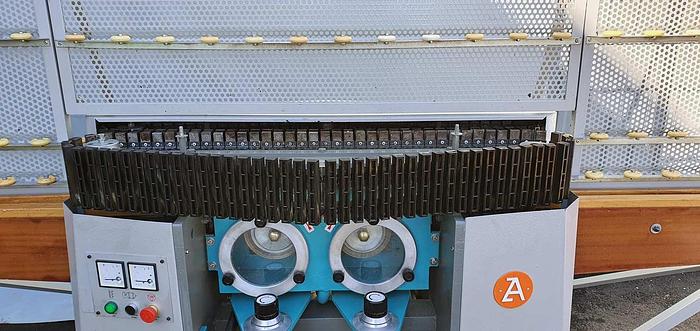

- Central Conveyor Transport: self-oiling steel chains along tempered precision ground guide rails

- Conveyor pads: steel pads with oil

-resistant vulcanized rubber surfacing with water

-tight shielded bearings

- Front side adjustments for all-wheel groups

• alignment of wheels to glass

• stock removal adjustment

• side inclination of the wheels to accommodate differing thicknesses

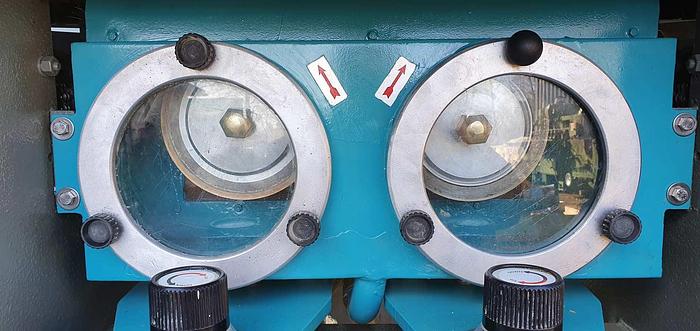

- stainless steel water tanks with full access from the rear for quick wheel changing

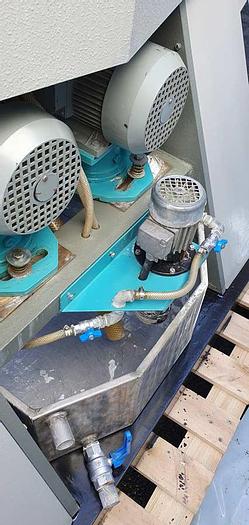

- Water tank: stainless steel external water tank for water recycling with immersion pump, filter, overflow and discharge valve


Configuration of Wheels

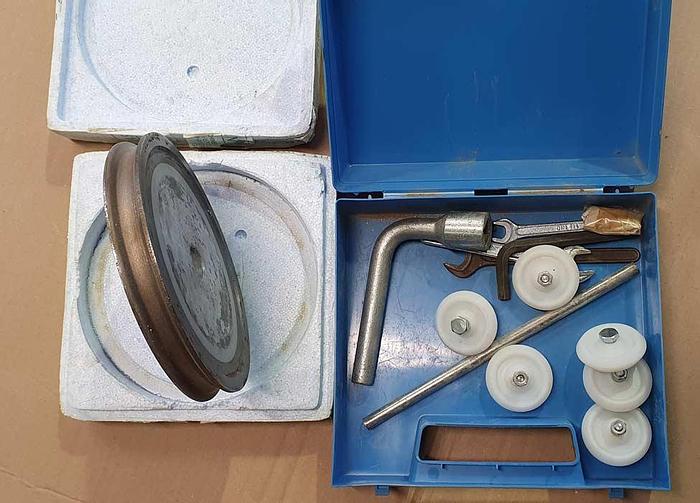

Diamond wheel 175mm diameter

2 different polishing wheel 200mm diameter




Glass thickness 3-12mm ( 1/8-1/2")

Minimum glass szie 8cm

Working speed 0,5-4m/min


Weight 1050 Kg

installed Power 4,5 kW

Power supply 400V

Number of wheels 2


dimensions:


L x W x H = 4090mm x 990mm x 2375mm


Technical information under subject for corrections

Specifications

ManufacturerZafferani S.R. L. Italy
ModelZafferani Straight line edging machine Junior 2M/ 12
ConditionUsed
