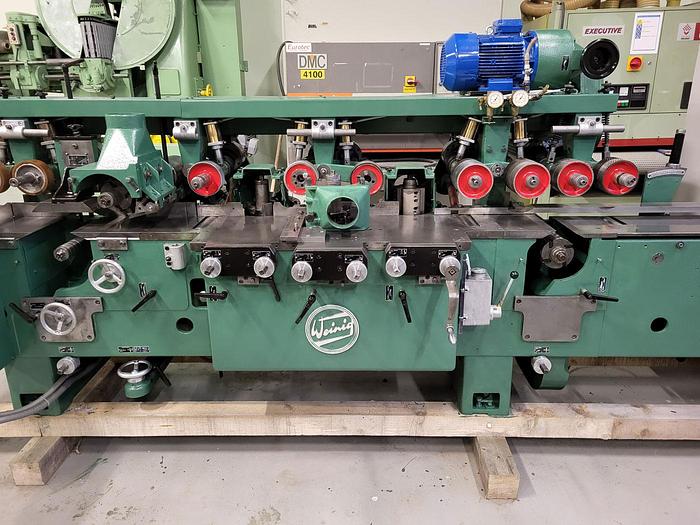

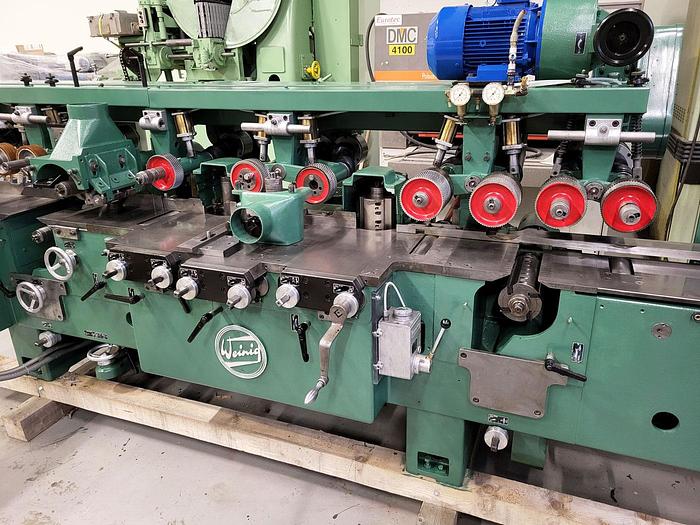

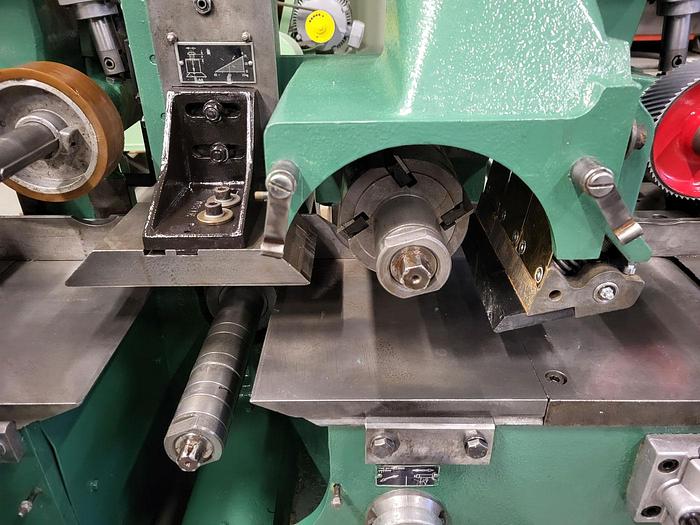

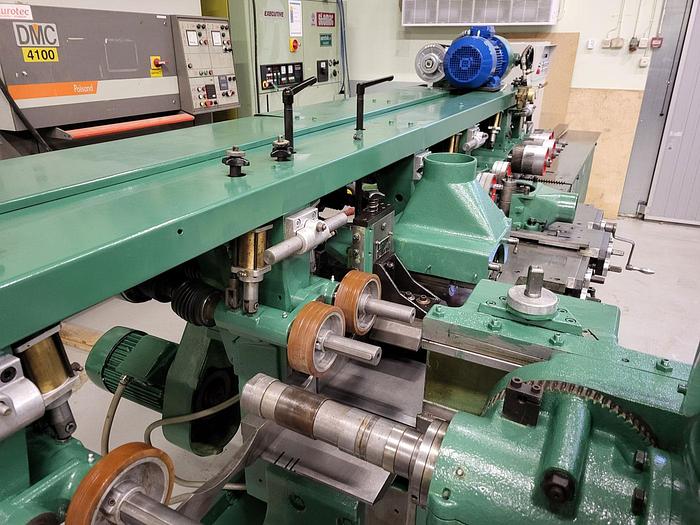

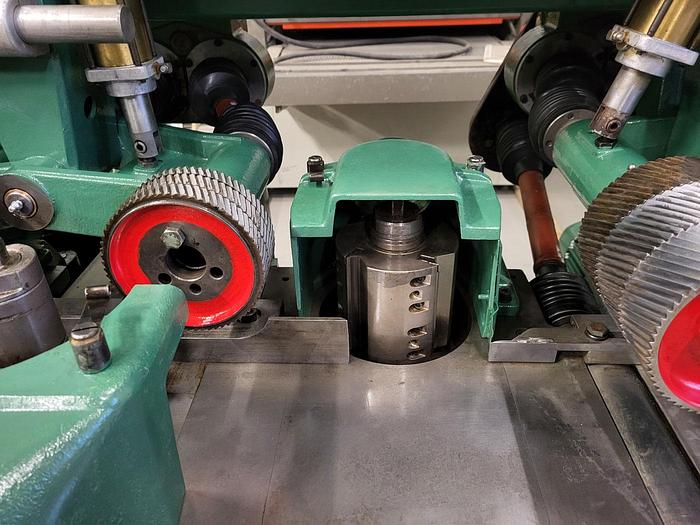

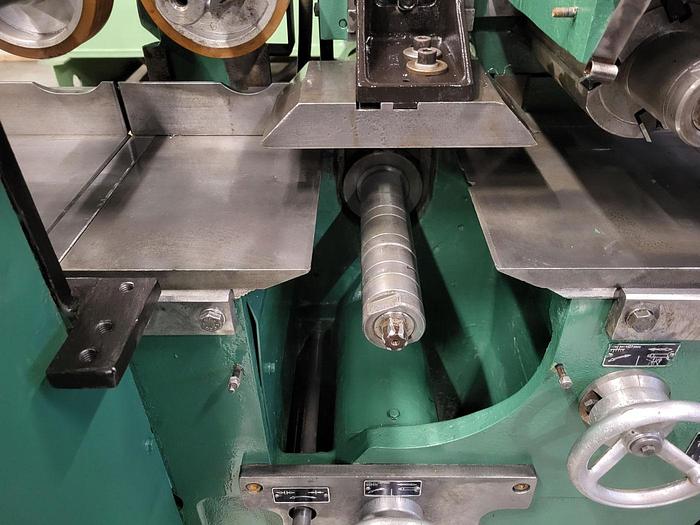

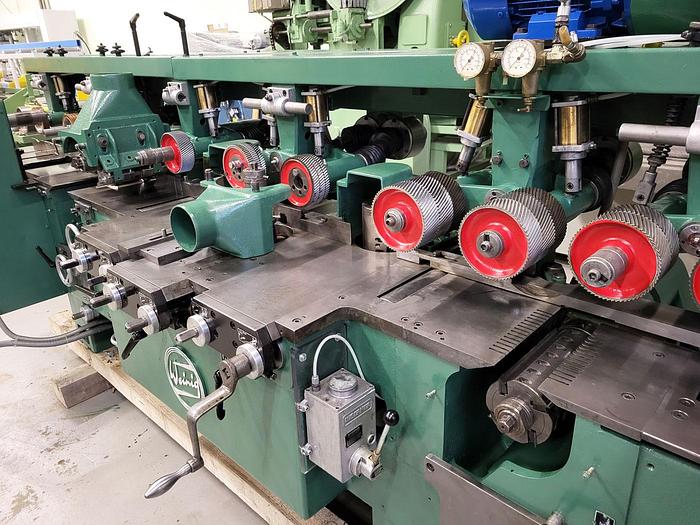

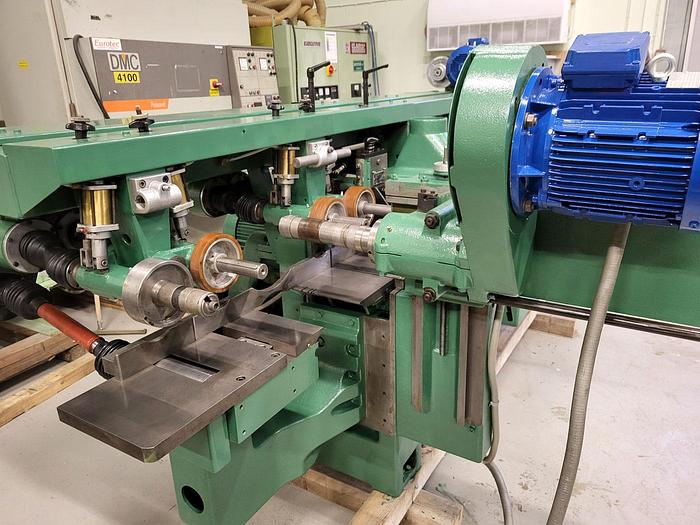

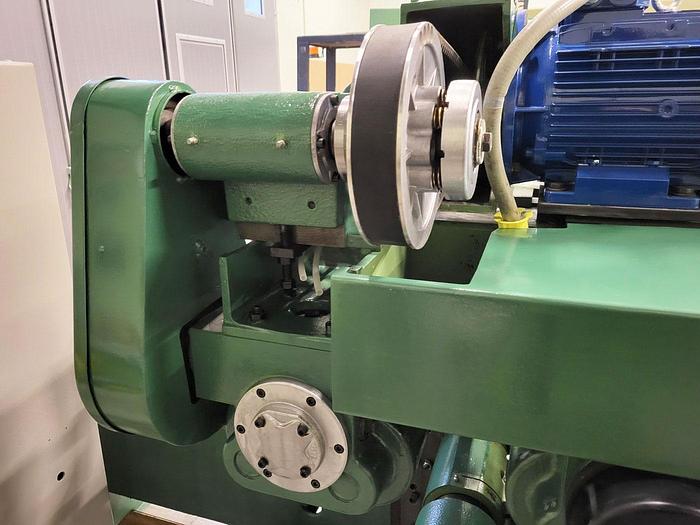

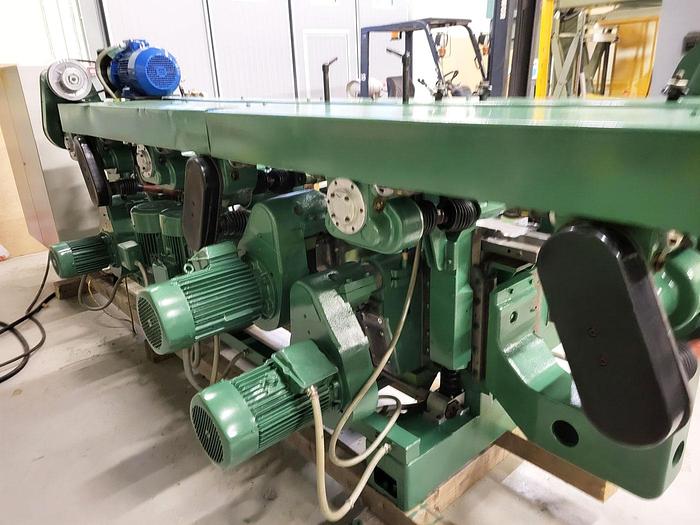

1984 Weinig Germany Four side planer / moulder Unimat 22N, 7 spindles

Four side planer / moulder Unimat 22N, 7 spindles

Year of manufacture 1984

S/N 640-492

Manufacturer Weinig Germany

planing width 220mm

planing height 120 mm

7 planing shafts:

3 smooth driven rollers in the table

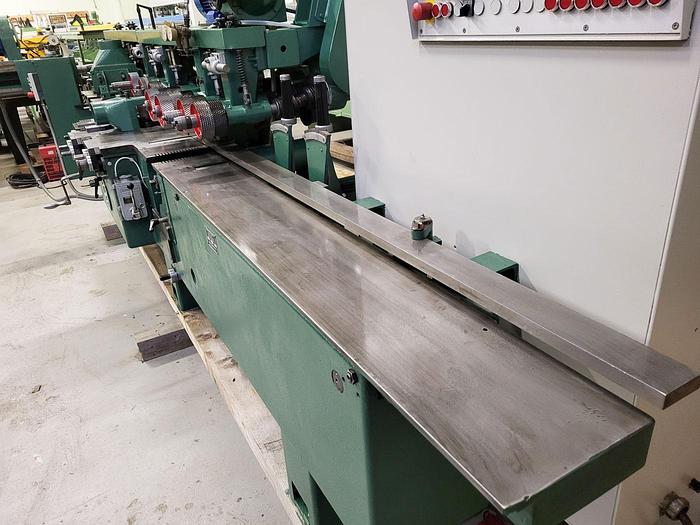

Dressing table length 2000mm

Spindle arrangement ( speed of the working spindles 6000 rpm )

1. bottom 4 kW

2. right 3 kW

3. left 4 kW

4. right 4 kW

5. top 7,5 kW

6. bottom 4 kW

7. universal11 kW

driven smooth pull-out roller in table

spindle diameter 40 mm

Flight circle of the dressing spindle 125mm

Flight circle of the joining spindle 100-180mm

Largest flying circle of the HKealing spindles 180mm

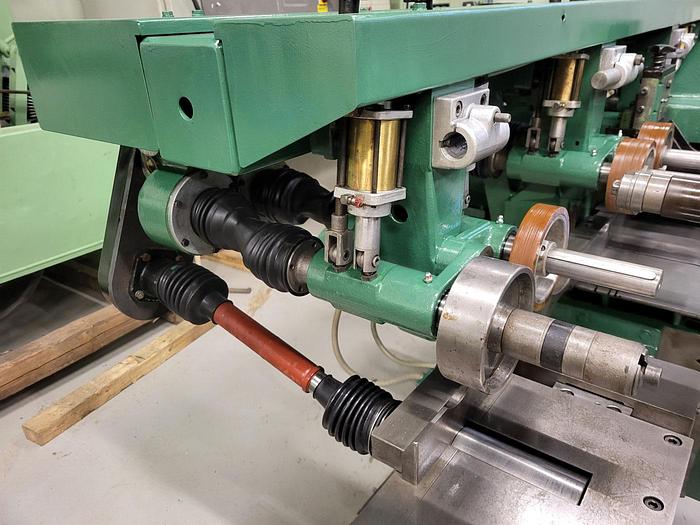

Cardan feed

Infinitely variable feed rate (frequency converter)

6-36 m /min.

Manual waxilit pump

External dimensions L 4000 mm x W 1600 mm x 1700mm

4500 Kg
